Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (09): 34-40.doi: 10.13475/j.fzxb.20220601107

• Invited Column: Textile Intelligent Manufacturing and Robotics • Previous Articles     Next Articles

Research on operation-maintenance-patrol-inspection system of yarn package dyeing latch locking robot based on augmented reality technology

WU Le1,2, ZHANG Qian1,2(), YANG Wanran1,2, XU Zhaoyue1,2, WANG Weiguan1,2, HOU Xi3

  1. 1. Beijing National Innovation Institute of Lightweight Ltd., Beijing 100083, China
    2. State Key Laboratory of Advanced Forming Technology and Equipment, Beijing 100083, China
    3. China Textile Machinery Association, Beijing 100028, China
  • Received:2022-06-06 Revised:2022-07-20 Online:2022-09-15 Published:2022-09-26
  • Contact: ZHANG Qian E-mail:zhangqian82618@163.com

RichHTML

18

PDF (PC)

139

Abstract:

According to the requirements for high reliability, stability and low operation and maintenance cost of the key robot in the yarn package dyeing process, this research took the yarn package dyeing latch locking robot as the research object and analysed intelligent inspection workflow, design system schemes and functional modules, design data interface by analyzing the operation process, inspection requirements and common faults of the latch locking robot. This research built a data model for operation-maintenance-patrol-inspection of latch locking robots and a system based on augmented reality technology, realizing the real-time data monitoring, fault monitoring and early warning, comprehensive efficiency analysis and intelligent operation-maintenance-patrol-inspection of the robot. The on-spot application showed that the reliability and the safety control of equipment operation and the convenience of maintenance were improved.

Key words: augmented reality technology, latch locking robot, data model, operation-maintenance-patrol-inspection, real-time monitoring, yarn package dyeing

CLC Number:

  • TP391.9

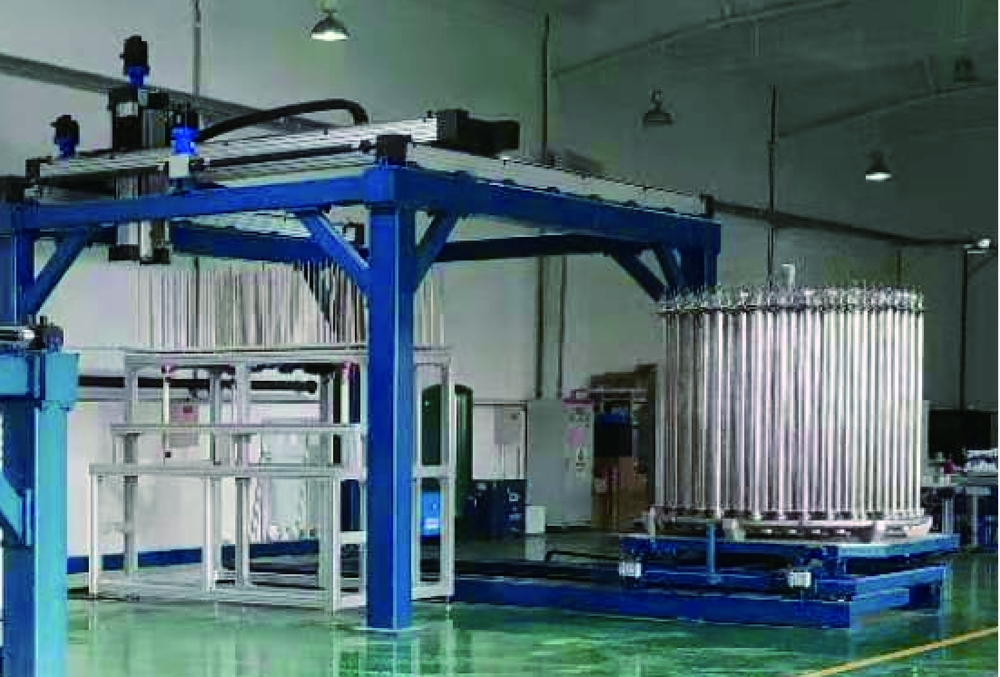

Fig.1

Latch locking robot"

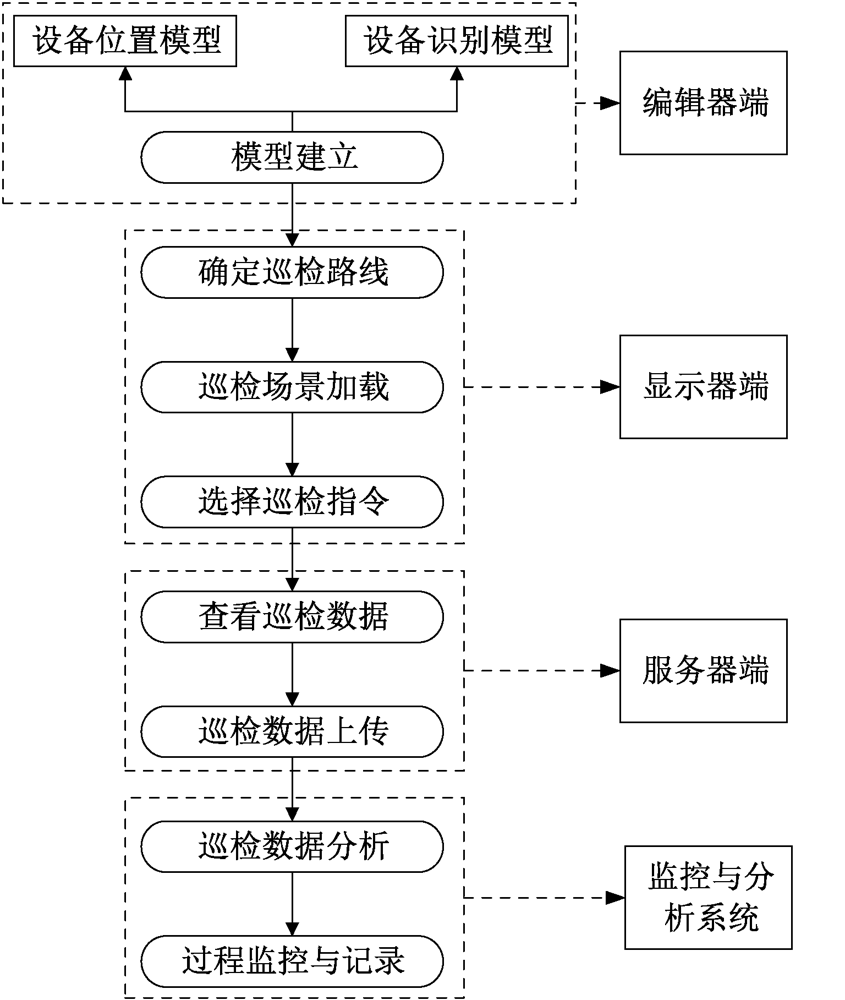

Fig.2

Intelligent patrol inspection process"

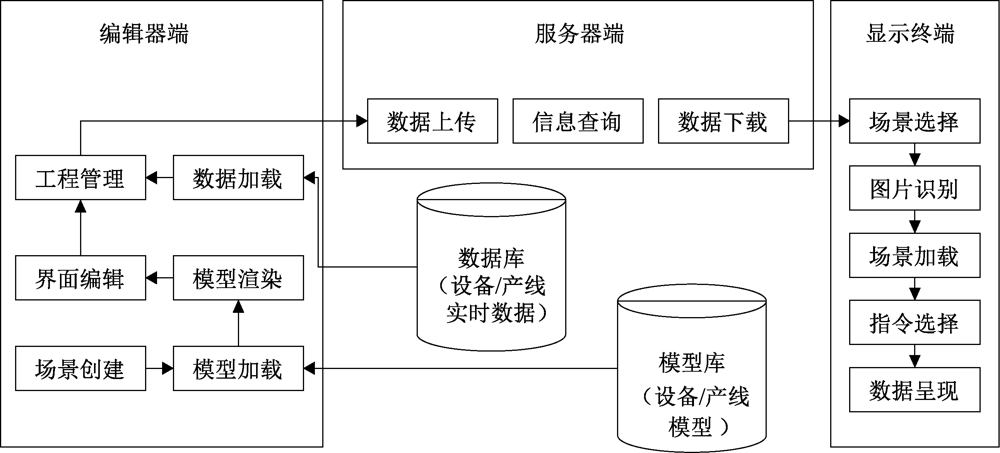

Fig.3

Research framework of intelligent operation and maintenance system"

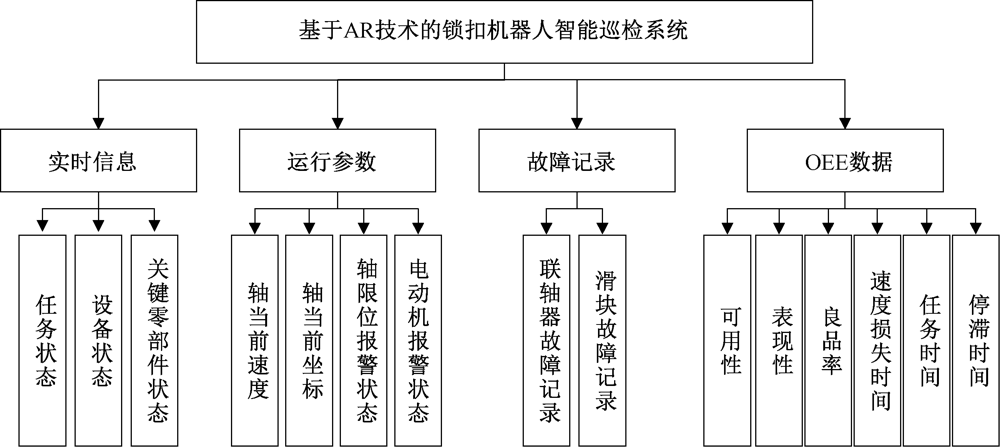

Fig.4

Data model of latch locking robot intelligent patrol system"

Tab.1

Data category and source"

类型 数据
类别		 实时
数据		 数据
来源
实时
信息		 任务状态 任务号、纱笼号、任务进度、操作类别、颜色类别、纱笼杆号、托盘杆号、缓存层数、缓存数量 PLC
设备状态 单机/联机、手动/自动、空闲/工作、正常/报警
关键零部
件状态		 手抓气缸、升降气缸、扶正气缸
运行
参数		 轴当前
速度		 X轴、Y轴、Z轴、纱笼移载车W轴、缓存架升降轴 PLC/
传感器
轴当前
坐标		 X轴、Y轴、Z轴、纱笼移载车W轴、缓存架升降轴
轴限位预
警状态		 X轴、Y轴、Z轴、纱笼移载车W轴
电机报
警状态		 X轴、Y轴、Z轴、纱笼移载车W轴
故障
记录		 联轴器故
障记录		 X轴、Y轴、Z轴 PLC/
数据库
滑块故
障记录		 X轴、Y轴、Z轴

Fig.5

Data communication architecture"

Fig.6

Composition of patrol inspection system of latch locking robot"

Fig.7

Patrol inspection scene design"

Fig.8

Patrol inspection scene selection"

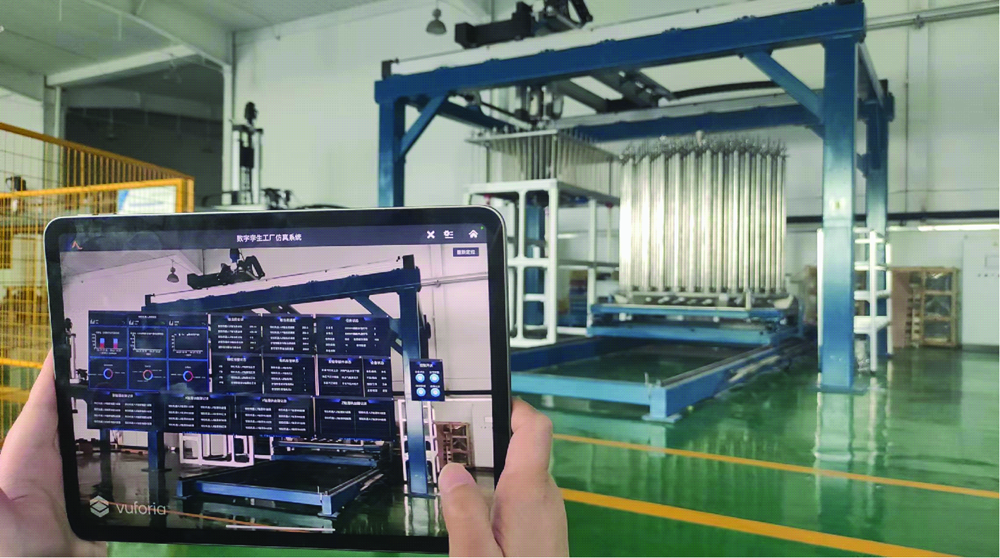

Fig.9

System test scenario"

Fig.10

System partial interface design"
