Journal of Textile Research ›› 2024, Vol. 45 ›› Issue (01): 211-219.doi: 10.13475/j.fzxb.20220803701

• Machinery & Equipment • Previous Articles     Next Articles

Design of constant yarn feeding tension control system for circular knitting machines based on active disturbance rejection control

PENG Laihu1, XIE Guowang1, DAI Ning1,2()

  1. 1. Key Laboratory of Modern Textile Machinery & Technology of Zhejiang Province, Zhejiang Sci-Tech University, Hangzhou,Zhejiang 310018, China
    2. College of Textile Science and Engineering(Intemational Institute of Silk),Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2022-08-15 Revised:2023-03-10 Online:2024-01-15 Published:2024-03-14

RichHTML

3

PDF (PC)

53

Abstract:

Objective Yarn tension is a critical parameter in the textile process, and its fluctuation directly affects the fabric quality. Aiming at the problems existing in the yarn feeding mode of circular knitting machines, such as large fluctuation of yarn tension, unadjustable yarn tension and feeding speed, a new yarn feeding control system based on active disturbance rejection control is proposed.

Method Through the mathematical modeling of yarn tension, its formation mechanism and influencing factors were clarified. Based on this, a series of design schemes were proposed, such as the control strategy of feeding with constant tension, the main hardware structure of the system, and the closed-loop control algorithm of yarn tension. The system used PID controller to control the speed loop of the brushless direct-current (DC) motor in the inner closed loop and and active disturbance rejection controller to control the tension loop of yarn in the outer closed loop. Both of them constituted the inner and outer double closed loop control system of constant tension yarn feeding on circular knitting machine. Among them, active disturbance rejection control technology was adopted to obtain real-time yarn dynamic index, and to combine each yarn dynamic index through a nonlinear combination method to obtain the corrected reference speed of the brushless DC motor. The reference speed was finally applied to the brushless DC motor through the field oriented control technology. It was adopted to adjust the yarn feeding speed and ensure that the yarn tension is maintained near the set value.

Results The yarn feeding test showed that the system achieved better results in controlling yarn tension fluctuation and overshoot. Taking the first group of experiments as an example, the yarn tension overshoot decreased by 50% and 54%, respectively, and the standard deviation of tension fluctuation decreased by 15% and 25%, respectively. The second group of experiments also reflected this rule, and it also showed that the fluctuation of yarn tension increased significantly with the increase of yarn feeding speed. When the target yarn tension increased by 52% instantaneously, the actual yarn tension reached the target yarn tension without obvious overshoot within 70ms. At the same time, the tension showed good real-time and following performance during continuous changes. In case of sudden change of yarn feeding speed, the yarn feeder reacted quickly to ensure that the yarn tension was still maintained close to the set value, and the yarn tension overshoot during the speed change process was controlled within 20%. In addition, the feeder also demionstrated good performance of constant tension control for elastic and non-elastic yarn. The test results suggested the suitability for the constant tension yarn feeding control system to be used for feeding yarns with small tension fluctuation and readjustable yarn feeding speed and yarn tension, which meets the process requirements for the circular knitting under different working conditions.

Conclusion The new constant tension yarn feeding control system plays an important role in improving the intelligence of circular knitting machine, reducing the surface defects of fabrics, improving the elastic evenness of fabrics, and reducing the yarn breaking rate. The yarn feeder has the characteristics of programmability and wide range of yarn applications. It can also be conveniently applied to automatic winding machine, hosiery machine, seamless underwear machine and other textile equipments. Considering the large fluctuation of yarn tension under high-speed feeding conditions, a series of optimizations should be made in future research for the wire storage disk of the yarn feeder for yarns with small diameter and weak strength, such as the winding path, the number of winding turns, and the roughness of the contact surface of the wire storage disk.

Key words: constant tension, yarn feeder, brushless direct-current motor, field oriented control, active disturbance rejection, circular knitting machine control

CLC Number:

  • TS181.8

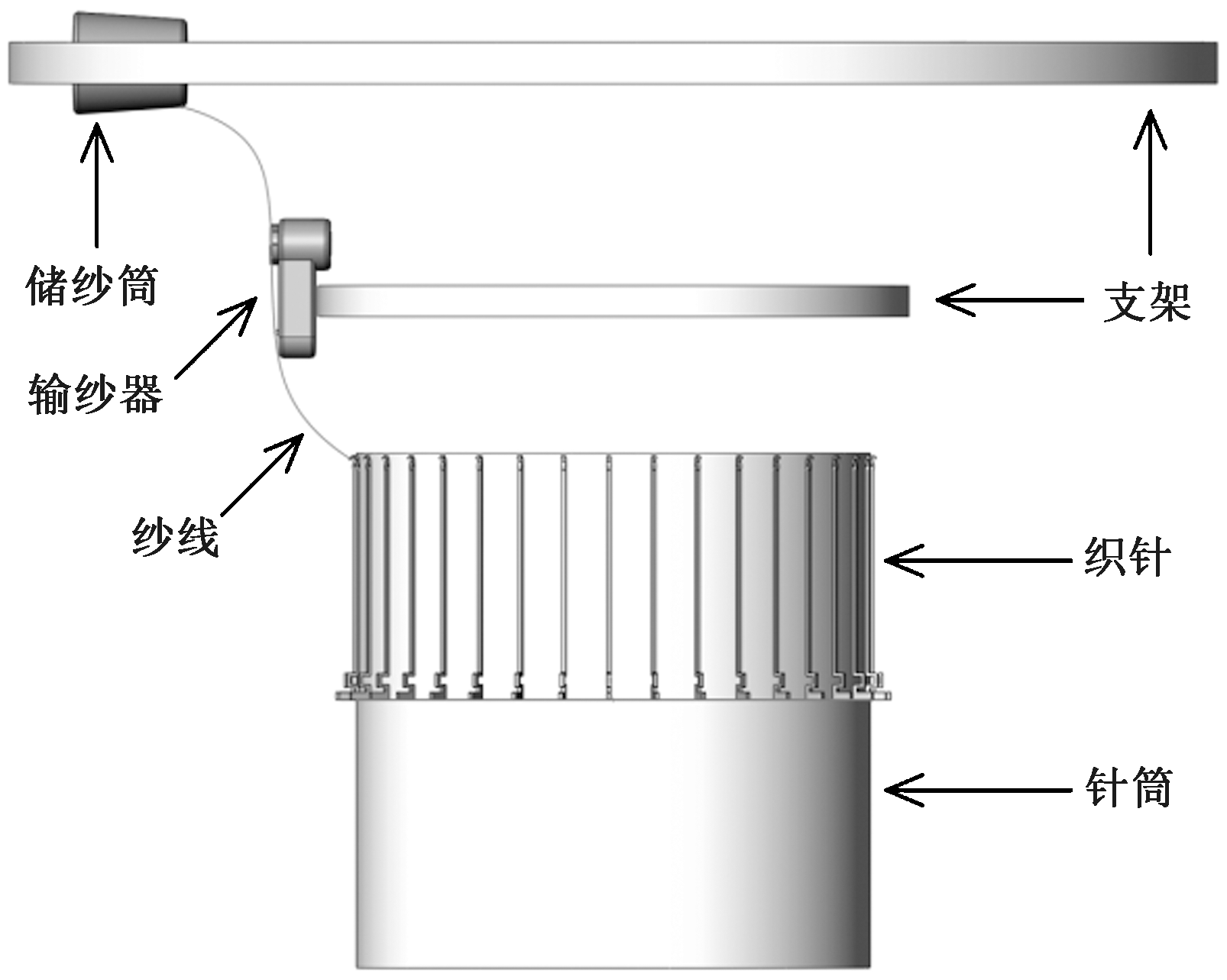

Fig.1

Mechanical structure diagram of circular knitting machine"

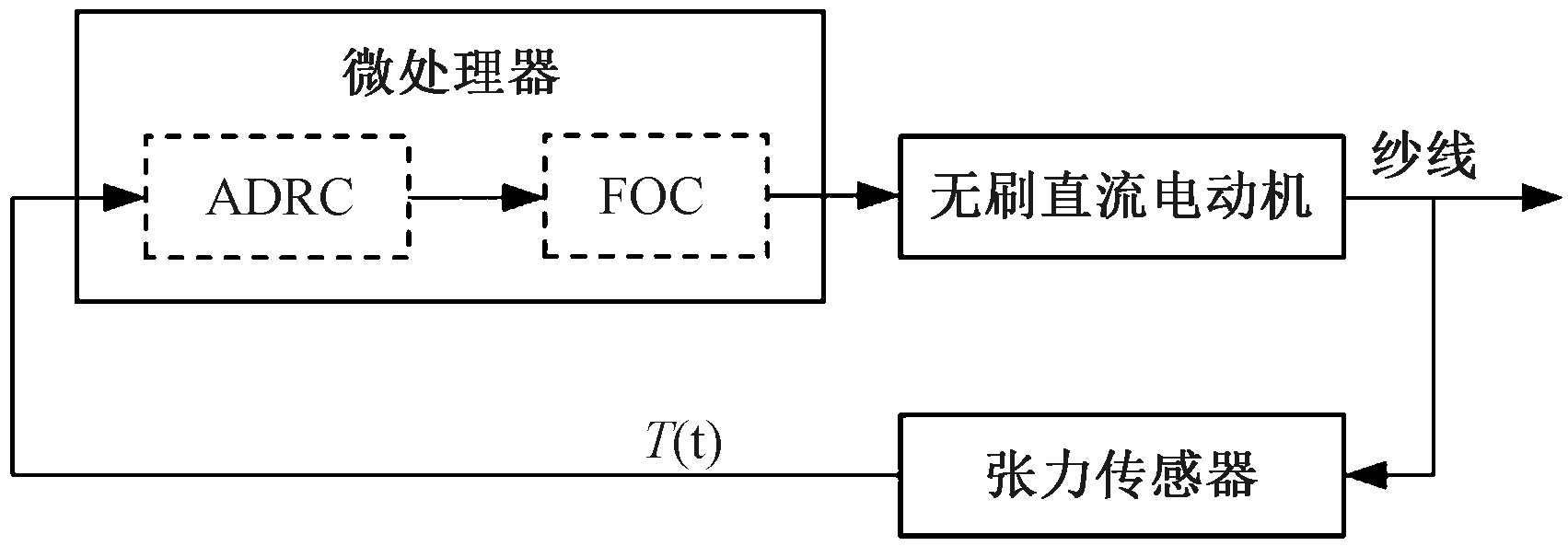

Fig.2

Overall scheme of constant yarn tension feeding control system for circular knitting machine"

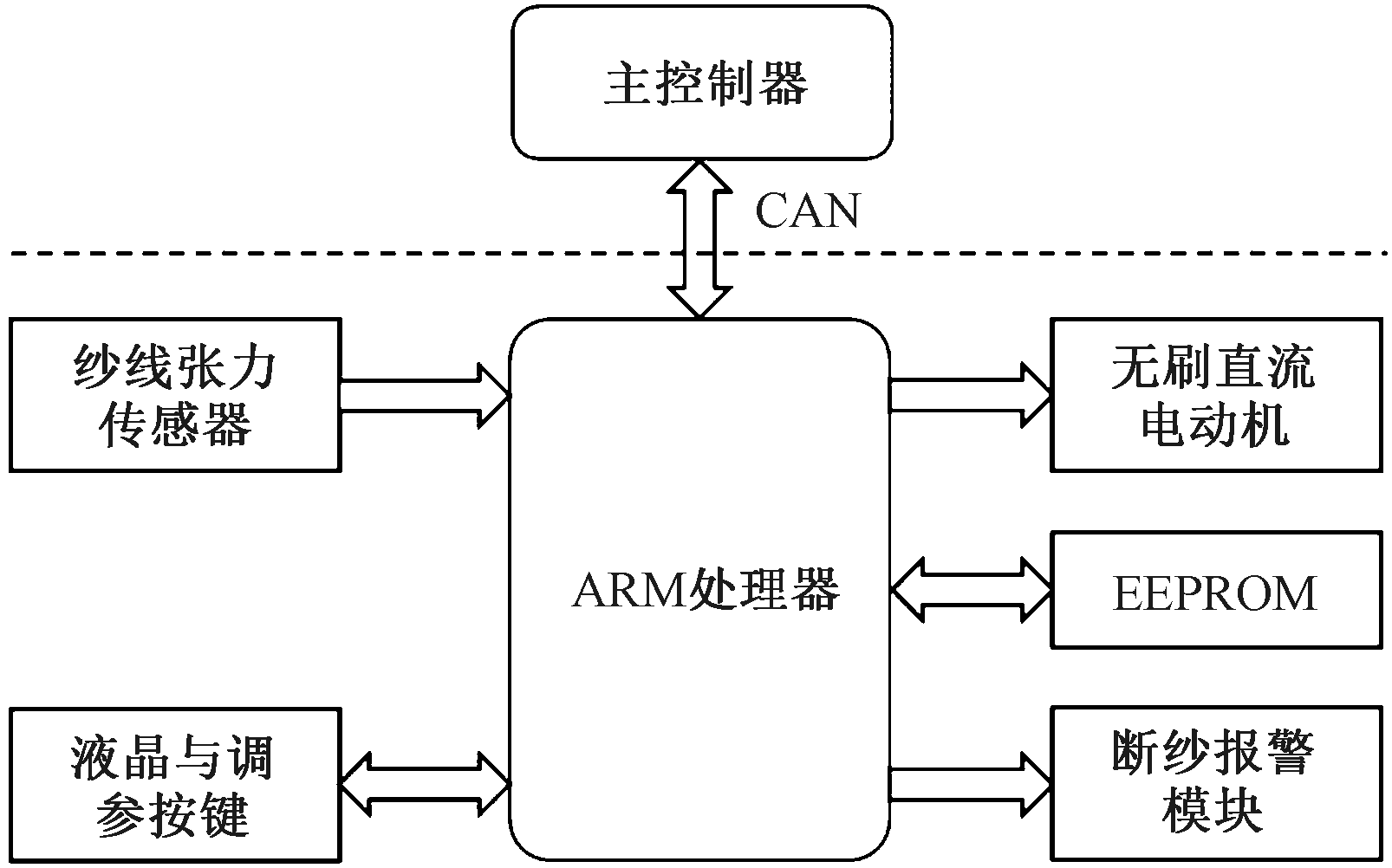

Fig.3

Overall hardware structure diagram of system"

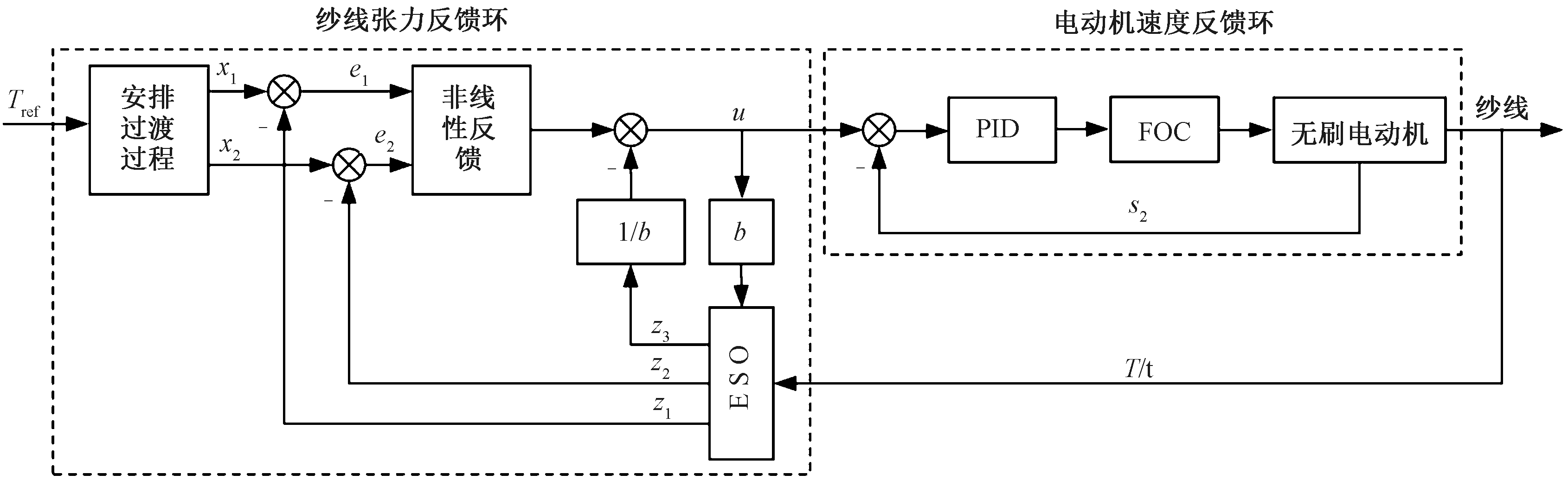

Fig.4

Constant yarn tension control algorithm framework"

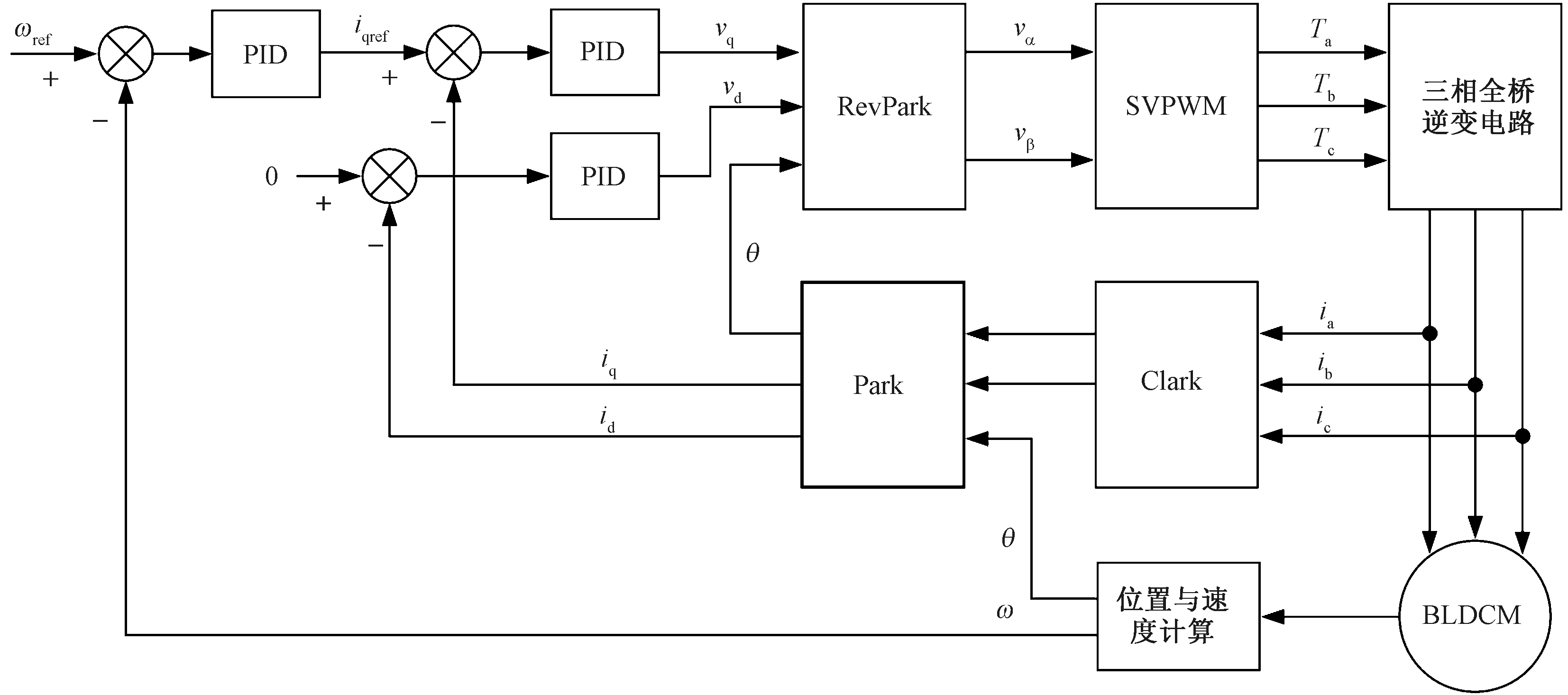

Fig.5

Block diagram of field oriented control of BLDCM"

Tab.1

Symbolic variables and descriptions in FOC control"

符号名 符号说明 符号名 符号说明
ωref 电动机参考转速 vα α轴电压矢量
ω 电动机实际转速 vβ β轴电压矢量
θ 电动机转子角度 ia 电动机A相电流
iqref 转速控制信号 ib 电动机B相电流
iq 交轴电流矢量 ic 电动机C相电流
id 直轴电流矢量 Ta A相逆变器开启时间
vq 交轴控制信号 Tb B相逆变器开启时间
vd 直轴控制信号 Tc C相逆变器开启时间

Fig.6

Test platform of constant yarn tension feeding"

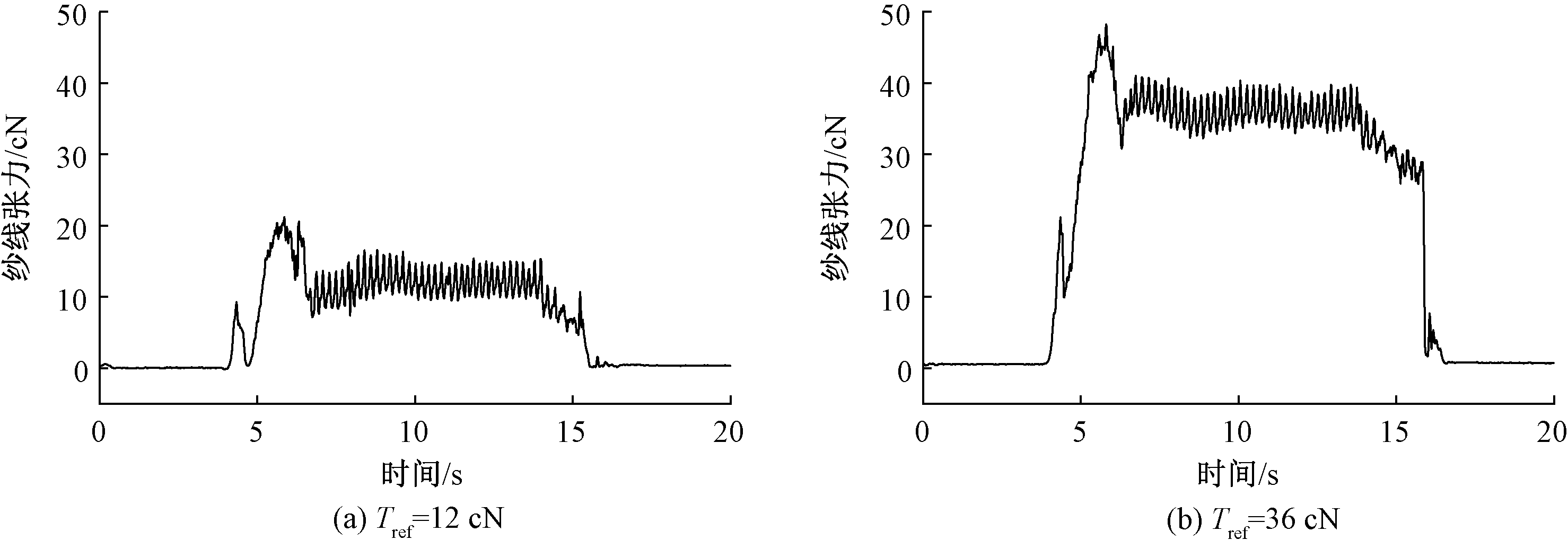

Fig.7

Fluctuation of yarn tension under different target tensions by ADRC"

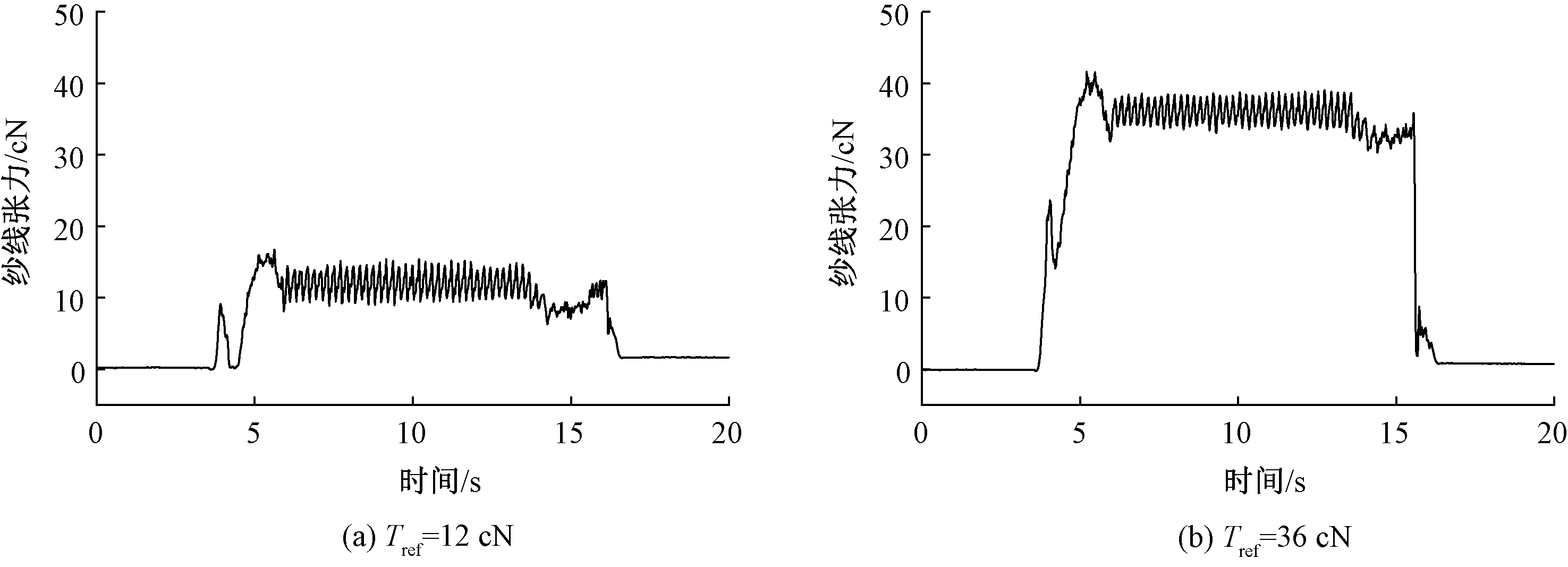

Fig.8

Fluctuation of yarn tension under different target tension by PID"

Fig.9

Fluctuation of yarn tension under different feeding speeds by ADRC"

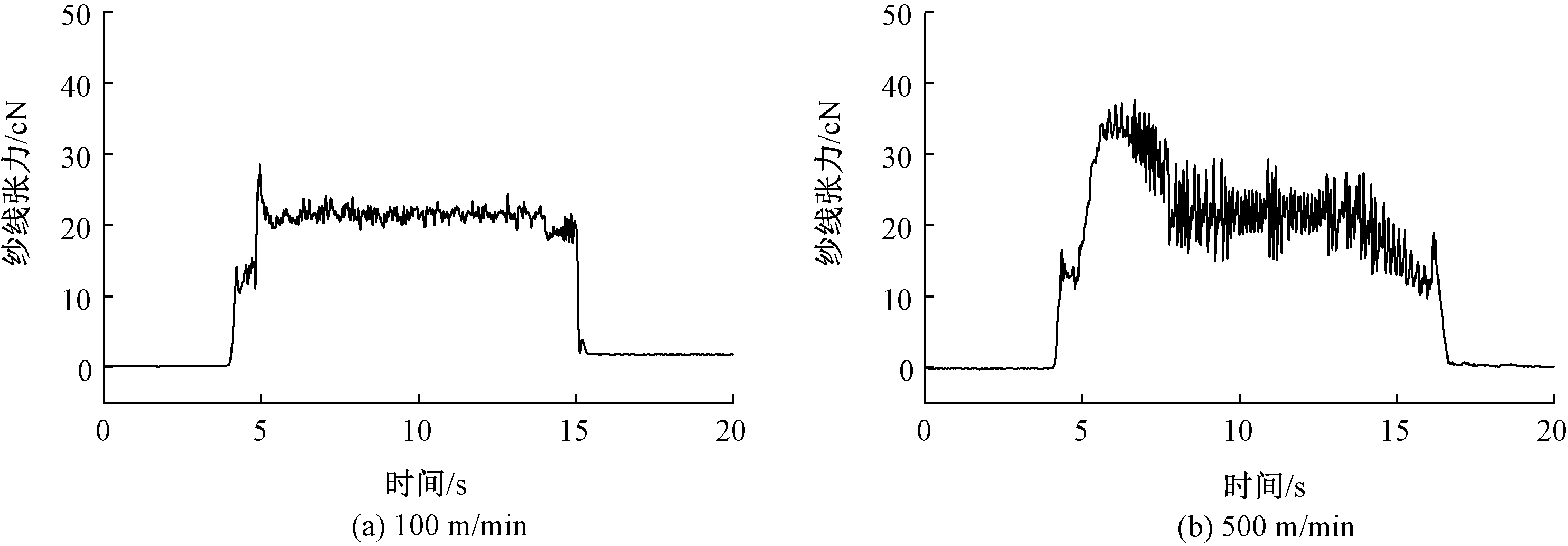

Fig.10

Fluctuation of yarn tension under different feeding speeds by PID"

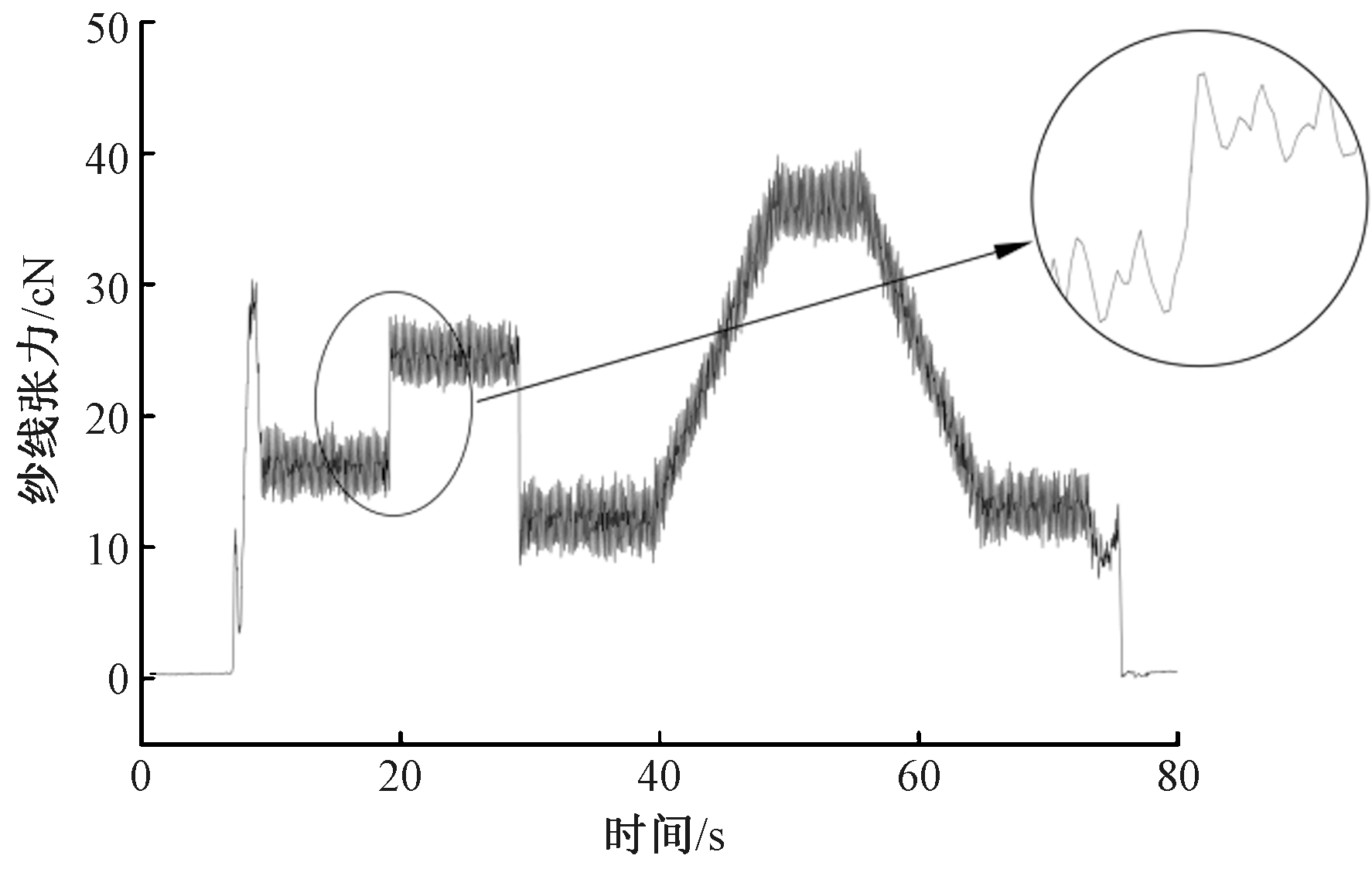

Fig.11

Fluctuation of yarn tension under variable yarn tension feeding"

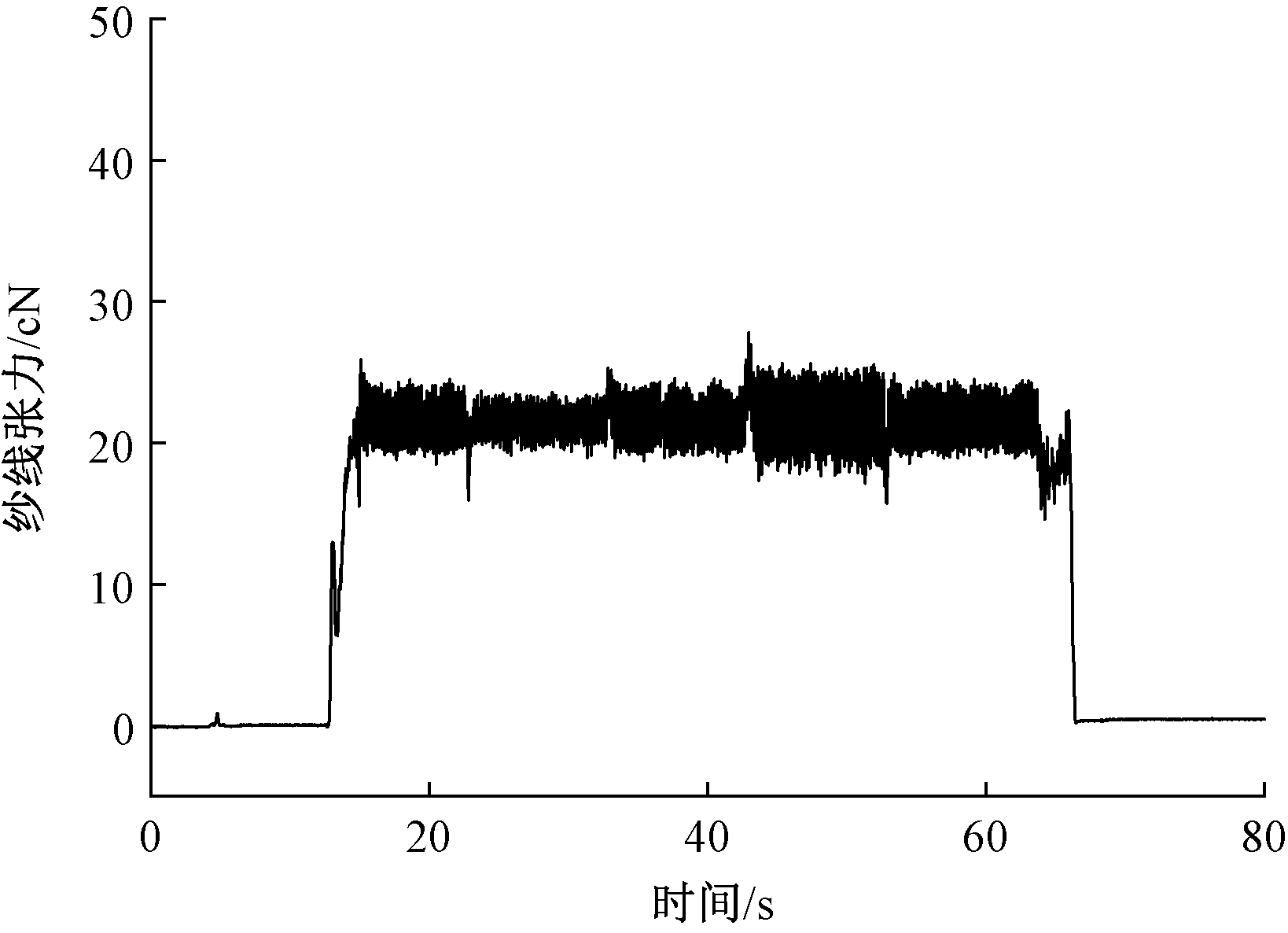

Fig.12

Fluctuation of yarn tension under variable yarn feeding speed"

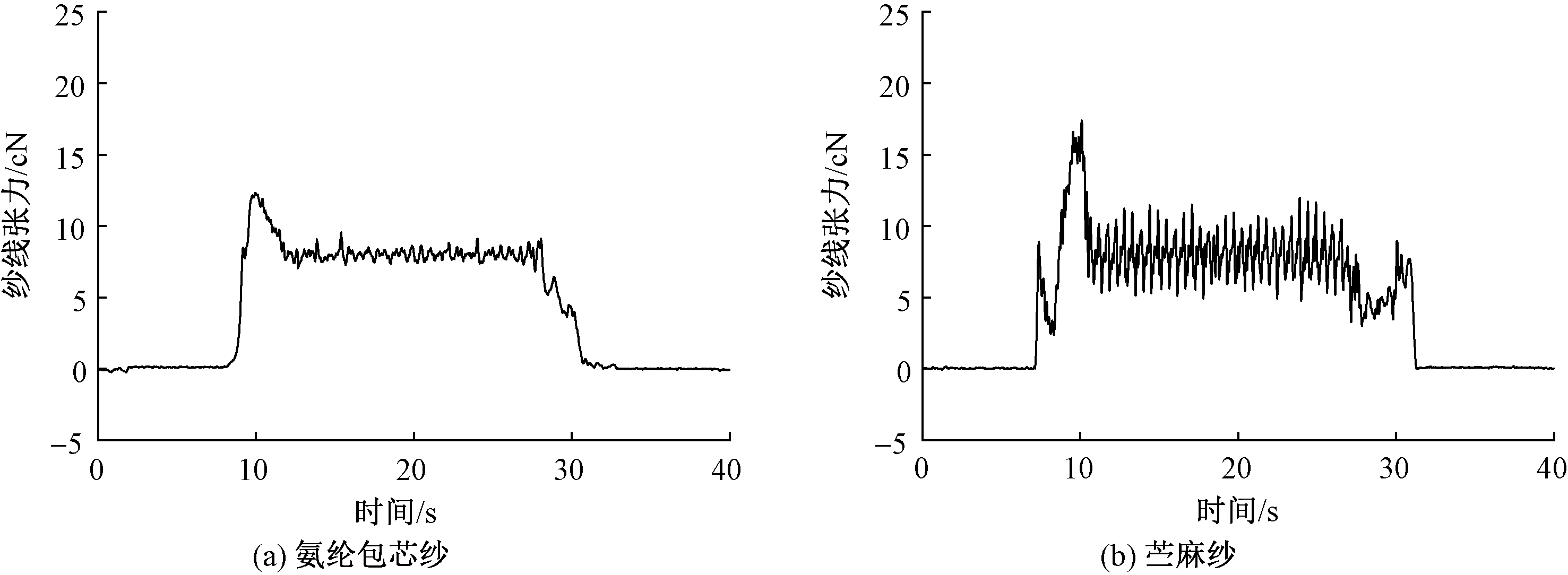

Fig.13

Tension fluctuation of elastic and inelastic yarns (a) Polyurethane core-spur yarn; (b) Ramic yarn"

[1] 李雪娇, 张琦. 高速经编机纱线动态张力自适应式积极调控[J]. 针织工业, 2022,(5):13-16.
LI Xuejiao, Zhang Qi. Adaptive active control of yarn dynamic tension on high speed warp knitting machine[J]. Knitting Industries, 2022, (5): 13-16.
[2] 王锦鹏. 纬编大圆机针织面料横档疵点的研究[D]. 上海: 东华大学, 2020:4-12.
WANG Jinpeng. Investigation on transverse defects of knitted fabrics on circular knitting machine[D]. Shanghai: Donghua University, 2020: 4-12.
[3] 彭来湖, 罗昌, 牛冲, 等. 针织纬编氨纶输送控制技术[J]. 纺织学报, 2021, 42(4):162-169.
PENG Laihu, LUO Chang, NIU Chong, et al. Control technology for spandex yarn delivery in weft knitting[J]. Journal of Textile Research, 2021, 42(4): 162-169.
[4] 戴宁, 彭来湖, 胡旭东, 等. 圆纬机主动式动态送纱控制技术[J]. 纺织学报, 2018, 39(9):153-159.
DAI Ning, PENG Laihu, HU Xudong, et al. Control technology for active dynamical yarn feeding for circular weft knitting machine[J]. Journal of Textile Research, 2018, 39(9): 153-159.
[5] 马海鹏. 针织圆纬机自动化和信息化关键技术研究[D]. 杭州: 浙江理工大学, 2017:15-17.
MA Haipeng. Research on the key technology of the automation and information of circular knitting machine[D]. Hangzhou: Zhejiang Sci-Tech University, 2017: 15-17.
[6] 郑灵瑜. 圆纬机高精度动态送纱步进电机控制技术的研究[D]. 西安: 西安工程大学, 2021:13-14.
ZHENG Lingyu. Research on control technology of high-precision dynamic yarn feeding stepping motor for circular weft knitting machine[D]. Xi'an: Xi'an Polytechnic University, 2021: 13-14.
[7] 曹萱, 关文卿, 罗蕊. 基于SVPWM及ADRC算法的无刷直流电机转矩脉动抑制控制系统研究[J]. 测控技术, 2021, 40(1):150-156.
CAO Xuan, GUAN Wenqing, LUO Rui. Brushless motor torque ripple suppression control system based on SVPWM and ADRC algorithm[J]. Measurement & Control Technology, 2021, 40(1): 150-156.
[8] 戴宁, 彭来湖, 胡旭东, 等. 基于轴向运动悬臂梁理论的无缝内衣机织针横向振动特性[J]. 纺织学报, 2021, 42(2):193-200.
DAI Ning, PENG Laihu, HU Xudong, et al. Transverse vibration characteristics of knitting needles in seamless underwear machines based on axial movement cantilever beam theory[J]. Journal of Textile Research, 2021, 42(2): 193-200.
[9] OZGE C, RECEP E. Experimental investigation of effect of balloon length on yarn tension during unwind-ing[J]. International Journal of Clothing Science and Technology, 2019, 31(4): 495-509.
doi: 10.1108/IJCST-08-2018-0105
[10] 王延年, 武阳, 吕志发, 等. 输纱器恒张力模糊ADRC控制策略研究[J]. 国外电子测量技术, 2021, 40(8):52-56.
WANG Yannian, WU Yang, Lv Zhifa, et al. Research on fuzzy ADRC control strategy of constant tension yarn feeder[J]. Foreign Electronic Measurement Technology, 2021, 40(8): 52-56.
[11] 陈传亮, 王成群, 吕文涛, 等. 纱线张力传感器的研究进展[J]. 现代纺织技术, 2022, 30(4):1-10.
CHEN Chuanliang, WANG Wengqun, LV Wentao, et al. Research progress on yarn tension sensors[J]. Advanced Textile Technology, 2022, 30(4):1-10.
[12] 乔鑫宇, 周文雅, 吴国强. 自抗扰fal函数的改进及在无拖曳卫星中的应用[J]. 航天控制, 2022, 40(4):38-44.
QIAO Xinyu, ZHOU Wenya, WU Guoqiang. Fal function improvement of ADRC and its application in drag-free satellite[J]. Aerospace Control, 2022, 40(4):38-44.
[13] 韩京清. 从PID技术到“自抗扰控制”技术[J]. 控制工程, 2002, 9(3):13-18.
HAN Jingqing. From PID technology to ADRC tech-nology[J]. Control Engineering of China, 2002, 9(3): 13-18.
