Migration properties of commercial polyethylene terephthalate staple fiber oligomers and influencing factors thereof

XIE Yanxia1,2, ZHANG Weiqiang1, XU Yaning1, ZHAO Shuhan1, YIN Wenxuan1, ZHANG Wenqiang3, HAN Xu1,2()

  1. 1. School of Textiles and Garments, Anhui Polytechnic University, Wuhu, Anhui 241000, China
    2. Research Center of Textile Engineering Technology of Anhui Province, Wuhu, Anhui 241000, China
    3. Chuzhou Seeker Solution Dyed Co., Ltd., Chuzhou, Anhui 239000, China
  • Received:2022-09-15 Revised:2023-03-29 Online:2024-01-15 Published:2024-03-14

RichHTML

8

PDF (PC)

49

Abstract:

Objective With the development of fine denier and high-speed spinning technology, the phenomenon of oligomers migration and powders shedding from the surface of polyethylene terephthalate(PET) fiber became more and more serious, which would greatly impact on the production efficiency, quality and workers' health during the spinning and dyeing processes. It is necessary to solve the problem by exploring the migration mechanism and the structure-activity relationships of oligomers during staple fiber processing, and thus adjust the production conditions to prevent the migration.

Method Two types of commercial PET staple fibers with obvious difference in white powder shedding properties were extracted and thermal induced to obtain extractive fibers, thermally induced fibers and oligomers, respectively. The thermal induction temperature was determined on the practical process of the post-spinning process. Scanning electron microscopy, differential scanning calorimetry(DSC), ultraviolet-visible spectrophotometry and X-ray diffractomety (XRD) techniques were carried out to analyze the structural constituent, precipitate law and precipitate mechanism of the oligomers.

Results The main components of the oligomers derived from these two fibers were both cyclic trimers (C3) and a small amount of PET microcrystalline polymers (PET microlite). The fibers which shed more powders (HM) detected few oligomers with high melting point should be assigned to the C4 polymers. The C3 oligomers and PET microlites were of relatively high melting temperature at 173.5 and 146.7 ℃, respectively, and the melting temperature for C4 was around 274.6 ℃. While the C3 and PET microlites for the fibers which shed less powders (LM) have low melting temperature around 171.8 ℃ and 139.0 ℃, respectively. The C3 in PET staple fiber, solvent extraction substance and pyroprocess existed as A type, B type and A/B mischcrystal type, respectively. The melting temperature of A type C3 and B type C3 from HM polymers were 173.5 and 314.5℃ while the A type C3 and B type C3 from HM polymers were relatively lower, at 171.8 and 312.6 ℃, respectively. The HM and LM fibers showed similar oligomers mass ratio as 1.37% and 1.42%. Compared with the no shedding PET fiber, the shedding powder fibers contained significantly higher amount of oligomers and the crystallinity was 57.73% (11.25% lower). Moreover, the HM fibers maintained relatively small amount of A type trimer whose melting point was 1.7 ℃ higher, and B type trimer was about 1.9 ℃ higher, and relatively higher amount of cyclic polymers containing diethylene glycol residues. It is found that when the two fibers were subjected to thermal induction in hot air from 140 to 200 ℃ for 1h, the oligomers migrated from the two of fibers possesses point-like crysta at 140, 160 and 180 ℃, and the amount of oligomers increased with the rise of temperature, on the other hand, the low powder shedding fibers migrated less oligomers. When the induction temperature reached 200 ℃, the oligomers migrated from the surface of these two fibers were mainly multi-sided crystal type, the amount of precipitation increased rapidly compared with that at 140-180 ℃, and the crystal type and quantity tended to be the same quantity.

Conclusion The powders shedding phenomenon during staple fiber processing has no corresponding relationship with the mass ratio of total oligomers, however, it holds a positive relationship with the quantity of oligomers migrated on the fiber surface, and thermal induction is an important factor affecting the migration of PET staple fiber oligomers. Fibers heat treatment process in post-processing, the crystallinity of the fibers, and the mass ratio of ethylene glycol to terephthalic acid during polymerization may be the influencing factors affecting the powder shedding properties of oligomers. The temperature during fibers post-processing, cooling craft and the mass ratio of ethylene glycol in polymerization could be effective methods to prevent fibers from shedding powders.

Key words: polyethylene terephthalate staple fiber, oligomer migration, thermal induction, cyclic oligomer, cyclic trimer

CLC Number:

  • TS102.1

Fig.1

Morphologies of staple fibers before and after extraction (×1 000). (a) HM staple fiber; (b) HM extracted fiber; (c) LM staple fiber; (d) LM extracted fiber"

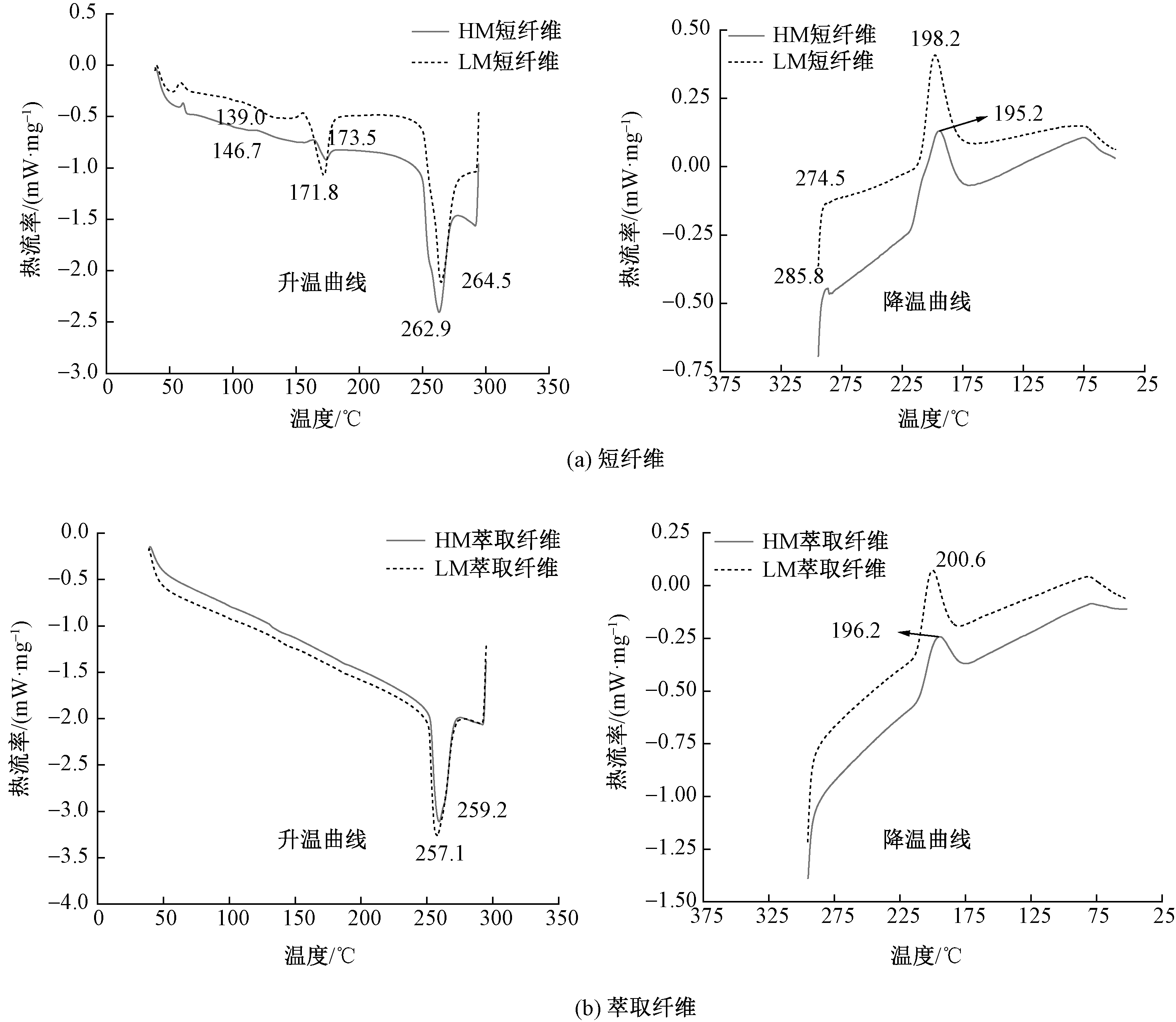

Fig.2

DSC heating and cooling curves of HM and LM staple fibers before and after extraction. (a) Staple fiber; (b) Extracted fibers"

Fig.3

Morphologies of HM (a) and LM (b) oligomers (×5 000)"

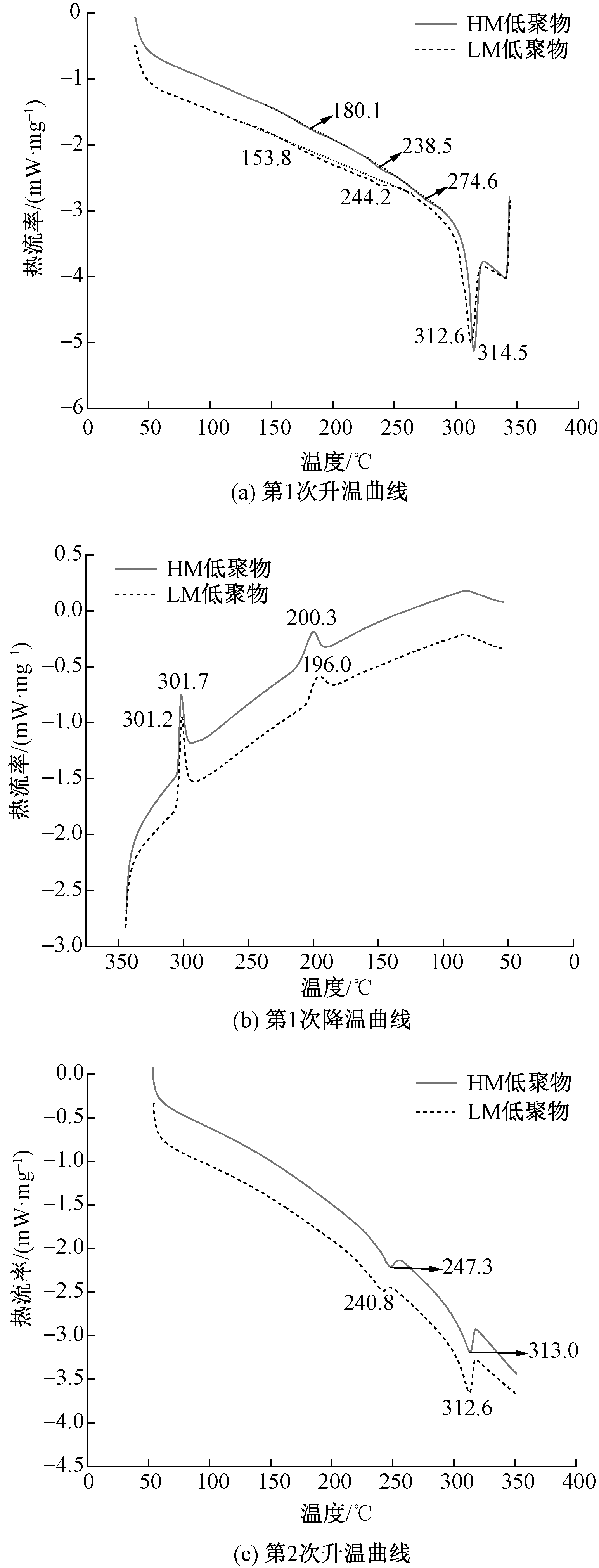

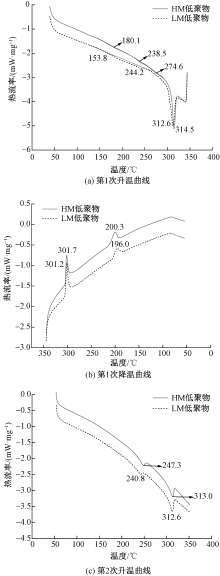

Fig.4

DSC curves of HM and LM oligomers. (a) Primary heating curves; (b) Primary cooling curves; (c) Secondary heating curves"

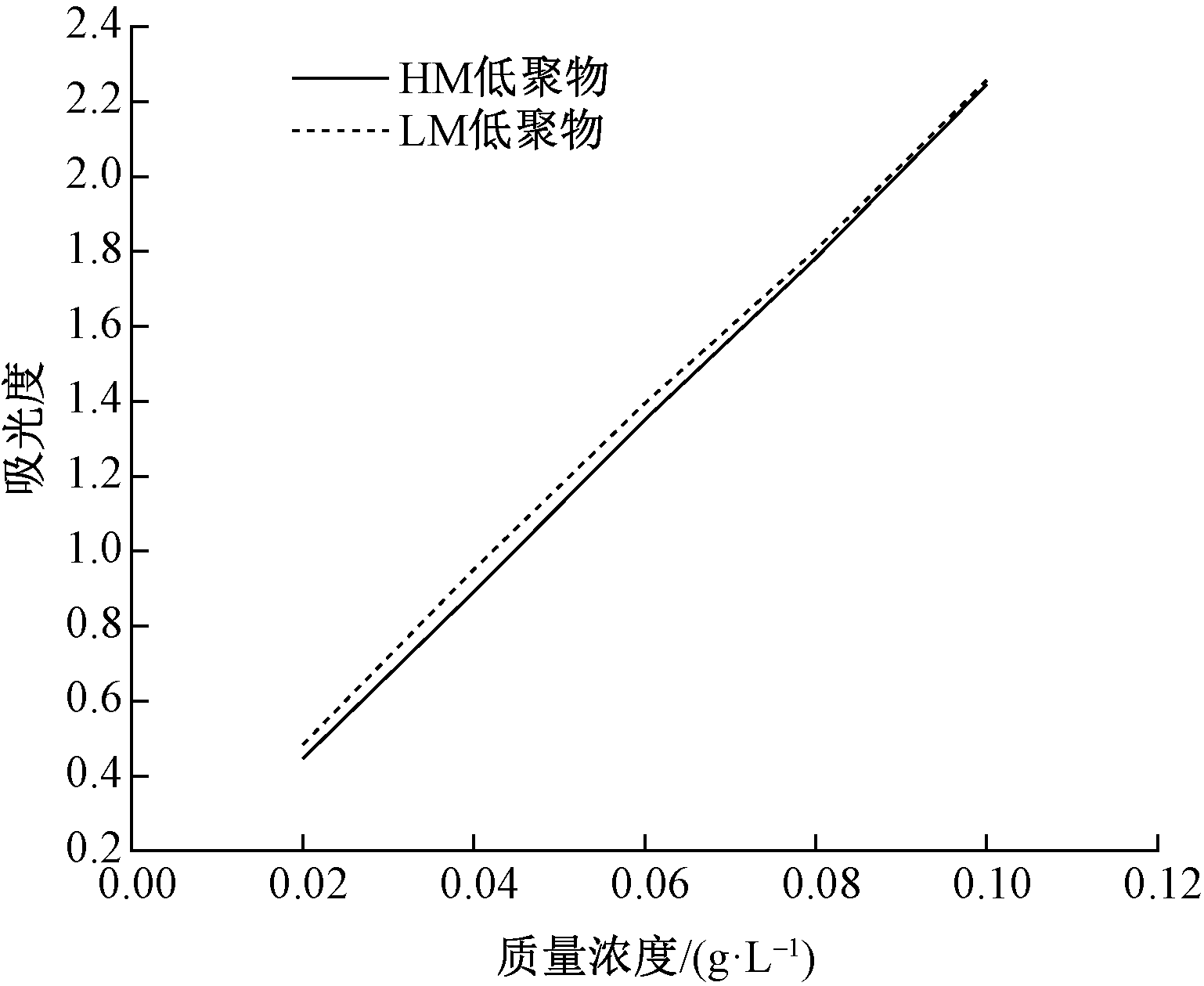

Fig.5

UV absorbance spectral curves of HM and LM oligomers"

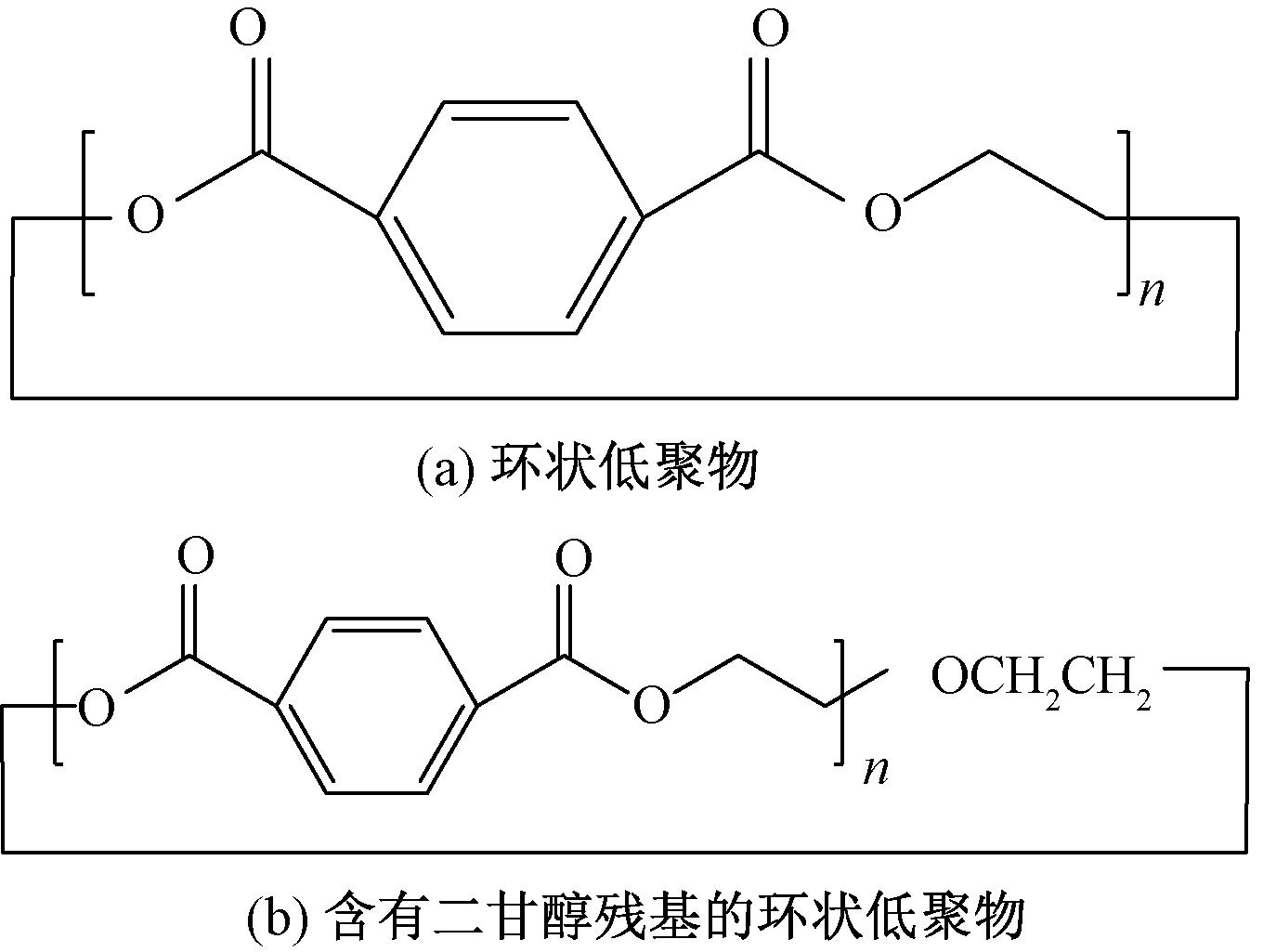

Fig.6

Cyclic oligomers structures of PET. (a) Cyclic oligomers; (b) Cyclic oligomers with diethylene glycol residues"

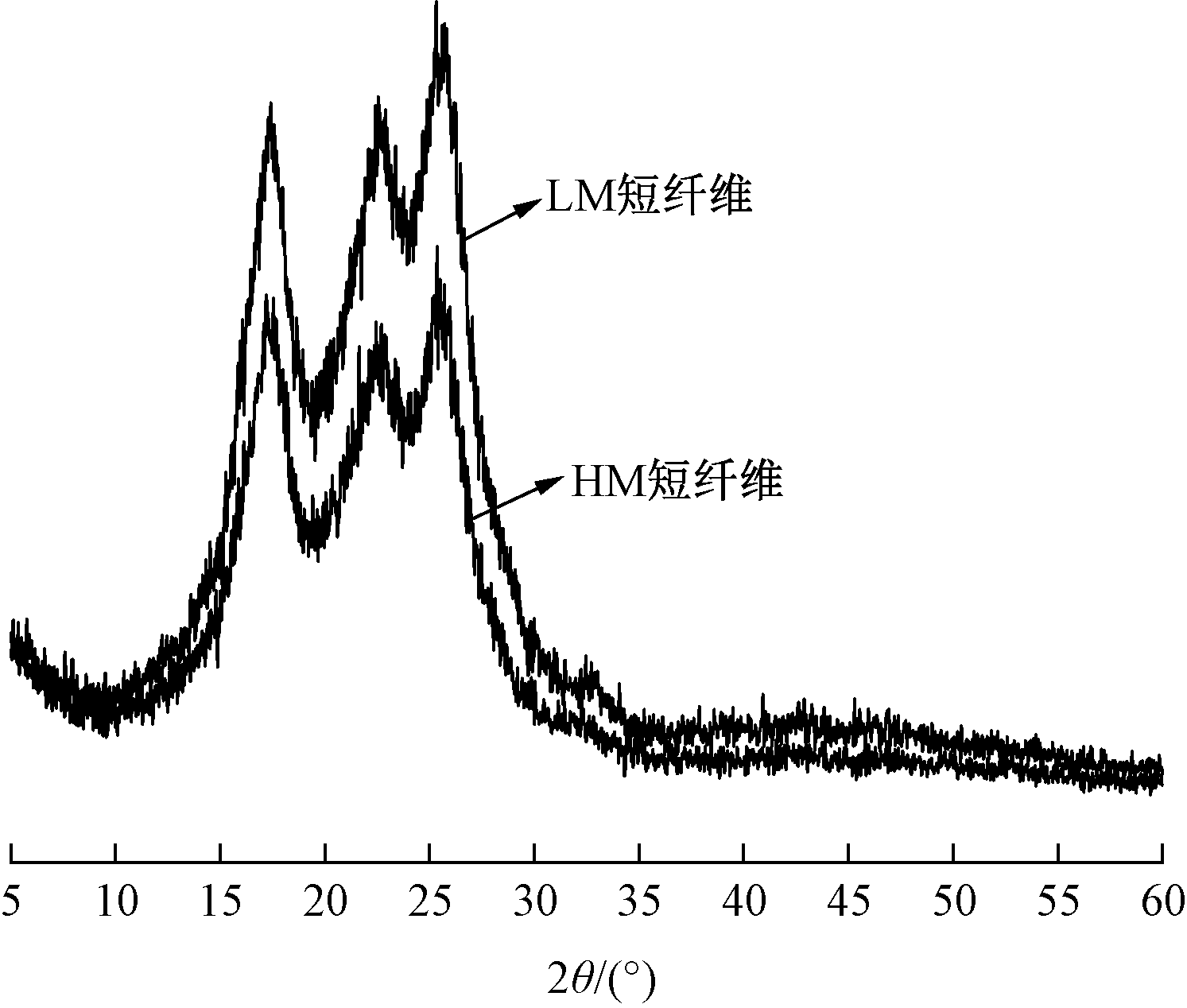

Fig.7

XRD curves of HM and LM staple fibers"

Fig.8

Influence of heat induction on morphologies of HM staple fibers (×1 000). (a) HM staple fiber; (b) 140 ℃,1 h; (c) 160 ℃,1 h ; (d) 180 ℃,1 h; (e) 200 ℃,1 h"

Fig.9

Influence of heat induction on morphologies of LM staple fibers(×1 000). (a) LM staple fiber; (b) 140 ℃,1 h; (c) 160 ℃,1 h; (d) 180 ℃,1 h; (e) 200 ℃,1 h"

[1] LI Hao, PEI Liujun, ZHANG Hongjuan, et al. Extraction of cyclic oligomer and their influence on polyester dyeing in a silicone waterless dyeing system[J]. Polymers, 2021. DOI:10.3390/polym13213687.
[2] 赵梦肖, 包建娜, 王滢, 等. PET环状低聚物的表征及其开环聚合研究[J]. 合成纤维工业, 2021, 44(2): 32-37.
ZHAO Mengxiao, BAO Jianna, WANG Ying, et al. Characterization and ring-opening polymerization of PET cyclic oligomer[J]. China Synthetic Fiber Industry, 2021, 44(2): 32-37.
[3] 祝爱兰, 任明利. PET中环状齐聚物的研究[J]. 上海化工, 2005 (5): 24-28.
ZHU Ailan, REN Mingli. Study on ring oligomers in PET[J]. Shanghai Chemical Industry, 2005(5): 24-28.
[4] BRYANT J J L, SEMLYEN J A. Cyclic polyesters: 6: preparation and characterization of two series of cyclic oligomers from solution ring-chain reactions of poly(ethylene terephthalate)[J]. Polymer, 1997, 38(10): 2475-2482.
doi: 10.1016/S0032-3861(96)00801-4
[5] SARA Ubeda, MARGARITA Aznar, CRISTINA Nerin. Determination of oligomers in virgin and recycled polyethylene terephthalate (PET) samples by UPLC-MS-QTOF[J]. Analytical and Bioanalytical Chemistry, 2018, 410(9): 2377-2384.
doi: 10.1007/s00216-018-0902-4 pmid: 29428989
[6] GOODMAN I, NESBITT B F. The structures and reversible polymerization of cyclic oligomers from poly(ethylene terephthalate)[J]. Polymer, 1960, 1: 384-396.
doi: 10.1016/0032-3861(60)90048-3
[7] LIM B H, KWON S H, KANG E C, et al. Isolation and identification of cyclic oligomers of the poly(ethylene terephthalate)-poly(ethylene isophthalate co-polymer[J]. Journal of Polymer Science Part A: Polymer Chemistry, 2003, 41: 881-889.
doi: 10.1002/pola.v41:7
[8] JOSEPH Cho, YOUK J H, JO Won, et al. Cyclization routes for formation of cyclic oligomers in poly(ethylene terephthalate)[J]. Macromolecular Chemistry and Physics, 2001, 202: 998-1003.
doi: 10.1002/(ISSN)1521-3935
[9] COOPER D R, SEMLYEN J A. Equilibrium ring concentrations and the statistical conformations of polymer chains: part 11: cyclics in poly(ethylene terephthalate)[J]. Polymer, 1973, 14(5): 185-192.
doi: 10.1016/0032-3861(73)90045-1
[10] VERMYLEN V, LODEFIER Philippe, DEVAUX Jacques, et al. Study of the thermal evolution of the cyclic-oligomer formation in a cyclic-oligomer-free PET[J]. Journal of Polymer Science Part A: Polymer Chemistry, 2000, 38: 416-422.
doi: 10.1002/(ISSN)1099-0518
[11] CIMECIOGLU A L, ZEONIAN S H, ALGER K W, et al. Properties of oligomers present in poly(ethylene terephthalate)[J]. Journal of Applied Polymer Science, 1986, 32(4): 4719-4733.
doi: 10.1002/app.1986.070320436
[12] 张锡玮. 聚酯中的环状齐聚物(Ⅰ)[J]. 合成纤维工业, 1988, 11(4): 52-59.
ZHANG Xiwei. Ring oligomers in polyesters (Ⅰ)[J]. Synthetic Fiber Industry, 1988, 11(4): 52-59.
[13] 张大省. 聚酯合成过程中环状三聚体的生成与控制[J]. 合成纤维, 2022, 51(10): 1-6.
ZHANG Dasheng. Generation and control of cyclic trimer on synthesis of polyester[J]. Synthetic Fiber in China, 2022, 51(10): 1-6.
[14] 郑敏, 宋心远. 聚酯纤维染整加工中低聚物问题的研究[J]. 染料与染色, 2005 (4): 49-52.
ZHENG Min, SONG Xinyuan. Study on the oligomer problem involved during dyeing and Finishing of polyester fiber[J]. Dyestuffs and Coloration, 2005 (4): 49-52.
[15] 张龙, 智海辉, 郑今欢. 前处理对再生聚酯织物表面低聚物的影响[J]. 浙江理工大学学报, 2015, 33(7): 429-433.
ZHANG Long, ZHI Haihui, ZHENG Jinhuan. Influence of pretreatment on surface oligomers of recycled polyester fabric[J]. Journal of Zhejiang University, 2015, 33(7): 429-433.
[16] 曾笑笑, 邢建伟, 徐成书, 等. 原位矿化技术对涤纶染色过程低聚物的影响[J]. 印染, 2019, 45(4): 32-35.
ZENG Xiaoxiao, XING Jianwei, XU Chengshu, et al. Effect of in-situ mineralization technology on oligomers in polyester dyeing process[J]. China Printing & Dyeing, 2019, 45(4): 32-35.
[17] PEI Liujun, LI Hao, ZHANG Hongjuan, et al. Migration and chemical characterization of cyclic oligomers from polyester fiber in waterless dyeing system[J]. Fibers and Polymers, 2022, 23(9): 2648-2656.
doi: 10.1007/s12221-022-3195-3
[18] 张新忠, 陈彦模, 张瑜, 等. PET切片低聚物的萃取工艺及其表征[J]. 合成技术及应用, 2009, 24(1): 1-4.
ZHANG Xinzhong, CHEN Yanmo, ZHANG Yu, et al. Extraction technology and characterization of oligomers from PET slices[J]. Synthetic Technology & Application, 2009, 24(1): 1-4.
[19] 王勇军, 陈世昌, 刘梅, 等. 高分子量聚对苯二甲酸乙二醇酯中低聚物的提取及其表征[J]. 纺织学报, 2018, 39(11): 1-7.
WANG Yongjun, CHEN Shichang, LIU Mei, et al. Extraction and characterization of oligomers from high molecular weight poly (ethylene terephthalate)[J]. Journal of Textiles Research, 2018, 39(11): 1-7.
doi: 10.1177/004051756903900101
[20] 符朝贵. BOPET薄膜加工中低聚物的产生和防止[J]. 塑料包装, 2014, 24(2): 7-10.
Fu Chaogui. Generation and prevention of oligomers in BOPET film processing[J]. Plastic Packaging, 2014, 24(2): 7-10.
[21] OSWALD H J, TURI E A, HARGET P J, et al. Development of a middle endotherm in DSC thermograms of thermally treated drawn PET yarns and its structural and mechanistic interpretation[J]. Journal of Macromolecular Science: Part B, 2006, 13(2): 231-254.
doi: 10.1080/00222347708212204
[22] BINNS G L, FROST J S, SMITH F S, et al. Allotropy of cyclic tris(ethylene terephthalate)[J]. Polymer, 1966, 7(11): 583-585.
doi: 10.1016/0032-3861(66)90050-4
[23] 范瑛, 海基邦. 涤纶中环状三聚体的研究[J]. 上海纺织科技, 1989(3): 4-8.
FAN Ying, HAI Jibang. Study on ring trimers in polyester[J]. Shanghai Textile Science & Technology, 1989(3): 4-8.
[24] MARIA Hoppe, FORNARI Fornari, PIM Devoogt, et al. Migration of oligomers from PET: determination of diffusion coefficients and comparison of experimental versus modelled migration[J]. Food Additives & Contaminants: Part A, 2017, 34(7): 1251-1260.
