含磷阻燃聚酯的合成动力学及其性能

doi:10.13475/j.fzxb.20221101001

Abstract

Abstract:

Objective Polyethylene terephthalate (PET) is a very widely used polyester fiber material, but PET-based materials have problems of being flammable or combustible, so low toxicity, low smoke and flame retardant lasting [(6-oxygen generation-6H-dibenzo [c, e] [1,2] -6-group) methyl] butanedioic acid (DDP) is selected as a flame retardant to PET. The purpose of studying the synthesis kinetics of PET is to effectively regulate the reaction rate, reaction conditions, product quality and other process parameters, and explore the internal law of polyester synthesis reaction, so as to guide the actual production process of polyester.

Method This study chose copolymeric flame retardant PET as an example of trace modified polyester, prepared different DDP added flame retardant polyester, studied the two phases of esterification and condensation, explored the different condensation temperature, different flame retardant added on the synthetic reaction kinetics, in order to achieve the purpose of process regulation through production amplification. The thermal properties, crystallization properties, flame retardant properties and mechanical properties of flame retardant PET were characterized by testing differential scanning calorimetry, extreme oxygen index, conical calorimeter, scanning electron microscope, energy dispersive spectrometer and microinjection molding instrument.

Results The activation energy (E_a) of the flame retardant PET with different phosphorus contents of the esterification reaction was gradually decreased from 81.37 kJ/mol to 59.52 kJ/mol with increasing amount of DDP addition at the same reaction temperature. For the same polymerization system, the increase in condensation temperature led to greater reaction rate constant and faster reaction speed. At the same condensation temperature, for different polymerization systems, the reaction rate was constantly decreased and E_a was significantly increased from 69.67 kJ/mol to 223.49 kJ/mol. With the increase of DDP addition, the cold crystallization temperature (T_cc) was increased from 121 ℃ to 143 ℃, the melting temperature (T_m) from 249 ℃ to 224 ℃, and the thermal crystallization temperature (T_mc) from 198 ℃ to 169 ℃. At the same condensation temperature, with the increase of DDP addition, LOI was gradually increased. When the phosphorus content was 1.10%, LOI reached 34%, and LOI did not change significantly. At the same condensation reaction temperature, the ignition time (TTI) was gradually increased to 57 s with the increase of DDP addition, and when the condensation reaction temperature was 270, 275, and 280 ℃, the peak heat release rate (pHRR) and the total heat release amount (THR) were significantly reduced. C and O were the residual carbon of PET, while the residual carbon of flame retardant PET was composed of C, O and P elements, and with the increase of DDP addition, the content of O and P were increased to 13.69% and 9.18%, respectively. PET showed more and denser residual carbon holes, while after DDP with phosphorus content of 0.65% was added, the holes of the residual carbon surface were significantly smaller, but the number of holes was not significantly improved. When the phosphorus content was increased to 1.10%, the number of residual carbon holes was greatly reduced, and the surface of the carbon layer became smoother and more compact with certain isolation effect. After the addition of flame retardant DDP, the elastic modulus of the polymer was increased from 947.3 MPa to 1 103.1 MPa, and with the addition of flame retardant DDP, the fracture elongation of the polymer was decreased from 247% to 190%.

Conclusion Compared with PET, the addition of DDP promoted the positive esterification reaction but hindered the polycondensation reaction, and the flame retardancy of PET-DDP was significantly improved, and the change of polycondensation reaction temperature had less influence on the flame retardancy. In conclusion, the study on the kinetics of esterification and polycondensation reactions and the flame-retardant properties of PET-DDP provides data support for the adjustment of process parameters in the later industrial production of flame retardant polyester.

Key words: polyethylene terephthalate, esterification, polycondensation, phosphorus flame retardant, kinetics, flame retardancy

CLC Number:

TQ342.21

YUAN Ye, ZHANG Anying, WEI Lifei, GAO Jianwei, CHEN Yong, WANG Rui. Synthesis kinetics and properties of phosphorus containing flame retardant polyethylene terephthalate[J].Journal of Textile Research, 2024, 45(04): 50-58.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

URL: http://www.fzxb.org.cn/EN/10.13475/j.fzxb.20221101001

http://www.fzxb.org.cn/EN/Y2024/V45/I04/50

Figures/Tables 12

Fig.1

Tab.1

Fig.2

Tab.2

Tab.3

Tab.4

Fig.3

Tab.5

Tab.6

Tab.7

Fig.4

Tab.8

References 38

[1]	胡优贤, 江振林, 金亮, 等. 含磷阻燃PET母粒的制备及阻燃PET性能研究[J]. 合成纤维工业, 2019, 42(6): 11-15.
	HU Youxian, JIANG Zhenlin, JIN Liang, et al. Preparation of flame retardant PET masterbatch containing phosphorus and study on the properties of flame retardant PET[J]. China Synthetic Fiber Industry, 2019, 42(6): 11-15.
[2]	王杰, 邢喜全, 何肖, 等. 不同软硬段含量PBT-b-PTMG嵌段共聚物的合成与性能[J]. 高分子材料与工程, 2023, 39(9): 27-34.
	WANG Jie, XING Xiquan, HE Xiao, et al. Synthesis and properties of PBT-b-PTMG block copolymers with different soft and hard segment contents[J]. Polymer Materials Science & Engineering, 2023, 39(9): 27-34.
[3]	TOURNIER V, TOPHAM C M, GILLES A, et al. An engineered PET depolymerase to break down and recycle plastic bottles[J]. Nature, 2020, 580(7802): 216-219.
[4]	LI Q, ZHANG S, MAHMOOD K, et al. Fabrication of multifunctional PET fabrics with flame retardant, antibacterial and superhydrophobic properties[J]. Progress in Organic Coatings, 2021. DOI: 10.1016/j.porgcoat.2021.106296.
[5]	ZHANG X, WANG Q, LIU S, et al. Improved processability and optimized preparing process for fire-safe poly (ethylene terephthalate) by electron effect modified Schiff base[J]. Journal of Applied Polymer Science, 2021. DOI: 10.1002/app.50444.
[6]	张新星, 王庆印, 孙腾, 等. PET共聚阻燃改性研究进展[J]. 精细化工, 2021, 38(1): 34-43.
	ZHANG Xinxing, WANG Qingyin, SUN Teng, et al. Research progress in flame retardant modification of PET copolymer[J]. Fine Chemicals, 2021, 38(1): 34-43.
[7]	SUN Y, WANG Y, QING Y, et al. A DOPO-base Schiff derivative used as a flame retardant for poly-styrene[J]. Journal of Applied Polymer Science, 2020. DOI: 10.1002/app.49224.
[8]	OH J, KIM SS, LEE J, et al. Supercritical fluid flame-retardant processing of polyethylene terephthalate(PET) fiber treated with 9, 10-dihydro-9-oxa-10-phosphaphenanthrene-10-oxide (DOPO): changes in physical properties and flame-retardant performance[J]. Journal of CO₂ Utilization, 2021. DOI: 10.1016/j.jcou.2021.101761.
[9]	QIAN X, LIU Q, ZHANG L, et al. Synthesis of reactive DOPO-based flame retardant and its application in rigid polyisocyanurate-polyurethane foam[J]. Polymer Degradation and Stability, 2022. DOI: 10.1016/j.polymdegradstab.2022.109852.
[10]	ZHENG T, WANG W, LIU Y. A novel phosphorus-nitrogen flame retardant for improving the flame retardancy of polyamide 6: preparation, properties, and flame retardancy mechanism[J]. Polymers for Advanced Technologies, 2021, 32(6): 2508-2516.
[11]	曹枭汉, 孙国静, 蒋燕迪, 等. 固体酸催化苯基多元羧酸酯化反应动力学研究[J]. 石油化工, 2022, 51(9):1069-1074.
	CAO Xiaohan, SUN Guojing, JIANG Yandi, et al. Kinetics of esterification of phenyl polycarboxylic acid catalyzed by solid acid[J]. Petrochemical Technology, 2022, 51(9):1069-1074.
[12]	关震宇, 周文乐, 张玉梅, 等. 基于钛镁催化剂合成瓶用聚酯的动力学研究[J]. 纺织学报, 2021, 42(3): 64-70.
	GUAN Zhenyu, ZHOU Wenle, ZHANG Yumei, et al. Kinetic study on synthesis of polyester for bottle based on Ti Mg catalyst[J]. Journal of Textile Research, 2021, 42(3): 64-70.
[13]	娄佳慧, 王锐, 张文娟, 等. 有机钛-硅催化剂合成聚酯的动力学研究[J]. 纺织学报, 2018, 39(7): 1-7.
	LOU Jiahui, WANG Rui, ZHANG Wenjuan, et al. Study on the kinetics of polyester synthesis with organic titanium silicon catalyst[J]. Journal of Textile Research, 2018, 39(7): 1-7.
[14]	孙永建, 吴林波, 李乃祥, 等. 脂肪-芳香族共聚酯PBST合成的共酯化工艺[J]. 化学反应工程与工艺, 2016, 32(1): 78-82.
	SUN Yongjian, WU Linbo, LI Naixiang, et al. Coesterification process for synthesis of fat aromatic copolyester PBST[J]. Chemical Reaction Engineering and Technology, 2016, 32(1): 78-82.
[15]	杨婧, 黄关葆. 改性PET的酯化反应动力学[J]. 塑料, 2015, 44(2): 15-17.
	YANG Jing, HUANG Guanbao. Esterification kinetics of modified PET[J]. Plastics, 2015, 44(2): 15-17.
[16]	奚桢浩, 陈礼科, 潘珣, 等. 低分子量聚己二酸乙二醇酯制备过程中的缩聚反应动力学[J]. 化学反应工程与工艺, 2014, 30(2): 97-101.
	XI Zhenhao, CHEN Like, PAN Xun, et al. Kinetics of polycondensation in the preparation of low molecular weight polyethylene adipate[J]. Chemical Reaction Engineering and Technology, 2014, 30(2): 97-101.
[17]	刘方, 刘亮, 李璐, 等. 对苯二甲酸与新戊二醇缩聚反应动力学研究[J]. 化学研究与应用, 2016, 28(9): 1320-1324.
	LIU Fang, LIU Liang, LI Lu, et al. Study on the kinetics of condensation polymerization of terephthalic acid and neopentyl glycol[J]. Chemical Research and Application, 2016, 28(9): 1320-1324.
[18]	周舸旸, 奚桢浩, 赵玲. 聚对苯二甲酸乙二醇酯固相缩聚过程乙醛脱除动力学[J]. 石油化工, 2020, 49(11): 1076-1082. doi: 10.3969/j.issn.1000-8144.2020.11.007
	ZHOU Keyang, XI Zhenhao, ZHAO Ling. Kinetics of acetaldehyde removal in solid state polycondensation of polyethylene terephthalate[J]. Petrochemical Technology, 2020, 49(11): 1076-1082.
[19]	陈咏, 王颖, 何峰, 等. 聚酯合成反应动力学模型构建及流程模拟的研究进展[J]. 合成纤维工业, 2018, 41(5): 46-52, 57.
	CHEN Yong, WANG Ying, HE Feng, et al. Research progress in the kinetic model construction and process simulation of polyester synthesis[J]. China Synthetic Fiber Industry, 2018, 41(5): 46-52,57.
[20]	张旭霞, 汪少朋, 杨立英. PTA直接酯化过程动力学的研究[J]. 合成纤维工业, 2004, 26(6): 15-17.
	ZHANG Xuxia, WANG Shaopeng, YANG Liying. Study on the kinetics of PTA direct esterification process[J]. China Synthetic Fiber Industry, 2004, 26(6): 15-17.
[21]	RAVINDRANATH K, MASHELKAR R A. Modeling of poly(ethylene terephthalate) reactors: 5: a continuous prepolymerization process[J]. Polymer Engineering and Science, 1982, 22(10): 619-627.
[22]	RAVINDRANATH K, MASHELKAR R A. Modeling of poly(ethylene terephthalate) reactors: 6: a continuous process for final stages of polycondensation[J]. Polymer Engineering and Science, 1982, 22(10): 628-636.
[23]	陈咏, 王颖, 何峰, 等. 共聚型磷系阻燃聚酯聚合反应动力学及其性能[J]. 纺织学报, 2019, 40(10):13-19. doi: 10.13475/j.fzxb.20181000607
	CHEN Yong, WANG Ying, HE Feng, et al. Kinetics and properties of phosphorus flame retardant copolymerized polyester[J]. Journal of Textile Research, 2019, 40(10): 13-19. doi: 10.13475/j.fzxb.20181000607
[24]	JIA L, ZHANG W C, TONG B, et al. Crystallization, mechanical and flame-retardant properties of poly(lactic acid) composites with DOPO and DOPO-POSS[J]. Chinese Journal of Polymer Science, 2018, 36(7): 871-879.
[25]	张安莹, 王照颖, 王锐, 等. 阻燃聚左旋乳酸及其纤维的制备与结构性能[J]. 纺织学报, 2019, 40(4): 7-14.
	ZHANG Anying, WANG Zhaoying, WANG Rui, et al. Preparation, structure and properties of flame retardant poly(L-lactic acid) and its fiber[J]. Journal of Textile Research, 2019, 40(4): 7-14.
[26]	GOONEIE A, SIMONETTI P, RUPPER P, et al. Stabilizing effects of novel phosphorus flame retardant on PET for high-temperature applications[J]. Mater Lett, 2020. DOI: 10.1016/j.matlet.2020.128225.
[27]	PAN Y, LIU L, SONG L, et al. Durable flame retardant treatment of polyethylene terephthalate (PET) fabric with cross-linked layer-by-layer assembled coating[J]. Polym Degrad Stab, 2019, 165:145-52.
[28]	QIU S, MA C, WANG X, et al. Melamine-containing polyphosphazene wrapped ammonium polyphosphate: a novel multifunctional organic-inorganic hybrid flame retardant[J]. Journal of Hazardous Materials, 2018, 344:839-848. doi: S0304-3894(17)30840-3 pmid: 29190581
[29]	WANG C, WU L, DAI Y, et al. Application of self-templated PHMA sub-microtubes in enhancing flame-retardance and anti-dripping of PET[J]. Polymer Degradation and Stability, 2018, 154:239-247.
[30]	YU H, XIA Y, XU X, et al. Preparation of organic-inorganic intumescent flame retardant with phosphorus, nitrogen and silicon and its flame retardant effect for epoxy resin[J]. Journal of Applied Polymer Science, 2020. DOI: 10.1002/app.49256.
[31]	FANG Y, LIU X, WU Y. High efficient flame retardant finishing of PET fabric using eco-friendly DOPO[J]. Journal of The Textile Institute, 2021, 113(7): 1248-1255.
[32]	XU F, ZHANG G, WANG P, et al. A novel ε-polylysine-derived durable phosphorus-nitrogen-based flame retardant for cotton fabrics[J]. Cellulose, 2021, 28(6): 3807-3822.
[33]	杨昌杰, 冯彬, 黄静萍, 等. 磷杂菲化合物的合成与阻燃EP/PET 复合材料的性能研究[J]. 广州化工, 2022, 50(11): 58-61.
	YANG Changjie, FENG Bin, HUANG Jingping, et al. Synthesis of phosphophenanthrene compounds and study on the properties of flame retardant EP/PET compos-ites[J]. Guangzhou Chemical Industry, 2022, 50(11): 58-61.
[34]	ZHANG C, ZHANG C, HU J, et al. Flame-retardant and anti-dripping coating for PET fabric with hydroxyl-containing cyclic phosphoramide[J]. Polymer Degradation and Stability, 2021. DOI: 10.1016/j.polymdegradstab.2021.109699.
[35]	YANG G, ZHANG Q. In-situ Polymerization and flame retardant mechanism of bio-based nitrogen and phosphorus macromolecular flame retardant in plywood[J]. Macromolecular Rapid Communications, 2022. DOI: 10.1002/marc.202200018.
[36]	KUKLA P, GREINER L, EIBL S, et al. Novel phosphorus-containing silazanes as flame retardants in epoxy resins[J]. Reactive & Functional Polymers, 2022. DOI: 10.1016/j.reactfunctpolym.2021.105120.
[37]	闫鑫, 潘虹, 徐丽慧, 等. PET材料无卤阻燃抗熔滴整理研究进展[J]. 印染, 2022, 48(8): 58-63.
	YAN Xin, PAN Hong, XU Lihui, et al. Research progress in halogen free flame retardant and anti dripping finishing of PET materials[J]. China Dyeing & Finishing, 2022, 48(8): 58-63.
[38]	GOONEIE A, SIMONETTI P, SALMEIA Ka, et al. Enhanced PET processing with organophosphorus additive: flame retardant products with added-value for recycling[J]. Polymer Degradation and Stability, 2019, 160: 218-228.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

Comments

Recommended 0

No Suggested Reading articles found!

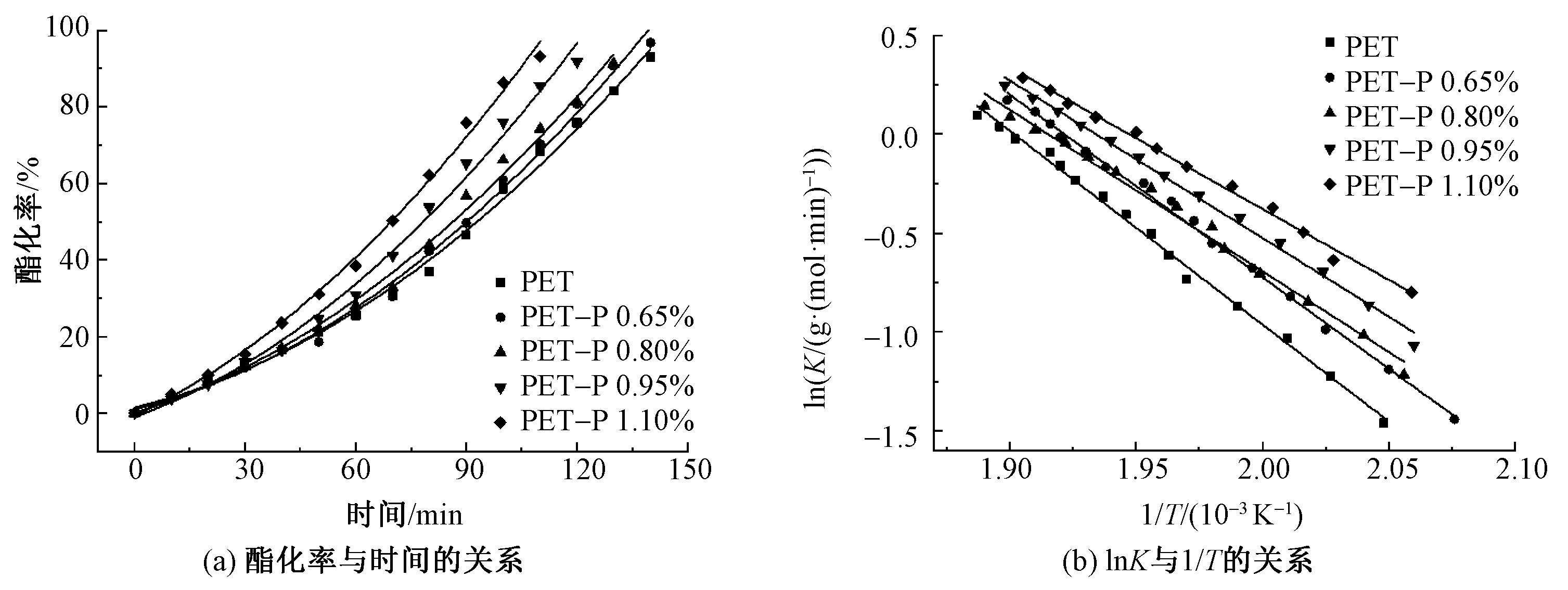

样品编号	回归方程	E_a/(kJ·mol^-1)
PET	lnK=-9 787.8(1/T)+18.61	81.37
PET-P 0.65%	lnK=-9 228.2(1/T)+17.73	76.72
PET-P 0.80%	lnK=-8 159.8(1/T)+15.63	67.84
PET-P 0.95%	lnK=-7 955.7(1/T)+15.39	66.14
PET-P 1.10%	lnK=-7 159.4(1/T)+13.94	59.52

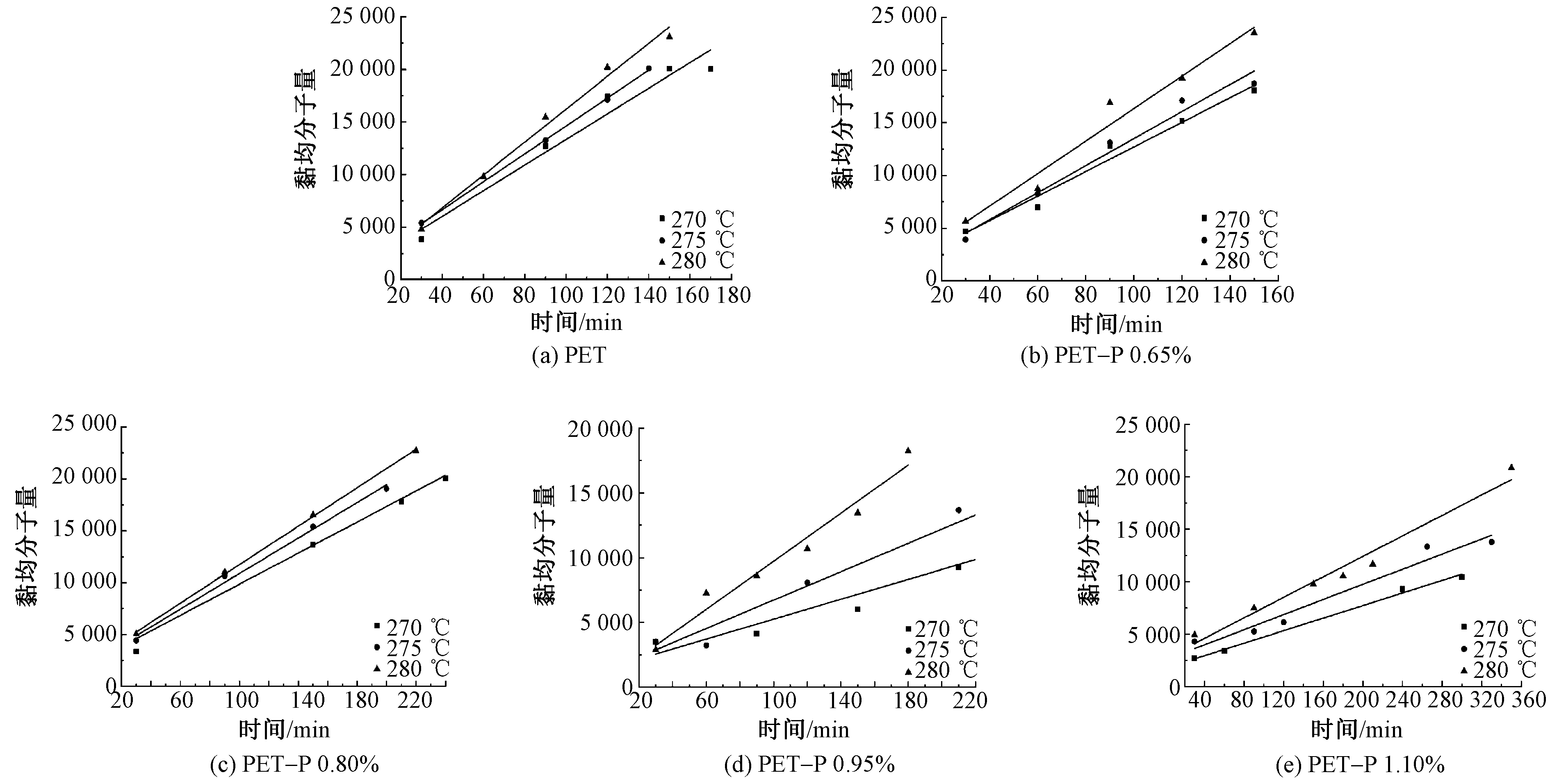

样品编号	缩聚温度/℃	回归方程	反应速率常数K/ (g·(mol·min)^-1)
PET	270	M_t=121.76t+1 155.6	121.76
	275	M_t=132.64t+1 350.4	132.64
	280	M_t=156.45t+566.0	156.45
PET-P 0.65%	270	M_t=116.41t+1 058.3	116.41
	275	M_t=128.05t+687.7	128.05
	280	M_t=153.90t+943.0	153.90
PET-P 0.80%	270	M_t=75.01t+2 345.9	75.01
	275	M_t=85.67t+2 305.4	85.67
	280	M_t=92.76t+2 457.7	92.76
PET-P 0.95%	270	M_t=38.42t+1 407.2	38.42
	275	M_t=54.83t+1 238.1	54.83
	280	M_t=92.87t+434.1	92.87
PET-P 1.10%	270	M_t=29.85t+1 753.6	29.85
	275	M_t=36.00t+2 546.1	36.00
	280	M_t=48.78t+2 656.3	48.78

样品编号	回归方程	E_a/(kJ·mol^-1)
PET	lnK=-8 379.6(1/T)+20.17	69.67
PET-P 0.65%	lnK=-19 237.3(1/T)+39.08	159.94
PET-P 0.80%	lnK=-22 893.3(1/T)+45.62	190.33
PET-P 0.95%	lnK=-26 561.2(1/T)+52.21	220.83
PET-P 1.10%	lnK=-28 084.3(1/T)+54.84	233.49

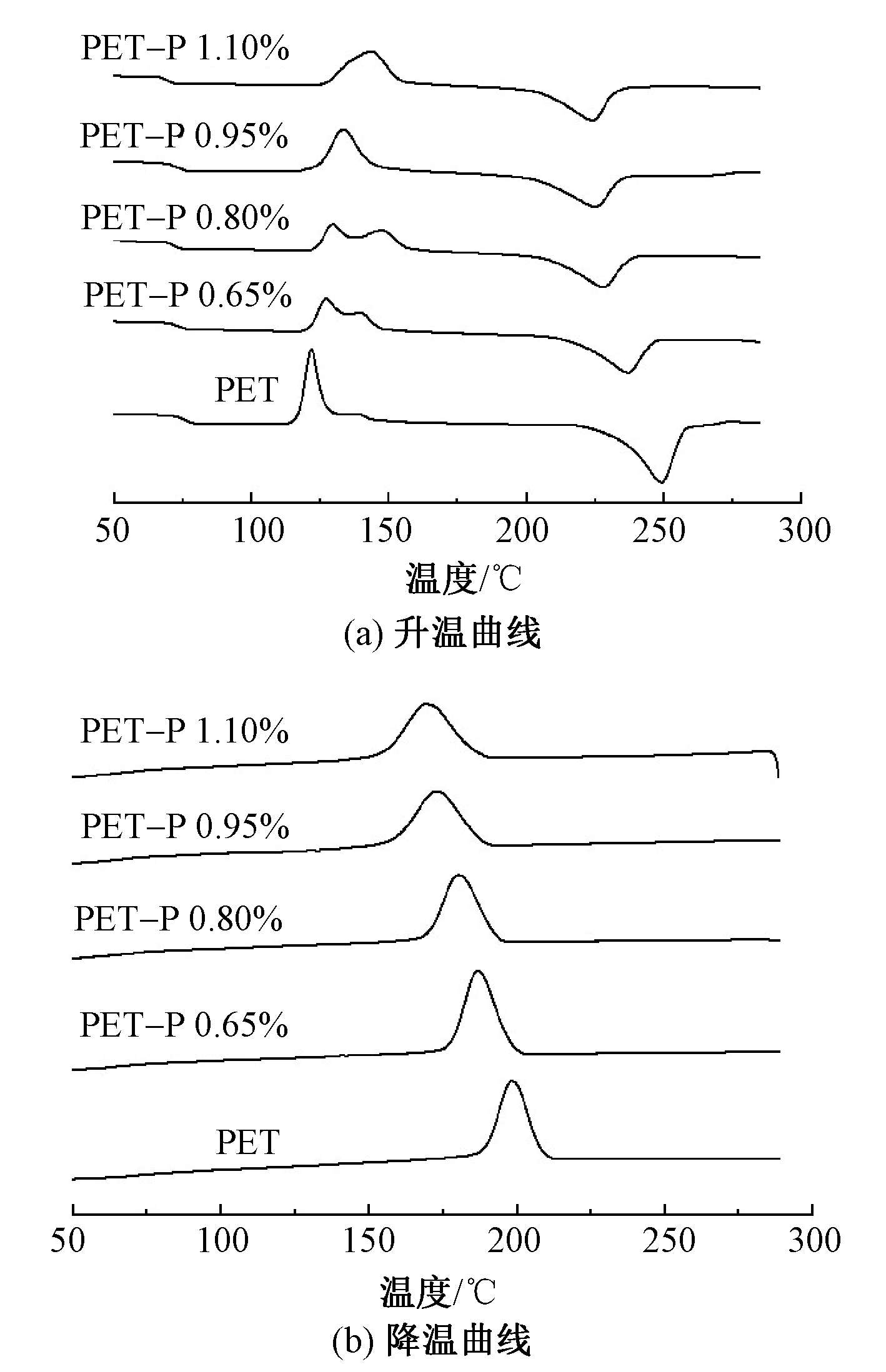

样品编号	T_g/℃	T_m/℃	T_cc/℃	T_mc/℃
PET	67	249	121	198
PET-P 0.65%	67	237	129	187
PET-P 0.80%	68	228	130	180
PET-P 0.95%	69	225	133	172
PET-P 1.10%	68	224	143	169

样品编号	缩聚温度/℃	TTI/ s	pHRR/ (kW·m^-2)	av-HRR/ (kW·m^-2)	THR/ (MJ·m^-2)
PET	270	49	1 115.11	272.01	60.22
	275	50	1 213.17	251.70	61.67
	280	50	1 117.09	249.46	64.51
PET-P 0.65%	270	51	991.58	153.83	52.05
	275	52	865.26	176.29	51.04
	280	52	834.23	160.51	44.84
PET-P 0.80%	270	52	776.87	140.53	46.66
	275	53	818.86	151.46	46.08
	280	53	839.58	141.90	45.84
PET-P 0.95%	270	54	715.49	139.03	46.30
	275	54	673.27	143.21	45.55
	280	54	657.56	141.30	45.64
PET-P 1.10%	270	57	611.12	141.13	43.81
	275	56	681.44	139.51	39.10
	280	57	667.19	142.11	45.48

Synthesis kinetics and properties of phosphorus containing flame retardant polyethylene terephthalate

RichHTML

PDF (PC)

Abstract

Cite this article

share this article

Figures/Tables 12

References 38

Related Articles 15

Metrics

Comments

Recommended 0

样品名称	C	O	P
PET残炭	95.65	4.35	0.00
PET-P 0.65%残炭	87.69	7.62	4.69
PET-P 0.80%残炭	86.91	8.08	5.01
PET-P 0.95%残炭	84.20	9.94	5.86
PET-P 1.10%残炭	77.13	13.69	9.18

样品编号	拉伸强度/MPa	弹性模量/MPa	断裂伸长率/%
PET	57.8	947.3	247
PET-P 0.65%	53.7	1 077.0	233
PET-P 0.80%	62.9	1 070.1	219
PET-P 0.95%	56.0	1 051.0	178
PET-P 1.10%	60.1	1 103.1	190
