Analysis of flexoelectric effect of polyacrylonitrile/MoS2 composite film and its applications

LI Zhikun1, YU Ying2(), ZUO Yuxin3, SHI Haoqin1, JIN Yuzhen1, CHEN Hongli1

  1. 1. School of Mechanical Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. College of Information Science and Engineering, Jiaxing University, Jiaxing, Zhejiang 314001, China
    3. Jiaxing Nanhu University, Jiaxing, Zhejiang 314001, China
  • Received:2023-01-05 Revised:2023-06-27 Online:2024-05-15 Published:2024-05-31

RichHTML

11

PDF (PC)

48

Abstract:

Objective In recent years, flexible electronic devices and smart clothing have been developed rapidly. However, traditional batteries are difficult to meet the practical needs of portability and integration of flexible products. Therefore, there is a demand on the development of flexible energy devices suitable for flexible wearable electronics. Flexoelectricity is an electromechanical coupling effect that converts mechanical energy into electrical energy through the flexural deformation of thin films, thereby powering flexible and wearable electronic devices. molybdenum disulfide (MoS2) and polyacrylonitrile (PAN) composite films have good flexoelectric response, however, the factors affecting the flexoelectric voltage and flexoelectric coefficient are still to be studied.

Method In this study, the PAN/MoS2 composite film will be prepared by electrospinning, and the structure, morphology and elemental composition of the composite film will be characterized by scanning electron microscope and X-ray diffractometer. The influence of different mass fractions of MoS2 on the flexoelectric effect of PAN/MoS2 composite films was tested through the method of cantilever beam. The flexoelectric stability of the composite films was also examined by intermittent flexoelectric testing. In addition, this paper reported a high flexoelectric voltage generated by connecting multiple composite films in series, which is applicable to micro-miniature wearable electronic devices.

Results The characterization of composite films fully demonstrated that MoS2 was successfully loaded on the PAN fiber with good crystallinity, understanding that pure PAN film exhibits a weak flexoelectric effect. After adding MoS2 to the film, the flexoelectric voltage and flexoelectric coefficient of the composite film were increased with the increase of mass fraction of MoS2, and the optimum values were obtained when the mass fraction of MoS2 was 50%, which were 0.8 V and 1.96 nC/m, respectively. Continuously increasing the content of MoS2 in the composite film, the flexoelectric coefficient and flexoelectric voltage of the film were decreased rapidly. This is mainly because when the mass fraction of MoS2 was high, clusters were easy to appear, and this would seriously hinder the orderly arrangement of molecular chains, thereby limiting the excursion of positive and negative electrons and inhibiting the flexoelectric effect. The flexoelectric test was carried out every other day, and the test duration was 5 000 s. During the continuous 7 d test, the flexoelectric voltage was about 0.8 V, and the consistency of the voltage value was good, indicating stable the flexoelectric effect of the PAN/MoS2 composite film. In addition, multiple PAN/MoS2 composite films with 50% MoS2 mass fraction were connected in series and packaged. The flexoelectric voltage of a single composite film was about 0.8 V, and the flexoelectric voltages of 3 and 5 composite films in series were 2.3 V and 3.8 V, respectively. Connecting multiple PAN/MoS2 composite films in series obtained high flexoelectric voltage with little voltage attenuation. Experiments proved that the flexoelectric effect obtained by mechanical flexural deformation could almost meet the needs of tiny wearable electronic devices.

Conclusion The PAN/MoS2 composite film was prepared by electrospinning, and MoS2 nanoparticles were successfully loaded on the surface of PAN fibers. The mass fraction of MoS2 in PAN/MoS2 composite film has a significant effect on its flexoelectric effect. Experiments show that when the mass fraction of MoS2 is less than 50%, the flexoelectric voltage and flexoelectric coefficient increase with the increase of mass fraction of MoS2, when the mass fraction of MoS2 reaches 50%, the optimal flexoelectric voltage and flexoelectric coefficient can be obtained, and when the mass fraction of MoS2 exceeds 50%, the MoS2 particles will cluster and weaken the flexoelectric effect. The composite film prepared in this paper has excellent flexoelectric stability through intermittent flexoelectric test. The experimental results show that connecting the composite films in series can obtain high flexural voltage with extremely weak voltage attenuation, which can meet the needs of tiny flexible wearable electronic devices.

Key words: flexoelectric effect, MoS2, polyacrylonitrile, electrospinning, composite film, flexoelectric coefficient, wearable electronic device

CLC Number:

  • TQ152

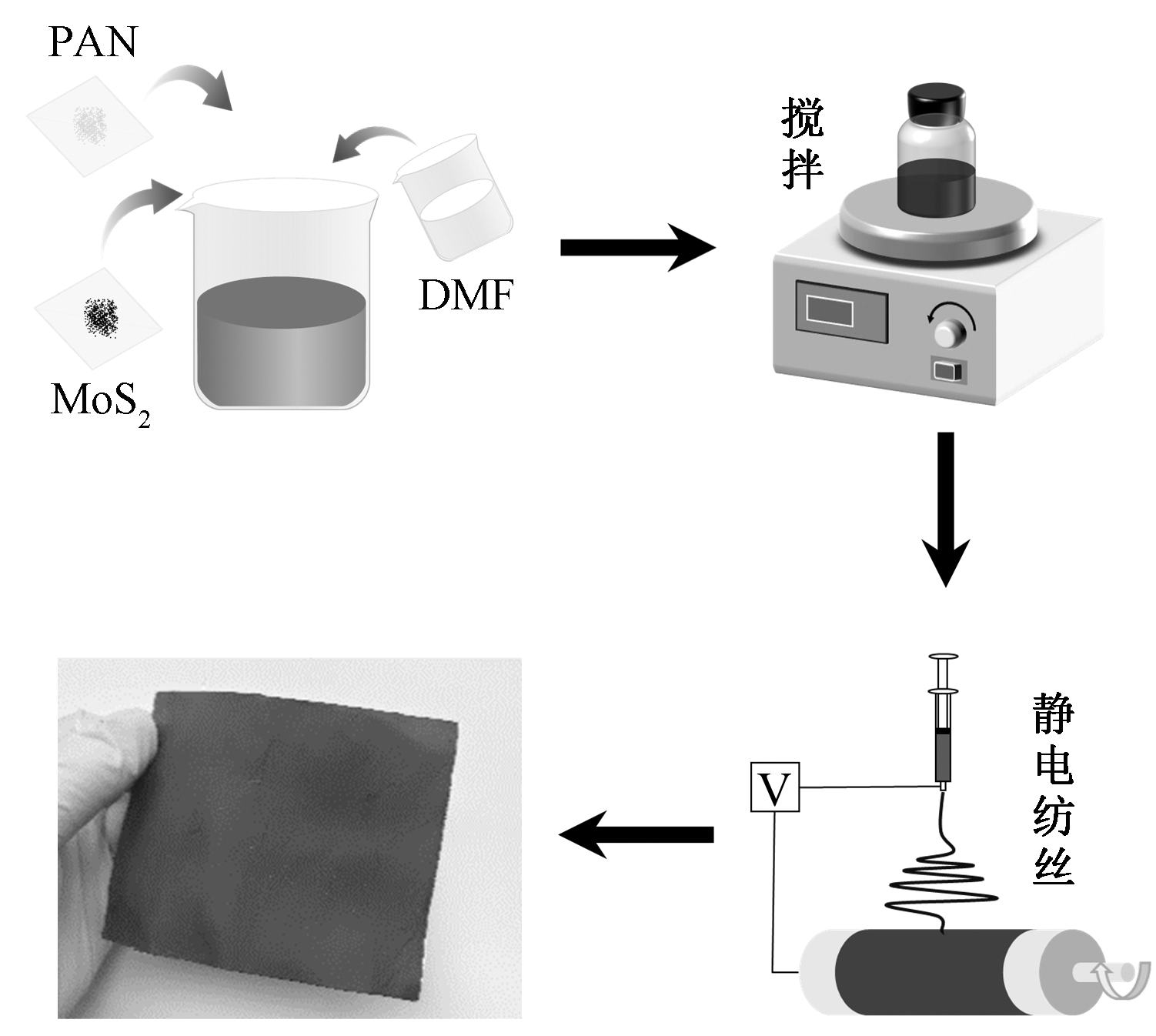

Fig.1

Schematic diagram of preparation process of PAN/MoS2 composite film"

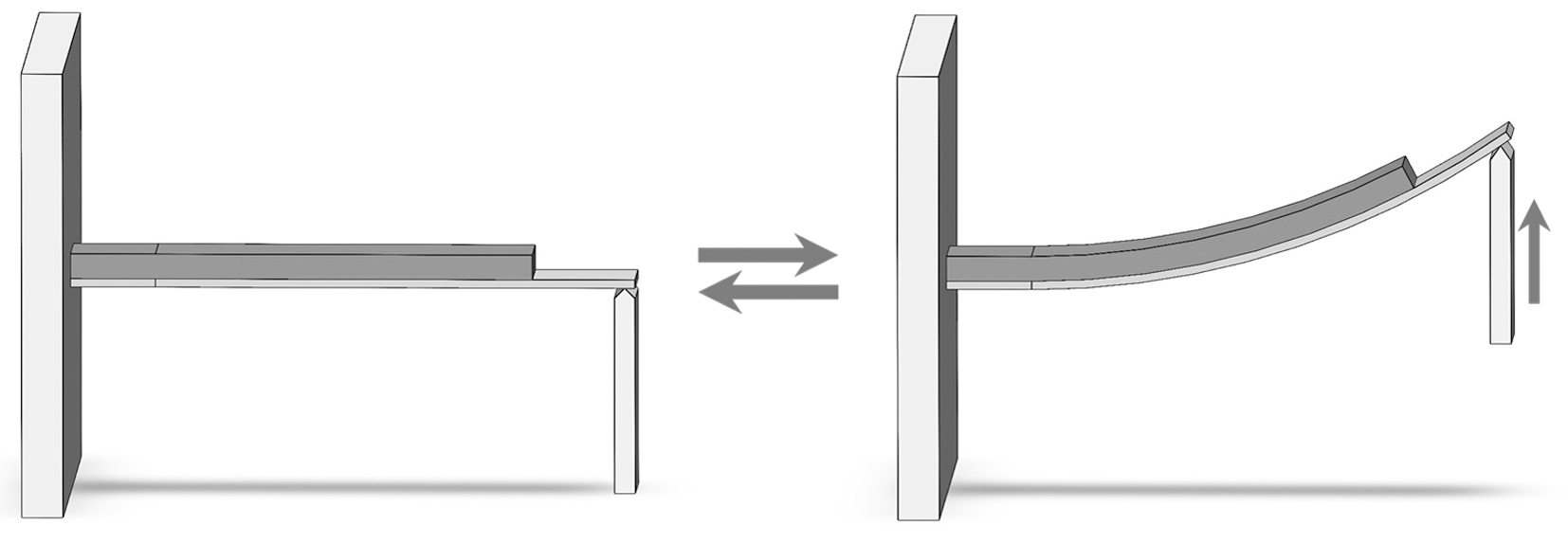

Fig.2

Schematic diagram of cantilever beam measurement"

Fig.3

SEM images of PAN film and 50% MoS2 composite film"

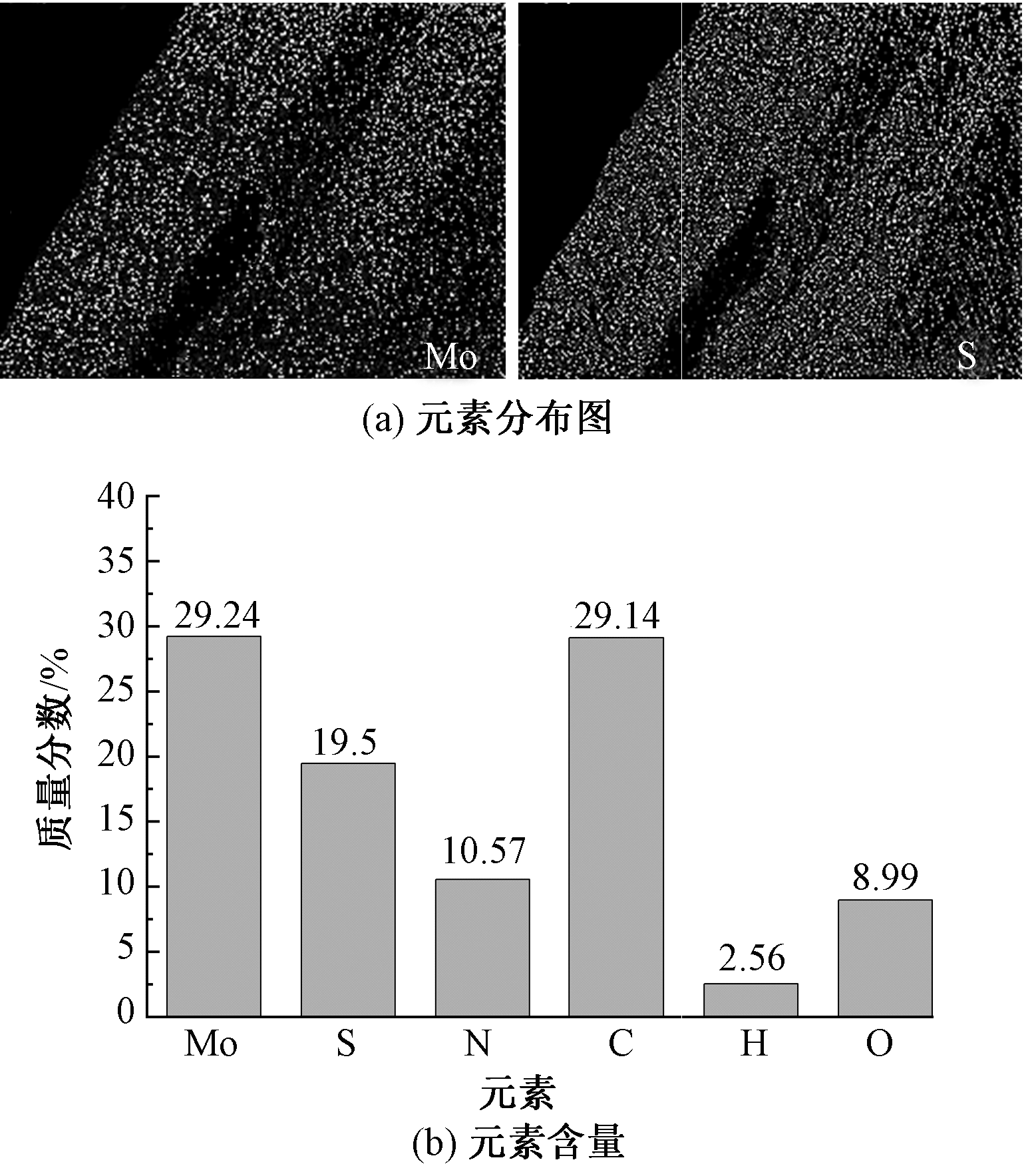

Fig.4

Elemental analysis results of 50% MoS2 composite film. (a) Element distribution; (b) Element content"

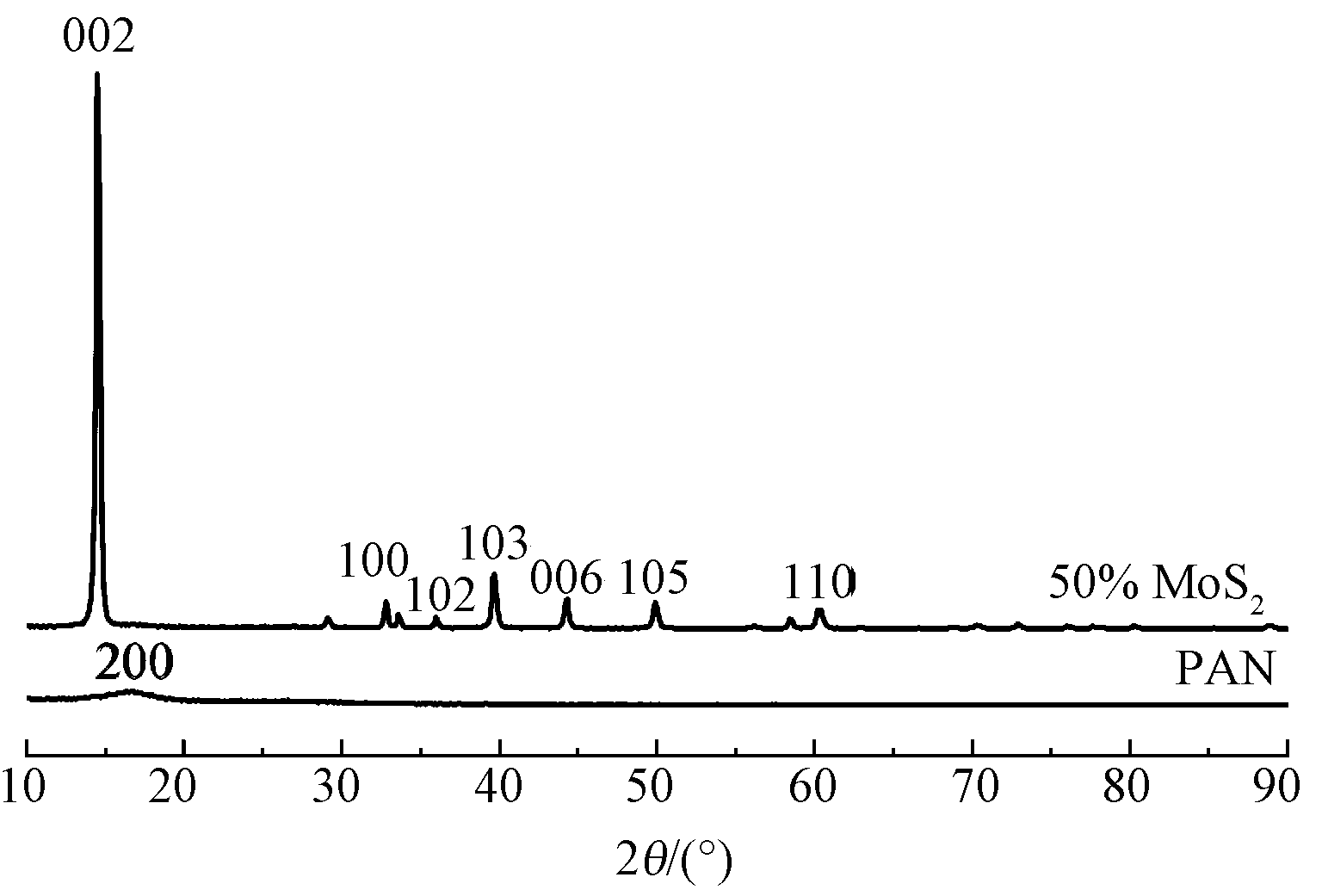

Fig.5

XRD curves of PAN film and 50% MoS2 composite film"

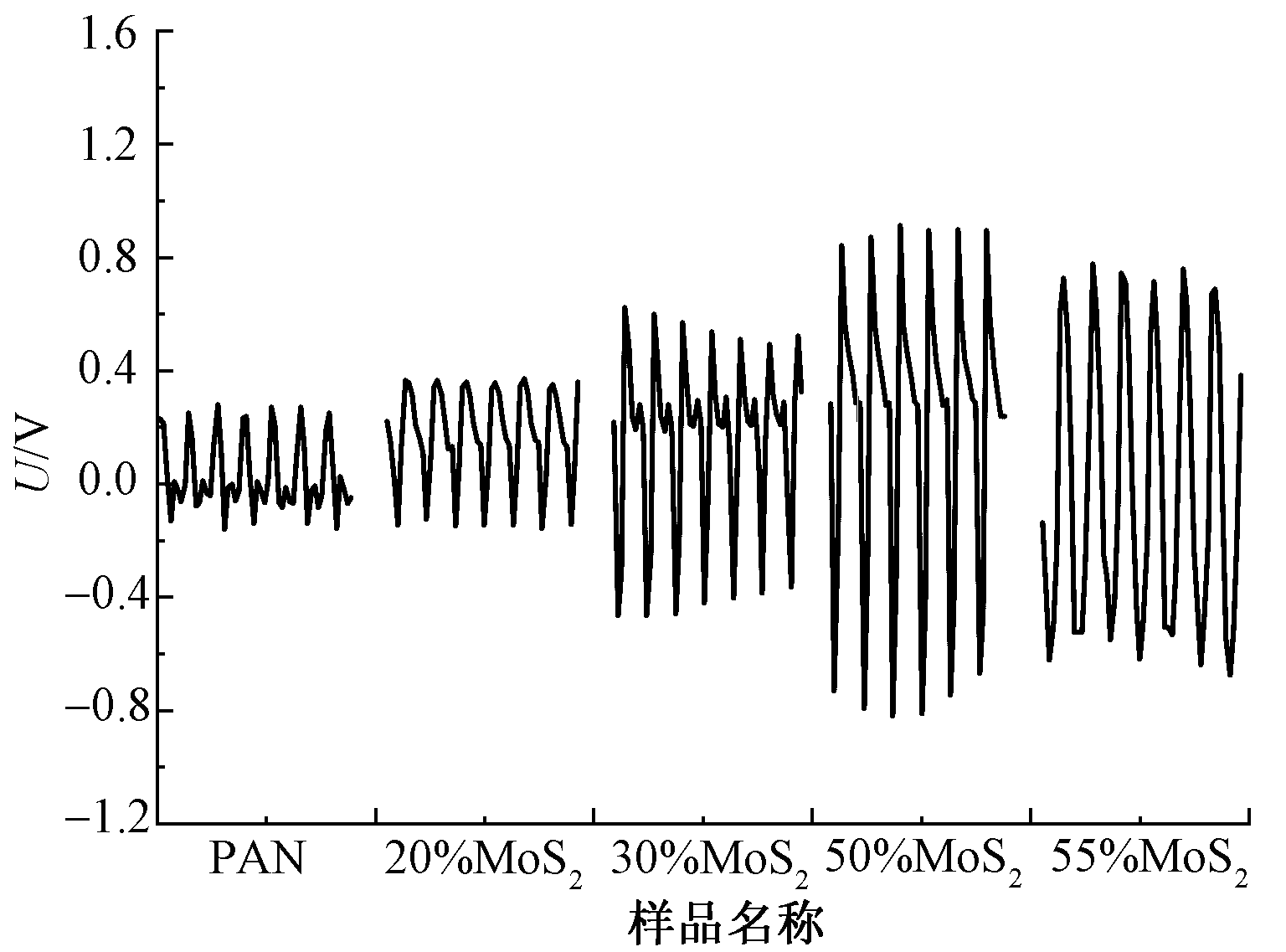

Fig.6

Flexoelectric voltage curves of different composite films"

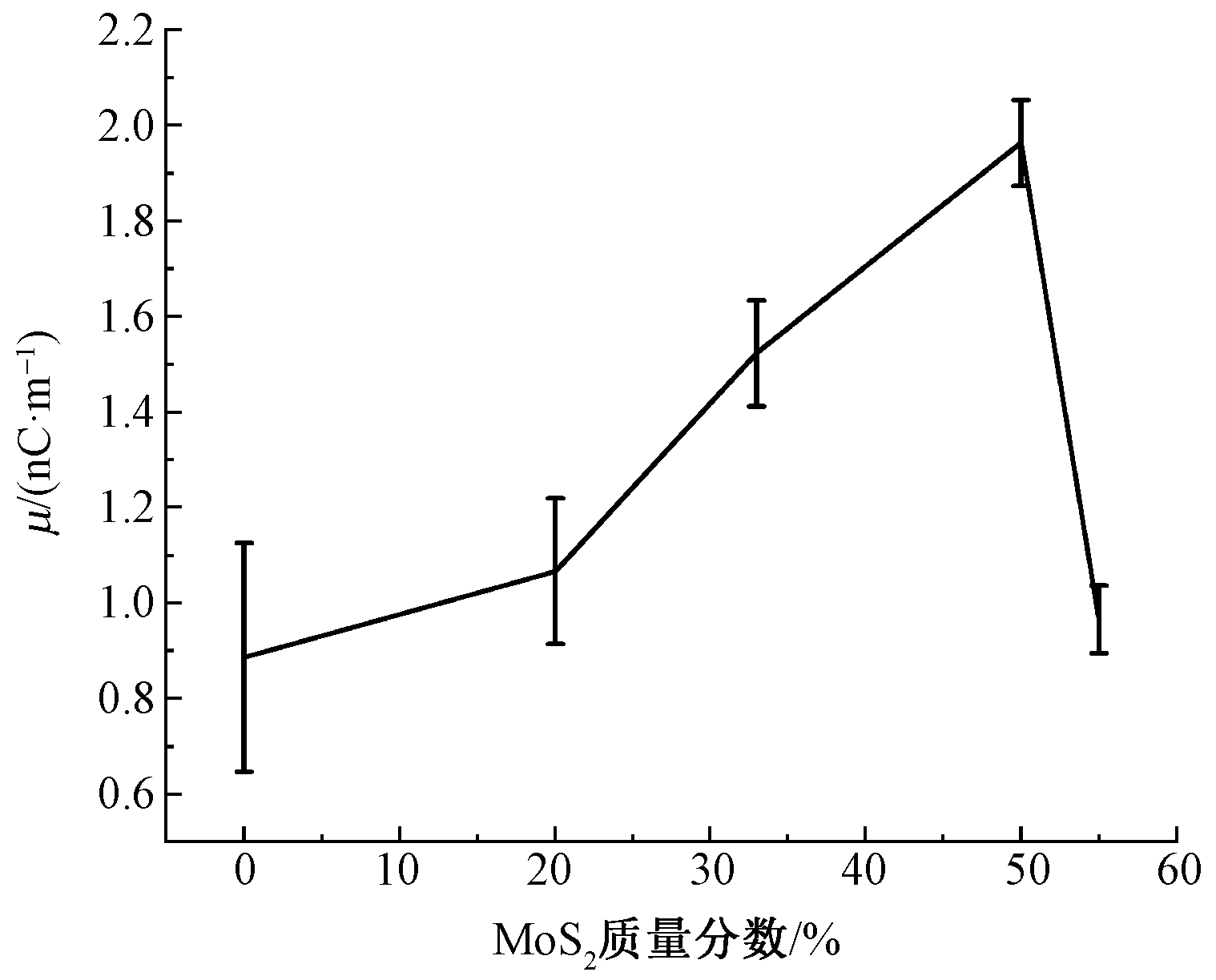

Fig.7

Relationship curves between MoS2 mass fraction and flexoelectric coefficient"

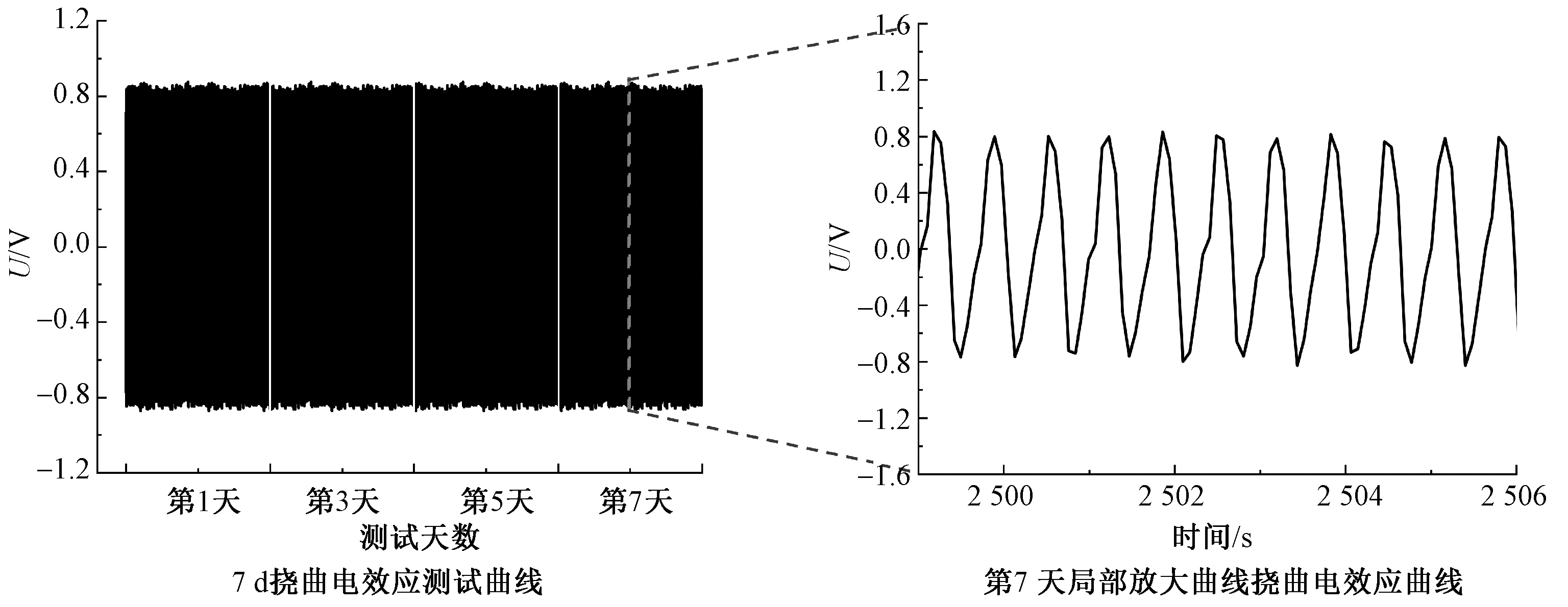

Fig.8

Stability of flexoelectric effect of composite film with 50% MoS2"

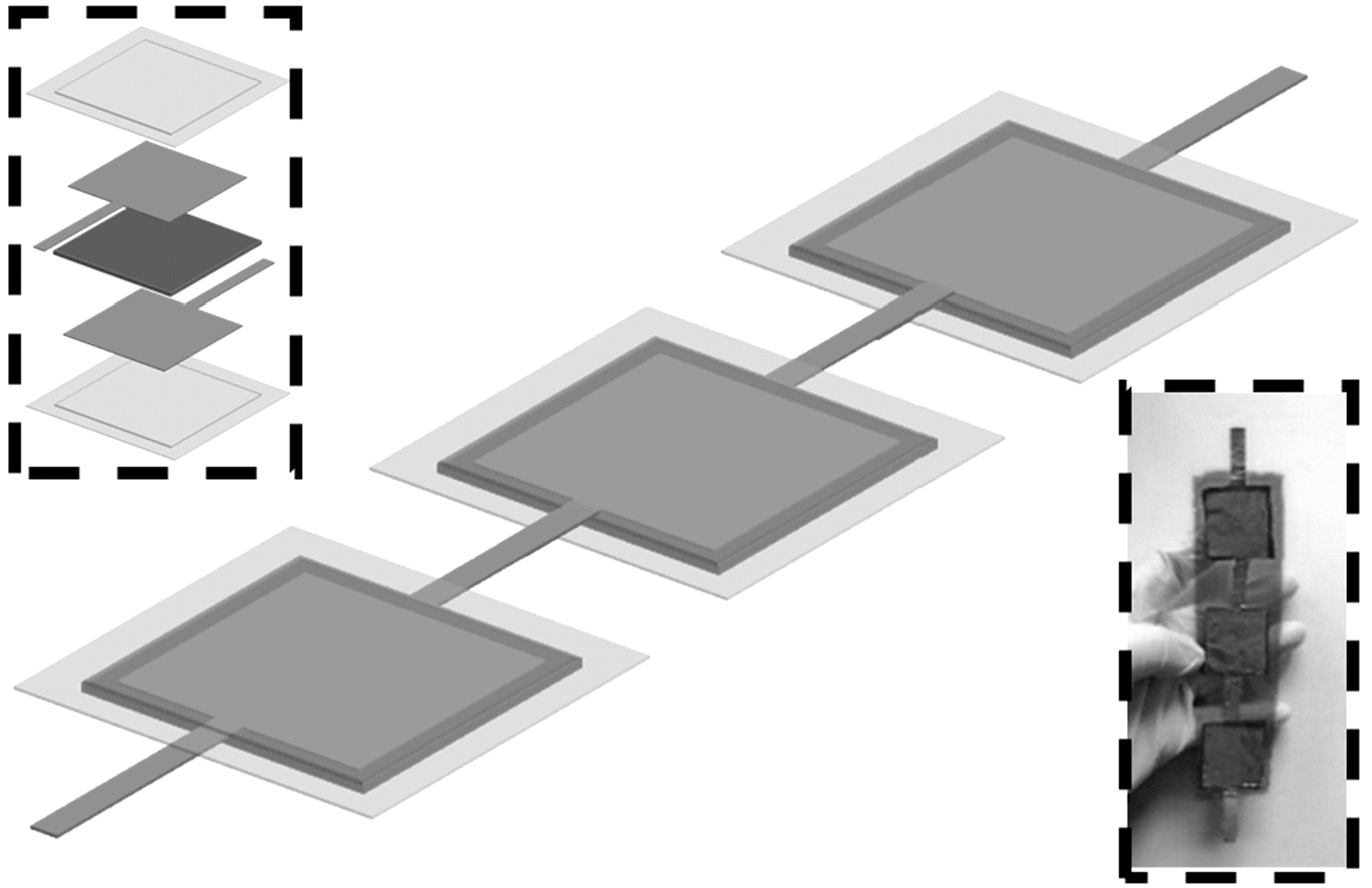

Fig.9

Schematic diagram of composite film with 50% MoS2 in series"

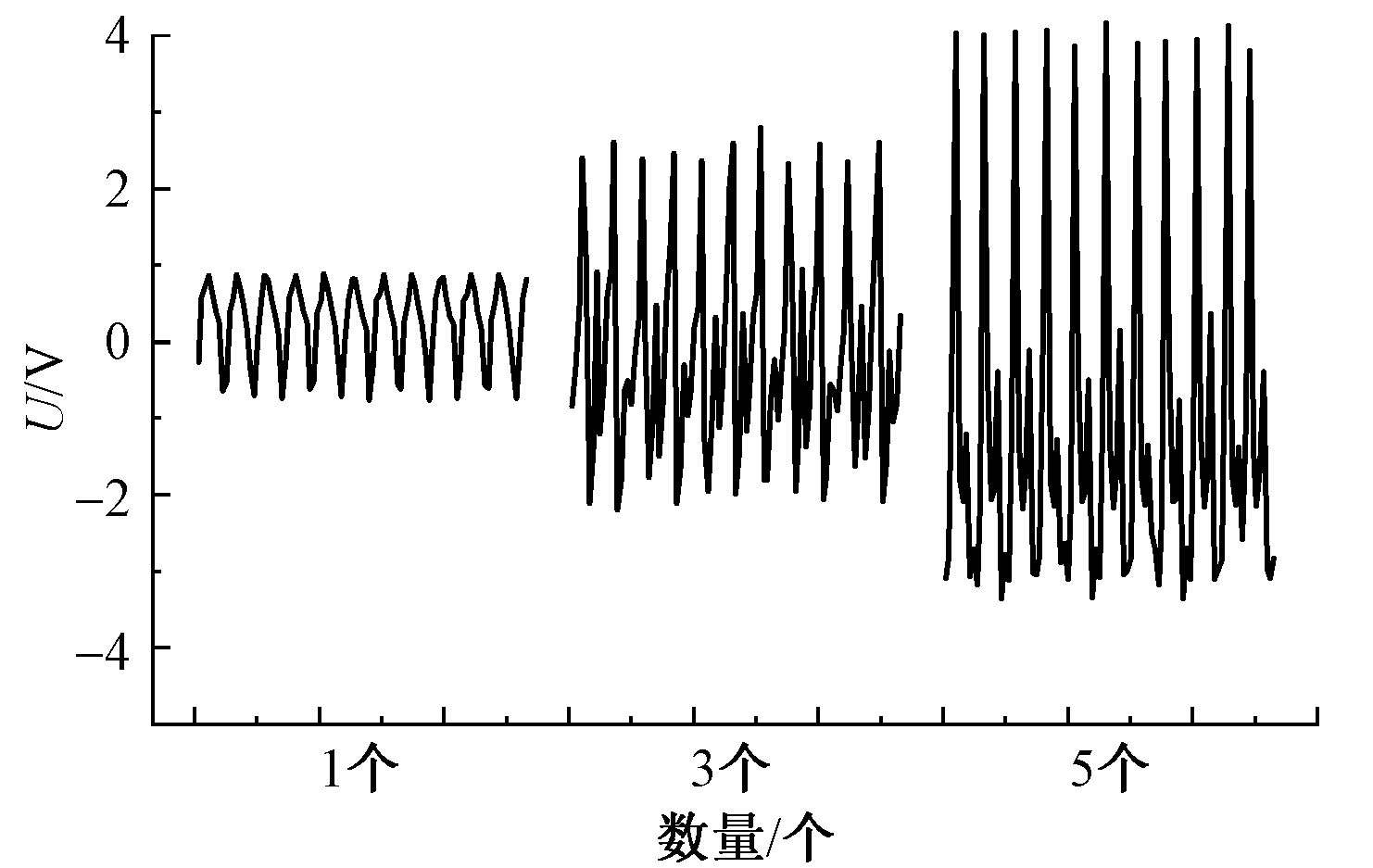

Fig.10

Flexoelectric voltage curves of different quantities of composite films with 50% MoS2 in series"

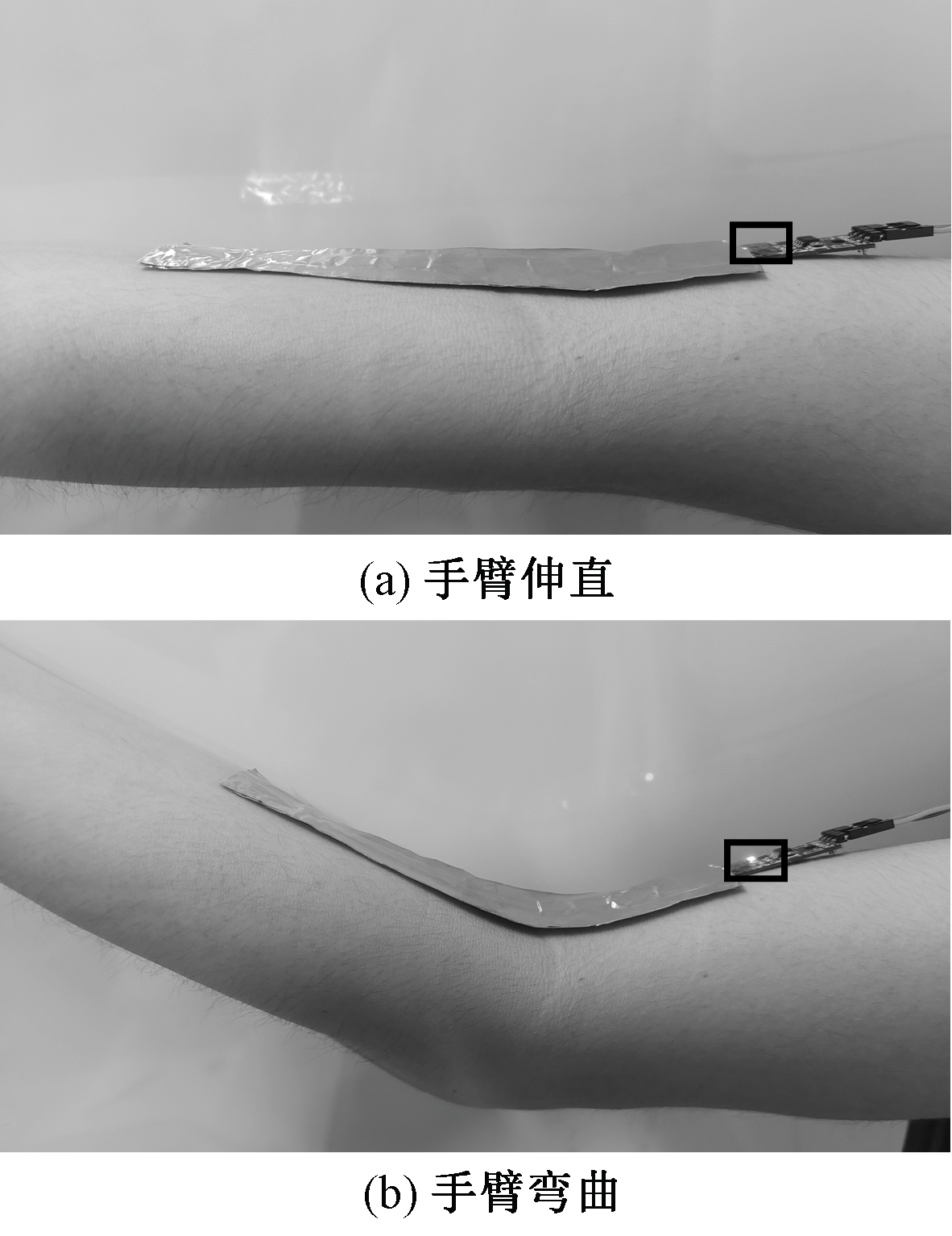

Fig.11

Bending sensor based on 50%MoS2 composite film. (a) Straightening state; (b) Bending state"

[1] WANG K, WANG S, LIU J, et al. Fe-based coordination polymers as battery-type electrodes in semi-solid-state battery-supercapacitor hybrid devices[J]. ACS Applied Materials & Interfaces, 2021, 13(13): 15315-15323.
[2] YANG Y N, JIANG F L, LI Y Q, et al. A surface coordination interphase stabilizes a solid-state battery[J]. Angewandte Chemie International Edition, 2021, 60(45): 24162-24170.
[3] YE R, HAMZELUI N, IHRIG M, et al. Water-based fabrication of a Li|Li7La3Zr2O12|LiFePO4 solid-state battery-toward green battery production[J]. ACS Sustainable Chemistry & Engineering, 2022, 10(23): 7613-7624.
[4] ZHANG S, LIU K, WU T, et al. Tunable flexoelectricity of elastomers[J]. Journal of Physical Chemistry C, 2020, 124(44): 24429-24434.
[5] NOVOSELOV K S, GEIM A K, MOROZOV S V, et al. Two-dimensional gas of massless dirac fermions in graphene[J]. Nature, 2005, 438(7065): 197-200.
[6] MOREIRA K S, LORENZETT E, DEVENS A L, et al. Low-cost elastomer-based flexoelectric devices[J]. Journal of Applied Physics, 2021. DOI: 10.1063/5.0048989.
[7] QU Y, JIN F, YANG J. Vibrating flexoelectric micro-beams as angular rate sensors[J]. Micromachines, 2022. DOI: 10.3390/mi13081243.
[8] ZHANG S, SHAO S, YANG X, et al. An enhanced flexoelectric dielectric elastomer actuator with stretchable electret[J]. Smart Materials and Structures, 2021. DOI: 10.1088/1361-665X/ac2de1.
[9] 杨丽, 王涛, 石现兵, 等. 改性聚丙烯腈纤维负载MoSx/TiO2光催化材料制备及其降解染料性能[J]. 纺织学报, 2022, 43(9): 149-155.
YANG Li, WANG Tao, SHI Xianbing, et al. Preparation of modified polyacrylonitrile fiber supported MoSx/TiO2 composite photocatalyst and its performance for dye degradation[J]. Journal of Textile Research, 2022, 43(9): 149-155.
[10] KIM S Y, JANG S, KIM K N, et al. Multilayered MoS2 sphere-based triboelectric-flexoelectric nanogenerators as self-powered mechanical sensors for human motion detection[J]. ACS Applied Nano Materials, 2022, 5(10): 15192-15200.
[11] KUMUTHINI R, RAMACHANDRAN R, THERESE H A, et al. Electrochemical properties of electrospun MoS2@C nanofiber as electrode material for high-performance supercapacitor application[J]. Journal of Alloys and Compounds, 2017, 705: 624-630.
[12] 杨科, 闫俊, 肖勇, 等. 电化学沉积锌电池MnOx/碳纳米纤维膜自支撑正极的制备及其电化学特性[J]. 纺织学报, 2022, 43(5): 77-85.
YANG Ke, YAN Jun, XIAO Yong, et al. Preparation of MnOx/carbon nanofiber membrane free-standing cathodes for zinc ion battery based on electrochemifcal deposition and their electrochemical characteristics[J]. Journal of Textile Research, 2022, 43(5): 77-85.
[13] ZHU S, NIE L. Progress in fabrication of one-dimensional catalytic materials by electrospinning technology[J]. Journal of Industrial and Engineering Chemistry, 2021, 93: 28-56.
[14] CASTRO K C, CAMPOS M G N, MEI L H I. Hyaluronic acid electrospinning: challenges, applications in wound dressings and new perspec-tives[J]. International Journal of Biological Macromolecules, 2021, 173: 251-266.
[15] DENG X, ZHAO Y, GAO H, et al. Studies on electro-optical properties of polymer dispersed liquid crystals doped with reticular nanofiber films prepared by electrospinning[J]. Liquid Crystals, 2021, 48(13): 1850-1858.
[16] CAO J. Bioelectricity inspired polymer electrolyte membranes for sensing and engergy harvesting applications[D]. Akron: University of Akron, 2018: 57-62.
[17] XIANG Q, YU J, JARONIEC M. Synergetic effect of MoS2 and graphene as cocatalysts for enhanced photocatalytic H2 production activity of TiO2 nanoparticles[J]. Journal of the American Chemical Society, 2012, 134(15): 6575-6578.
[18] QIANWEN M, YAPING D, LI L, et al. Electrospun MoS2 composite carbon nanofibers for determination of vanillin[J]. Journal of Electroanalytical Chemistry, 2019, 833: 297-303.
[19] 万萌, 虞丹妮, 朱罕, 等. 二硫化钼纳米片/碳纳米纤维杂化材料的制备及其析氢性能[J]. 无机化学学报, 2017, 33(4): 595-600.
WAN Meng, YU Danni, ZHU Han, et al. Synthesis and hydrogen evolution performance of molybdenum disulfide nanosheets/carbon nanofibers hybrid materials[J]. Chinese Journal of Inorganic Chemistry, 2017, 33(4): 595-600.
[20] SHEVLIAKOVA H V, YESYLEVSKYY S O, KUPCHAK I, et al. Flexoelectric and piezoelectric coupling in a bended MoS2 monolayer[J]. Symmetry, 2021. DOI: 10.3390/sym13112086.
[21] HIRAKATA H, FUKUDA Y, SHIMADA T. Flexoelectric properties of multilayer two-dimensional material MoS2[J]. Journal of Physics D: Applied Physics, 2022. DOI: 10.1088/1361-6463/ac4367.
[22] CAO S, ZOU H, JIANG B, et al. Incorporation of ZnO encapsulated MoS2 to fabricate flexible piezoelectric nanogenerator and sensor[J]. Nano Energy, 2022. DOI: 10.1016/j.nanoen.2022.107635.
