Analysis of silks from silkworms reared with artificial diet and mulberry leaves

HUANG Qing1,2, SU Zhenyue1,2, ZHOU Yifan1,2, LIU Qingsong1,2, LI Yi1,2, ZHAO Ping1,2, WANG Xin1,2()

  1. 1. Integratice Science Center of Germplasm Creation in Western China (Chongqing) Science City, Southwest University, Chongqing 400716, China
    2. Academy for Advanced Interdisciplinary Studies, Southwest University, Chongqing 400716, China
  • Received:2023-01-16 Revised:2023-09-13 Online:2024-05-15 Published:2024-05-31

RichHTML

43

PDF (PC)

164

Abstract:

Objective In order to understand the quality differences between silk fibers produced by artificial diet feeding and mulberry leave feeding, and to investigate the possibility of substituting artificial diet for mulberry leaves in sericulture, this research systematically analyzed the differences in morphology, composition, chemical structure, and mechanical properties between artificial diet-fed silkworm silk and mulberry leaves-fed silkworm silk.

Method In this study, two groups of silkworms were fed separately with artificial diet and mulberry leaves.The silk cocoons and fibers were carefully examined for their morphological characteristics using scanning electron microscopy. In order to evaluate the composition of the silk, elemental analysis, amino acid content analysis, and sodium dodecyl sulfate polyacrylamide gel electrophoresis testing were conducted to compare the two feeding methods.Additionally, infrared absorption spectroscopy, two-dimensional wide-angle X-ray scattering (2D-WAXS), and silk tensile testing were employed to elucidate the differences in chemical structure and mechanical properties between artificial diet-fed and mulberry leaves-fed silkworm silk.

Results The silk with artificial diet feeding exhibited no significant differences in fiber appearance compared to the silk with mulberry leave feeding. Protein composition analysis showed that there was no difference in the type and content of silk fibroin heavy chain protein, silk fibroin light chain protein and sericin protein between the two groups of silk samples. However, notable differences were observed in terms of element content, proline content, secondary structure, and crystallinity. The element analysis revealed that, except for Na and Si, the artificial diet silk had significantly lower content of other elements compared to the mulberry leaves silk. Furthermore, artificial diet silk exhibited lower levels of trace elements such as Al, Cr, and B, while higher levels of Fe, Mn, Zn, and Cu were detected compared to the mulberry leaves silk. Analysis of amino acid content indicated a distinct variation of proline content between the two silk types, with significantly higher proline content in the artificial diet silk. The analysis of secondary structure and crystallinity demonstrated higher β-turn content and lower random coil content in the artificial diet silk compared to the mulberry leaves silk. 2D-WAXS analysis revealed lower crystallinity (60.1%) in the artificial diet silk compared to the mulberry leaves silk (65.2%). Tensile testing showed that the artificial diet silk exhibited a higher average breaking strain (19.8±8.2)%, while the mulberry leaves silk demonstrated higher breaking strength (361.6±97.2)MPa, although the difference was not statistically significant.

Conclusion The study findings indicated that the observed disparities in morphology, composition, chemical structure, and mechanical properties between artificial diet-fed and mulberry leaves-fed silk were not significant, suggesting the potential of artificial diet as a substitute for mulberry leaves feeding to obtain high-quality silk fibers. The two feeding methods have no significant impact on the quality of silk produced. In addition, artificial diet offered advantages such as the potential for adding beneficial substances and avoiding harmful substances, further highlighting its suitability as a replacement for mulberry leaves in silkworm feeding. Future research may focus on incorporating beneficial substances such as metal ions or proline into artificial diets, by optimizing the formula of artificial diets and adding appropriate amounts of beneficial elements for compensation, in order to selectively improve the mechanical properties of silk and enhance the wider value of artificial diet feeding silk in sericulture. Overall, this comprehensive analysis contributes valuable insights and directions for improving artificial diet in sericulture and enhancing the quality of silk and lays a solid foundation for further promoting the strategic goal of industrialized sericulture of whole age feeding in the future.

Key words: silk, artificial diet, mulberry leef, silk structure, mechanical property

CLC Number:

  • TS14

Fig.1

Morphological observation of cocoons and silk fibers obtained from silkworms reared by artificial diet (a) and mulberry leaves (b)"

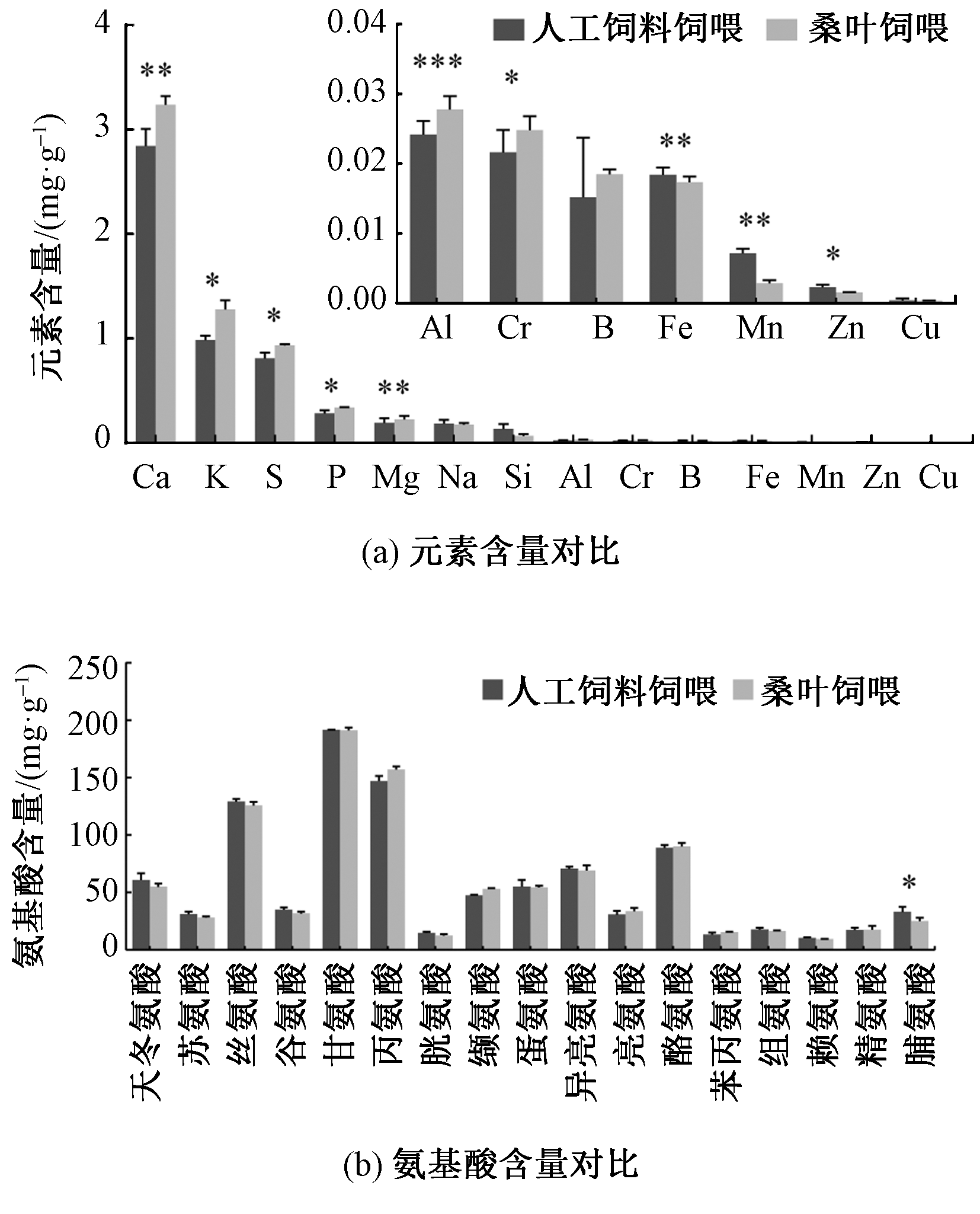

Fig.2

Composition analysis of cocoons obtained from silkworms reared with artificial diet and mulberry leaves. (a) Elemental content; (b) Amino acid content"

Fig.3

SDS-PAGE test results of cocoons obtained from silkworms reared with artificial diet and mulberry leaves"

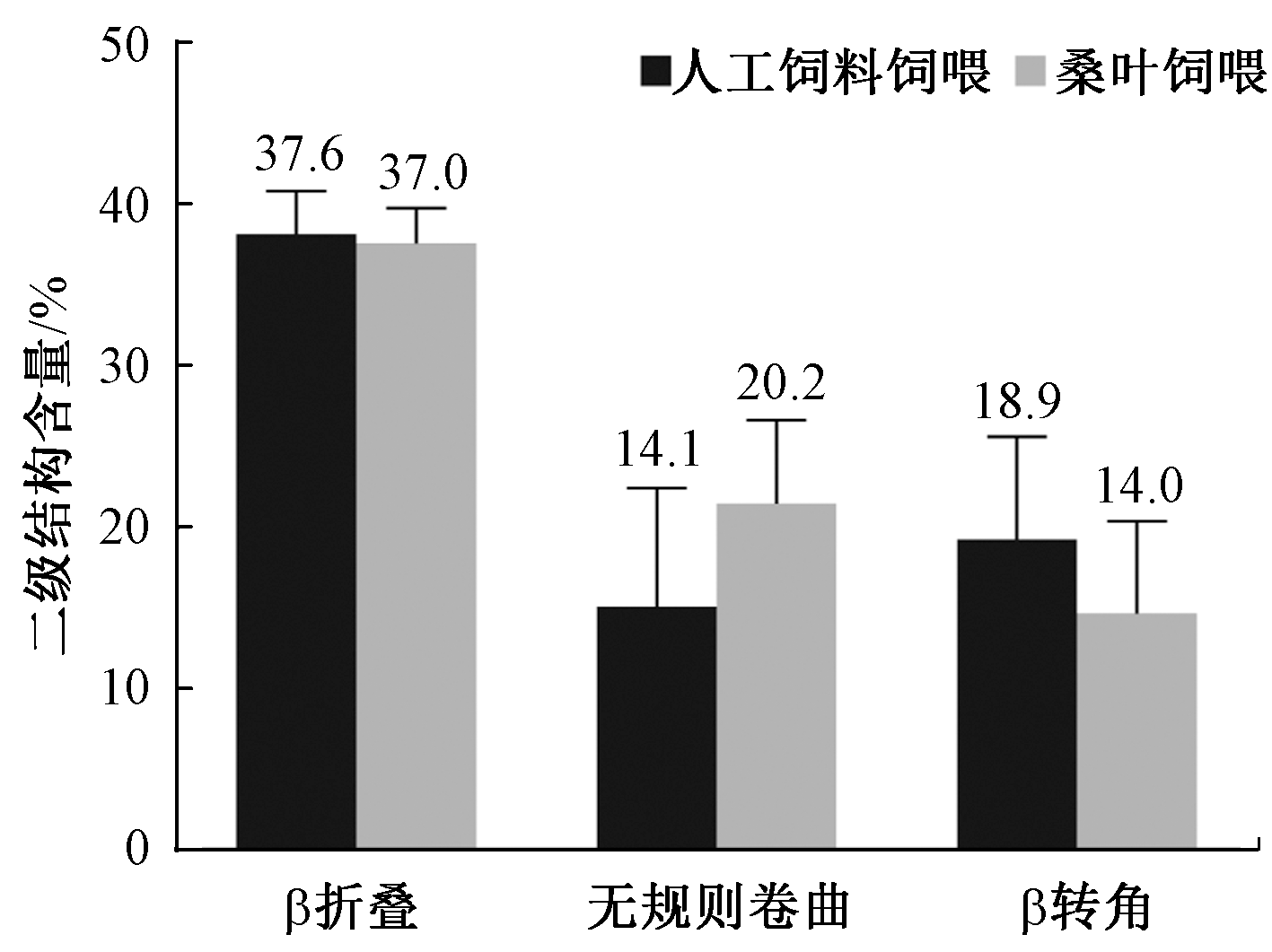

Fig.4

Secondary structure contents of silk fibers obtained from silkworms reared with artificial diet and mulberry leaves"

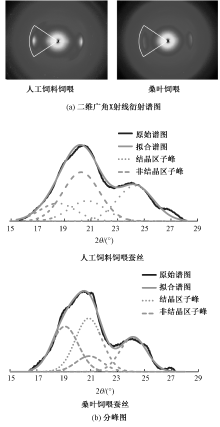

Fig.5

2D-WAXS spectra (a) and peak-fitting diagram (b) of silk fibers obtained from silkworms reared with artificial diet and mulberry leaves"

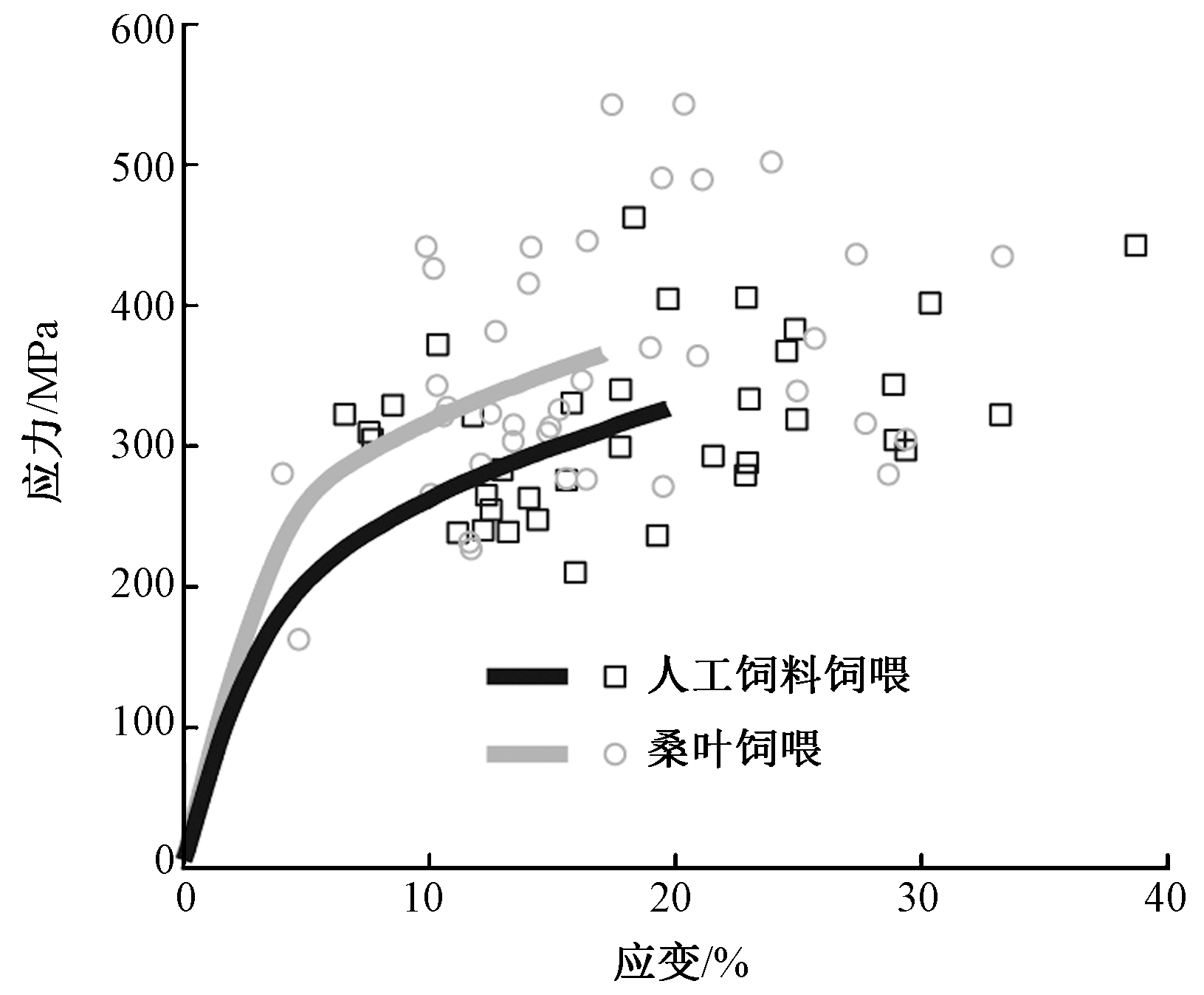

Fig.6

Averaged stress-strain curves of silk fibers obtained from silkworms reared with artificial diet and mulberry leaves"

Tab.1

Mechanical parameters of silk fibers"

饲喂方式 断裂强度/
MPa		 断裂
伸长率/%		 弹性模量/
GPa		 韧度/
(MJ·m-3)
人工饲料饲喂 320.5±65.2 19.8±8.2 5.8±2.0 46.9±24.7
桑叶饲喂 361.6±97.2 17.1±7.0 6.9±2.0 47.5±27.6
[1] GE D, YU H Y, MIAO Z Y, et al. Intrinsically conductive bifunctional nanocellulose-reinforced robust and self-healable electronic skin: deep insights into multiple bonding network, property reinforcement, and sensing mechanism[J]. ACS Sustainable Chemistry & Engineering, 2023, 11(3): 1157-1167.
[2] OUYANG Z F, LI S H, LIU J T, et al. Bottom-up reconstruction of smart textiles with hierarchical structures to assemble versatile wearable devices for multiple signals monitoring[J]. Nano Energy, 2022. DOI: 10.1016/j.nanoen.2022.107963.
[3] HUANG W W, LING S J, LI C M, et al. Silkworm silk-based materials and devices generated using bio-nanotechnology[J]. Chemical Society Reviews, 2018, 47(17): 6486-6504.
doi: 10.1039/c8cs00187a pmid: 29938722
[4] ALTMAN G H, DIAZ F, JAKUBA C, et al. Silk-based biomaterials[J]. Biomaterials, 2003, 24(3): 401-416.
doi: 10.1016/s0142-9612(02)00353-8 pmid: 12423595
[5] 李建琴, 顾国达, 崔为正. 人工饲料养蚕的进程与展望[J]. 中国蚕业, 2021, 42(1): 46-52.
LI Jianqin, GU Guoda, CUI Weizheng. Progress and prospect of silkworm rearing with artificial diet[J]. China Sericulture, 2021, 42(1): 46-52.
[6] 何金涛, 占鹏飞, 郝志华, 等. 家蚕人工饲料研究进展[J]. 蚕桑通报, 2020, 51(1): 16-19.
HE Jintao, ZHAN Pengfei, HAO Zhihua, et al. Research progress of artificial silkworm feed[J]. Bulletin of Sericulture, 2020, 51(1): 16-19.
[7] 曹学军. 《蚕桑丝绸产业高质量发展行动计划(2021-2025年)》解读节选[J]. 江苏丝绸, 2020(6): 2,53.
CAO Xuejun. Selected interpretation of the action plan for high quality development of the sericulture and silk industry (2021-2025)[J]. Jiangsu Silk, 2020(6): 2,53.
[8] LI J, CHEN C, ZHA X. Midgut and head transcriptomic analysis of silkworms reveals the physiological effects of artificial diets[J]. Insects, 2022. DOI: 10.3390/insects13030291.
[9] ZHOU Z H, YANG H J, CHEN M, et al. Comparative proteomic analysis between the domesticated silk-worm (Bombyx mori) reared on fresh mulberry leaves and on artificial diet[J]. Journal of Proteome Research, 2008, 7(12): 5103-5111.
[10] LAMBERTI C, GAI F, CIRRINCIONE S, et al. Investigation of the protein profile of silkworm (Bombyx mori) pupae reared on a well-calibrated artificial diet compared to mulberry leaf diet[J]. PeerJ, 2019. DOI: 10.7717/peerj.6723.
[11] DONG H L, ZHANG S X, TAO H, et al. Metabolomics differences between silkworms (bombyx mori) reared on fresh mulberry (morus) leaves or artificial diets[J]. Scientific Reports, 2017. DOI: 10.1038/s41598-017-11592-4.
[12] TAO S, WANG J, LIU M, et al. Haemolymph metabolomic differences in silkworms (bombyx mori L.) under mulberry leaf and two artificial diet rearing methods[J]. Archives of Insect Biochemistry and Physiology, 2022. DOI: 10.1002/arch.21851.
[13] QIN D, WANG G, DONG Z, et al. Comparative fecal metabolomes of silkworms being fed mulberry leaf and artificial diet[J]. Insects, 2020. DOI: 10.3390/insects11120851.
[14] DONG H L, ZHANG S X, CHEN Z H, et al. Differences in gut microbiota between silkworms (bombyx mori) reared on fresh mulberry (morus alba var multicaulis) leaves or an artificial diet[J]. RSC Advances, 2018, 8(46): 26188-26200.
[15] 朱良均. 家蚕人工饲料育的蚕丝特性[J]. 国外农学:蚕业, 1992(2): 1-7.
ZHU Liangjun. Characteristics of silkworm reared with artificial diet[J]. Foreign Agronomy:Sericulture, 1992(2): 1-7.
[16] 胡暄妍, 马明波, 周文龙. 人工饲料育蚕蚕丝的结构和拉伸力学性能[J]. 丝绸, 2020, 57(9): 12-16.
HU Xuanyan, MA Mingbo, ZHOU Wenlong. Structure and tensile mechanical properties of silk from silkworm raised with artificial feed[J]. Journal of Silk, 2020, 57(9): 12-16.
[17] 张桂征, 闭立辉, 韦博尤, 等. 人工饲料与桑叶不同搭配饲育模式对家蚕新品种桂蚕5号生长发育及茧丝质量的影响[J]. 中国蚕业, 2021, 42(4): 10-14.
ZHANG Guizheng, BI Lihui, WEI Boyou, et al. Effects of different feeding patterns of artificial diet and mulberry leaves on the growth and silk quality of Guichan No.5:a new silkworm variety[J]. China Sericulture, 2021, 42(4): 10-14.
[18] QU J, FENG P, ZHU Q, et al. Study on the effect of stretching on the strength of natural silk based on different feeding methods[J]. ACS Biomaterials Science & Engineering, 2022, 8(1): 100-108.
[19] 周文, 陈新, 邵正中. 红外和拉曼光谱用于对丝蛋白构象的研究[J]. 化学进展, 2006, 18(11): 1514-1522.
ZHOU Wen, CHEN Xin, SHAO Zhengzhong. Conformation studies of silk proteins with infrared and raman spectroscopy[J]. Progress in Chemistry, 2006, 18(11): 1514-1522.
[20] LÜ Z, QI P, CAO L, et al. Structural characterization of silk fibers by wide-angle X-ray scattering[J]. Methods in Molecular Biology, 2021, 2347: 241-248.
doi: 10.1007/978-1-0716-1574-4_21 pmid: 34472070
[21] LU H, XIA K, JIAN M, et al. Mechanically reinforced silkworm silk fiber by hot stretching[J]. Research, 2022. DOI: 10.34133/2022/9854063.
[22] LIU Q, WANG X, TAN X, et al. Disruption of the metal ion environment by EDTA for silk formation affects the mechanical properties of silkworm silk[J]. Internation Journal of Molecular Sciences, 2019. DOI: 10.3390/ijms20123026.
[23] ZHOU L, CHEN X, SHAO Z, et al. Effect of metallic ions on silk formation in the mulberry silkworm, bombyx mori[J]. Journal of Physical Chemistry B, 2005, 109(35): 16937-16945.
[24] WANG X, LI Y, LIU Q, et al. In vivo effects of metal ions on conformation and mechanical performance of silkworm silks[J]. Biochimica et Biophysica Acta-General Subjects, 2017, 1861(3): 567-576.
doi: S0304-4165(16)30445-7 pmid: 27865996
[25] WANG X, LI Y, XIE K, et al. Ca2+ and endoplasmic reticulum Ca2+-ATPase regulate the formation of silk fibers with favorable mechanical properties[J]. Journal of Insect Physiology, 2015, 73: 53-59.
[26] SHOUKAT M A, ASHRAF S, ALI M, et al. The effect of Cr (Vi) on silkworm (bombyx mori) fed on in vitro accumulated mulberry leaves[J]. Asian Journal of Agriculture and Biology, 2014, 2: 119-128.
[27] ASHFAQ M, AHMAD S, SAGHEER M, et al. Bioaccumulation of chromium (III) in silk-worm (Bombyx mori L.) in relation to mulberry, soil and wastewater metal concentrations[J]. Journal of Animal and Plant Sciences, 2012, 22(3): 627-634.
[28] SEYDEL T, KÖLLN K, KRASNOV I, et al. Silkworm silk under tensile strain investigated by synchrotron X-ray diffraction and neutron spectroscopy[J]. Macromolecules, 2007, 40(4): 1035-1042.
[29] KRASNOV I, DIDDENS I, HAUPTMANN N, et al. Mechanical properties of silk: interplay of deformation on macroscopic and molecular length scales[J]. Physical Review Letters, 2008. DOI: 10.1103/PhysRevLett.100.048104.
[30] MHUKA V, DUBE S, NINDI MM. Chemical, structural and thermal properties of gonometa postica silk fibroin, a potential biomaterial[J]. International Journal of Biological Macromolecules, 2013, 52: 305-311.
doi: 10.1016/j.ijbiomac.2012.09.010 pmid: 23000253
[31] 邵正中. 蚕丝、蜘蛛丝及其丝蛋白[M]. 北京: 化学工业出版社, 2015: 108-109.
SHAO Zhengzhong. Silk, spider silk and its fibroin[M]. Beijing: Chemical Industry Press, 2015: 108-109.
