茜草色素对生物基聚酰胺56的染色性能

doi:10.13475/j.fzxb.20230202001

Abstract

Abstract:

Objective Madder pigment is a natural dye of bright red color with stable performance. Bio-based polyamide 56 (PA56)is an environment-friendly and excellent bio-based polyamide material. In this research, madder pigment was adopted to dye PA56 fabrics, the dyeing process was optimized,and the dyeing kinetic mechanism was studied. The research results provide a theoretical basis for the application of madder natural dyes to bio-based PA56 fabrics. Furthermore, applying natural dyes to bio-based materials would meet the requirements of circular economy and low-carbon sustainable development.

Method In order to study the dyeing performance of madder on PA56 fabric, the parameters including pH, dyeing time, dyeing temperature and mass fraction of Peregal O were explored to find the optimal conditions. Through K/S value and color characteristics, the influences of mordants and mordant treatment processes were studied. The optimal conditions obtained were subsequently adopted to study the kinetic of madder pigment dyeing. Pseudo first-order and pseudo second-order kinetic models were adopted to examine the mechanism of the adsorption process. Kinetic parameters of madder pigment dyeing on PA56 fiber with different temperature, pH, auxiliaries and mordant were calculated.

Results The results showed that the optimum process for dyeing bio-based PA56 fabrics with madder pigment was as follows: dyeing pH value is 4.2, dyeing temperature is 80 ℃, dyeing time is 40 min and the amount of Peregal O is 1 g/L. After mordant dyeing, the K/S values of the dyed fabrics were significantly increased, and the color characteristics of dyed fabric changes obviously. Compared with the direct dyed fabric, the color fastness of the mordant dyed fabric has been improved. The kinetics of adsorption for different dye temperatures were evaluated by the pseudo first-order and second-order models. A large equilibrium adsorption density difference between the experiment and calculation was observed for the pseudo first-order model, indicating a poor pseudo first-order fit to the experimental data. The experimental data fitted well to the pseudo second-order kinetic model with high correlation coefficient above 0.999. In addition, the C_∞ agreed well with both experiment and calculation, suggesting that the second-order kinetic model well describes the adsorption of madder pigment onto PA56 fiber. The half-dyeing time decreased,and the diffusion coefficient increased with increasing temperature. The influences of dyeing pH, auxiliaries and mordant on the dyeing kinetic parameters were further analyzed. With the increase of pH value, the equilibrium adsorption amount decreased, the half-dyeing time was shortened,and the diffusion coefficient was increased. The addition of sodium sulfate and Peregal O reduced the equilibrium dyeing amount and the half-dyeing time of maddering dye. The rate constant (k₂) and the diffusion coefficient were increased with the addition of sodium sulfate and Peregal O. After mordant dyeing, the equilibrium adsorption amount was decreased, the half-dyeing time increased and the diffusion coefficient decreased, but K/S values of the dyed fabrics were increased.

Conclusion The optimal conditions and dyed fabric with darker color of bio-based PA56 dyed with madder pigment were obtained. The type and mode of mordant can enrich the color tone and improve the color fastness. Fitting calculations reveal that the dyeing process of madder pigment dyeing on bio-based PA56 fabrics conforms to the pseudo second order kinetic model. Madder has a fast adsorption rate on PA56 fabric. The adsorption capacity was dependent with pH value. The addition of sodium sulfate and Peregal O, as well as the pretreatment with mordant, the dyeing processes also conform to the quasi-second order kinetic model.

Key words: natural dye, madder pigment, bio-based polyamide 56, dyeing, kinetics

CLC Number:

TS193.2

HUANG Lianxiang, WANG Xiangrong, HOU Xueni, QIAN Qinfang. Dyeing properties of madder pigment on bio-based polyamide 56[J].Journal of Textile Research, 2024, 45(07): 94-103.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

URL: http://www.fzxb.org.cn/EN/10.13475/j.fzxb.20230202001

http://www.fzxb.org.cn/EN/Y2024/V45/I07/94

Figures/Tables 17

Fig.1

Tab.1

Fig.2

Tab.2

Tab.3

Fig.3

Fig.4

Fig.5

Tab.4

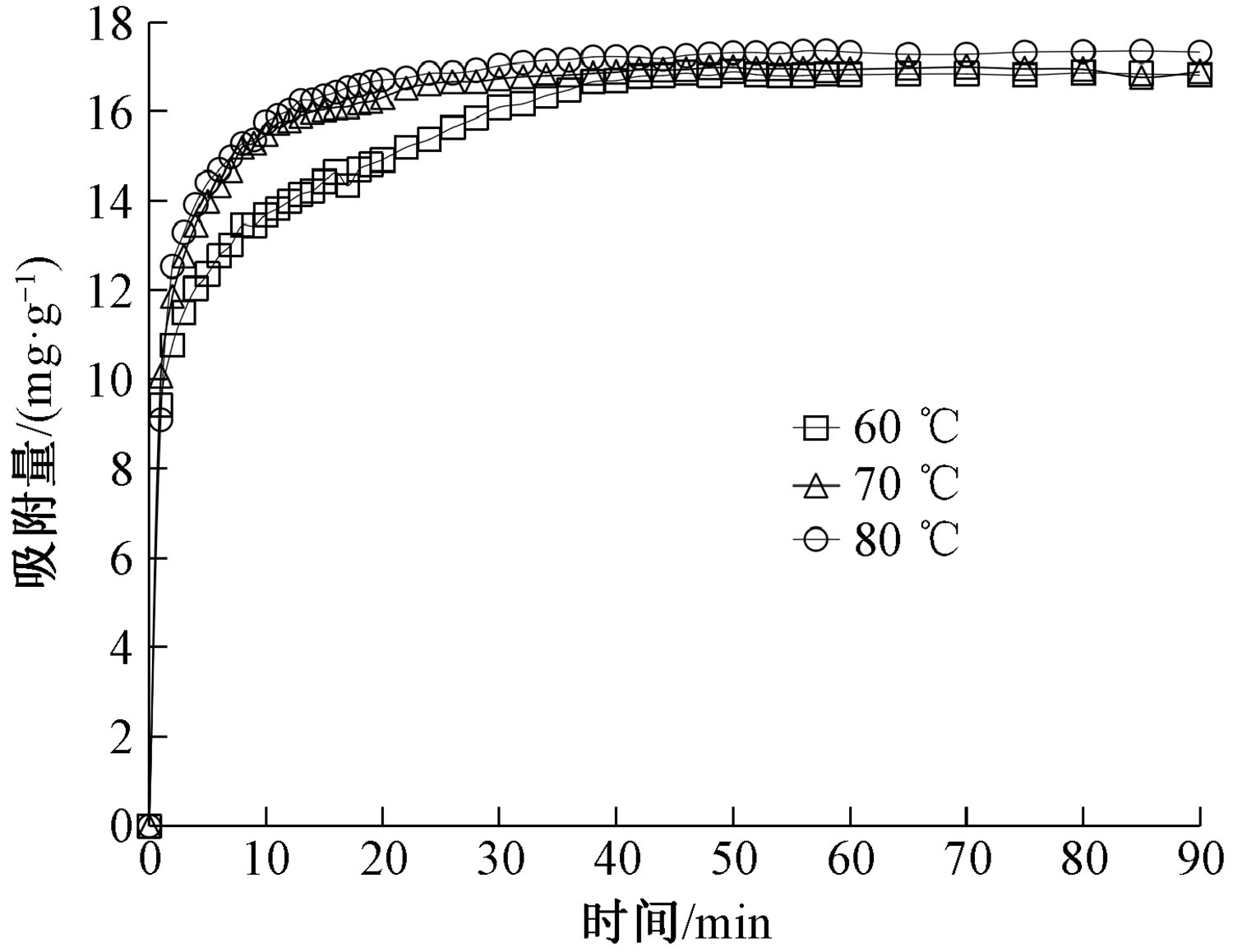

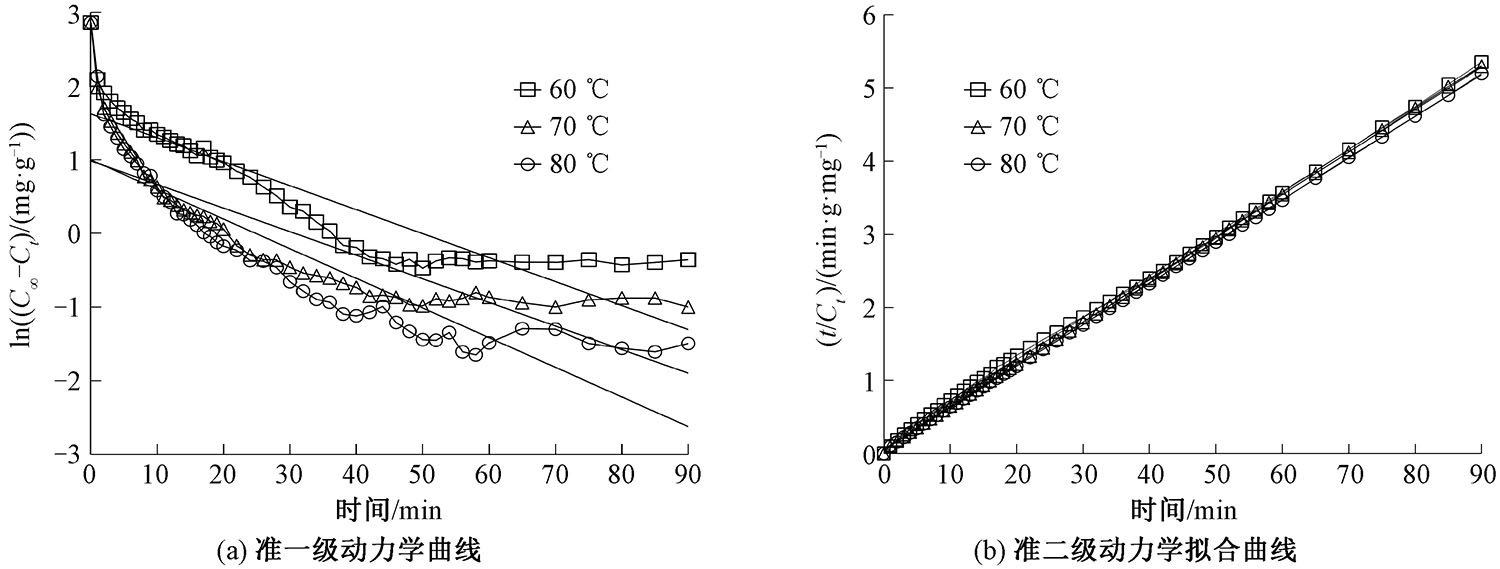

Quasi-first-order and quasi-second-order kinetic parameters of madder pigment dyeing on PA56 fiber"

温度/℃	准一级动力学参数					准二级动力学参数
温度/℃	回归方程	R²	C_∞,exp/ (mg·g^-1)	C_{∞, cal}/ (mg·g^-1)	k₁/ min^-1	回归方程	R²	C_∞,exp/ (mg·g^-1)	C_{∞, cal}/ (mg·g^-1)	k₂/ (g $·$ mg^-1 $·$ min^-1)
60	y=-0.033x+1.626	0.815	16.81	5.09	0.03	y=0.058x+0.132	0.999	16.81	17.39	0.03
70	y=-0.031x+0.956	0.666	16.99	2.61	0.03	y=0.058x+0.055	0.999	16.99	17.21	0.06
80	y=-0.040x+1.000	0.779	17.35	2.72	0.04	y=0.057x+0.044	0.999	17.35	17.57	0.07

Tab.4

Tab.5

Fig.6

Tab.6

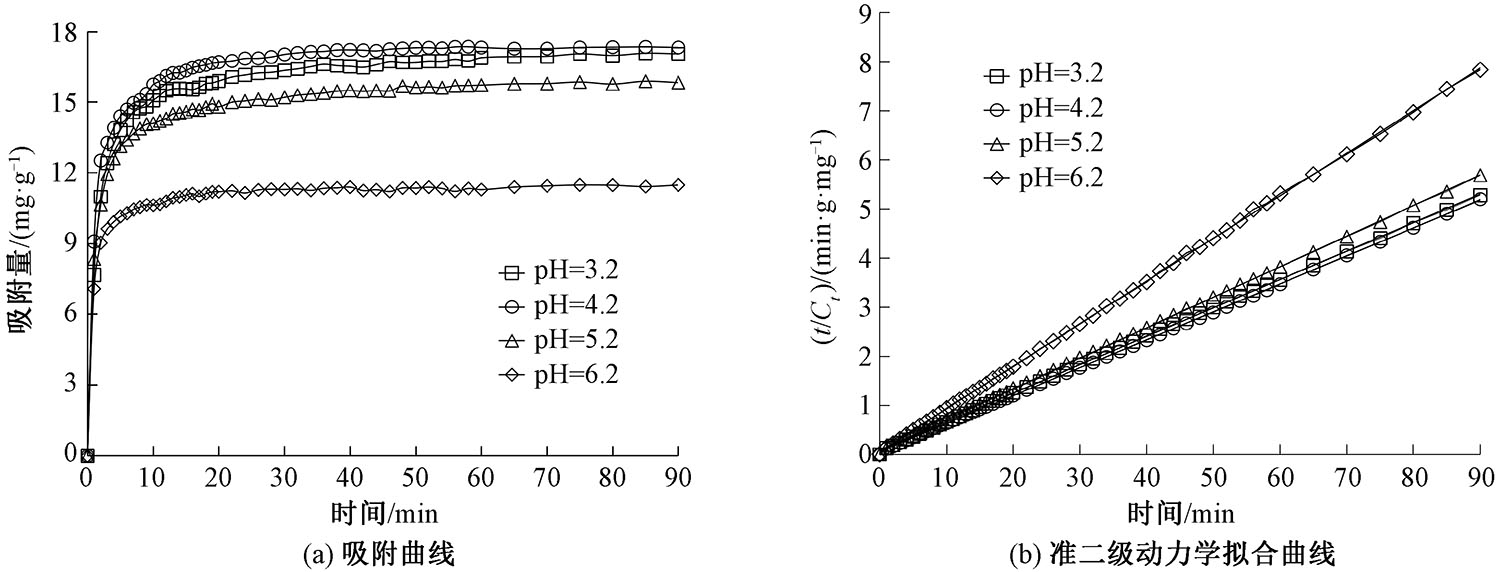

Quasi-second-order kinetic parameters of madder pigment dyeing on PA56 fiber at different pH values"

pH值	回归方程	R²	C_∞,exp/ (mg·g^-1)	C_{∞, cal}/ (mg·g^-1)	k₂/ (g $·$ mg^-1 $·$ min^-1)	t_1/2/min	D/ (m²·min^-1)
3.2	y=0.058x+0.084	0.999	17.05	17.24	0.04	1.44	2.55×10^-12
4.2	y=0.057x+0.044	0.999	17.35	17.54	0.07	0.77	3.09×10^-12
5.2	y=0.062x+0.045	0.999	15.83	16.05	0.09	0.72	4.78×10^-12
6.2	y=0.087x+0.058	0.999	11.49	11.52	0.13	0.67	5.10×10^-12

Tab.6

Fig.7

Tab.7

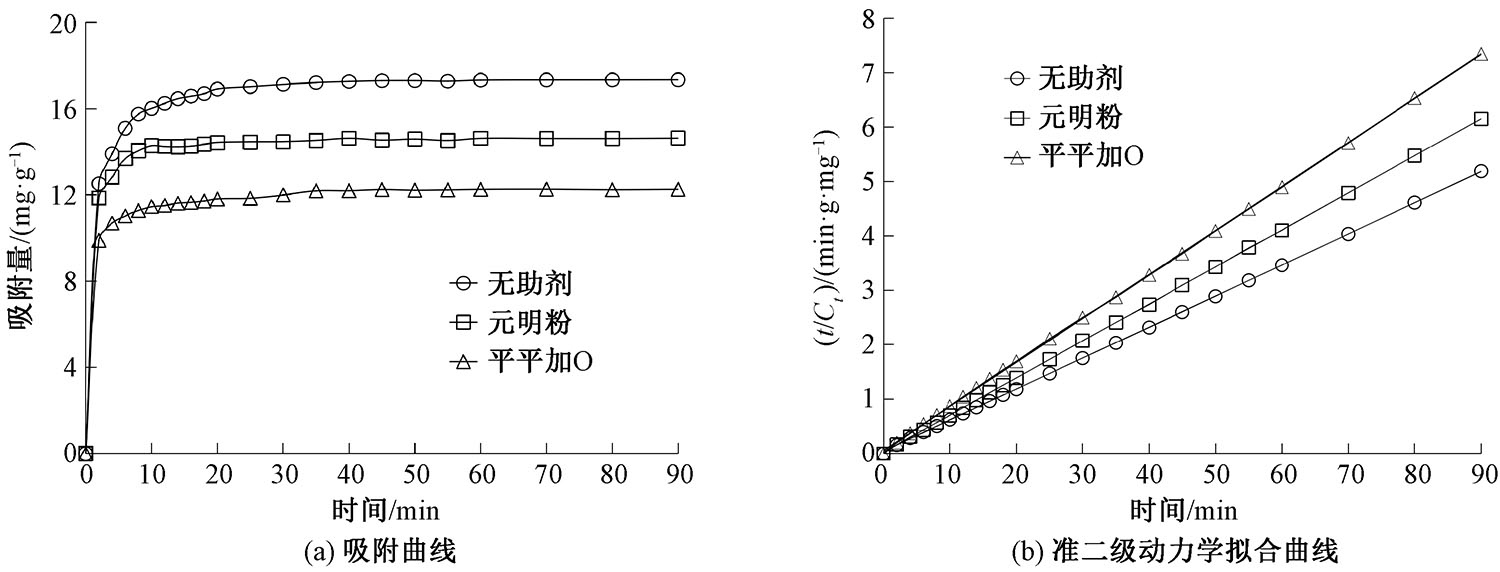

Quasi-second-order kinetic parameters of madder pigment dyeing on PA56 fiber with different dyeing auxiliaries"

助剂	回归方程	R²	C_∞,exp/ (mg·g^-1)	C_{∞, cal}/ (mg·g^-1)	k₂/ (g $·$ mg^-1 $·$ min^-1)	t_1/2/ min	D/ (m²·min^-1)	K/S值	λ_max/ nm
无助剂	y=0.057+0.044	0.999	17.35	17.54	0.07	0.77	4.78×10^-12	2.24	400
元明粉	y=0.068x+0.026	0.999	14.33	14.68	0.18	0.38	9.66×10^-12	2.17	400
平平加O	y=0.081x+0.058	0.999	12.28	12.38	0.11	0.72	5.13	2.14×10^-12	400

Tab.7

Fig.8

Fig.9

Tab.8

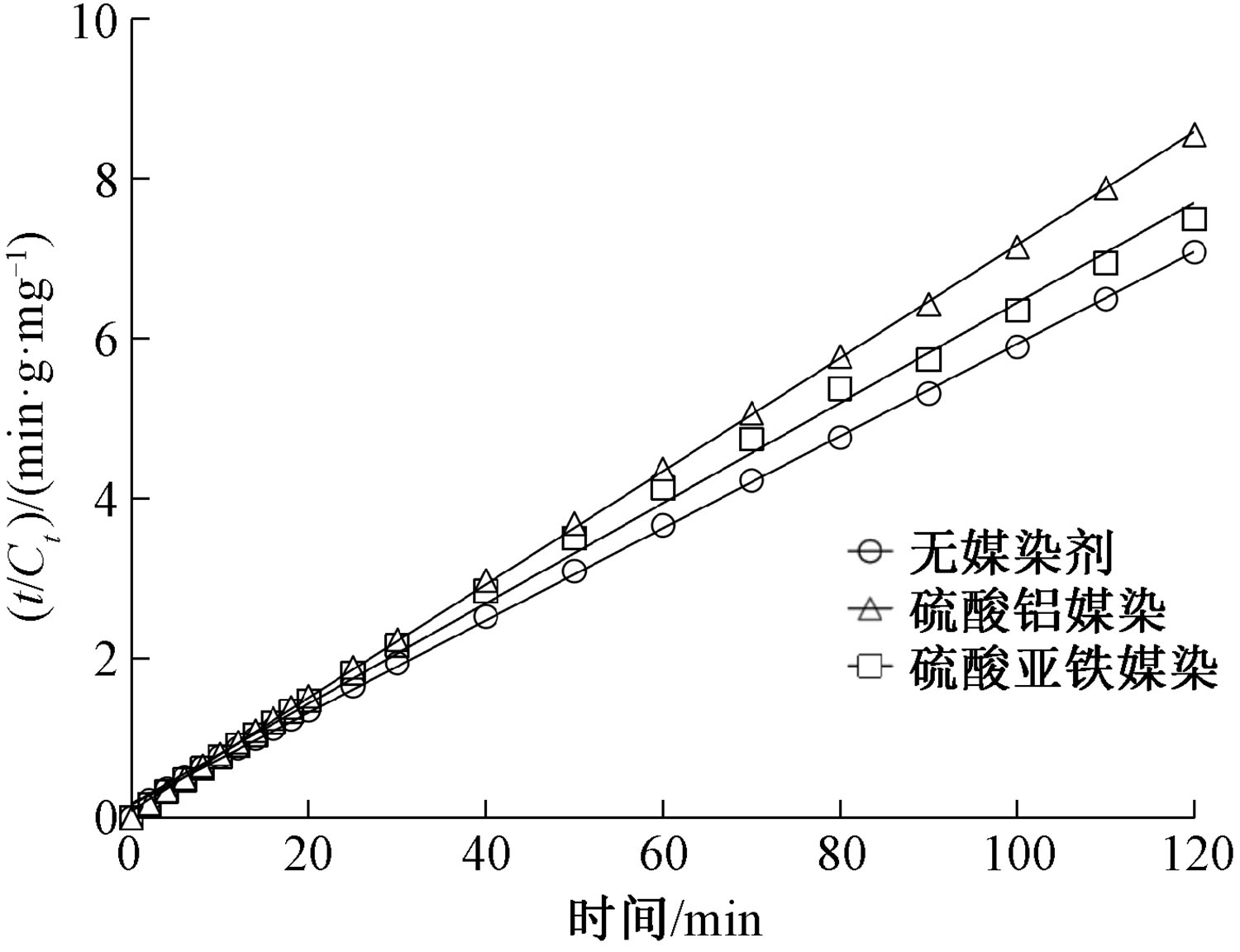

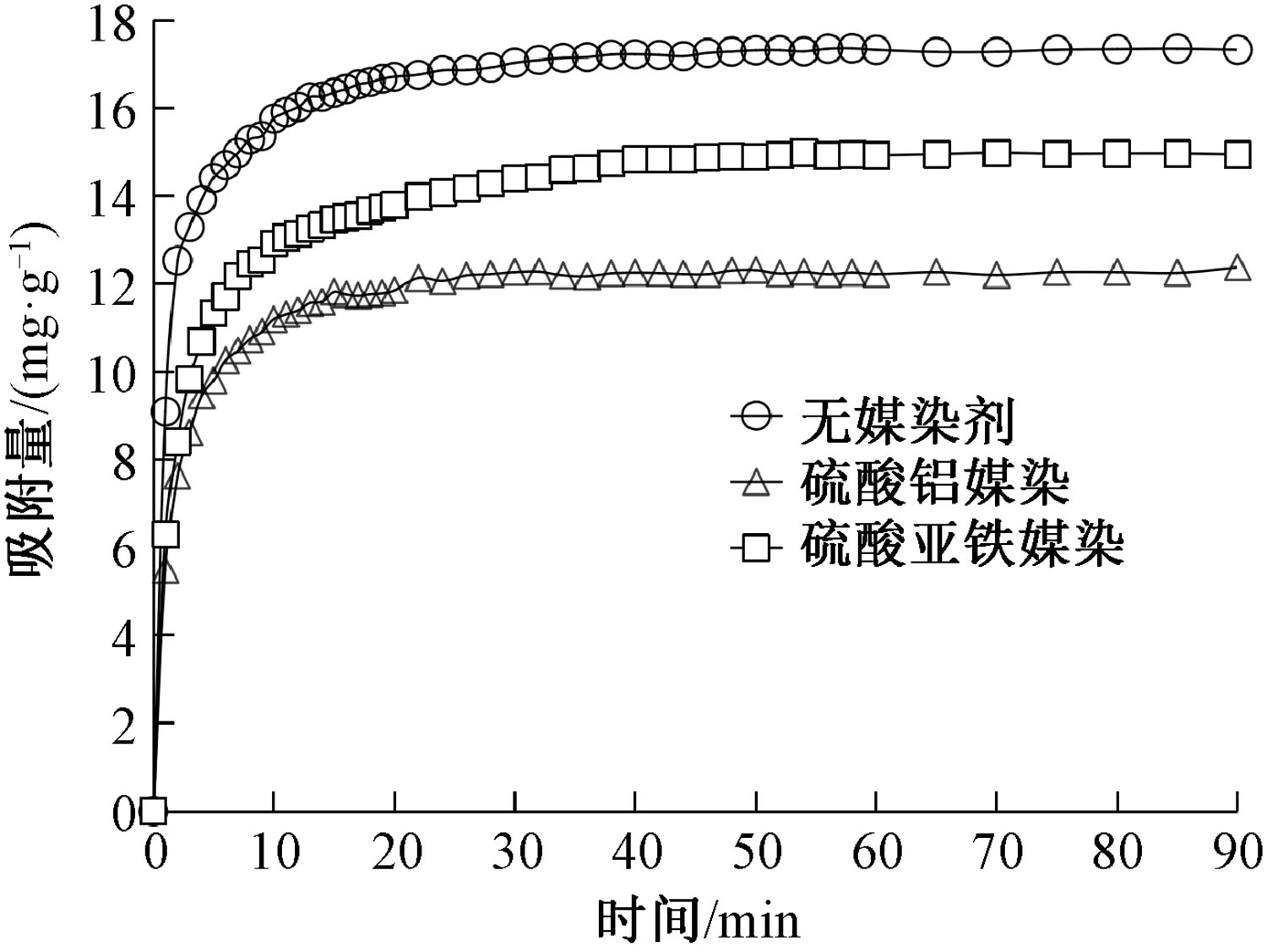

Quasi-second-order kinetic parameters of mordants on PA56 fiber dyed with madder pigment"

媒染剂	回归方程	R²	C_∞,exp/ (mg·g^-1)	C_{∞, cal}/ (mg·g^-1)	k₂/ (g $·$ mg^-1 $·$ min^-1)	t_1/2/ min	D/ (m²·min^-1)	K/S值	λ_max/ nm
直接染色	y=0.057x+0.044	0.999	17.35	17.54	0.07	0.77	4.78×10^-12	1.76	400
硫酸铝预媒染	y=0.080x+0.079	0.999	12.29	12.47	0.08	0.96	3.74×10^-12	3.56	510
硫酸亚铁预媒染	y=0.065x+0.117	0.999	15.31	15.34	0.04	1.79	2.06×10^-12	7.54	560

Tab.8

References 31

[1]	陈荣圻. 天然染料及其染色[J]. 染整技术, 2016, 38(4): 47-51.
	CHEN Rongqi. Natural dyes and the dyeing[J]. Textile Dyeing and Finishing Journal, 2016, 38(4): 47-51.
[2]	RATHER L J, AKHTER S, PADDER R A, et al. Colorful and semi durable antioxidant finish of woolen yarn with tannin rich extract of acacia nilotica natural dye[J]. Dyes and Pigments, 2017,139:812-819.
[3]	宋慧君, 翟亚丽, 钞意元, 等. 蚕丝织物的栀子蓝色素染色[J]. 纺织学报, 2020, 41(6): 81-85.
	SONG Huijun, ZHAI Yali, CHAO Yiyuan, et al. Silk fabric dyed with gardenia blue pigment[J]. Journal of Textile Research, 2020, 41(6): 81-85.
[4]	HOSSAIN S, JALIL M A, KAMAL S A B, et al. A natural dye extracted from the leaves of Mimusops elengi linn and its dyeing properties on cotton and silk fabrics[J]. Journal of The Textile Institute, 2021, 112(3): 455-461.
[5]	刘建平. 广玉兰叶色素染色阳离子改性棉布的抗紫外线性能[J]. 印染, 2021, 47(5):44-46.
	LIU Jianping. UV resistance of cationic modified cotton fabric dyed with colorants from Magnolia grandiflora leaves[J]. China Dyeing & Finishing, 2021, 47(5):44-46.
[6]	任燕飞, 巩继贤, 张健飞, 等. 茶色素染液pH值对羊毛织物染色效果及抗菌性能的影响[J]. 纺织学报, 2016, 37(11): 86-91.
	REN Yanfei, GONG Jixian, ZHANG Jianfei, et al. Influence of dye solution pH value on dyeing effects and antibacterial properties of wool fabrics dyed with tea natural dye[J]. Journal of Textile Research, 2016, 37(11): 86-91.
[7]	刘艳春, 白刚. 小檗碱在聚丙烯腈/醋酸纤维素复合纤维染色中的应用[J]. 纺织学报, 2020, 41(5):94-98,104.
	LIU Yanchun, BAI Gang. Application of berberine in polyacrylonitrile/cellulose acetate composite fiber dyeing[J]. Journal of Textile Research, 2020, 41(5):94-98, 104.
[8]	PANDEY R, PATEL S, PANDIT P, et al. Colouration of textiles using roasted peanut skin: an agro processing residue[J]. Journal of Cleaner Production, 2018, 172(20): 1319-1326.
[9]	BLACKBURN, RICHARD S. Natural dyes in madder (Rubia spp.) and their extraction and analysis in historical textiles[J]. Coloration Technology, 2017, 133(6):449-462.
[10]	MEHRPARVAR L S. SAFAPOUR M. SADEGHI K, et al. A cleaner and eco-benign process for wool dyeing with madder, Rubia tinctorum L, root natural dye[J]. International Journal of Environmental Science and Technology, 2016, 13(11):2569-2578.
[11]	齐迪, 丁洪, 王祥荣. 羟基茜草素络合染料对羊毛的染色性能[J]. 印染, 2022, 48(6):23-27.
	QI Di, DING Hong, WANG Xiangrong. Dyeing properties of wool with purpurin complex dyes[J]. China Dyeing & Finishing, 2022, 48(6):23-27.
[12]	张驰, 王祥荣. 茜草色素在真丝织物上染色性能的研究[J]. 丝绸, 2020, 57(1):9-13.
	ZHANG Chi, WANG Xiangrong. Study on dyeing property of madder pigment on silk fabrics[J]. Journal of Silk, 2020, 57(1):9-13.
[13]	YUSUF, FAQEER M, SHAHID M, et al. Eco-dyeing of wool with Rubia cordifolia root extract: assessment of the effect of Acacia catechu as biomordant on color and fastness properties[J]. Textiles and Clothing Sustainability, 2016,2:10.
[14]	张彦博. 生物基PA56织物的染色性能研究及风格评价[D]. 苏州: 苏州大学, 2022:3-9.
	ZHANG Yanbo. Study on dyeing properties of PA56 and evaluation of its fabric style[D]. Suzhou: Soochow University, 2022:3-9.
[15]	孙朝续, 刘修才. 生物基聚酰胺56纤维在纺织领域的应用研究进展[J]. 纺织学报, 2021, 42(4): 26-32.
	SUN Chaoxu, LIU Xiucai. Research progress on applications of bio-based polyamide 56 fibers in textile fields[J]. Journal of Textile Research, 2021, 42 (4):26-32.
[16]	杨婷婷, 高远博, 郑毅, 等. 生物基聚酰胺56纤维的热降解动力学及其热解产物[J]. 纺织学报, 2021, 42(4): 1-7.
	YANG Tingting, GAO Yuanbo, ZHENG Yi, et al. Thermal degradation kinetics and pyrolysis products of bio-based polyamide 56 fiber[J]. Journal of Textile Research, 2021, 42(4): 1-7.
[17]	YANG T T, GAO Y B, WANG X L, et al. Hydrogen bonding and crystalline structure of bio-based PA56[J]. Polymer, 2021. DOI:10.1016/j.polymer.2021.124356.
[18]	李蒙蒙. 生物基纤维PA56的染色性能及功能整理研究[D]. 上海: 东华大学, 2017:3-7.
	LI Mengmeng. Research on dyeing properties and functional finishing of bio-based fiber PA56[D]. Shanghai: Donghua University, 2017:3-7.
[19]	郝新敏, 李岳玲, 王建明, 等. 锦纶纤维酸性染料染色动力学对比研究[J]. 纺织学报, 2015, 36(2): 77-80, 97.
	HAO Xinmin, LI Yueling, WANG Jianming, et al. Study on acid dyestuff dyeing kinetics of polyamide 56 fiber compared with polyamide 6 and 66[J]. Journal of Textile Research, 2015, 36(2): 77-80, 97.
[20]	王建明, 李永峰, 郝新敏, 等. 生物基锦纶56和锦纶66的结构与吸放湿性能评价[J]. 纺织学报, 2021, 42(8): 1-7.
	WANG Jianming, LI Yongfeng, HAO Xinmin, et al. Study on structure and moisture absorption and liberation properties of bio-based polyamide 56 and polyamide 66[J]. Journal of Textile Research, 2021, 42(8): 1-7.
[21]	郝新敏, 郭亚飞, 张长琦, 等. 生物基锦56与锦纶66性能对比研究[J]. 针织工业, 2018 (9): 1-5.
	HAO Xinmin, GUO Yafei, ZHANG Changqi, et al. Comparative evaluation on application performance of bio-based polyamide 56 and polyamide 66[J]. Knitting Industries, 2018 (9): 1-5.
[22]	胡传国, 刘宏东, 李蒙蒙, 等. 弱酸性染料在生物基纤维PA56上的染色理论研究[J]. 印染, 2021, 47(7): 11-15, 20.
	HU Chuanguo, LIU Hongdong, LI Mengmeng, et al. Dyeing theory of weak acid dyes on bio-based fiber PA56[J]. China Dyeing & Finishing, 47(7):11-15,20.
[23]	张彦博, 徐真真, 楚润善, 等. 生物基PA56织物的酸性染料染色[J]. 印染, 2021, 47(11):5-8.
	ZHANG Yanbo, XU Zhenzhen, CHU Runshan, et al. Dyeing process of bio-based PA56 fabric with acid dyes[J]. China Dyeing & Finishing, 2021, 47(11):5-8.
[24]	马雪松, 高艺, 陈英, 等. 生物基尼龙PA56的活性染料染色性能[J]. 印染, 2019, 45(18):9-13,29.
	MA Xuesong, GAO Yi, CHEN Ying, et al. Dyeing performance of bio-based nylon PA56 with reactive dyes[J]. China Dyeing & Finishing, 2019, 45(18): 9-13, 29.
[25]	曹诗慧, 李宏伟, 郝新敏. 生物基尼龙56织物的还原染料染色[J]. 印染, 2019, 45(24):31-34.
	CAO Shihui, LI Hongwei, HAO Xinmin. Dyeing process of bio-based PA56 fabric with vat dyes[J]. China Dyeing & Finishing, 2019, 45(24):31-34.
[26]	黄连香. 天然染料对锦纶织物的染色性能研究[D]. 苏州: 苏州大学,2022:3-10.
	HUANG Lianxiang. Study on dyeing properties of nylon fabric with natural dyes[D]. Suzhou: Soochow University, 2022:3-10.
[27]	王成龙, 李立新, 吴绍明, 等. 染色促进剂对聚丁二酸丁二醇酯纤维分散染料染色动力学和热力学的影响[J]. 纺织学报, 2022, 43(1):147-152.
	WANG Chenglong, LI Lixin, WU Shaoming, et al. Effect of dyeing promoter on dyeing kinetics and thermodynamics of polybutylene succinate fiber dyeing with disperse dye[J]. Journal of Textile Research, 2022, 43(1):147-152.
[28]	柴丽琴, 邵建中, 周岚, 等. 栀子黄在棉织物上的染色动力学研究[J]. 纺织学报, 2010, 31(9):56-61.
	CHAI Liqin, SHAO Jianzhong, ZHOU Lan, et al. Dyeing kinetics of Gardenia Yellow on cotton[J]. Journal of Textile Research, 2010, 31(9):56-61.
[29]	张驰. 茜草色素对真丝织物的染色和印花工艺研究[D]. 苏州: 苏州大学, 2020:25-26.
	ZHANG Chi. Study on dyeing and printing properties of silk fabrics with madder[D]. Suzhou: Soochow University, 2020:25-26.
[30]	李凤艳, 杨巧芬, 洪彩虹, 等. 天然茶色素对棉纤维的铁离子媒染染色[J]. 纺织学报, 2010, 31(7):60-63,68.
	LI Fengyan, YANG Qiaofen, HONG Caihong, et al. Natural tea pigment dyeing of cotton fibers with Fe²⁺ as a mordanting agent[J]. Journal of Textile Research, 2010, 31(7):60-63,68.
[31]	蔡苏英, 曹红梅. 金属离子媒染对天然染料色光的影响[J]. 针织工业, 2009(7):3.
	CAI Suying, CAO Hongmei. The influence of the metallic ionic mordant on the color cast of the natural dyes[J]. Knitting Industries, 2009(7):3.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

Comments

Recommended 0

No Suggested Reading articles found!

平平加O质量浓度/ (g·L^-1)	K/S值	S_λ	λ_max/nm
0.5	2.12	0.024	400
1.0	2.14	0.020	400
1.5	2.05	0.018	400
2.0	2.05	0.017	400

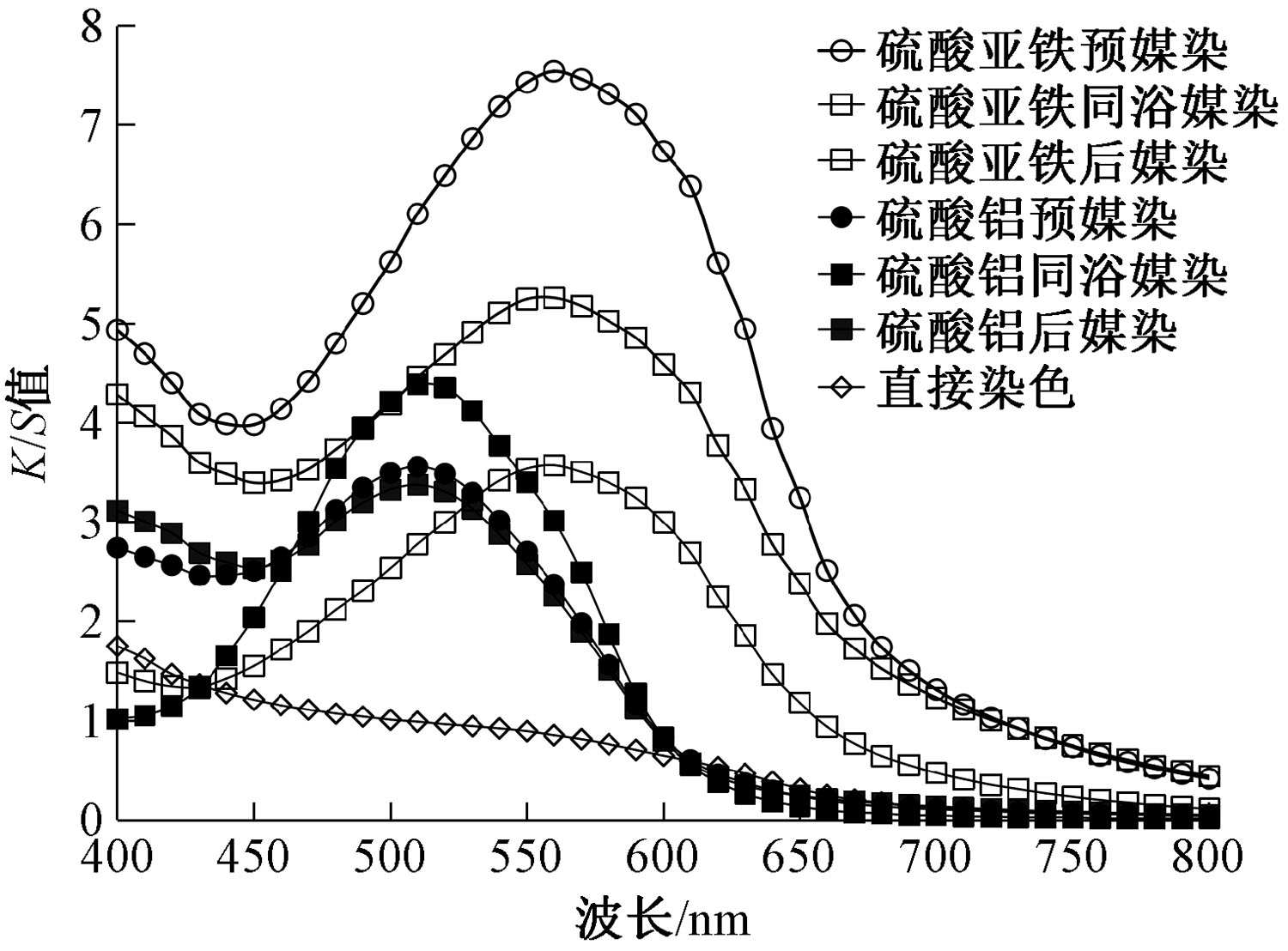

染色方式	L^*	a^*	b^*	C^*	h/ (°)	λ_max/ nm	K/S值
直接染色	55.76	8.32	3.21	8.92	21.09	400	1.76
硫酸铝预媒染	50.20	28.80	10.50	30.66	20.03	510	3.56
硫酸铝同浴媒染	49.07	38.33	1.37	38.36	2.05	510	4.39
硫酸铝后媒染	50.80	28.02	12.10	30.52	23.37	510	3.12
硫酸铝预媒染	31.55	6.66	-9.51	11.62	305.01	560	7.54
硫酸亚铁同浴媒染	43.16	11.33	14.47	18.38	308.06	560	3.57
硫酸亚铁后媒染	36.25	5.90	-5.87	8.32	315.12	560	5.26

染色方式	耐光色牢度	耐皂洗色牢度			耐摩擦色牢度
染色方式	耐光色牢度	变色	棉沾	锦沾	干	湿
硫酸铝预媒染	4	4	4~5	4~5	4	3~4
硫酸铝同浴媒染	4	4	4~5	4~5	4	3~4
硫酸铝后媒染	3	4	4~5	4~5	4	4
硫酸亚铁预染媒	4	4	4~5	4~5	4	4
硫酸亚铁同浴媒染	3	4	4~5	4~5	4	3~4
硫酸亚铁后媒染	4	4	4~5	4~5	4	4
直接染色	2	3	4~5	4~5	4	4
