Journal of Textile Research ›› 2024, Vol. 45 ›› Issue (06): 82-88.doi: 10.13475/j.fzxb.20230203901

• Textile Engineering • Previous Articles     Next Articles

Effect of different sensory modalities on wetness perception of fabrics

TAN Yidan1, ZHANG Zhaohua1,2(), LI Shihan1

  1. 1. College of Fashion and Design, Donghua University, Shanghai 200051, China
    2. Key Laboratory of High Performance Fibers & Products, Ministry of Education, Donghua University, Shanghai 201620, China
  • Received:2023-02-17 Revised:2023-10-12 Online:2024-06-15 Published:2024-06-15

Abstract:

Objective Wetness perception is an important sensation to evaluate whether the human body is comfortable or not. In recent years, in order to clarify the factors affecting wetness perception, scholars have mostly analyzed from two aspects, temperature and mechanical stimulation, while ignoring the influence of sensory modality on wetness perception. Therefore, in order to clarify the relationship between sensory modality and wetness perception, this paper conducts wetness perception evaluation experiments by selecting fabrics with different properties based on dynamic contact between skin and fabric.

Method For the experiment, three fabrics with comparable thickness but distinct moisture transfer properties were selected: fabric 1#, a 100% cotton sweatband with a weft flat knit construction, exhibiting excellent moisture-wicking properties; fabric 2#, 100% Coolmax®, featuring a double jacquard construction and a modified polyester with a radial 6-groove structure, renowned for its superior moisture transfer capability; Fabric 3#, a polyester-ammonia blend sweatband with a weft flat knit construction, characterized by poor moisture-wicking performance. The samples were subjected to three levels of wetness: low (L), representing 20% of the saturated water content; medium (M), at 50% of the saturated water content; and high (H), reaching 80% of the saturated water content. Among them, the experimental fabric with the level of L was used as the standard stimulus. In a subjective evaluation experiment, 21 female participants with a mean age of approximately 22 years dynamically interacted with fabrics through touch under three sensory modalities (tactile unimodal, visual-tactile bimodal, and audio-visual-tactile trimodal), and the assessments of the perceived magnitude of wetness sensation were obtained.

Results According to three-way repeated measures ANOVA, there were no significant effect of sensory modality [F (2,40) =2.463,p =0.098]and fabric type [F (2,40) =2.989,p = 0.062]on wetness perception, while a significant effect of water content [F (1.217,24.335) =109.627,p <0.001]or interactions between fabric and water content[F (2.697,53.942) =4.276,p =0.011]was found. Bonferroni's post hoc analysis displayed significant difference between the two water contents (p <0.001), with the humidity levels increasing with increasing water content in the knitted fabrics. At low level of water content, there was no significant difference on wetness perception score among fabrics; at medium level of water content, the wetness perception score of fabric 3# (polyester) was significantly lower than other fabrics; at high level of water content, the wetness perception score of fabric 2# (Coolmax®) was significantly lower than fabric 3#, while no significant difference between other fabrics. The wetness perception scores in the different sensory modalities were as follows: tactile unimodal: (4.767 ± 0.070); visual-tactile bimodal: (4.730 ± 0.052); and audiovisual-tactile trimodality: (4.941 ± 0.053). The multisensory modalities (visual-haptic bimodal and audiovisual-tactile trimodality) of moisture discrimination were greater than the tactile unimodality. Furthermore, the moisture discrimination was greater at low level than at high level humidification capacity. In addition, applying multiple regression analysis, regression equations with sensory modality, water content, and fabric type as independent variables and moisture discrimination (d') as the dependent variable is established. The results show that water content had the highest influence weight, followed by fabric type, and finally sensory modality. Together, the three independent variables explained 34% of the total variance, which was statistically significant (p = 0.032).

Conclusion This article analyzes the effects of sensory (three levels), fabric (three levels) and water addition (three levels) on skin wetting. Studies have shown that fabric and water addition have an interactive effect on skin wetness, and wettability classes increase with increasing moisture content. The audiovisual-tactile trimodality was higher on wetness perception score compared to other modalities (tactile unimodality and visual-haptic bimodal), but not statistically difference. The multisensory modalities of wetness sensitivity were greater than the tactile unimodality. By evaluating the effect of sensory modality on skin wetness sensation, the theoretical basis of multisensory genesis was enriched. In addition, the study of the effect of different interaction methods on wetness sensation can provide a reference for the comfort design of human-computer interaction. It can also be applied to fields such as sports and medicine to improve the wetness sensation experience of clothing comfort.

Key words: wetness perception, sensory modality, fabric property, theory of signal detection, dynamic contact

CLC Number:

  • TS941.16

Tab.1

Fabric specification table"

编号 纤维成
分/%
组织
结构
面密度/
(g·m-2)
厚度/
mm
透气率/
(mm·s-1)
1# 棉(100%) 纬平针 153.9 0.69 295.84
2# Coolmax®
(100%)
双面
提花
137.4 0.64 794.17
3# 涤纶/氨纶
(92%/8%)
纬平针 213.5 0.67 63.88

Tab.2

Fabric physical properties test results"


液态水管理性能 表面性能
润湿时间/s 吸湿率/(%·s-1) 最大润湿半
径/mm
扩散速度/
(mm·s-1)
单向传递
能力/%
整体水分
管理能力
dSMD/
μm
dMIU
反面 正面 反面 正面 反面 正面 反面 正面
1# 8.837±2.25 7.459±2.29 51.379±7.06 82.101±14.05 16±2.24 16±2.24 1.693±0.51 1.851±0.41 245.401±36.14 0.599±0.51 8.052±5.87 0.208±0.01
2# 3.000±0.15 3.094±0.15 33.291±1.50 46.786±2.31 20±0.00 20±0.00 4.149±0.24 4.173±0.18 167.977±14.27 0.595±0.02 2.948±1.36 0.234±0.04
3# 3.078±0.06 3.094±0.07 31.054±1.46 48.752±0.86 20±0.00 20±0.00 4.031±0.06 4.128±0.07 234.310±8.43 0.674±0.01 1.978±0.19 0.261±0.02

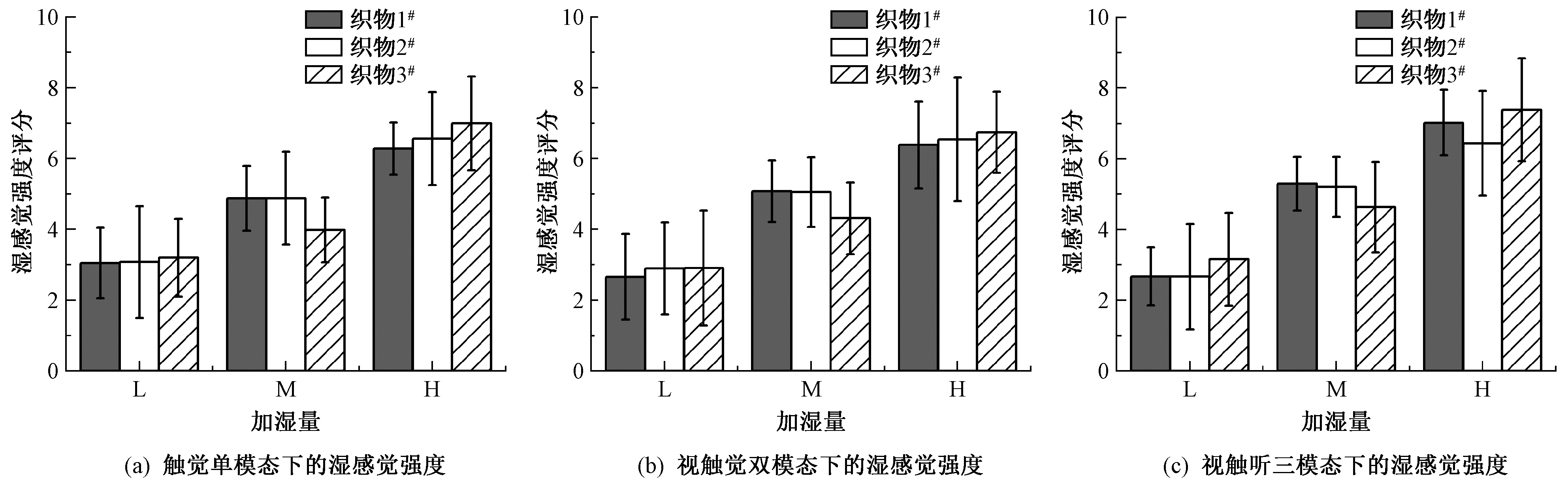

Fig.1

Wetness perception rating of fabrics at haptic unimodality(a), visual-haptic bimodality(b) and audiovisual-tactile trimodality(c)"

Tab.3

Moisture discrimination and response bias of each fabric under different sensory modalities"

感官
模态
织物
类型
加湿量水平H
为信号刺激
加湿量水平L
为信号刺激
湿度辨别力
(d')
反应偏向
(β)
湿度辨别力
(d')
反应偏向
(β)
触觉单
模态
织物1# 0.44 1.101 6 0.69 1.066 8
织物2# 0.42 1.156 3 0.86 1.112 4
织物3# 0.30 0.969 6 0.41 0.939 0
视触觉
双模态
织物1# 0.68 1.156 3 1.19 0.947 6
织物2# 0.12 1.024 5 0.75 1.024 5
织物3# 0.67 1.017 8 0.72 1.000 0
视触听
三模态
织物1# 1.14 1.087 6 1.08 1.115 3
织物2# 0.12 1.024 5 0.89 0.839 6
织物3# 0.44 0.907 8 0.13 0.992 1

Tab.4

Multiple linear regression results for moisture discrimination"

自变量 未标准化系数 标准化系数 Sig. F r2
系数
B
标准
误差
β t
(常数) 0.527 0.305 1.726 0.106
感官模态 0.057 0.080 0.140 0.711 0.489 3.922 0.034
加湿量 0.266 0.130 0.402 2.039 0.061
织物类型 -0.213 0.080 -0.525 -2.665 0.018
[1] 张昭华, 唐香宁, 李俊, 等. 织物与皮肤动态接触下的湿感觉阈限与强度评价[J]. 纺织学报, 2021, 42(2): 93-100.
ZHANG Zhaohua, TANG Xiangning, LI Jun, et al. Threshold and intensity evaluation of skin wetness perception under dynamic contact with fabrics[J]. Journal of Textile Research, 2021, 42(2): 93-100.
[2] FILINGERI Davide, FOURNET Damien, SIMON Hodder, et al. Why wet feels wet? a neurophysiological model of human cutaneous wetness sensitivity[J]. Journal of Neurophysiology, 2014, 112(6): 1457-1469.
doi: 10.1152/jn.00120.2014 pmid: 24944222
[3] 李宁宁, 张昭华, 徐苏红, 等. 热环境下人体局部皮肤湿敏感性的分布特征[J]. 纺织学报, 2022, 43(9): 182-187.
LI Ningning, ZHANG Zhaohua, XU Suhong, et al. Distribution characteristics of local skin moisture sensitivity of human in thermal environment[J]. Journal of Textile Research, 2022, 43(9): 182-187.
[4] 匡才远. 基于触觉认知的着装接触感觉测定方法研究[D]. 苏州: 苏州大学, 2015: 1-137.
KUANG Caiyuan. Research on measurement method of dressing contiguous sense based on tactile perception[D]. Suzhou: Soochow University, 2015: 1-137.
[5] GILBERT Charles D, SIGMAN Mariano, CRIST Roy E. The neural basis of perceptual learning[J]. Neuron, 2001, 31(5):681-697.
pmid: 11567610
[6] 唐香宁, 张昭华, 李俊, 等. 人体皮肤湿感觉的研究进展[J]. 纺织学报, 2017, 38(9): 174-180.
TANG Xiangning, ZHANG Zhaohua, LI Jun, et al. Research progress of human skin wetness percep-tion[J]. Journal of Textile Research, 2017, 38(9): 174-180.
[7] YAMAKAWA Masaru, ISAJI Setsuko. Factors affecting the clamminess[J]. Journal of Textile Engineering, 1987, 33(1): 9-15.
[8] 苏亚帷. 皮肤感觉:感知温度与压力[J]. 科学世界, 2016(6): 88-97.
SU Yawei. Cutaneous perception: perceived temperature and pressure[J]. World of Science, 2016(6): 88-97.
[9] KATO Issei, MASUDA Yuta, NAGASHIMA Kei. Characteristics of wet perception during the static touch of moist paper by the index fingertip alongside thermal stimulus application[J]. Physiology & Behavior, 2023.DOI:10.1016/j.physbeh.2022.1140.33.
[10] RACCUGLIA Margherita, PISTAK Kolby, HEYDE Christian, et al. Human wetness perception of fabrics under dynamic skin contact[J]. Textile Research Journal, 2018, 88(19): 2155-2168.
[11] MERRICK Charlotte, ROSATI Rodrigo, FILINGERI Davide. Skin wetness detection thresholds and wetness magnitude estimations of the human index fingerpad and their modulation by moisture temperature[J]. Journal of Neurophysiology, 2021, 125(5): 1987-1999.
doi: 10.1152/jn.00538.2020 pmid: 33826451
[12] 吴涓, 吴淼, 邵知宇, 等. 一种基于信号检测论的纹理粗糙度量化评价方法:201811323969.7[P]. 2021-04-20.
WU Juan, WU Miao, SHAO Zhiyu, et al. A quantitative evaluation method of texture roughness based on signal detection theory: 2018113239-69.7[P]. 2021-04-20.
[13] 程淑, 桂林, 冀航. 主观评分的归一化算法及误差分析[J]. 高等函授学报(自然科学版), 2007(5): 28-30.
CHENG Shu, GUI Lin, JI Hang. Normalization algorithm and error analysis of subjective score[J]. Journal of Higher Correspondence Education (Natural Science Edition), 2007(5): 28-30.
[14] BECERIR Behcet, AKGUN Mine, ALPAY Halil Rifat. Effect of some yarn properties on surface roughness and friction behavior of woven structures[J]. Textile Research Journal, 2016, 86(9): 975-989.
[15] JEON Eunkyung, YOO Shinjung, KIM Eunae. Psychophysical determination of moisture perception in high-performance shirt fabrics in relation to sweating level[J]. Ergonomics, 2011, 54(6): 576-586.
[16] MERRICK Charlotte, ROSATI Rodrigo, FILINGERI Davide. The role of friction on skin wetness perception during dynamic interactions between the human index finger pad and materials of varying moisture con-tent[J]. Journal of Neurophysiology, 2022, 127(3): 725-736.
doi: 10.1152/jn.00382.2021 pmid: 35044853
[17] 蔡岑岑, 胡吉永, 丁辛. 感知模式对织物柔软性评价结果的影响[J]. 东华大学学报(自然科学版), 2012, 38(1): 26-30, 76.
CAI Cencen, HU Jiyong, DING Xin. Influence of sensory modes on fabrics softness evaluation[J]. Journal of Donghua University (Natural Science Edition), 2012, 38(1): 26-30, 76.
[18] HELLER M A. Visual and tactual texture perception: intersensory cooperation[J]. Perception & Psychophysics, 1982, 31(4): 339-344.
[19] 何聪艳, 胡吉永, 丁辛. 不同感觉模态下评价织物柔软感的心理物理特性[J]. 东华大学学报(自然科学版), 2012, 38(4): 381-385.
HE Congyan, HU Jiyong, DING Xin. Psychophysical characteristics of fabric softness evaluation for different sensory modalities[J]. Journal of Donghua University (Natural Science Edition), 2012, 38(4): 381-385.
[20] LEDERMAN Susan J. Auditory texture perception[J]. Perception, 1979, 8(1): 93-103.
pmid: 432084
[21] 徐苏红, 倪军, 孙岑文捷, 等. 织物热湿传递性能对皮肤湿感觉阈限的影响[J]. 丝绸, 2021, 58(9): 21-26.
XU Suhong, NI Jun, SUN Cenwenjie, et al. The effects of fabric heat and moistre properties on skin moist wetness perception[J]. Journal of Silk, 2021, 58(9): 21-26.
