Preparation and performance of patterned thermal polyester medical bandage

Abstract

Figures/Tables 8

References 17

Related Articles 15

Metrics

Comments

Recommended 0

doi:10.13475/j.fzxb.20230302901

Abstract:

Objective The objective of this research is to develop far-infrared functional medical bandage products with excellent thermogenic effect. The functional bandage is expected to provide temperature to the wound surface hence accelerating the blood circulation of the skin around the wound surface, and make the blood vessels of the local skin dilate thus playing an anti-inflammatory and pain-relieving role and promoting the healing of the wound surface.

Method Based on the principle of far-infrared thermogenic radiation, tourmaline powder was selected as far-infrared thermogenic material. The best dispersion process of the carbide powder with sodium carboxylmethyl cellulose, sodium polyphosphate, sodium dodecylbenzene sulfonate were developed. The patterned bandage was prepared by patterned coating on polyester medical bandage, and the patterns include dotted, linear and radial configurations for the thermogenic bandage. Firstly, the optimal dispersion process of tourmaline powder was investigated by with settling time, settling height, average particle size and degree of polydispersity as indicators. Temperature rising of different patterned thermogenic bandages was evaluated by radiation temperature rise method, and the physical properties were compared with untreated bandage and fully coated bandage respectively.

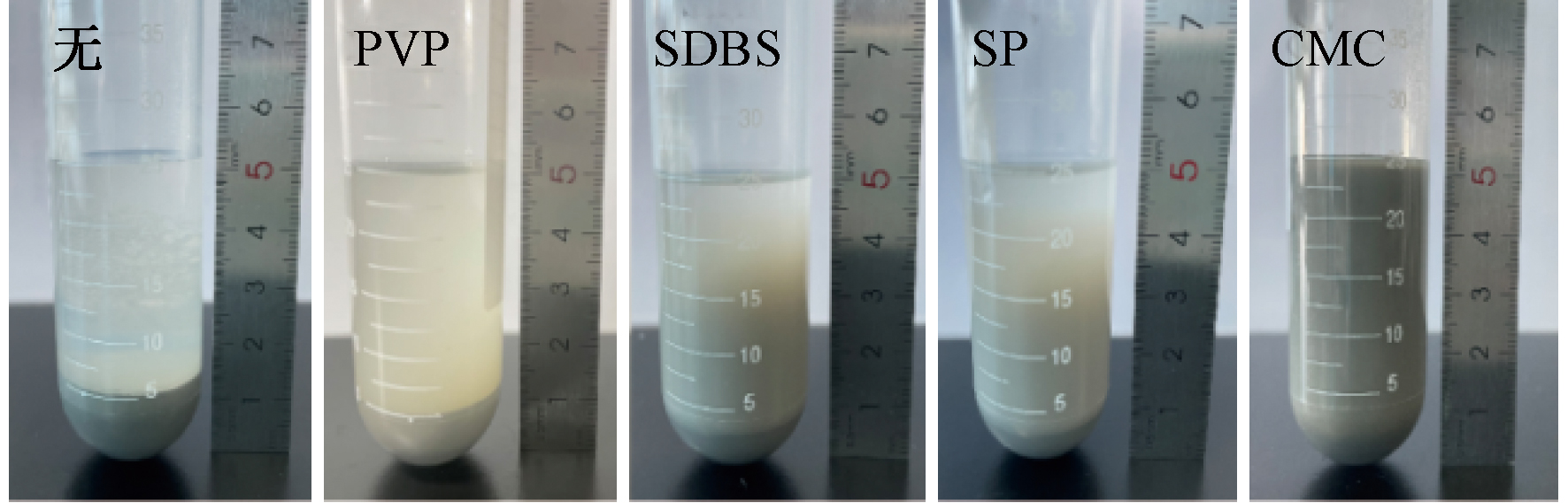

Results When sodium carboxymethyl cellulose was used as dispersant with mass fraction being 1.0%, the tourmaline suspension has the best stability, the particles are more uniformly distributed and the dispersion effect was the best. The results of settling time, settling height, average particle size and polydispersity index of tourmaline dispersion with different dispersants and dispersant dosages were discussed. After 10 min of irradiation by infrared lamp, the surface temperature of pattern-coated bandages were higher than that of the untreated bandages, among which the temperature rise of the radial and strip coated bandages were 3.5 ℃ and 3.3 ℃, respectively. The temperature rise of dot coated bandage was 2.3 ℃, the temperature rise curves of the three pattern-coated bandages indicated that the tourmaline powder exert an excellent far-infrared thermogenic effect after the pattern-coating treatment on the bandage surface. Compared with the untreated bandage, the breaking strength, elongation at break and top breaking strength of the pattern-coated bandages increased, and the moisture permeability slightly improved. The air permeability was decreased, but still remained between 280-300 mm/s. The bending length and bending stiffness of the pattern-coated bandages was increased, but compared with the fully coated bandage, the softness of the bandage is significantly improved after the pattern-coating treatment, ensuring the comfort of the thermogenic bandage in the process of application.

Conclusion Tourmaline powder with 1.0% sodium carboxymethyl cellulose dispersion demonstrates the best and most stable dispersion effect, with uniform particle size, suitable for creating far-infrared functional finishing solution. Due to the excellent far-infrared radiation characteristics, the pattern-coated bandage containing tourmaline powder shows an excellent thermogenic effect, the thermogenic effect of different patterns of bandage varies. The combination of tourmaline and bandage with pattern-coating process can provide the bandage with far-infrared thermogenic function while ensuring the comfort of the bandage with good thermal effect. This work proved the feasibility of preparing thermogenic bandages by patterned coating process, thus providing a theoretical basis and practical foundation for the further exploration and production of clinically usable thermogenic bandages.

Key words: medical bandage, thermogenic bandage, pattern-coating process, tourmaline, far-infrared thermogenic, medical textile

CLC Number:

TS195.6

XIANG Xuexue, LIU Na, GUO Jiaqi, GAO Jing, WANG Lu, HU Xiuyuan. Preparation and performance of patterned thermal polyester medical bandage[J].Journal of Textile Research, 2024, 45(08): 198-204.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

URL: http://www.fzxb.org.cn/EN/10.13475/j.fzxb.20230302901

http://www.fzxb.org.cn/EN/Y2024/V45/I08/198

Tab.1

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Tab.2

Fig.6

[1]	李彦, 王富军, 关国平, 等. 生物医用纺织品的发展现状及前沿趋势[J]. 纺织导报, 2020(9): 28-37.
	LI Yan, WANG Fujun, GUAN Guoping, et al. Development status and frontier trend of biomedical textiles[J]. China Textile Leader, 2020(9): 28-37.
[2]	LI K, LIU N F, YU Z Y, et al. Heating and compression bandage treatment is effective for chronic lymphedema with dermatolymphangioadenitis-a case-controlled study[J]. Lymphatic Research and Biology, 2016.DOI:10.1089/lrb.2015.0054.
[3]	SHAPOVAL E. Application of the thermally insulating medical bandage in complex treatment of patients with cold injury[J]. Orthopaedics,Traumatology and Prosthetics, 2015, 2: 48.
[4]	吴波, 汪泽幸, 李帅, 等. 保暖材料研究现状与发展前景[J]. 湖南工程学院学报(自然科学版), 2021, 31(1): 74-79.
	WU Bo, WANG Zexing, LI Shuai, et al. Research status and development prospect of thermal mate-rials[J]. Journal of Hunan University of Engi-neering(Natural Science Edition), 2021, 31(1): 74-79.
[5]	HAN X Y, MENG J P, LIU J, et al. Enhanced far infrared radiation properties of functional ceramics derived from iron ore tailings incorporating tourmaline particles[J]. Ceramics International, 2020.DOI:10.1016/j.ceramint.2020.11.247.
[6]	龚佳佳, 顾学平, 肖俊, 等. 纺织品远红外功能整理[J]. 针织工业, 2018(11): 78-80.
	GONG Jiajia, GU Xueping, XIAO Jun, et al. Textile far-infrared function finishing[J]. Knitting Industries, 2018(11): 78-80.
[7]	吴波伟, 黄顺伟. 远红外纺织品的制备与应用[J]. 产业用纺织品, 2018, 36(1): 35-39.
	WU Bowei, HUANG Shunwei. Preparation and application of far-infrared textiles[J]. Industrial Textiles, 2018, 36(1): 35-39.
[8]	PAPACHARALAMBOUS M, KARVOUNIS G, KENANAKIS G, et al. The effect of textiles impregnated with particles with high emissivity in the far infrared on the temperature of the cold hand[J]. Journal of Biomechanical Engineering, 2019.DOI:10.1115/1.4042044.
[9]	吴继辉, 邹婉晴, 汤明竹, 等. 负离子远红外功能织物对乳腺增生大鼠模型的影响[J]. 纺织学报, 2019, 40(6): 69-73.
	WU Jihui, ZOU Wanqing, TANG Mingzhu, et al. Effect of anion far infrared functional fabric on rat model of mammary gland hyperplasia[J]. Journal of Textile Research, 2019, 40(6): 69-73.
[10]	慕怡菲, 金子敏, 阎玉秀, 等. 远红外锦纶织物对乳腺肿瘤细胞增殖的影响[J]. 纺织学报, 2022, 43(5): 109-115.
	MU Yifei, JIN Zimin, YAN Yuxiu, et al. Effects of far-infrared nylon fabric on the proliferation of breast tumor cells[J]. Journal of Textile Research, 2022, 43(5): 109-115.
[11]	吕爱菊. 电气石精细结构及其性能研究[D]. 天津: 河北工业大学, 2016: 4-7.
	LÜ Aiju. Study on the fine structure and properties of calcium carbide[D]. Tianjin: Hebei University of Technology, 2016: 4-7.
[12]	肖建刚, 李峻峰, 邱克辉, 等. 电气石/壳聚糖复合纤维制备与表征[J]. 功能材料, 2012, 43(S1): 78-80.
	XIAO Jiangang, LI Junfeng, QIU Kehui, et al. Preparation and characterization of tourmaline/chitosan composite fibers[J]. Function Materials, 2012, 43(S1): 78-80.
[13]	ZHANG J S, DING H H. Preparation and properties of negative ion functional cotton knitted fabric[J]. Journal of Engineered Fibers and Fabrics, 2021, 16: 1-7.
[14]	TIAN T H, WEI X D, ELHASSAN A, et al. Highly flexible, efficient, and wearable infrared radiation heating carbon fabric[J]. Chemical Engineering Journal, 2021.DOI:10.1016/j.cej.2020.128114.
[15]	秦芳芳, 彭有梅, 苏海波, 等. 鞣花酸纳米混悬剂的制备、表征及其体内药动学研究[J]. 中草药, 2022, 53(13): 3980-3990.
	QIN Fangfang, PENG Youmei, SU Haibo, et al. Preparation and characterization of ellagagic acid nanosuspension and in vivo pharmacokinetic studies[J]. Chinese Herbal Medicine, 2022, 53(13): 3980-3990.
[16]	刘航, 柳建新, 孙迎胜, 等. 基于动态光散射下纳米二氧化硅分散性的影响因素研究[J]. 无机盐工业, 2022, 54(8): 74-79.
	LIU Hang, LIU Jianxin, SUN Yingsheng, et al. Study on the influence of nanosilica dispersion under dynamic light scattering[J]. Inorganic Salt Industry, 2022, 54(8): 74-79.
[17]	戈强胜, 谭伟新, 王向钦, 等. 远红外纺织品评价指标研究[J]. 中国纤检, 2018(6): 132-134.
	GE Qiangsheng, TAN Weixin, WANG Xiangqin, et al. Study on the evaluation index of far-infrared textiles[J]. China Fiber Inspection, 2018(6): 132-134.

[1]	XI Lifeng, JIANG Gaoming, MA Pibo, JIA Wei, ZHANG Hongbin, WANG Jiamian, XIA Fenglin, ZHANG Qi, LIU Haisang. Low-damage preparation of extracorporeal membrane oxygenation warp knit membrane fabrics with adaptive tension [J]. Journal of Textile Research, 2024, 45(07): 1-9.
[2]	YANG Zhichao, LIU Shuqiang, WU Gaihong, JIA Lu, ZHANG Man, LI Fu, LI Huimin. Research progress in absorbable surgical sutures [J]. Journal of Textile Research, 2024, 45(01): 230-239.
[3]	QIN Yimin. Research progress in zinc and copper containing wound dressings [J]. Journal of Textile Research, 2023, 44(05): 213-219.
[4]	WANG Shudong, MA Qian, WANG Ke, GU Yuanhui. Research progress in tissue engineering scaffolds by 3D bioprinting [J]. Journal of Textile Research, 2023, 44(03): 210-220.
[5]	LIU Jiao, CHEN Shaojuan, WU Shaohua. Preparation and properties of silk fibroin/poly(l-lactic acid) nanofiber yarns-based tendon patches [J]. Journal of Textile Research, 2022, 43(08): 60-66.
[6]	QIAO Yansha, MAO Ying, XU Danyao, LI Yan, LI Shaojie, WANG Lu, TANG Jianxiong. Research progress in warp-knitted meshes for tackling complications after hernia repair [J]. Journal of Textile Research, 2022, 43(03): 1-7.
[7]	LI Tianhua, LI Jingjing, ZHANG Keqin, ZHAO Huijing, MENG Kai. Numerical simulation of hemodynamics in spiral artificial blood vessel [J]. Journal of Textile Research, 2022, 43(03): 17-23.
[8]	FANG Meiqi, WANG Qian, LI Yan, LI Chaojing, LI Hao, WANG Lu. Design and in-vitro mechanical property analyses of sling for female stress urinary incontinence [J]. Journal of Textile Research, 2022, 43(03): 38-43.
[9]	WU Yang, LIU Fangtian, CAO Mengjie, CUI Jinhai, DENG Hongbing. Progress in biomass fiber medical dressings [J]. Journal of Textile Research, 2022, 43(03): 8-16.
[10]	LU Jun, GUAN Xiaoning, LIN Jing, LAO Jihong, WANG Fujun, LI Yan, WANG Lu. Design of fatigue testing device and fatigue resistance evaluation of artificial ligaments [J]. Journal of Textile Research, 2021, 42(11): 71-76.
[11]	YANG Lu, XUE Tao, MENG Jiaguang, YANG Doudou. Anion functional finish and properties of 3D printed flexible garment fabrics [J]. Journal of Textile Research, 2021, 42(08): 102-108.
[12]	LU Jun, WANG Fujun, LAO Jihong, WANG Lu, LIN Jing. Finite element analysis of braided artificial ligaments of different structures under combined loading [J]. Journal of Textile Research, 2021, 42(08): 84-89.
[13]	SU Mengru, ZOU Ting, CHEN Qichao, LI Chaojing, WANG Fujun, WANG Lu. Research progress of medical barbed sutures [J]. Journal of Textile Research, 2021, 42(05): 178-184.
[14]	JIANG Junying, GAO Jing, ZHANG Jian. Backing fabric selection and leak-proof performance of anastomotic reinforcement repair component [J]. Journal of Textile Research, 2021, 42(04): 69-73.
[15]	YIN Juhui, GUO Jing, WANG Yan, CAO Zheng, GUAN Fucheng, LIU Shuxing. Preparation and properties of sodium alginate/krill protein scaffold materials [J]. Journal of Textile Research, 2021, 42(02): 53-59.

Viewed

Full text

From	Others	local

Times	7	10
Rate	41%	59%

Abstract

136

Just accepted	Online first	Issue

0	0	136

From	Others	local

Times	122	14
Rate	90%	10%

Cited

Web of Science	Crossref	ScienceDirect	Search for Citations in Google Scholar >>


This page requires you have already subscribed to WoS.

Shared

Discussed

No Suggested Reading articles found!

分散剂种类	沉降时间/h	沉降高度/cm	平均粒径/μm	PDI值
无	1.8±0.4	1.5±0.05	5.708±0.138	0.476±0.026
PVP	2.1±0.5	1.4±0.02	5.920±0.199	0.485±0.015
SDBS	26.9±1.0	1.1±0.03	2.232±0.232	0.254±0.020
SP	36.0±2.0	1.0±0.01	1.924±0.124	0.401±0.010
CMC	47.0±0.7	0.8±0.03	1.232±0.132	0.005±0.001

整理工艺	断裂强力/N	断裂伸长率/%	顶破强力/N	透气率/ (mm·s^-1)	透湿率/ (g·m^-2·h^-1)	弯曲长度/ cm	抗弯刚度/ (mN·cm)
未整理	331.50±14.30	165.30±6.29	197.90±19.59	443.76±13.56	97.17±13.77	1.48±0.08	1.19±0.22
点状涂层	355.00±12.20	178.32±7.08	220.50±13.26	280.86±5.86	103.69±4.43	1.84±0.04	2.01±0.12
条形涂层	352.60±10.30	188.58±6.54	239.23±9.37	288.00±7.35	108.83±7.27	1.95±0.11	2.57±0.09
辐射涂层	354.60±14.78	175.41±5.74	231.20±12.09	290.63±2.77	105.37±4.53	2.02±0.08	2.46±0.23
全涂层	365.80±10.04	228.63±6.92	273.80±6.98	85.98±1.81	111.07±1.95	2.23±0.07	3.68±0.18
