Sorption properties of regenerated keratin gels to size macromolecules in textile desizing wastewater

YANG Meihui1,2, LI Bo1,2,3, SHEN Yanqin1,2(), WU Hailiang1,2

  1. 1. School of Textile Science and Engineering, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
    2. Key Laboratory of Functional Textile Material and Product, Ministry of Education, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
    3. China National Textile and Apparel Council Key Laboratory for Silk Functional Materials and Technology, Soochow University, Suzhou, Jiangsu 215123, China
  • Received:2023-07-26 Revised:2023-11-01 Online:2024-02-15 Published:2024-03-29

RichHTML

9

PDF (PC)

46

Abstract:

Objective The effective recycling of waste protein fiber resources is one of the important aspects to achieve green and sustainable development of textile industry. In this study, regenerated keratin gels were prepared from waste wool fibers and applied to the sorption treatment of textile desizing wastewater. By exploring the sorption performance and mechanism of keratin gels to two common types of sizes, the research foundation is provided for promoting the industrialized application of this method.

Method On the basis of the preliminary study, the keratin polypeptides were extracted by ″reducing agent-formic acid method″, and then the polypeptides were modified by α-lipoic acid. These modified keratin polypeptides were prepared for creating regenerated gel materials by dialysis and freeze-drying. The sorption properties of the keratin gels to polyvinyl alcohol (PVA) size and starch size were studied, and the sorption mechanism was discussed by using the sorption kinetics and sorption isotherm model.

Results The experiment was based on the "reduction pretreatment-formic acid dissolution method", by adding the modifier α-lipoic acid for grafting modification, and then by "dialysis-freezing" method to prepare the keratin gel material. The photograph of the gel structure illustrated that the keratin gel was relatively fluffy and dense, and the microscopic morphology presented the characteristics of uniform pores with the pore size of about 3-4 μm. In comparison with the chemical structures of wool, the keratin gel material retained the basic chemical structure of keratin molecule, in which the keratin amide II band was blueshifted due to the transformation of the aggregation state of polypeptide molecules in the gel. Compared with the sulfur content on the surface of wool and keratin gel, the keratin gel was located at 169.58 eV and 170.68 eV. The results indicated that α-lipoic acid was effectively grafted to the sulfhydryl group on the keratin polypeptide macromolecular chain. In addition, the peak intensity of the gel at 21° increased significantly than those of the peak crystallinity of wool, and the test results exhibited that the molecular structure of the polypeptide modified by α-lipoic acid was optimized to a certain extent. The adsorption capacity and removal rate of keratin gel on PVA reached 16.278 mg/g and 30.013%, respectively, and the adsorption capacity and removal rate of starch slurry are 133.234 mg/g and 28.868%. Moreover, the kinetic model study showed that the adsorption of PVA and starch by keratin gel was in accordance with the quasi-secondary kinetic model, and the fit was close to 1. Thermodynamic model analysis presented that the adsorption of keratin for PVA was consistent with Langmuir model, and that starch was more suitable for the Freundlich model.

Conclusion The keratin gel prepared in this study has uniform physical morphology and abundant pore structure, and its chemical properties are basically consistent with wool. The keratin gels have good sorption performance to PVA and starch size. Among them, the action mode of gels to PVA is mainly physical adsorption, while there may be chemical effects on starch.

Key words: keratin gel, natural biomass, biosorbent, textile desizing wastewater, dye, sorption kinetics

CLC Number:

  • TS199

Fig. 1

Schematic diagram of regenerated keratin gel's preparation process. (a) Extraction technology of wool keratin polypeptide; (b) Modification technology of keratin peptides; (c) Preparation of keratin gels"

Fig. 2

Physical appearance of keratin gel and SCM photograph at different magnification Photograph(a) and SEM images of keratin gel at 1 000 times (b) and 2 000 times (c)"

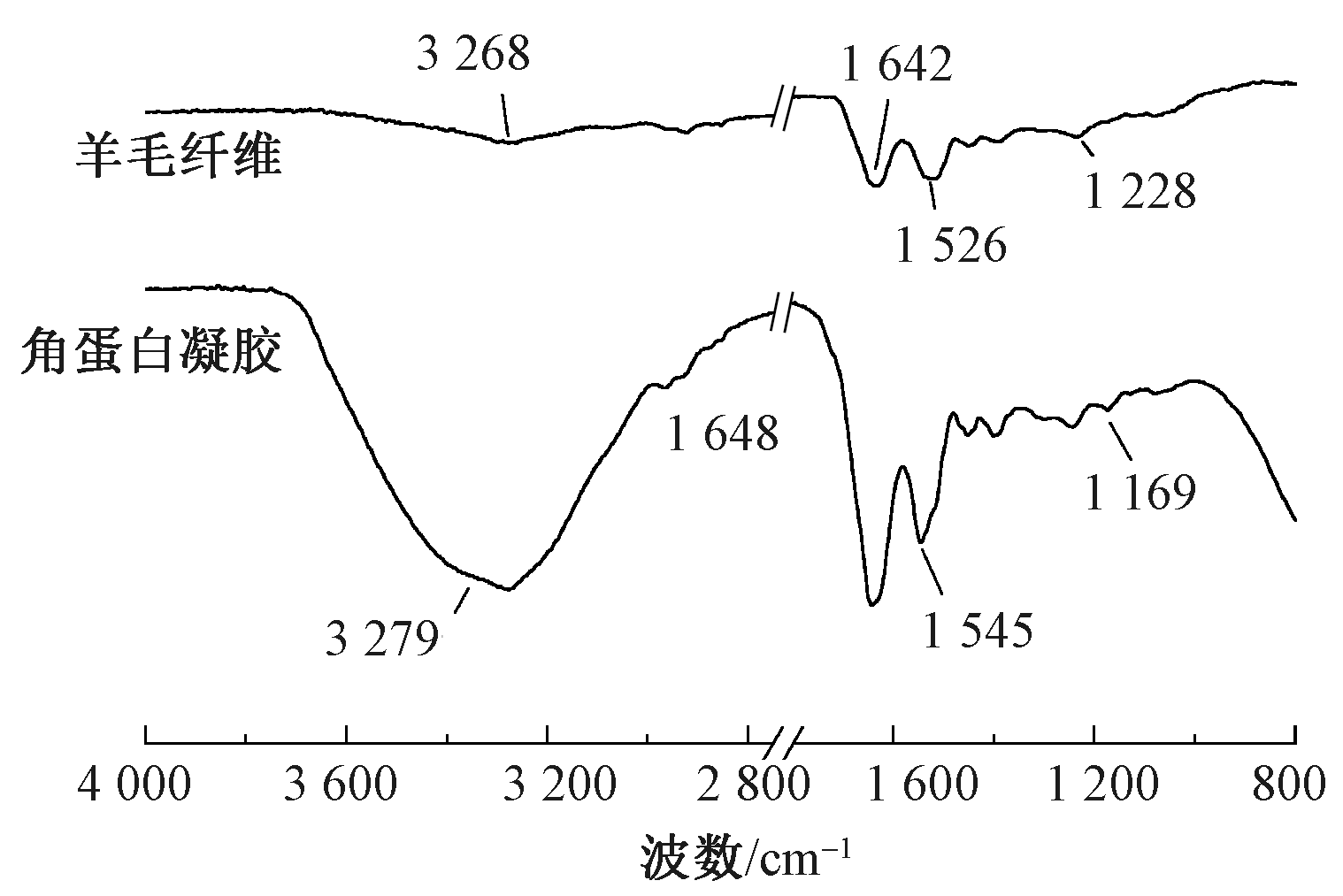

Fig. 3

Infrared spectra of wool fibers and keratin gels"

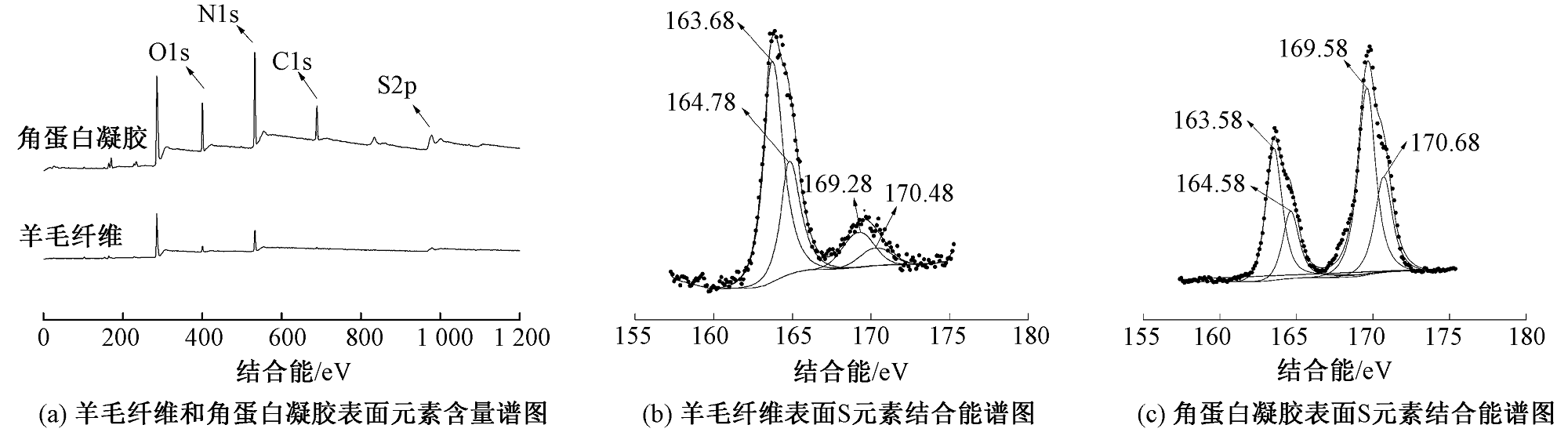

Fig. 4

XPS spectra of wool fibers and keratin gels. (a) Surface element content of samples; (b) Binding energy spectrum of sulfur element of wool fibers; (c) Bindingenergy spectrum of sulfur element of Keratin gels"

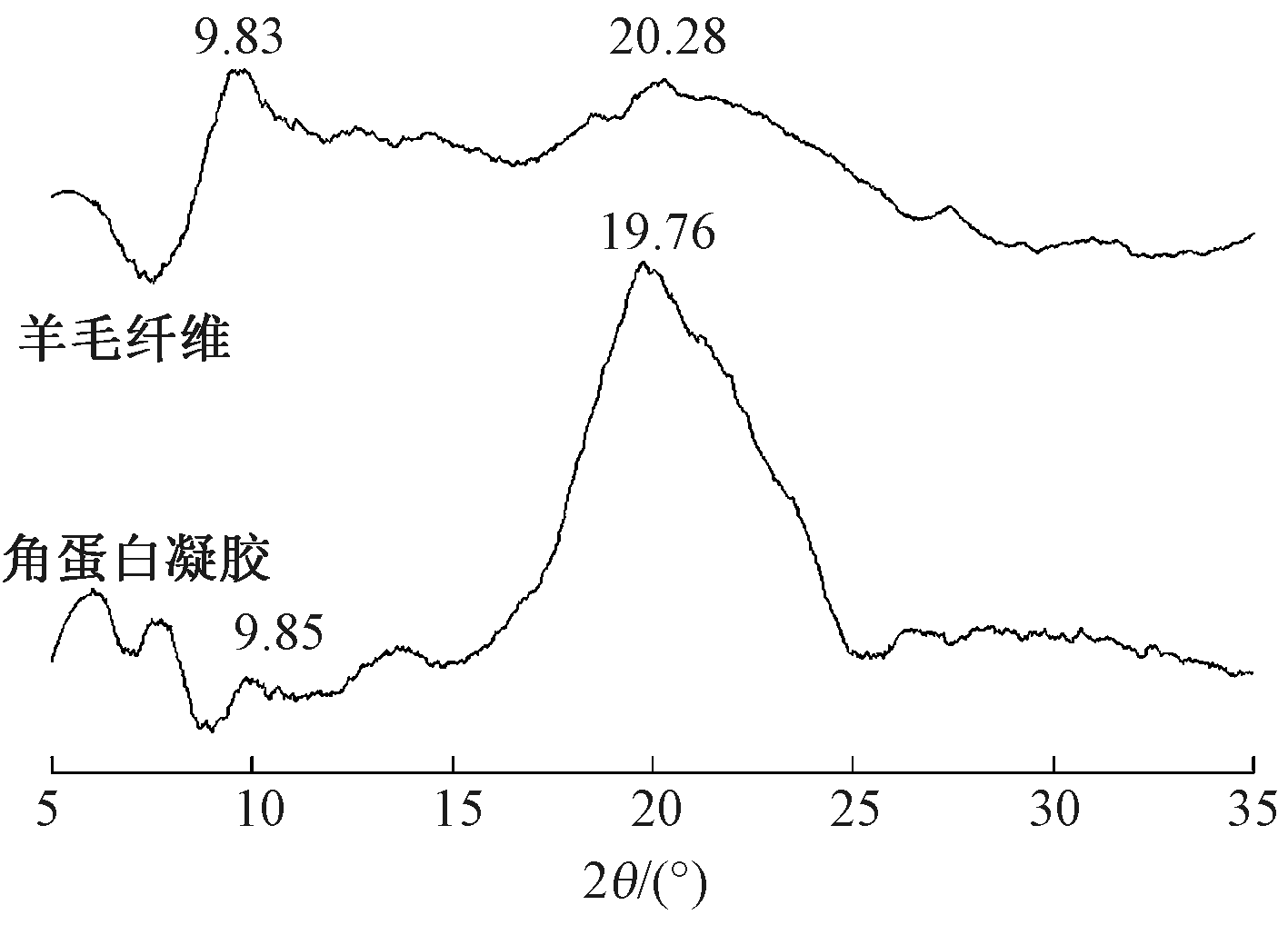

Fig. 5

XRD spectra of wool fibers and keratin gels"

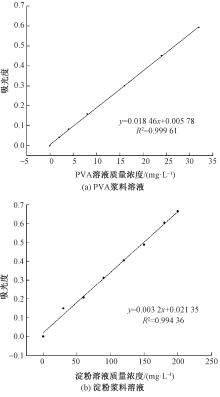

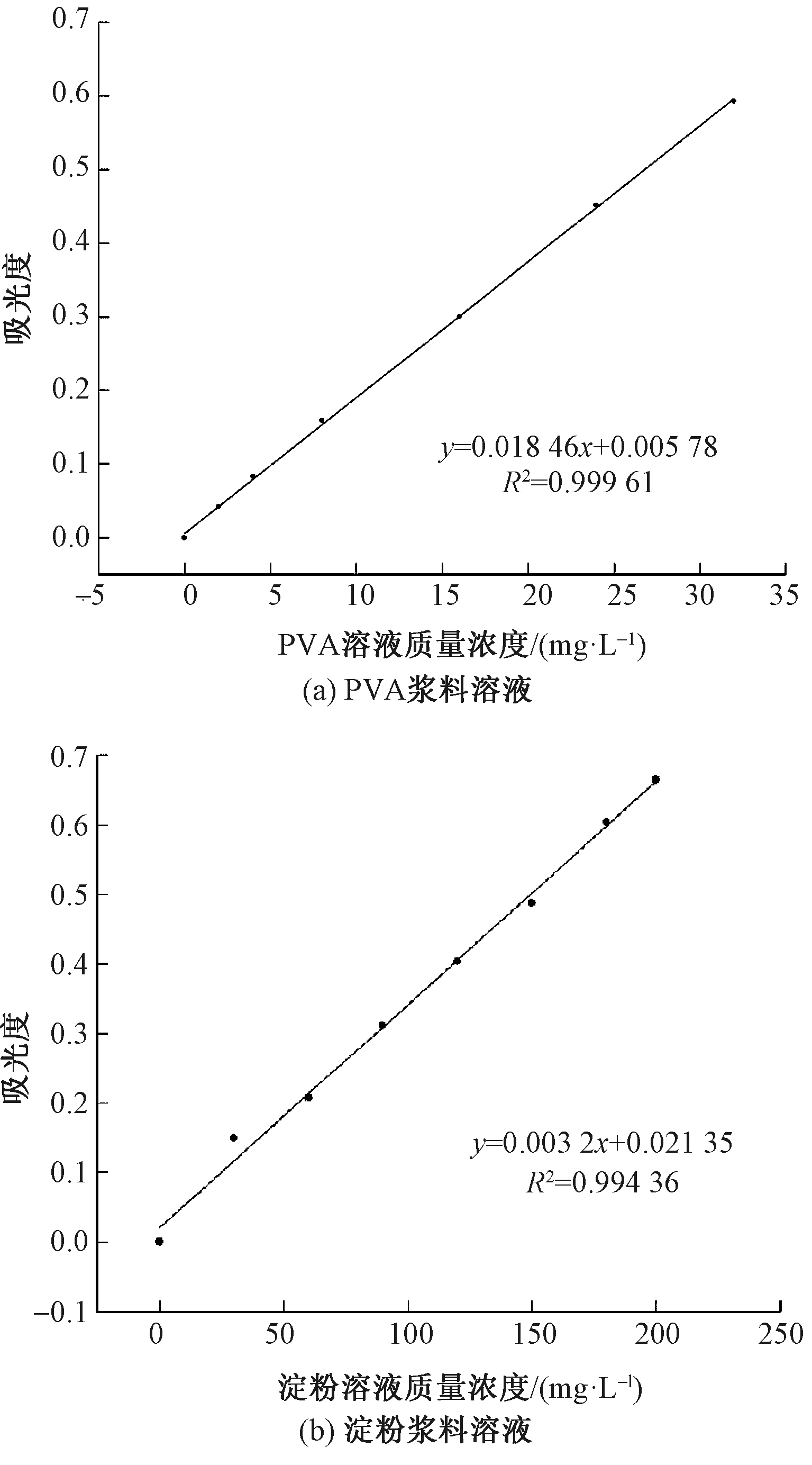

Fig. 6

Fitting curves of corresponding relationship between textile size concentration and absorbance. (a) PVA solution; (b) Starch solution"

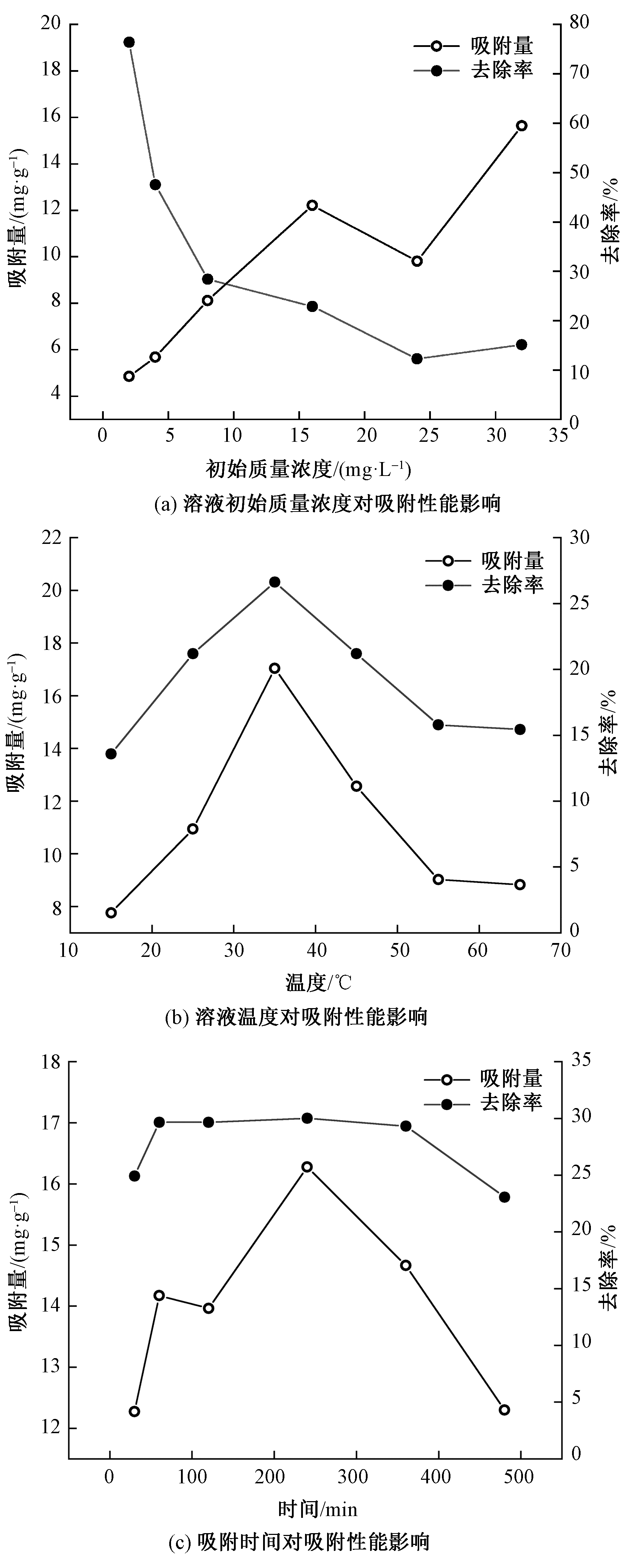

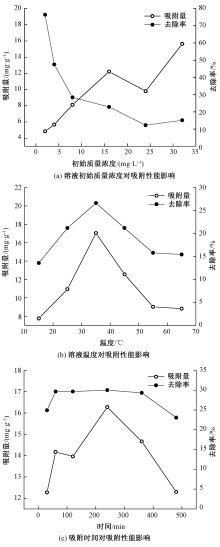

Fig. 7

Sorption properties of keratin gels on PVA size molecules under different initial concentrations(a), solution temperatures(b), sorption duration(c)"

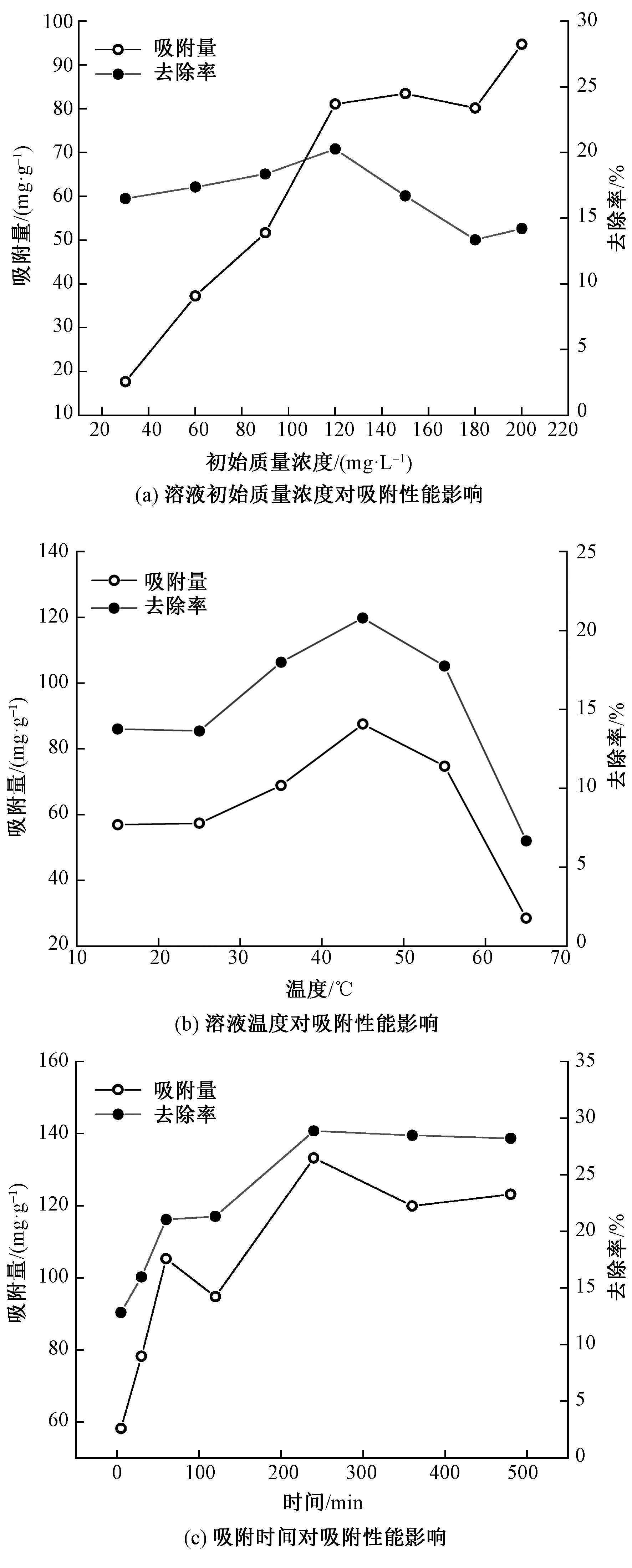

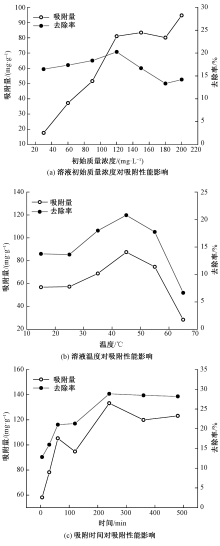

Fig. 8

Sorption properties of keratin gels on starch size molecules under different initial concentrations(a), solution temperatures(b) and duration(c)"

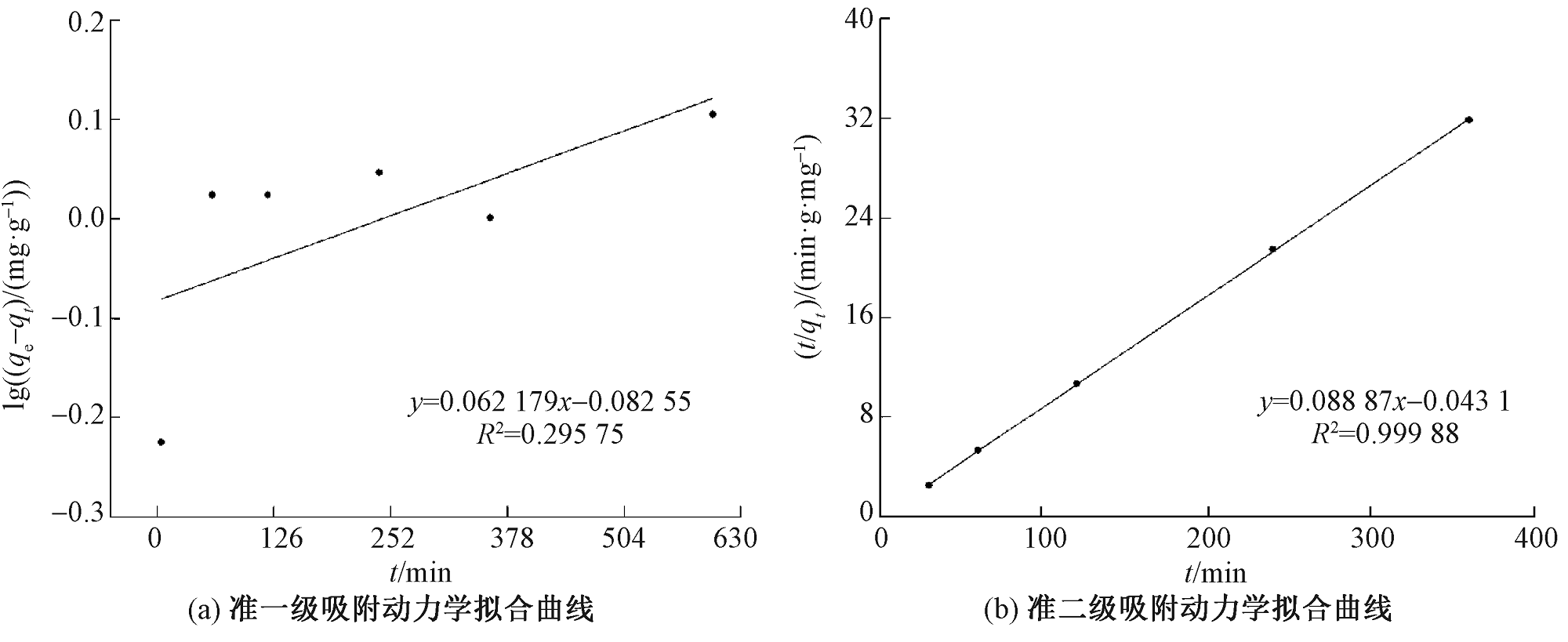

Fig. 9

Pseudo-first-order (a) and pseudo-second-order (b)sorption kinetics fitting lines of keratin gels to PVA"

Fig. 10

Pseudo-first-order (a) and pseudo-second-order (b)sorption kinetics fitting lines of keratin gels to starch"

Tab. 1

Sorption kinetic parameters of keratin gels to PVA and starch"

吸附浆料
种类		 准一级动力学参数 准二级动力学参数
K1 q1 R 1 2 K2 q2 R 2 2
PVA -0.143 200 0.826 894 0.295 75 -0.183 25 11.252 40 0.999 88
淀粉 0.004 145 33.385 660 0.978 01 0.000 88 63.171 19 0.995 46

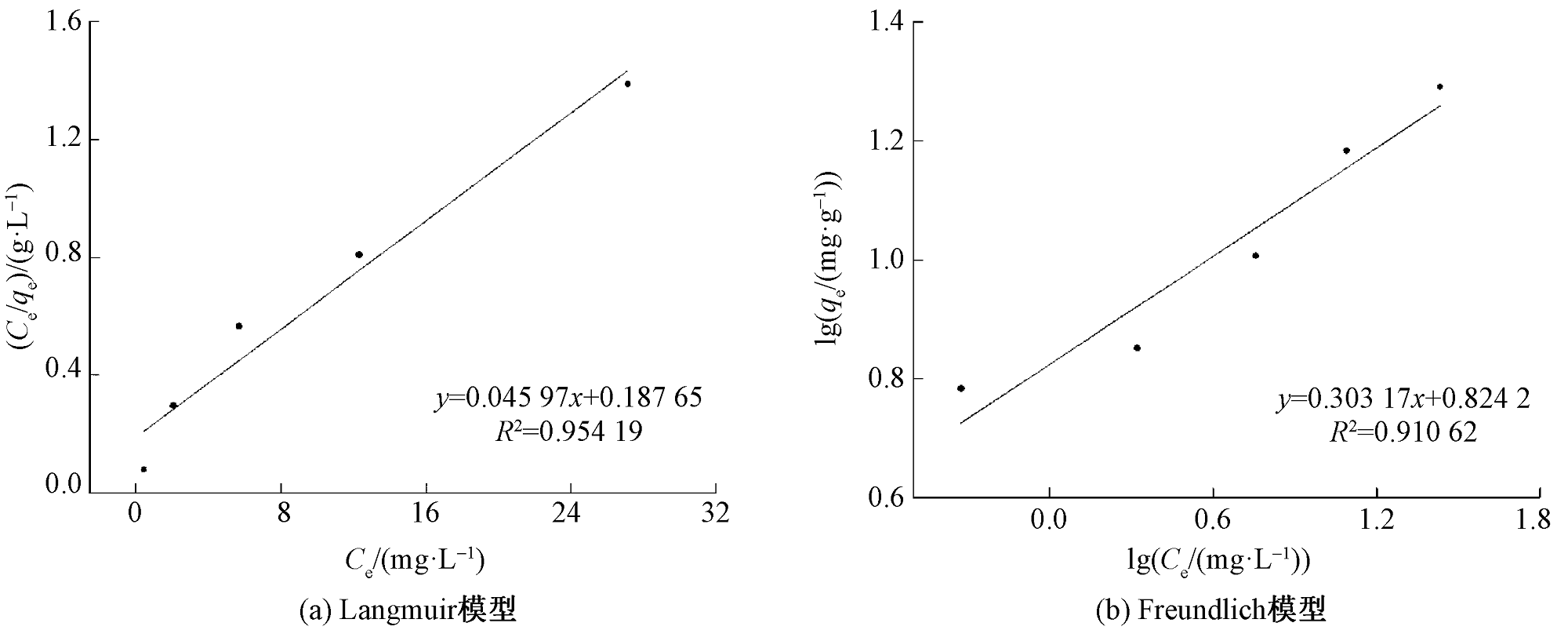

Fig. 11

Sorption isotherms of keratin gels to PVA using Langmuir(a) and Freundlich (b)models"

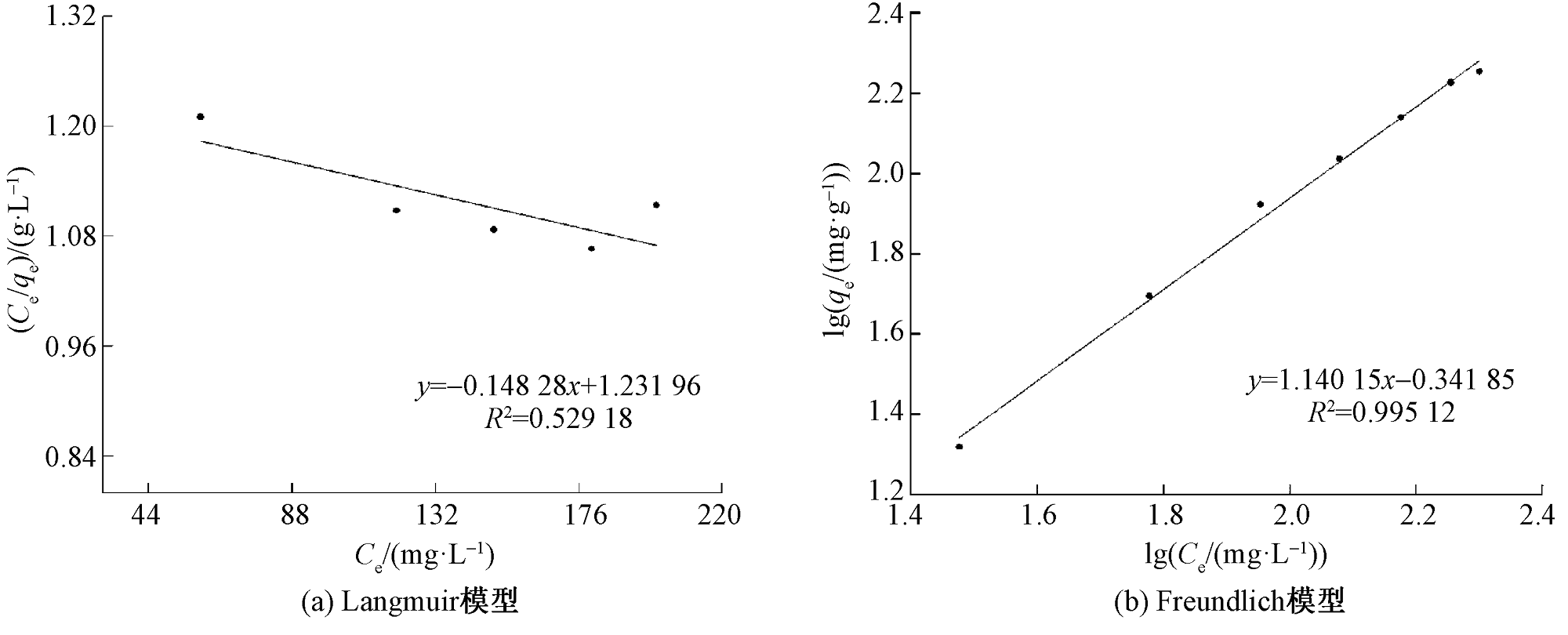

Fig. 12

Sorption isotherms of keratin gels to starch using Langmuir (a) and Freundlich models(b)"

Tab. 2

Sorption isotherms parameters of keratin gels to PVA and starch"

吸附浆
料种类		 Langmuir Freundlich
qm KL R2 RMSE/10-2 n KF R2 RMSE/10-3
PVA 21.753 0.245 0 0.954 19 1.178 3.298 5 6.671 1 0.910 62 4.14
淀粉 -6.740 -0.123 6 0.529 18 0.144 0.877 1 0.455 2 0.995 12 9.967
[1] 杜曼宜, 欧阳迈, 苏荣荣, 等. 废弃动物毛资源化利用进展[J]. 皮革与化工, 2020, 37(2):23-27.
DU Manyi, OUYANG Mai, SU Rongrong, et al. Development of resource utilization of abandoned animal hair[J]. Leather & Chemical Industry, 2020, 37(2):23-27.
[2] 杨旭红, 钟林钧, 陈博, 等. 废弃羊毛中蛋白质提取初探[J]. 毛纺科技, 2004(4):14-16.
YANG Xuhong, ZHONG Linjun, CHEN Bo, et al. Preliminary study on protein extraction from waste wool[J]. Wool Textile Journal, 2004(4):14-16.
[3] 张念荣, 王全杰, 张琦, 等. 废弃羊毛角蛋白的资源化利用研究进展[J]. 西部皮革, 2012, 34(24):29-32.
ZHANG Nianrong, WANG Quanjie, ZHANG Qi, et al. Research progress on utilization of waste wool keratin[J]. Western Leather, 2012, 34(24):29-32.
[4] 邹蝶, 王巧娥, 程海明. 提取方法对羊毛角蛋白结构与性能的影响[J]. 皮革科学与工程, 2023, 33(2):21-27.
ZOU Die, WANG Qiao'e, CHENG Haiming. Effect of extraction method on the structure and properties of wool keratin[J]. Leather Science and Engineering, 2023, 33(2):21-27.
[5] 周莹莹, 孙润军. 羊毛角蛋白的提取及应用研究进展[J]. 染整技术, 2022, 44(11):13-15.
ZHOU Yingying, SUN Runjun. Research progress in application and extraction of wool keratin[J]. Dyeing and Finishing Technology, 2022, 44(11):13-15.
[6] 高阳. 蛋白基水凝胶的制备及其柔性传感应用的研究[D]. 长春: 长春工业大学, 2021:1-141.
GAO Yang. Preparation of protein-based hydrogels and their applications in flexible sensors[D]. Changchun: Changchun University of Technology, 2021:1-141.
[7] 孙晓霞, 鲍艺, 彭黔荣, 等. 角蛋白生物材料在创伤愈合中的应用研究进展[J]. 材料导报, 2020, 34(7):7161-7167.
SUN Xiaoxia, BAO Yi, PENG Qianrong, et al. Advances on application of keratin biomaterials in wound healing[J]. Materials Reports, 2020, 34(7):7161-7167.
[8] 孙小娟. 羊毛角蛋白/氧化石墨烯复合材料的制备及吸附性能研究[D]. 北京: 北京服装学院, 2019:1-62.
SUN Xiaojuan. Preparation and adsorption properties of wool keratin/graphene oxide composites[D]. Beijing: Beijing Institute of Fashion Technology, 2019:1-62.
[9] 郑顺姬, 隋智慧, 曹向禹. 角蛋白基吸附剂的研究进展[J]. 皮革科学与工程, 2022, 32(1):46-52.
ZHENG Shunji, SUI Zhihui, CAO Xiangyu. Progress in research of keratin-based adsorbent[J]. Leather Science and Engineering, 2022, 32(1):46-52.
[10] 李小倩. 蛋白质基重金属离子吸附材料的构筑及吸附性能研究[D]. 郑州: 中原工学院, 2021:1-73.
LI Xiaoqian. Study on the construction and adsorption performance of protein-based heavy metal ion adsorption materials[D]. Zhengzhou: Zhongyuan University of Technology, 2021:1-73.
[11] 谭杨, 杨笑妮, 辛艺, 等. 温敏型Keratin/PNIPAM水凝胶的制备及其对重金属离子的吸附性能和机理研究[J]. 分析试验室, 2022, 41(6):685-690.
TAN Yang, YANG Xiaoni, XIN Yi, et al. Preparation of thermosensitive Keratin/PNIPAM hydrogel and its adsorption property and mechanism for heavy metal ions[J]. Chinese Analysis Laboratory, 2022, 41(6):685-690.
[12] LAGO D L G, FELISBERTI I M. PH and thermo-responsive hybrid hydrogels based on PNIPAAM and keratin[J]. European Polymer Journal, 2020. DOI:10.1016/j.eurpolymj.2020.109538.
[13] VILLANUEEVA M E, PUCA M, BRAVO J P, et al. Dual adsorbent-photocatalytic keratin-TiO2 nanocomposite for trimethoprim removal from wast-ewater[J]. New Journal of Chemistry, 2020, 44(26): 10964-10972.
doi: 10.1039/D0NJ02784G
[14] 唐炬. 浅探退浆废水的处理方法及工艺[J]. 精细与专用化学品, 2022, 30(12):28-33.
TANG Ju. Analysis of desizing waste water treatment method and process[J]. Fine and Specialty Chemicals, 2022, 30(12):28-33.
[15] 吕小平. 退浆高浓度废水预处理节能降耗技术研究[J]. 节能与环保, 2022(11):63-65.
LÜ Xiaoping. Study on energy saving and consumption reduction technology of desizing high concentration wastewater pretreatment[J]. Energy Conservation and Environmental Protection, 2022(11):63-65.
[16] 孙将皓, 邵彦峥, 魏春艳, 等. 海藻酸钠/改性氧化石墨烯微孔气凝胶纤维制备与吸附性能[J]. 纺织学报, 2023, 44(4):24-31.
SUN Jianghao, SHAO Yanzheng, WEI Chunyan, et al. Preparation and adsorption analysis of sodium alginate/graphene oxide microporous aerogel fiber[J]. Journal of Textile Research, 2023, 44(4):24-31.
doi: 10.1177/004051757404400105
[17] 王双双, 季志浩, 盛国栋, 等. 零价铁/氧化石墨烯复合吸附剂对染料和重金属的吸附性能[J]. 纺织学报, 2022, 43(9):156-166.
WANG Shuangshuang, JI Zhihao, SHENG Guodong, et al. Dye and heavy metal adsorption performance of zero-valent iron/graphene oxide blend absorbent[J]. Journal of Textile Research, 2022, 43(9):156-166.
[18] 程绿竹, 王宗乾, 王邓峰, 等. 高中空生物质活性碳纤维制备及其对亚甲基蓝的吸附性能[J]. 纺织学报, 2021, 42(2):129-134.
CHENG Lüzhu, WANG Zongqian, WANG Dengfeng, et al. Preparation of highly hollow biomass-based activated carbon fiber and its adsorption property to methylene blue[J]. Journal of Textile Research, 2021, 42(2):129-134.
[19] 李博, 姚金波, 牛家嵘, 等. 采用还原剂-甲酸法溶解制备羊毛角蛋白质溶液[J]. 纺织学报, 2019, 40(3):1-7.
LI Bo, YAO Jinbo, NIU Jiarong, et al. Preparation of wool keratin solution by reducing agent-formic acid process[J]. Journal of Textile Research, 2019, 40(3):1-7.
doi: 10.1177/004051757004000101
[20] LI Bo, SUN Yanli, YAO Jinbo, et al. An environment-friendly chemical modification method for thiol groups on polypeptide macromolecules to improve the performance of regenerated keratin materials[J]. Materials & Design, 2022, 217: 110611.
[21] 杜昭. 含PVA印染退浆废水处理工艺研究[D]. 郑州: 郑州大学, 2020:1-88.
DU Zhao. Study on treatment technology of dyeing and printing desizing wastewater containing PVA[D]. Zhengzhou: Zhengzhou University, 2020:1-88.
[22] 韩芳, 耿翠玉, 贾琰, 等. 退浆废水中聚乙烯醇的分析检测研究[J]. 干旱环境监测, 2017, 31(1):1-4,24.
HAN Fang, GENG Cuiyu, JIA Yan, et al. Research on the analytic technique of polyvinyl alcohol in desizing wastewater[J]. Arid Environmental Monitoring, 2017, 31(1):1-4,24.
[23] 顾润南, 林苗. 退浆废水中聚乙烯醇(PVA)含量的测定[J]. 东华大学学报(自然科学版), 2005(2):106-109.
GU Runnan, LIN Miao. Determination of PVA content in desizing wastewater[J]. Journal of Donghua University(Natural Science Edition), 2005(2):106-109.
[24] 洪特嘉. 角蛋白的绿色提取及其水凝胶材料的制备与评价[D]. 上海: 东华大学, 2017:1-74.
HONG Tejia. Green extraction of keratin and preparation and evaluation of keratin hydrogel[D]. Shanghai: Donghua University, 2017:1-74.
[25] 许梦媛, 刘让同, 李亮, 等. 聚乙烯醇/羊毛角蛋白复合水凝胶的制备与表征[J]. 印染, 2022, 48(4):17-21.
XU Mengyuan, LIU Rangtong, LI Liang, et al. Preparation and characterization of polyvinyl alcohol/wool keratin composite hydrogel[J]. China Dyeing & Finishing, 2022, 48(4):17-21.
[26] RAJABINEJAD H, ZOCCOLA M, PATRUCCO A, et al. Physicochemical properties of keratin extracted from wool by various methods[J]. Textile Research Journal, 2018, 88(21): 2415-2424.
doi: 10.1177/0040517517723028
[27] SHAVANDI A, CARNE A, BEKHIT A A, et al. An improved method for solubilisation of wool keratin using peracetic acid[J]. Journal of Environmental Chemical Engineering, 2017, 5(2): 1977-1984.
doi: 10.1016/j.jece.2017.03.043
[28] WANG L, NIE Y, ZHANG X, et al. Synergistic effects of cosolvents on the dissolution of wool keratin using ionic liquids[J]. Chemical Engineering & Technology, 2016, 39(5): 979-986.
doi: 10.1002/ceat.v39.5
