Journal of Textile Research ›› 2024, Vol. 45 ›› Issue (09): 121-128.doi: 10.13475/j.fzxb.20230904801

• Dyeing and Finishing Engineering • Previous Articles     Next Articles

Functionality of cotton fabrics finished by montmorillonite combined with TiO2

ZHAO Qiang1,2, LIU Zhengjiang1(), GAO Xiaoping1, ZHANG Yunting1, ZHANG Hong2

  1. 1. College of Light Industry and Textile, Inner Mongolia University of Technology, Hohhot, Inner Mongolia 010080, China
    2. College of Mechanical and Electrical Engineering, Tarim University, Aral, Xinjiang 843300, China
  • Received:2023-09-19 Revised:2024-05-21 Online:2024-09-15 Published:2024-09-15
  • Contact: LIU Zhengjiang E-mail:zhengjliu@imut.edu.cn

RichHTML

6

PDF (PC)

28

Abstract:

Objective In order to enable multifunctions of cotton fabrics and reduce agglomeration of TiO2 on cotton fabric surface, TiO2/montmorillonite finishing agent was prepared by sol-gel method at lower temperature using tetrabutyl titanate and montmorillonite as the precursor, aiming to reduce agglomeration of TiO2. At the same time, the reduction of TiO2 consumption was fargetted to increase the added value of montmorillonite products.

Method TiO2/montmorillonite was firstly synthesized using ultrasound-sol-gel method and then deposited onto the surface of cotton fabrics by two-dipping and two-rolling processes. The properties of the cotton fabric before and after treatment were analyzed using Fourier transform infrared (FT-IR) spectrometer and energy dispersive spectrometer, while the surface morphologies of the cotton fabrics were analyzed by scanning electron microscopy. The whiteness, air permeability, breaking strength and elongation of TiO2/montmorillonite-finished cotton fabrics were measured, respectively. In addition, the performance such as hand feel attributes, softness, smoothness and stiffness were measured. Rhodamine B was used as a test contaminant to qualitatively assess the self-cleaning performance of the TiO2/montmorillonite finished cotton fabric.

Results The SEM and EDS results indicated that TiO2/montmorillonite was uniformly distributed on cotton fibers surface. UV-visible diffuse reflectance spectrum result showed that TiO2/montmorillonite finished cotton fabric demonstrated excellent absorption capability to UV light, while the FT-IR result showed that the bonding mode between TiO2/montmorillonite and cotton fiber was formed through covalent bonding. The anti-aging performance test showed that after 96 h UV irradiation, the strength loss of TiO2 finished cotton fabric was 22.9%, while the strength loss of TiO2/montmorillonite finished cotton fabric was 15.4%, indicating that the montmorillonite compound could improve the anti-aging performance of TiO2. The self-cleaning performance test showed that TiO2/montmorillonite finished cotton fabric had satisfactory self-cleaning capability. Nevertheless, compared with raw cotton fabric, the whiteness of TiO2/montmorillonite finished cotton fabric was decreased by 25.8%, the breaking strength decreased by 10.2%, and the air permeability decreased by 5.7%, respectively.

Conclusion A cotton fabric with UV protection, anti-aging, and self-cleaning performances was prepared by applying TiO2 and montmorillonite onto the fabric surface using the rolling-baking-baking process. The result indicated that the UVA transmittance, UVB transmittance, and UPF value of TiO2/montmorillonite finished cotton fabric were 1.81%, 0.87%, and 100+, respectively. Moreover, the UPF value of the treated cotton fabric was still maintained at 50+ after 50 cycles of soap washing, and the fabric's anti-aging performances were increased by 16.7% after post-treatment. Also, the Ti—O—Si bond was formed between TiO2 and montmorillonite, which reduces recombination of electron-hole pairs of TiO2, and effectively controls the TiO2 particle size, thus improving the properties of TiO2 finished cotton fabrics.

Key words: titanium dioxide, montmorillonite, cotton fabric, ultraviolet resistance, self-cleaning, functional textile, functional finishing

CLC Number:

  • TS195.5

Fig.1

SEM images of cotton fabrics before and after finishing (×200). (a) Original cotton fabric; (b) TiO2 finished cotton fabric; (c) Montmorillonite finished cotton fabric; (d)TiO2/montmorillonite finished cotton fabric"

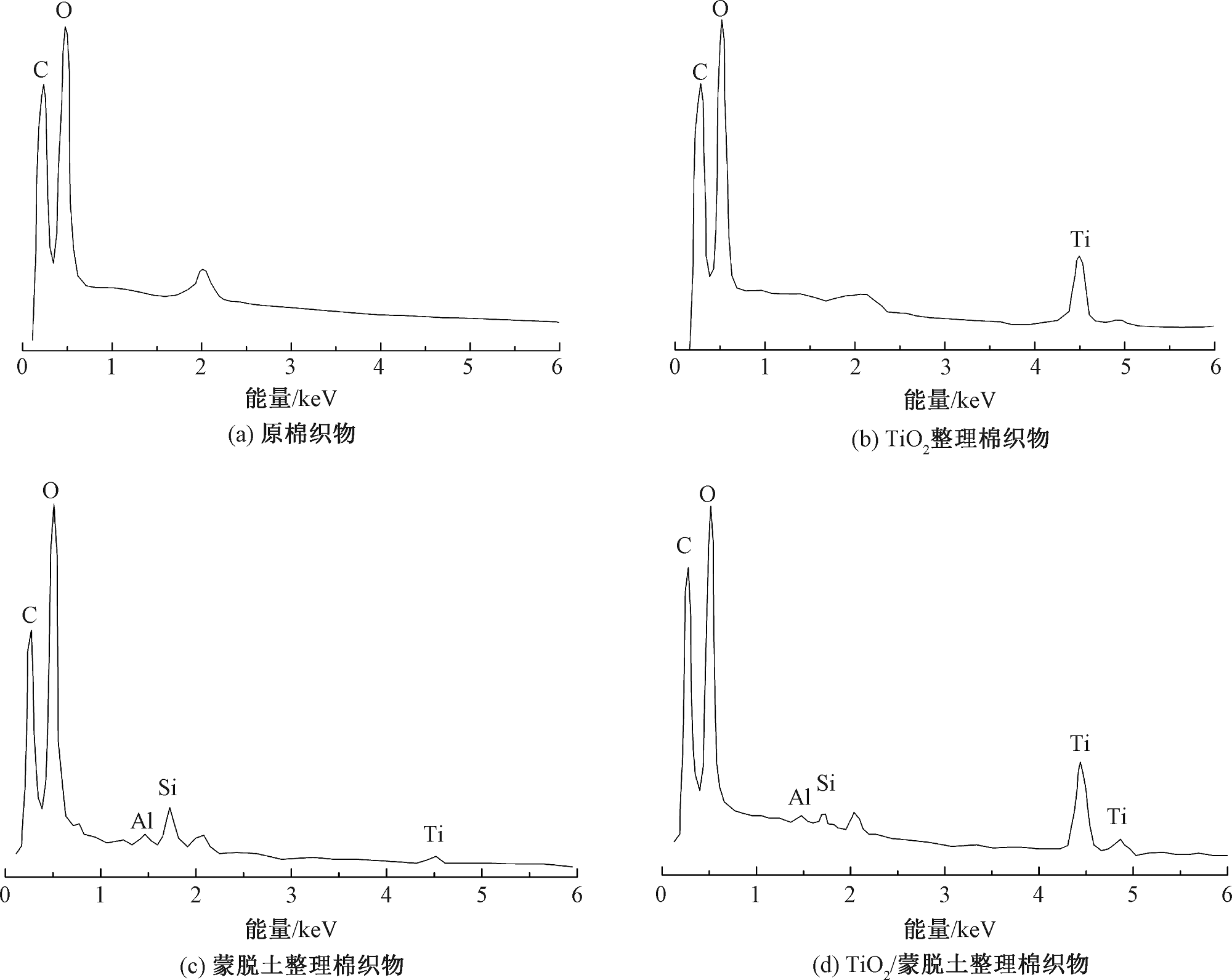

Fig.2

Energy dispersive spectra of cotton fabric before and after finishing. (a) Cotton fabric; (b) TiO2 finished cotton fabric; (c) Montmorillonite finished cotton fabric; (d)TiO2/montmorillonite finished cotton fabric"

Tab.1

Element contents of cotton fabric"

样品 元素 质量分数/% 原子分数/%
原棉织物 C 39.63 46.65
O 60.37 53.35
TiO2整理棉织物 C 33.73 42.25
O 58.96 55.45
Ti 7.31 2.30
蒙脱土整理棉织物 C 37.24 44.63
O 60.10 54.06
Al 0.50 0.27
Si 1.86 0.95
Ti 0.31 0.09
TiO2/蒙脱土整理棉织物 C 34.58 43.36
O 57.28 53.93
Al 0.23 0.13
Si 0.45 0.24
Ti 7.47 2.35

Fig.3

FT-IR spectra of cotton fabric before and after finishing"

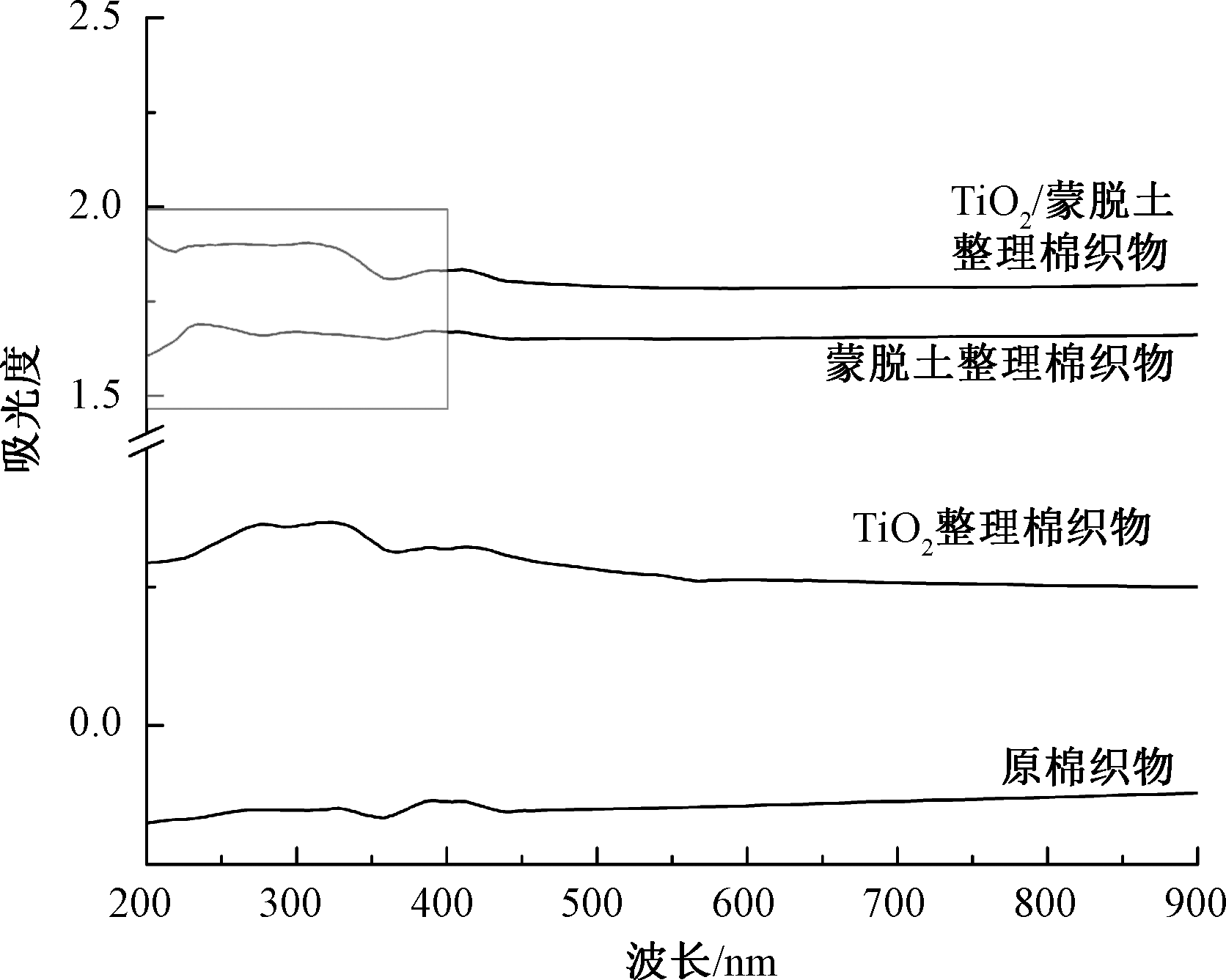

Fig.4

UV-Vis spectra of cotton fabric before and after finishing"

Tab.2

UV resistantce of fabric before and after finishing"

织物 UPF值 UVA透过
率/%		 UVB透过
率/%
原棉织物 27.3 3.90 3.80
TiO2整理棉织物 30+ 3.26 1.95
蒙脱土整理棉织物 50+ 2.48 1.69
TiO2/蒙脱土整理棉织物 100+ 1.81 0.87

Tab.3

Influence of soap washing on UPF value of finished fabrics"

皂洗
次数		 UPF值
原棉
织物		 蒙脱土整理
棉织物		 TiO2整理
棉织物		 TiO2/蒙脱土
整理棉织物
0 27.3 30+ 50+ 100+
10 25.3 30+ 50+ 100+
20 22.4 30+ 50+ 100+
30 19.7 30+ 50+ 50+
40 22.2 27.5 50+ 50+
50 20.5 25.2 50+ 50+

Tab.4

Whiteness and breaking strength of fabric before and after finishing"

织物 白度/% 断裂
强力/N
正面 反面
原棉织物 82.46 87.69 309.2
TiO2整理棉织物 70.23 75.26 280.0
蒙脱土整理棉织物 78.54 81.12 299.4
TiO2/蒙脱土整理棉织物 61.2 66.18 277.7

Tab.5

Hand feel performance of fabric before and after finishing"

织物 硬挺度 柔软度 光滑度
原棉织物 47.36 82.73 84.01
TiO2整理棉织物 51.80 79.72 82.77
蒙脱土整理棉织物 50.33 81.77 82.63
TiO2/蒙脱土整理棉织物 51.42 80.20 83.06

Fig.5

Anti-aging performance of fabric before and after finishing"

Fig.6

Self-cleaning performance of samples to rhodamine B under UV light"

[1] FERNANDES M, PADRÃO J, RIBEIRO A I, et al. Polysaccharides and metal nanoparticles for functional textiles: a review[J]. Nanomaterials, 2022.DOI:10.3390/nano12061006.
[2] 帅旗, 孙硕, 成世杰, 等. 氮硼掺杂碳量子点/异氰酸酯型微胶囊复合整理棉织物及其防紫外线性能[J]. 纺织学报, 2023, 44(8): 126-132.
SHUAI Qi, SUN Shuo, CHENG Shijie, et al. Effect of isocyanate microcapsules on UV protection of carbon quantum dot finished cotton fabrics[J]. Journal of Textile Research, 2023, 44(8): 126-132.
[3] HUANG J Y, LI S H, GE M Z, et al. Robust superhydrophobic TiO2@fabrics for UV shielding, self-cleaning and oil-water separation[J]. Journal of Materials Chemistry A, 2015, 3(6): 2825-2832.
[4] WORSLEY D A, SEARLE J R. Photoactivity test for TiO2 pigment photocatalysed polymer degradation[J]. Materials Science and Technology, 2013, 18(6): 681-684.
[5] KUBACKA A, M FERNÁNDEZ-GARCÍA, COLÓN G. Advanced nanoarchitectures for solar photocatalytic applications[J]. Chemical Reviews, 2012, 112(3): 1555-1564.
doi: 10.1021/cr100454n pmid: 22107071
[6] BI Z, PARANTHAMAN M P, MENCHHOFER P A, et al. Self-organized amorphous TiO2 nanotube arrays on porous Ti foam for rechargeable lithium and sodium ion batteries[J]. Journal of Power Sources, 2013, 222: 461-466.
[7] HENYCH J R, STENGL V. Feasible synthesis of TiO2 deposited on kaolin for photocatalytic applications[J]. Clays and Clay Minerals, 2013, 61(3/4): 165-176.
[8] KIL H S, RHEE S W. Synthesis and infrared light reflecting characteristics of TiO2/mica hybrid comp-osites[J]. Journal of the Korean Industrial & Engineering Chemistry, 2016, 27(1): 16-20.
[9] GERASIMOVA LG, MASLOVA M V, SHCHUKINA E S, et al. Mineral layer fillers for the production of functional materials[J]. Materials, 2021. DOI:10.3390/ma14123369.
[10] DE LEÓN M A, RODRÍGUEZ M, MARCHETTI S G, et al. Raw montmorillonite modified with iron for photo-Fenton processes: influence of iron content on textural, structural and catalytic properties[J]. Journal of Environmental Chemical Engineering, 2017, 5(5): 4742-4750.
[11] DAO T B T, HA T T L, NGUYEN T D, et al. Effectiveness of photocatalysis of montmorillonite-supported TiO2 and TiO2 nanotubes for rhodamine B degradation[J]. Chemosphere, 2021. DOI:10.1016/j.chemosphere.2021.130802.
[12] 杜姗, 魏云航, 谭宇浩, 等. 棉织物的硅溶胶/短链含氟聚丙烯酸酯复合拒水整理[J]. 纺织学报, 2023, 44(9): 153-160.
DU Shan, WEI Yunhang, TAN Yuhao, et al. Water-repellent finishing of cotton fabrics with silica sol and short-chain fluorinated polyacrylic ester[J]. Journal of Textile Research, 2023, 44(9): 153-160.
[13] CHAO H X, SHUN T J, JING Z, et al. Superhydrophobic surfaces on cotton textiles by complex coating of silica nanoparticles and hydro-phobization[J]. Thin Solid Films, 2009, 517(16): 4593-4598.
[14] 余炼钢, 刘衔宇, 陈全莉. “缅绿料”石英质玉的宝石矿物学及谱学表征[J]. 光谱学与光谱分析, 2023, 43(8):2543-2549.
YU Liangang, LIU Xianyu, CHEN Quanli. Gemstone mineralogical and spectroscopic characteristics of quartzose jade ('Mianlü Yu')[J]. Spectroscopy and Spectral Analysis, 2023, 43(8): 2543-2549.
[15] RAJAN M S, YOON M, THOMAS J. Kaolin-graphene carboxyl incorporated TiO2 as efficient visible light active photocatalyst for the degradation of cefuroxime sodium[J]. Photochemical & Photobiological Sciences, 2022, 21(4): 509-528.
[16] NIE W, RUAN M, GUO D, et al. Design of flexible hydrophobic photocatalytic sheets on polydimethylsiloxane substrates based on carrier migration of Si—O—Ti hybrid bonds for photodegradation of dye molecules[J]. Applied Surface Science, 2023. DOI:10.1016/j.apsusc.2023.156415.
[17] SALEEM M, NAZ M Y, SHUKRULLAH S, et al. Experimental and statistical analysis of dielectric barrier discharge plasma effect on sonochemically TiO2 coated cotton fabric using complete composite design[J]. Current Applied Physics, 2021, 31:158-170.
[18] 杨豆豆, 孟家光, 白亚琴, 等. 纯棉针织物的纳米抗紫外整理[J]. 纺织高校基础科学学报, 2020, 33(2):11-16.
YANG Doudou, MENG Jiaguang, BAI Yaqin, et al. Nano antiultraviolet finishing of cotton knitted fabrics[J]. Basic Sciences Journal of Textile Universities, 2020, 33(2):11-16.
[19] 杨旭, 陈慧. 纤维素/丝素蛋白凝胶改性棉织物的性能[J]. 上海纺织科技, 2023, 51(9):43-50.
YANG Xu, CHEN Hui. Properties of cotton fabric modified with cellulose /silk fibroin gel[J]. Shanghai Textile Science & Technology, 2023, 51(9):43-50.
[20] NAKATA K, FUJISHIMA A. TiO2 photocatalysis: design and applications[J]. Journal of Photochemistry and Photobiology C: Photochemistry Reviews, 2012, 13(3):169-189.
[21] CARDONA Y, WEGRZYN A, MISKOWIEC P. Catalytic photodegradation of organic compounds using TiO2/pillared clays synthesized using a nonconventional aluminum source[J]. Chemical Engineering Journal, 2022. DOI:10.1016/j.cej.2022.136908.
