Journal of Textile Research ›› 2024, Vol. 45 ›› Issue (09): 129-136.doi: 10.13475/j.fzxb.20231100101

• Dyeing and Finishing Engineering • Previous Articles     Next Articles

Eco-friendly mercerization of wool carpet using protease method based on substrate activation

WANG Le1(), DUAN Zhixin2, YAO Jinbo3, LIU Jianyong3, LU Jianjun1

  1. 1. College of Textile Engineering, Taiyuan University of Technology, Taiyuan, Shanxi 030600, China
    2. State Key Laboratory of Clean and Efficient Coal Utilization, Taiyuan University of Technology, Taiyuan, Shanxi 030024, China
    3. School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China
  • Received:2023-11-01 Revised:2024-05-23 Online:2024-09-15 Published:2024-09-15

Abstract:

Objective In order to fundamentally solve the severe environmental pollution problem caused by the existing chlorinated wool carpet mercerizing finishing, much research has been focused on ecological mercerizing. The protease method is a mild and green finishing process. However, the low hydrolysis efficiency of protease on wool keratin remains to be a technical bottleneck, and it is necessary to develop the protease method for the wool carpet mercerizing process with ecological characteristics. It is conducive to promoting green and sustainable development of the textile industry.

Method A protease-catalyzed system consisting of substrate activator LKZ-630 and protease Savinase 16L was constructed and used for mercerizing wool carpets by combining mechanical scraping and brushing. The role of LKZ-630 in the enzymatic degradation of wool was studied by measuring the sulfhydryl content on the wool surface, protease activity, protease adsorption, and degree of hydrolysis of wool. The structure of wool carpets before and after treatment was examined by scanning electron microscopy, Fourier infrared spectroscopy, and X-ray diffraction energy spectroscopy.

Results The results showed that LKZ-630 could open disulfide bonds in wool fibers and convert them to sulfhydryl groups. It facilitated the rapid degradation of high-sulfur wool tissues by proteases. By adding LKZ-630, the protease activity (substrate of wool fibers) increased by 1 575 times when the concentration of LKZ-630 was 2 g/L. Under the treatment conditions of LKZ-630 2 g/L, Savinase 16L 1 g/L, and 50 ℃, LKZ-630 increased the equilibrium adsorption of protease on wool fibers by 12.7 times and increased the hydrolysis rate by 36.3 times. Wool carpet mercerizing equipment with brushing and scraping functions was developed. A protease-catalyzed system (LKZ-630 2 g/L and Savinase 16L 1 g/L) combined with brushing and scraping was used for mercerizing pure wool carpets at 50℃ for 40 min. Brushing and scraping cause the mechanical force on the carpet fiber to gradually increase from the tail to the tip during treatment. As a result, the fineness of the treated wool fibers gradually became finer from the tail to the tip. The fiber tip fineness after treatment even reached 1 μm, giving the treated carpet a layered feeling and a soft touch. In addition, the surface of the upper and middle fibers of the treated carpet was exceptionally smooth compared to the untreated carpet. As a result, the treated carpet had a better gloss, with CIE brightness and whiteness values increased by 6.99 and 50.12, respectively, and the yellowness value reduced by 14.84. The surface group structure of the treated carpet was similar to that of the untreated. However, the crystallinity was reduced due to the destruction of the disulfide bond cross-linking in the scale proteins.

Conclusion The protease-catalyzed system consisting of the substrate activator LKZ-630 and Savinase 16L was constructed to degrade wool high-sulfur hard keratin. LKZ-630 could efficiently open the disulfide bond in the wool fiber and significantly increase the adsorption rate of the enzyme on wool fiber and the hydrolysis efficiency of the enzyme on wool high-sulfur keratin. The higher the concentration of LKZ-630, the higher the adsorption of wool to the protease, and the higher the reactivity of the protease to the wool. The protease-catalyzed system was combined with brushing and scraping to mercerize the wool carpet. Compared with the untreated carpet, the degree of exfoliation of keratin tissue of the treated carpet fibers was gradually strengthened from the tail to the tip, and the fineness was also gradually thinned. The treated carpet was soft to the touch and had a sense of hierarchy and a silk-like luster, realizing the ecological chlorine-free mercerization of wool carpet. Further studies on the dyeing and finishing properties of carpets treated with the protease-catalyzed system are necessary.

Key words: protease, wool, carpet, protease catalytic system, mercerization, substrate activation

CLC Number:

  • TS131.8

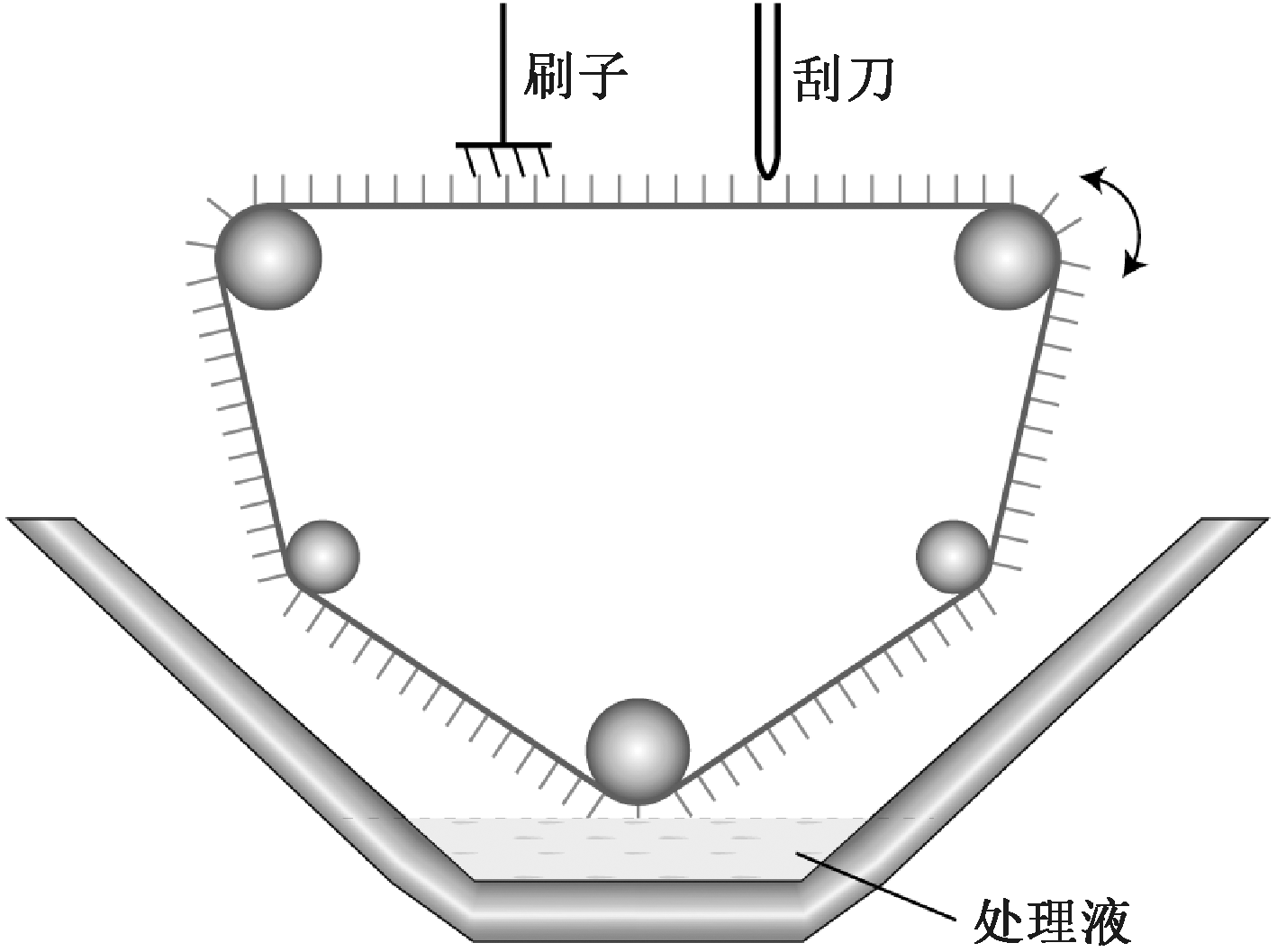

Fig.1

Schematic diagram of equipment for carpet treatment"

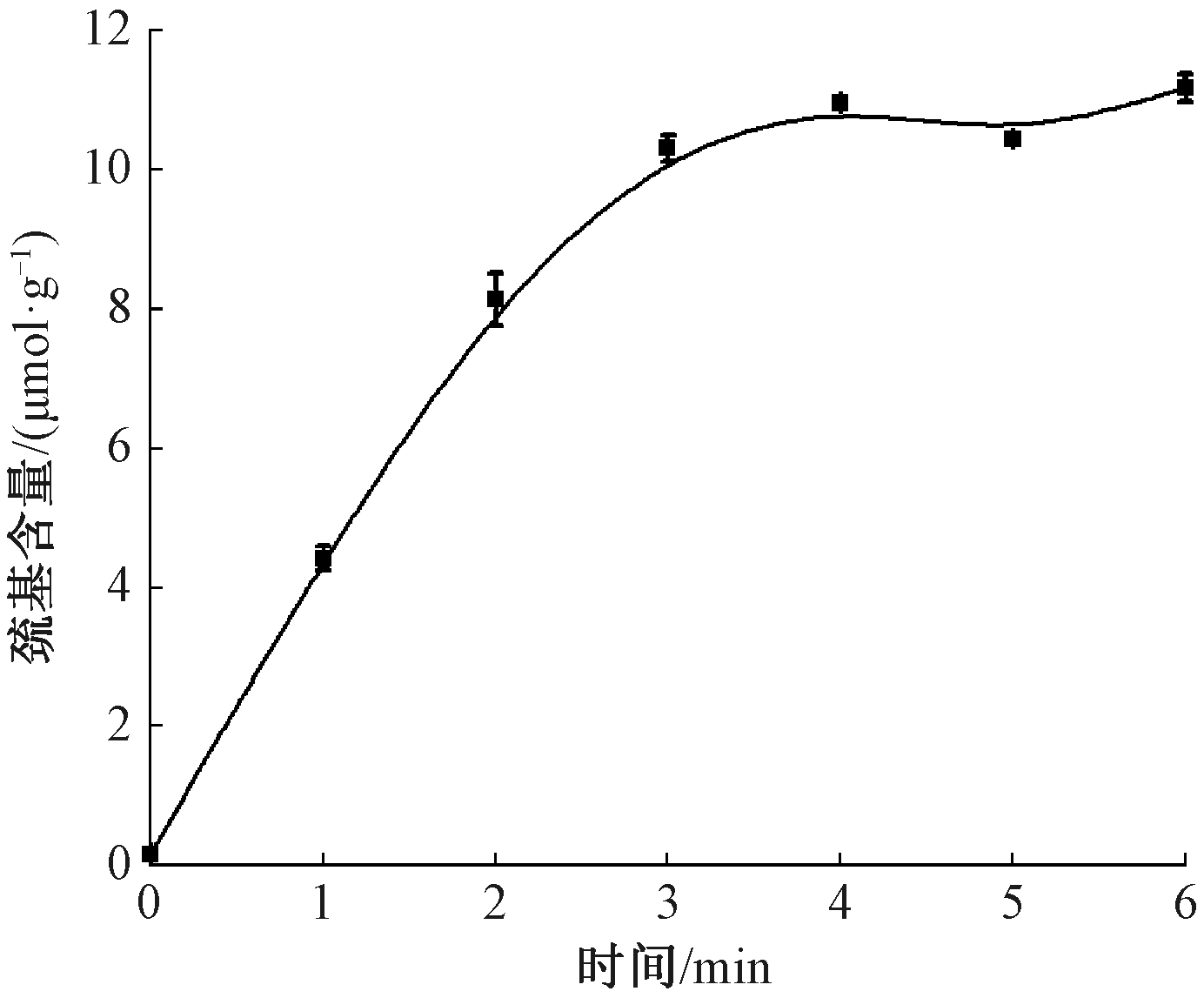

Fig.2

Content of sulfydryl groups in wool fibers after LKZ-630 treatment"

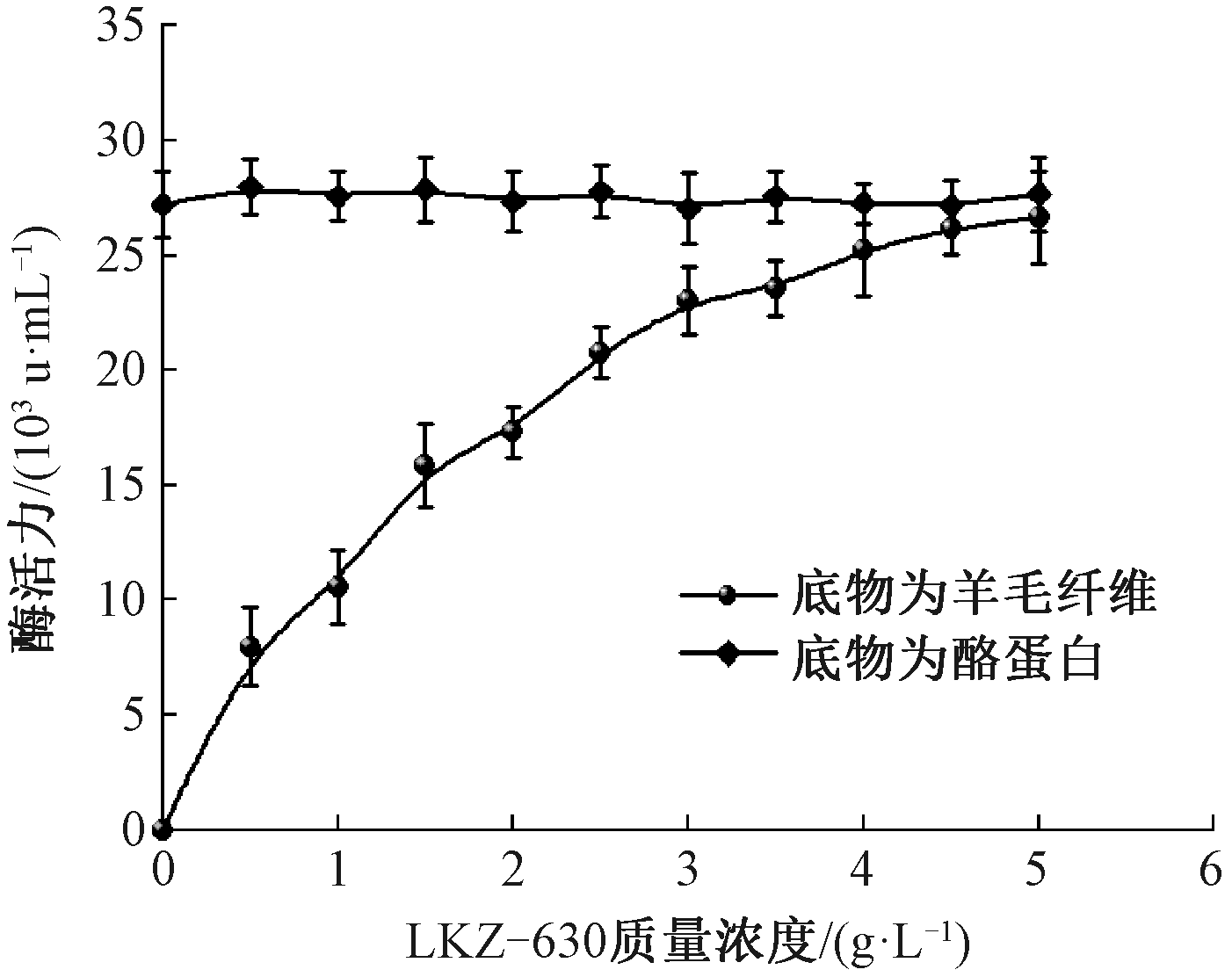

Fig.3

Influence of LKZ-630 on activity of protease Savinase 16L under different substrate conditions"

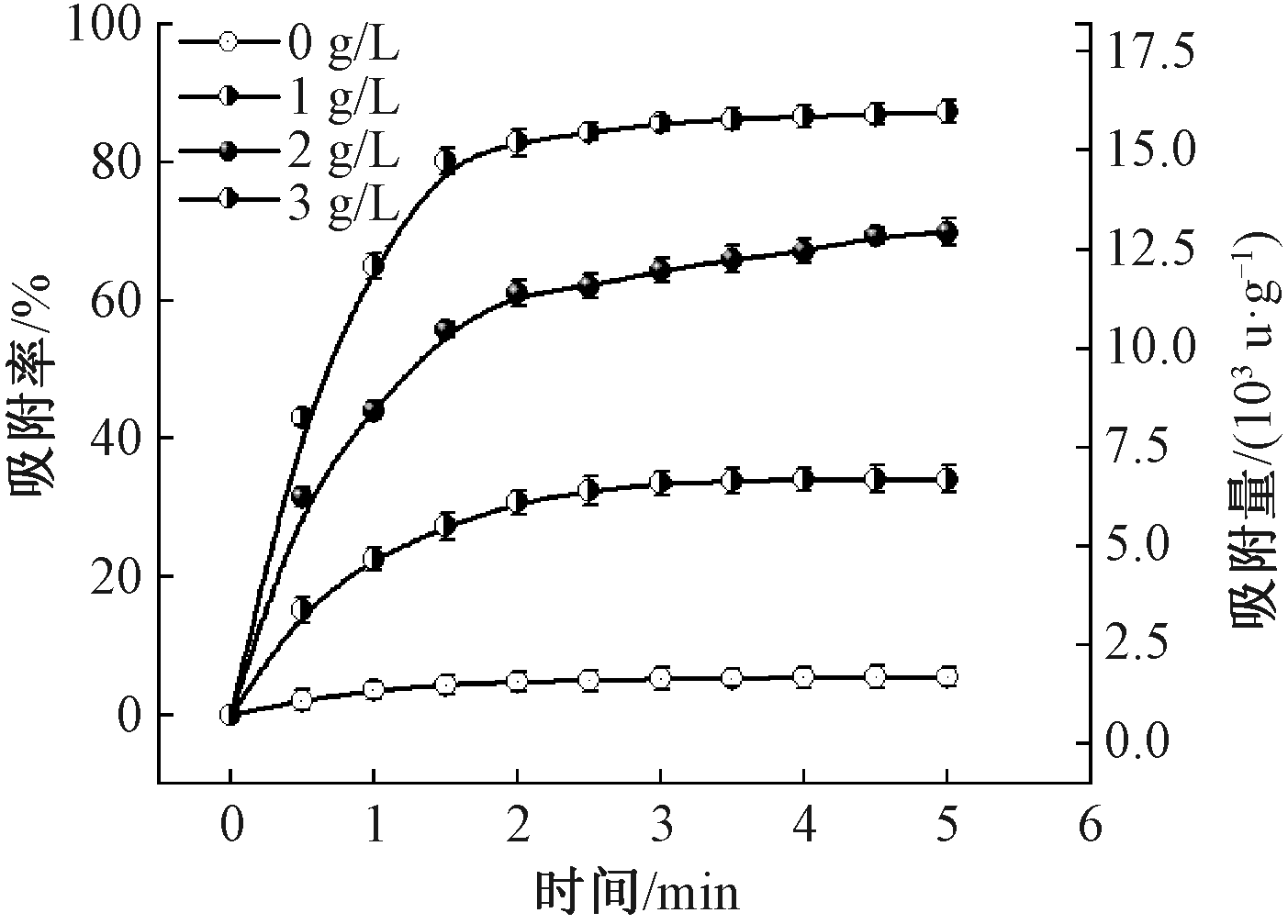

Fig.4

Influence of LKZ-630 on adsorption of protease by wool fibers"

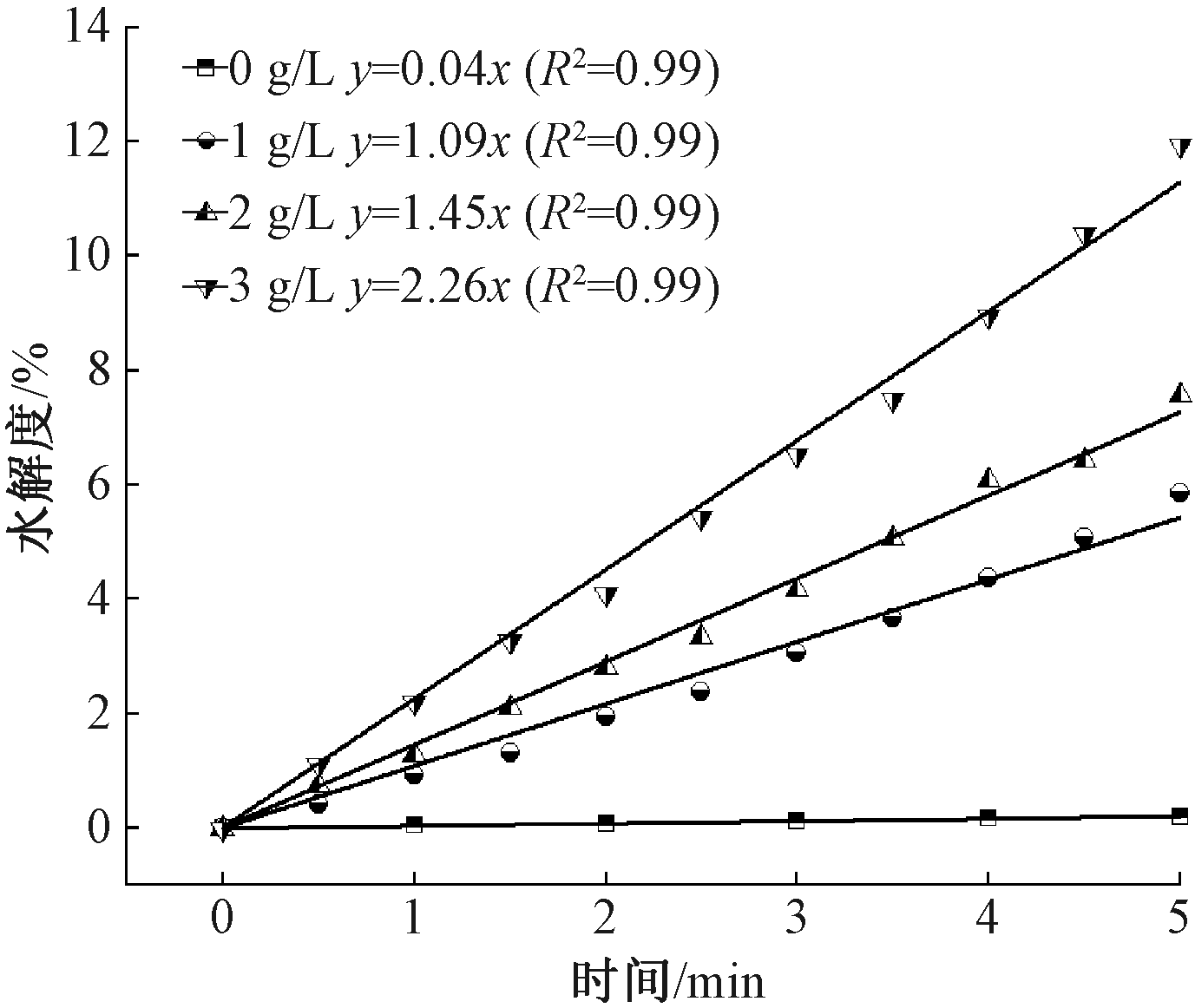

Fig.5

Influence of LKZ-630 on hydrolysis degree of wool degraded by protease"

Fig.6

Morphologies and schematic diagram of fibers in before and after treatment carpet. (a) Untreated morphology (×800); (b) Bottom morphology after treatment(×800);(c) Middle morphology after treatment (×1 500); (d) Tip morphology after treatment (×6 000); (e) Schematic diagram of fibers in carpet before and after treatment"

Fig.7

Photos of carpet before and after treatment. (a) Carpet surface before treatment; (b) Cross-section before treatment; (c) Carpet surface after treatment; (d) Cross-section after treatment"

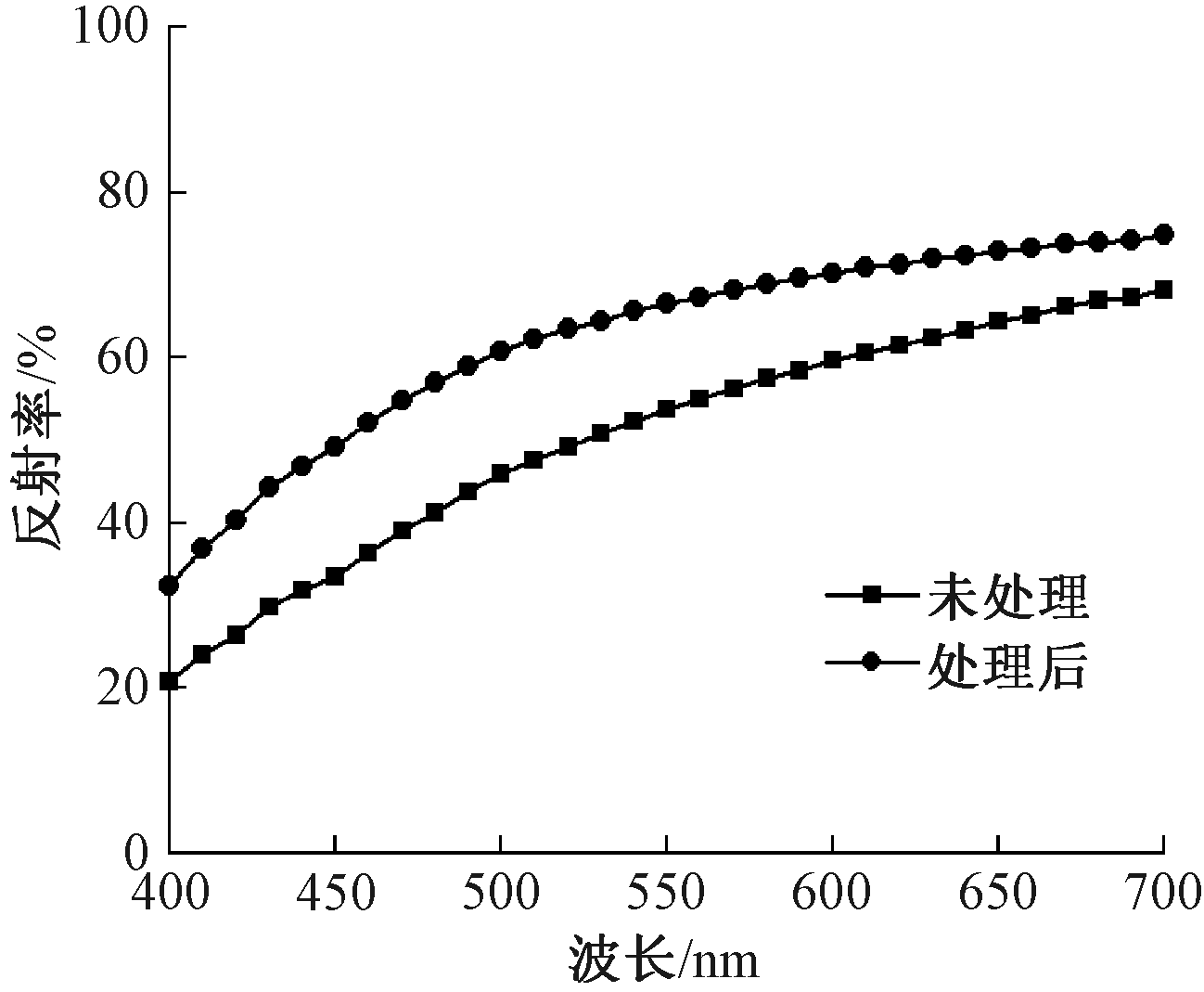

Fig.8

Reflectance curves of wool carpet before and after treatment"

Tab.1

Color parameters of wool carpet surface before and after treatment"

样品 L* a* b* c* h*/(°) ΔL* Δa* Δb* ΔE* W Y
原始样品 77.83 1.44 21.47 21.52 86.17 -61.20 44.21
处理后样品 84.82 -0.6 15.35 15.36 92.25 6.99 -2.04 -6.11 9.51 -11.08 29.37

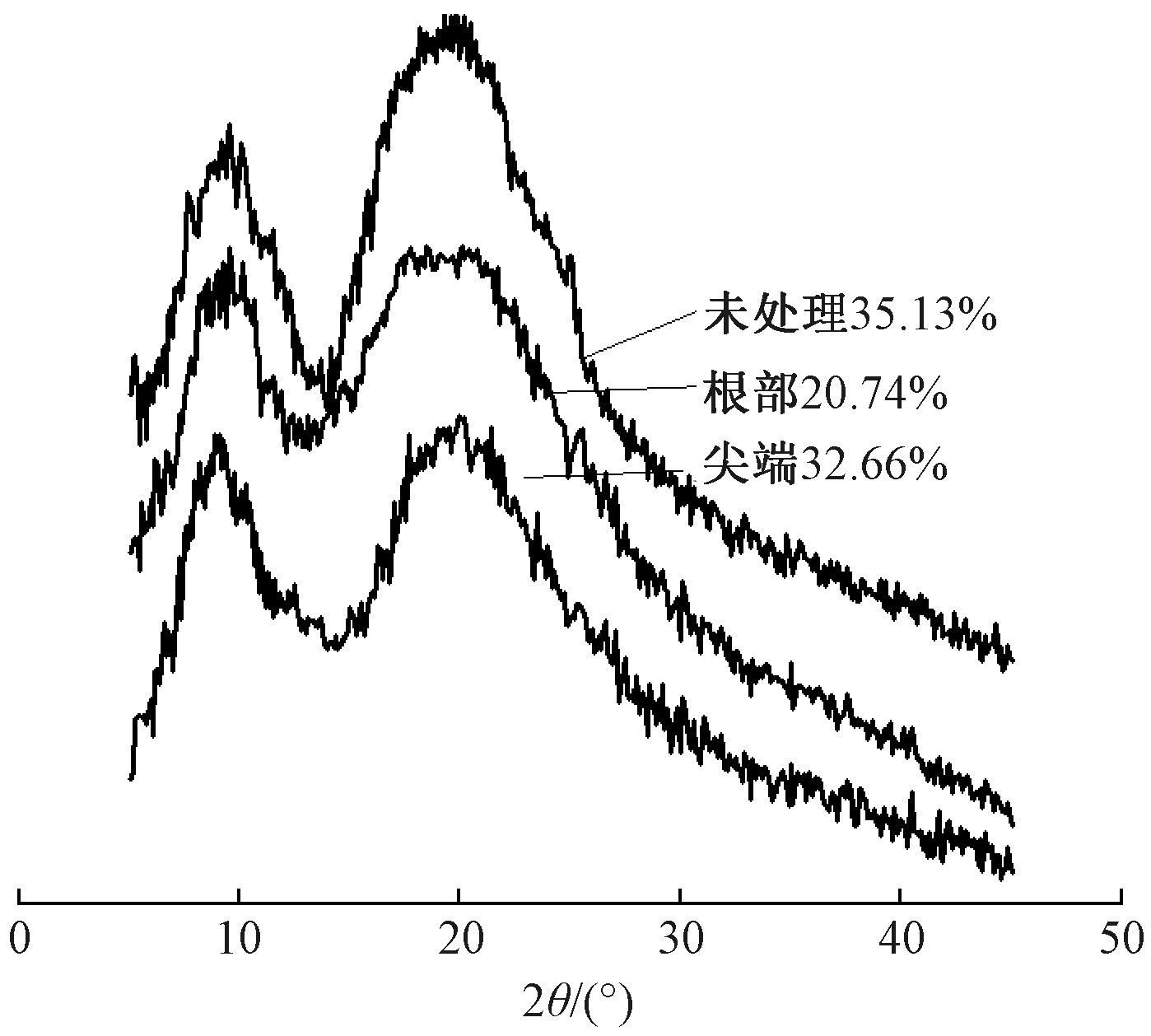

Fig.9

X-ray diffraction patterns of fibers in wool carpet before and after treatment"

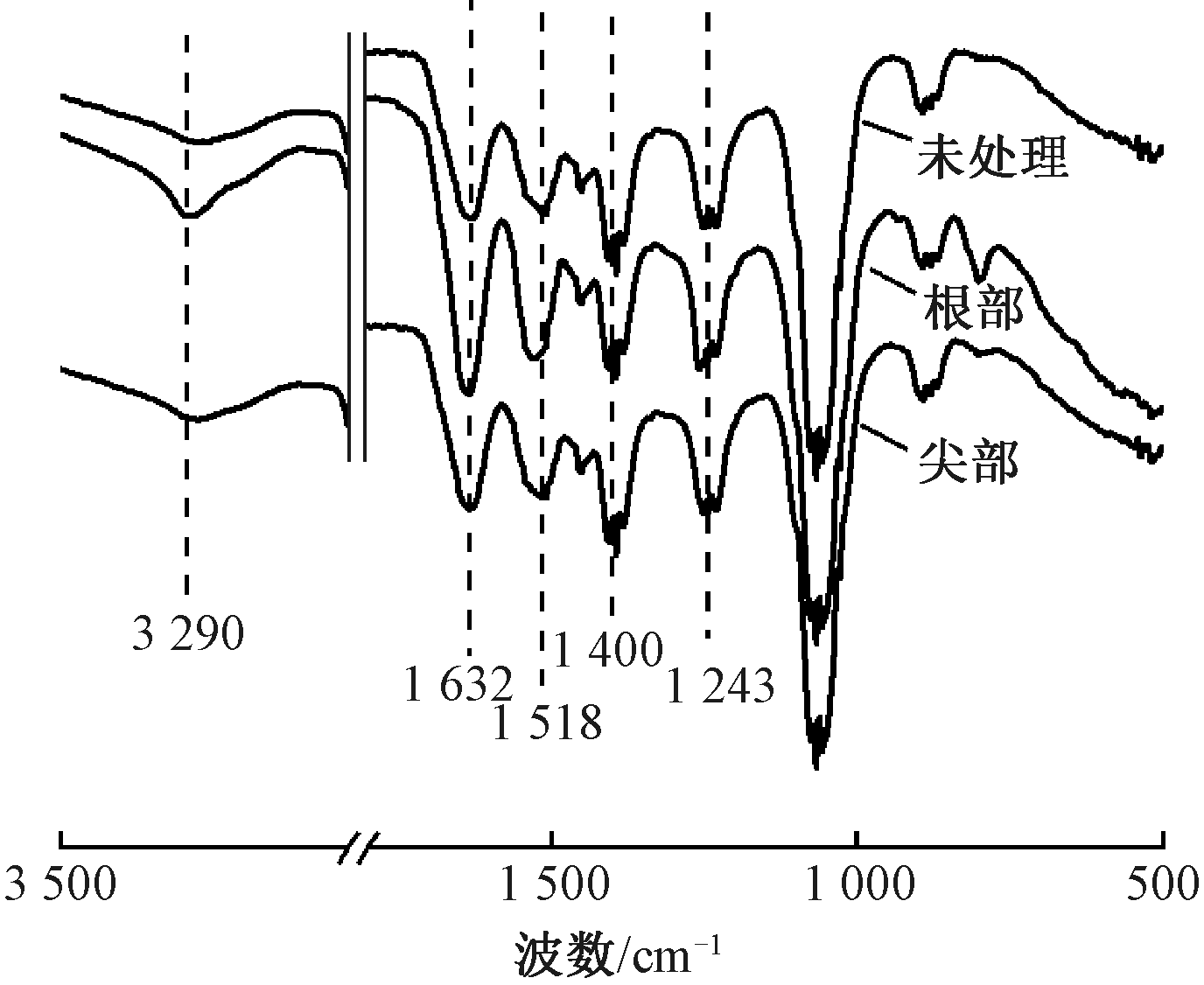

Fig.10

FT-IR spectra of fibers in wool carpet before and after treatment"

[1] 占镠祥, 李婉, 王高军, 等. 氯化丝光与防缩处理对羊毛纤维结构及其性能的影响[J]. 毛纺科技, 2019, 47(10): 31-35.
ZHAN Liuxiang, LI Wan, WANG Gaojun, et al. Effect of chlorination mercerization and shrinkage prevention on structure and properties of wool fibers[J]. Wool Textile Journal, 2019, 47(10): 31-35.
[2] 刘建勇, 吴胜争, 赵笑康. 生物酶协同催化体系及其对羊毛纤维的作用机制[J]. 纺织学报, 2018, 39(1): 71-78.
LIU Jianyong, WU Shengzheng, ZHAO Xiaokang. Biological enzyme synergistic catalytic system and its mechanism on wool fiber[J]. Journal of Textile Research, 2018, 39(1): 71-78.
[3] HASSAN M M, CARR C M. A review of the sustainable methods in imparting shrink resistance to wool fabrics[J]. Journal of Advanced Research, 2019 (18): 39-60.
[4] 杨慧伶. 等离子体处理对羊毛织物毡缩性和染色性的影响[D]. 上海: 东华大学, 2020: 10-25.
YANG Huiling. Effect of plasma treatment on the antifelting and dyeing properties of wool fabric[D]. Shanghai: Donghua University, 2020: 10-25.
[5] 江魁, 邵建中. 羊毛毛条的过硫酸氢钾-聚乙烯亚胺抗毡缩整理研究[J]. 染整技术, 2019, 41(2): 33-38.
JIANG Kui, SHAO Jianzhong. Anti-felting finishing study of potassium peroxymonosulfate-poIyethyleneimine from wooI tops[J]. Textile Dyeing and Finishing Journal, 2019, 41(2): 33-38.
[6] SHAHID M, MOHAMMAD F, CHEN G, et al. Enzymatic processing of natural fibres: white biotechnology for sustainable development[J]. Green Chemistry, 2016, 18(8): 2256-2281.
[7] RAZZAQ A, SHAMSI S, ALI A, et al. Microbial proteases applications[J]. Frontiers in bioengineering and biotechnology, 2019. DOI: 10.3389/fbioe.2019.00110.
[8] QIU Jingwen, WILKENS C, BARRETT K, et al. Microbial enzymes catalyzing keratin degradation: classification, structure, function[J]. Biotechnology advances, 2020. DOI: 10.1016/j.biotechadv.2020.107607.
[9] 梅静霞, 张楠, 王强, 等. 基于修饰蛋白酶的羊毛织物防毡缩整理[J]. 纺织学报, 2019, 40(6): 74-79.
MEI Jingxia, ZHANG Nan, WANG Qiang, et al. Wool anti-felting treatment based on modified protease[J]. Journal of Textile Research, 2019, 40(6): 74-79.
[10] 张腾飞. 基于蛋白酶K的羊毛剥鳞技术研究[D]. 上海: 东华大学, 2023: 21-36.
ZHANG Tengfei. Reaserch on wool scale-peeling technology based on proteinase K[D]. Shanghai: Donghua University, 2023: 21-36.
[11] 陈光, 袁久刚, 向宇, 等. 羊毛角蛋白中巯基含量的测定及其应用[J]. 材料导报, 2021, 35(14): 14176-14179.
CHEN Guang, YUAN Jiugang, XIANG Yu, et al. Determination of sulfhydryl content in wool keratin and its application[J]. Materials Reports, 2019, 35(14): 14176-14179.
[12] 王乐. 蛋白酶法羊毛连续快速防缩技术及机制研究[D]. 天津: 天津工业大学, 2020: 85-100.
WANG Le. Study on continuous and rapid shrinkage prevention of wool by protease method and its mecha-nism[D]. Tianjin: Tiangong University, 2020: 85-100.
[13] ZHANG Yiping, ZHANG Nan, WANG Qiang, et al. A facile and eco-friendly approach for preparation of microkeratin and nanokeratin by ultrasound-assisted enzymatic hydrolysis[J]. Ultrasonics Sonochemistry, 2020. DOI: 10.1016/j.ultsonch.2020.105201.
[14] 梁志结, 罗正智, 程海兵, 等. 多钒酸盐催化氧化咖啡酸及其对羊毛织物的原位染色性能[J]. 纺织学报, 2023, 44(10): 98-103.
doi: 10.13475/j.fzxb.20211002001
LIANG Zhijie, LUO Zhengzhi, CHENG Haibing, et al. Oxidation of caffeic acid and in-situ dyeing performance of wool fabrics catalyzed by polioxovanadate[J]. Journal of Textile Research, 2023, 44(10): 98-103.
doi: 10.13475/j.fzxb.20211002001
[15] ZHANG Pan, ZHANG Nan, WANG Qiang, et al. Disulfide bond reconstruction: a novel approach for grafting of thiolated chitosan onto wool[J]. Carbohydrate Polymers, 2019, 203: 369-377.
doi: S0144-8617(18)31149-4 pmid: 30318225
[16] 黄宏博, 韩宗保, 郭恒, 等. 热湿处理对免烫羊毛织物保形性能的影响[J]. 纺织学报, 2021, 42(12): 119-124.
doi: 10.13475/j.fzxb.20201004806
HUANG Hongbo, HAN Zongbao, GUO Heng, et al. Influence of thermal and moist treatments on shape retention performance of anti-creasing wool fab[J]. Journal of Textile Research, 2019, 42(12): 119-124.
[17] ZHANG Yiping, ZHANG Nan, WANG Q, et al. A facile and controllable approach for surface modification of wool by micro-dissolution[J]. Fibers and Polymers, 2020, 21(6): 1229-1237.
[18] 袁久刚, 季吉, 薛琪, 等. 羊毛角蛋白在巯基乙酸胆碱中的溶解再生[J]. 纺织学报, 2021, 42(1): 35-39.
YUAN Jiugang, JI Ji, XUE Qi, et al. Dissolution and regeneration of wool keratin in choline thioglycolate[J]. Journal of Textile Research, 2021, 42(1): 35-39.
