Journal of Textile Research ›› 2024, Vol. 45 ›› Issue (04): 15-23.doi: 10.13475/j.fzxb.20231200101

• Academic Salon Column for New Insight of Textile Science and Technology: Green Functional and Smart Textiles • Previous Articles     Next Articles

Preparation and performance of ion sensors based on composite nanofiber membranes

LIANG Wenjing1,2, WU Junxian1,2, HE Yin1,2(), LIU Hao1,2

  1. 1. School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China
    2. Institute of Smart Wearable Electronic Textiles, Tiangong University, Tianjin 300387, China
  • Received:2023-12-04 Revised:2024-01-23 Online:2024-04-15 Published:2024-05-13

RichHTML

16

PDF (PC)

103

Abstract:

Objective In order to develop a flexible ion sensor with high stability and sensitivity, polyvinylidene fluoride ionic liquid ((PVDF)/IL) composite nanofibrous membranes were prepared by electrostatic spinning, and assembled with electrode materials to form an ion sensor with a sandwich structure.

Method The effects of spinning liquid mass fraction and IL content on the spinning process and fibrous membrane morphology were investigated using scanning electron microscopy, and the elemental distribution and chemical structure of the composite nanofibrous membranes were characterized using energy dispersive X-ray spectroscopy and Fourier transform infrared spectroscopy. The effects of nanofibrous membranes with different IL contents and thicknesses on the sensor performance were investigated using the flexible sensor test system (FSTS), and the ion sensors were attached to human skin and clothes for body signals and motion monitoring, and the real-time output electrical signals were recorded using the FSTS.

Results When the mass ratio of PVDF was 18%-19% and the dosage ratio of ionic liquid was 2∶1 and 3∶1, the composite nanofibrous membranes had a regular surface, fewer beads, and a uniform distribution of fibre diameters. The addition of ionic liquid increased the number of charged ions in the PVDF nanofibre membranes and made them uniformly distributed. The pressure sensing sensitivity of the ion sensor in the detection range of 0-40 kPa was 32.471 pF/kPa at a PVDF mass fraction of 18% and an ionic liquid dosage ratio of 2∶1. The increase in ionic liquid content in the composite nanofibrous membrane ion sensor resulted in a significant increase in the sensitivity of the sensor. As the thickness of the nanofibre membrane increases, the detection range of the sensor gradually increases and the sensitivity gradually decreases. The hysteresis of the ion sensor was 6.64% with no significant delay or dependence at different pressure levels, with compression rate of 5 000 loading cycles. Ion sensors attached to the surface of human skin and clothing was able to distinguish the motion of the human body by the output pressure-capacitance curves.

Conclusion The composite nanofibre membrane-based ion sensor exploits the supercapacitive property of the electric double layer (EDL) to accurately detect small-amplitude human motion and large-amplitude joint motion. Meanwhile, the composite nanofibre membrane ion sensor has a pressure sensing with a sensitivity of 32.471 pF/kPa in the detection range of 0-40 kPa, maintains outstanding mechanical stability after 5 000 loading-cycles, has a low hysteresis rate (6.64%) and has no significant delay and dependence. The membrane can be applied in the future to communication with deaf people, human-computer interaction, intelligent control and other fields.

Key words: polyvinylidene fluoride, ionic liquid, electrostatic spinning, nanofiber membrane, flexible ion sensor

CLC Number:

  • TS179

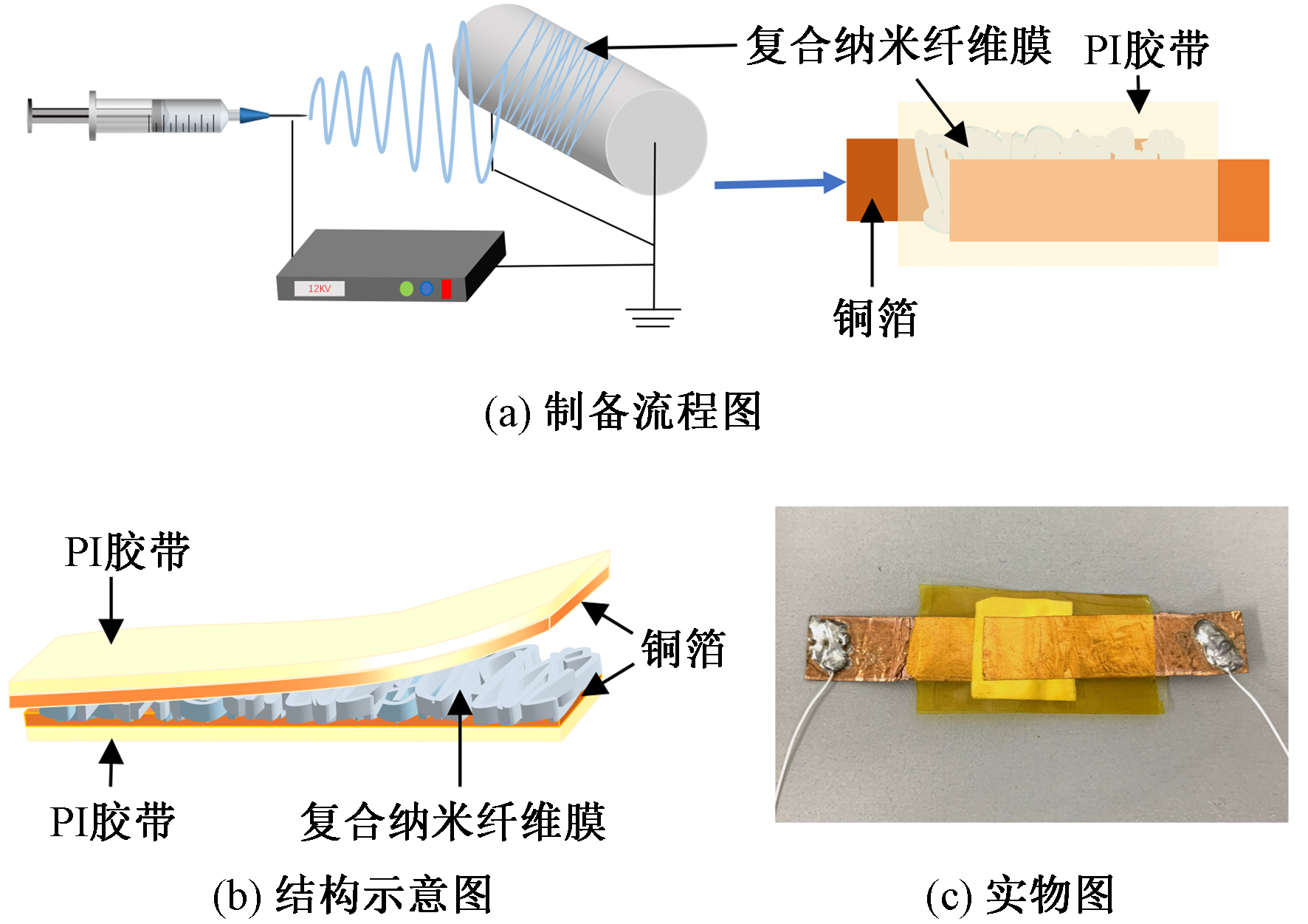

Fig.1

Nanofiber membrane ion sensor. (a) Preparation flowchart; (b) Structural schematic; (c) Physical diagram"

Fig.2

SEM images (×8 500) and fiber diameter distribution of PVDF nanofiber membrane with different mass fraction"

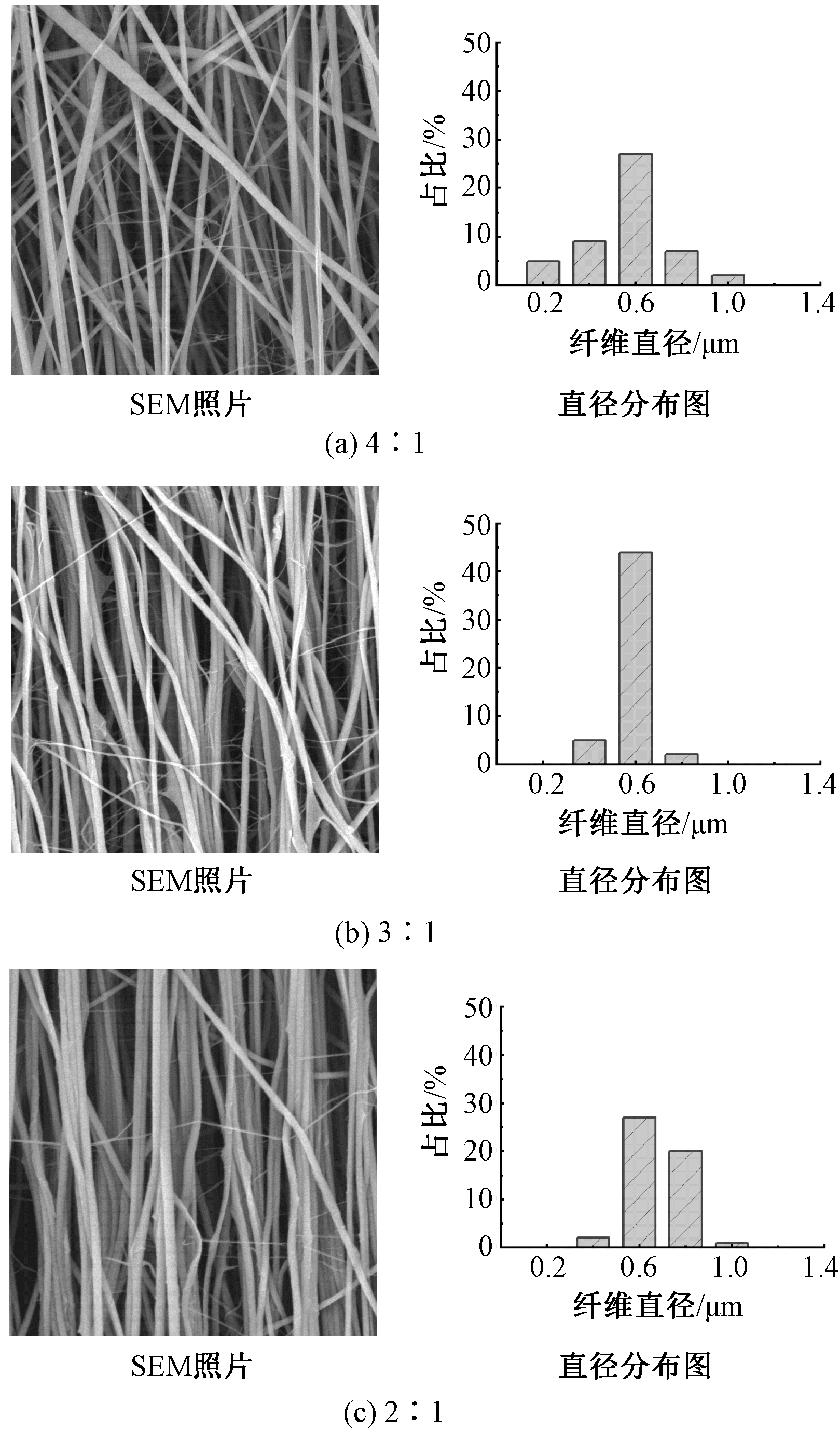

Fig.3

SEM images (×8 500) and fiber diameter distribution of composite nanofiber membrane with different PVDF and IL dosage ratio"

Fig.4

Element distribution map of nanofiber membranes.(a)PVDF nanofiber membrane;(b)PVDF/IL nanofiber membrane"

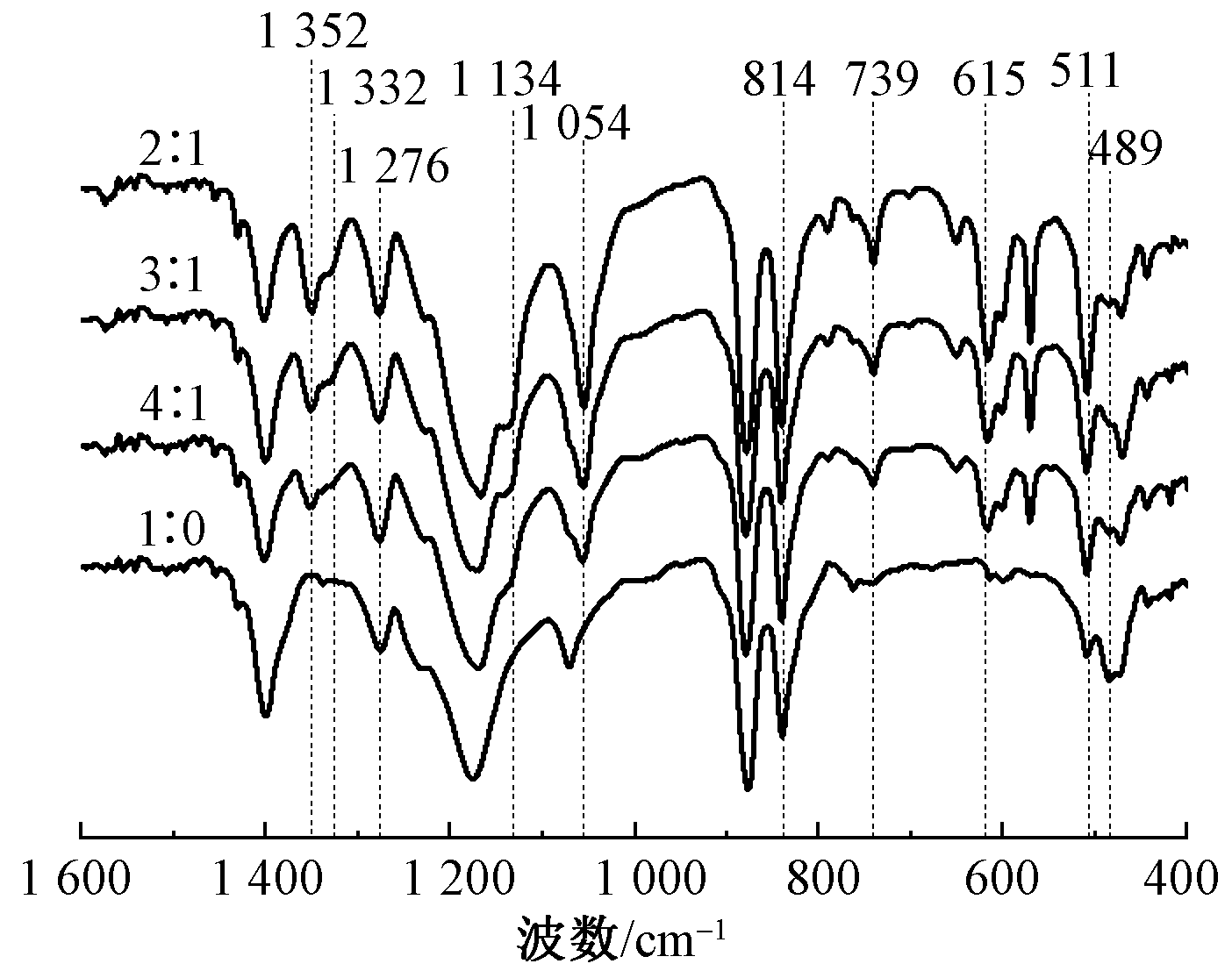

Fig.5

Fourier infrared spectra of nanofibre membranes with different PVDF and IL dosage ratios"

Fig.6

Equivalent circuit diagram (a) and sensing schematic (b)of composite nanofibre membrane ion sensor"

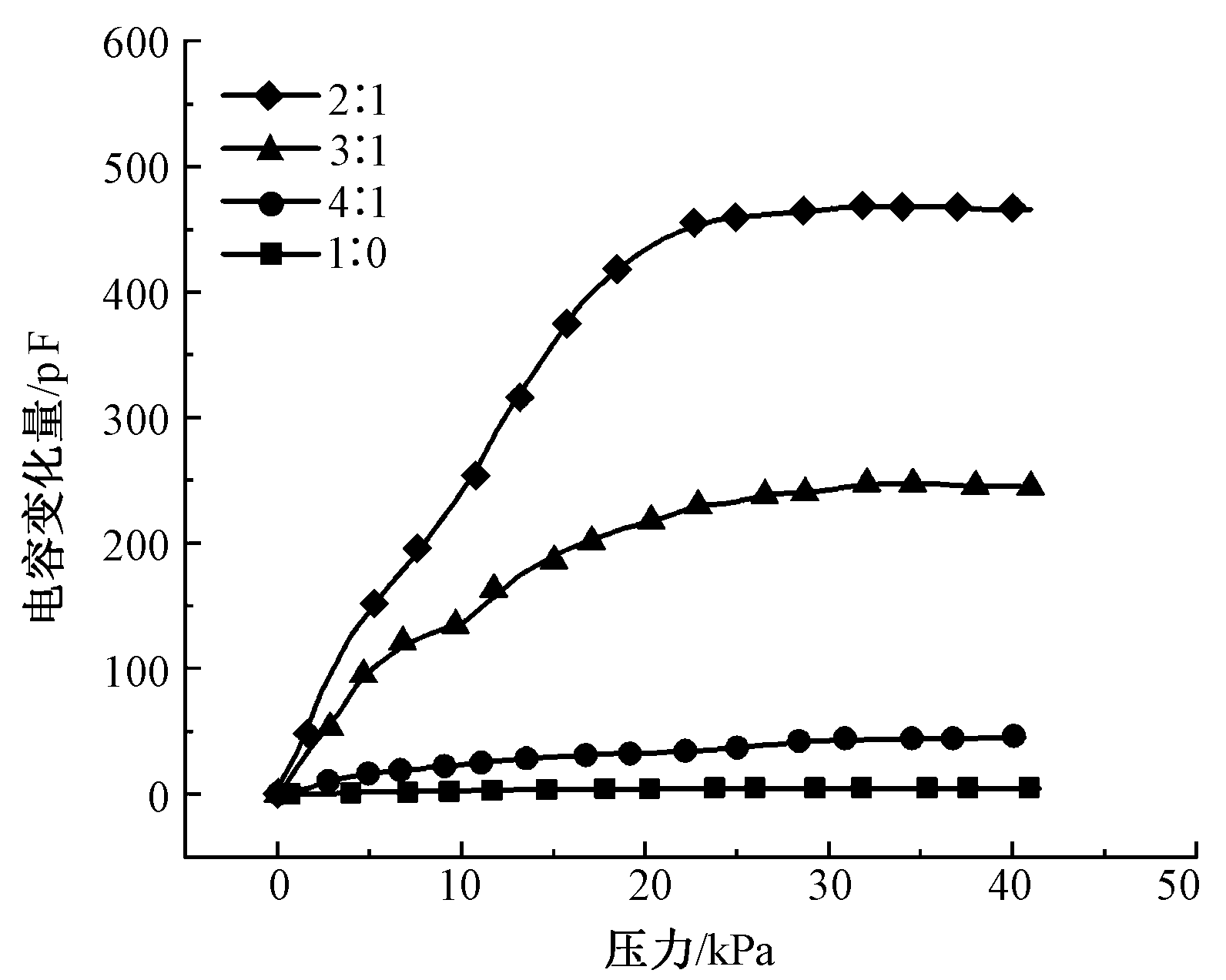

Fig.7

Pressure-capacitance variation of ion sensors with different PVDF and IL dosage ratios"

Tab.1

Sensitivity of ion sensors with different IL contents at different pressures"

PVDF与IL量比 不同压力下的灵敏度/(pF·kPa-1)
0~5 kPa 5~25 kPa 25~40 kPa
2∶1 32.471 26.655 1.397
3∶1 21.499 11.085 2.667
4∶1 6.211 1.649 0.544
1∶0 0.356 0.176 0.016

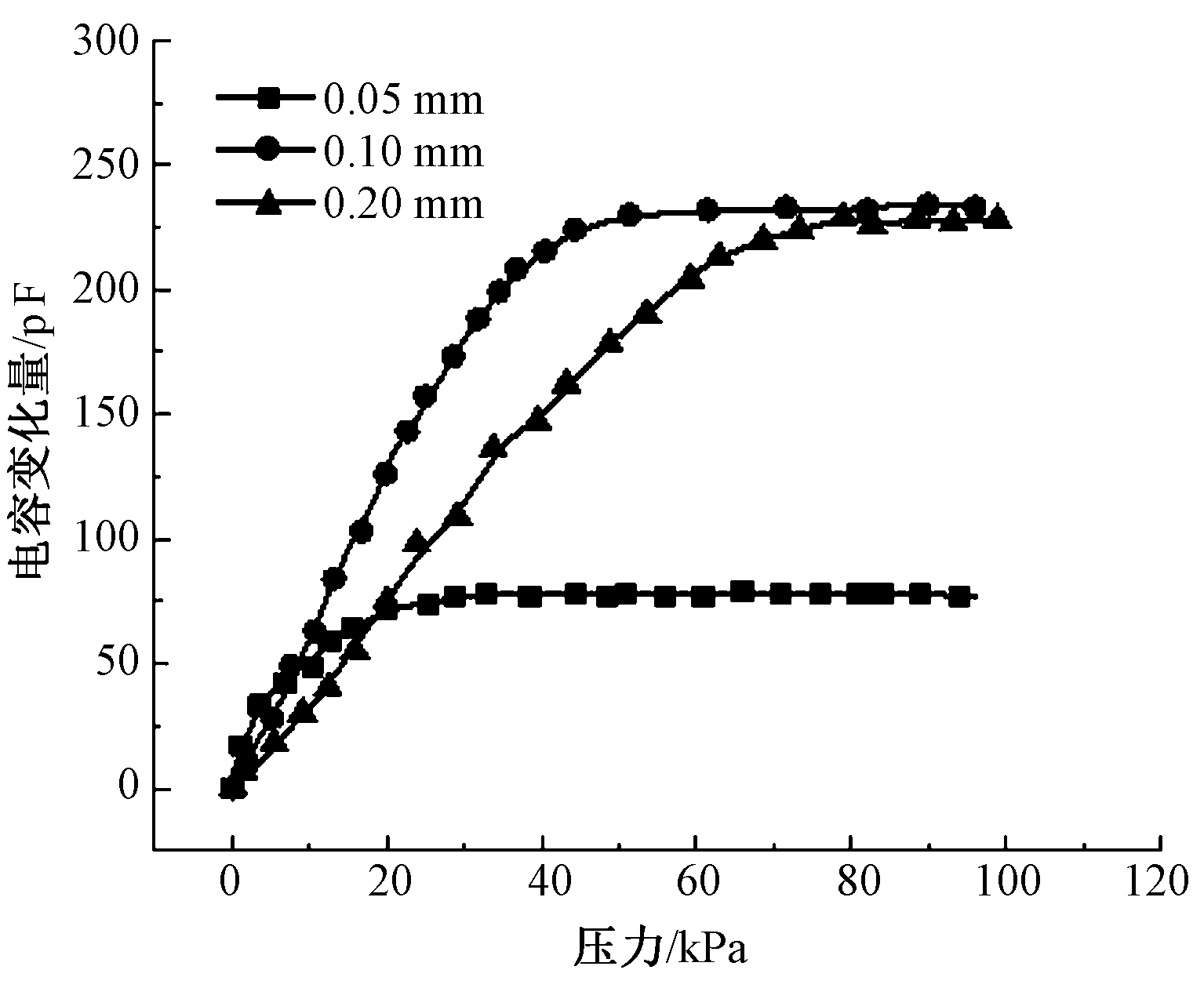

Fig.8

Pressure-capacitance variation of composite nanofiber membrane ion sensors with different thickness"

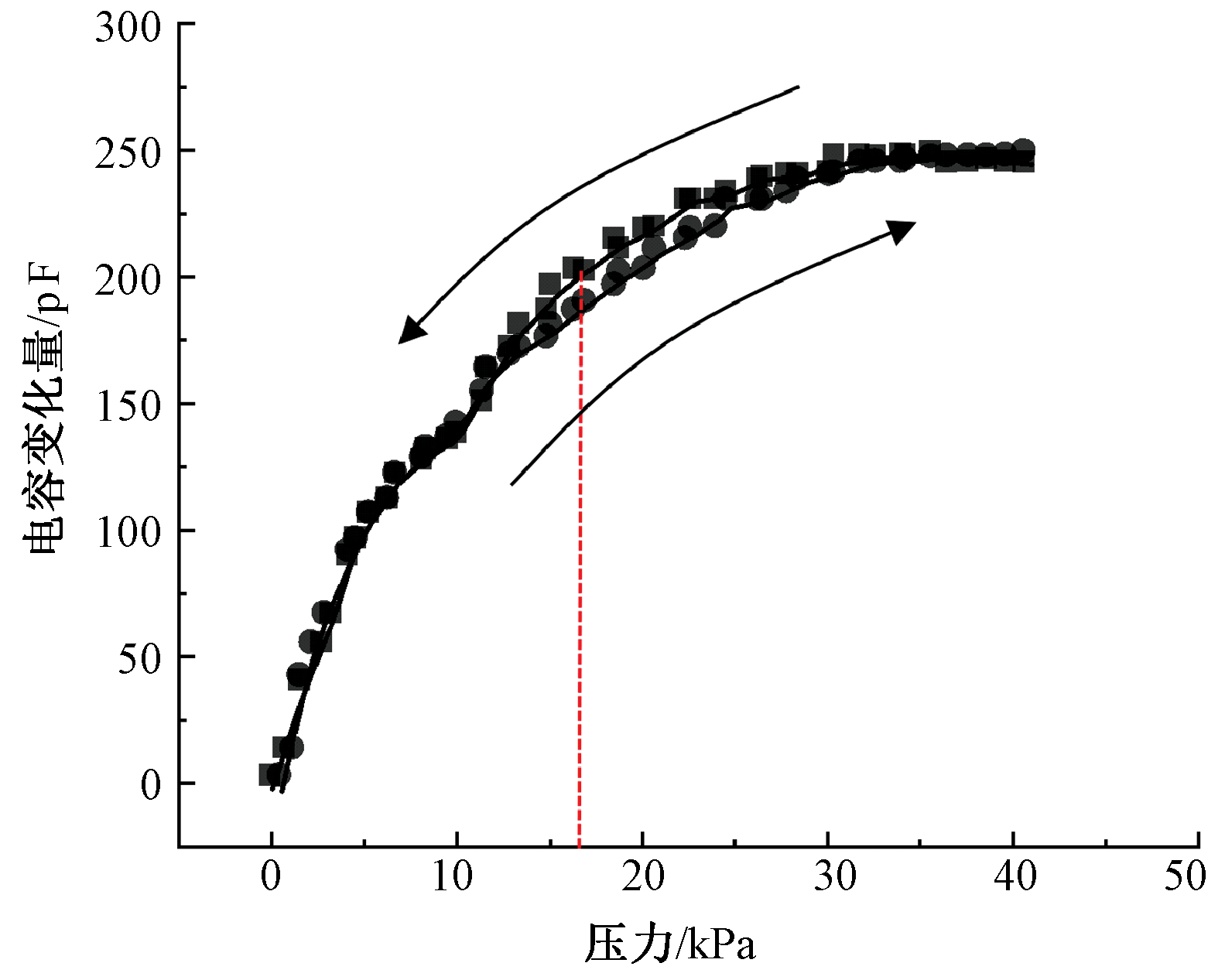

Fig.9

Hysteresis curves of composite nanofiber membrane ion sensors"

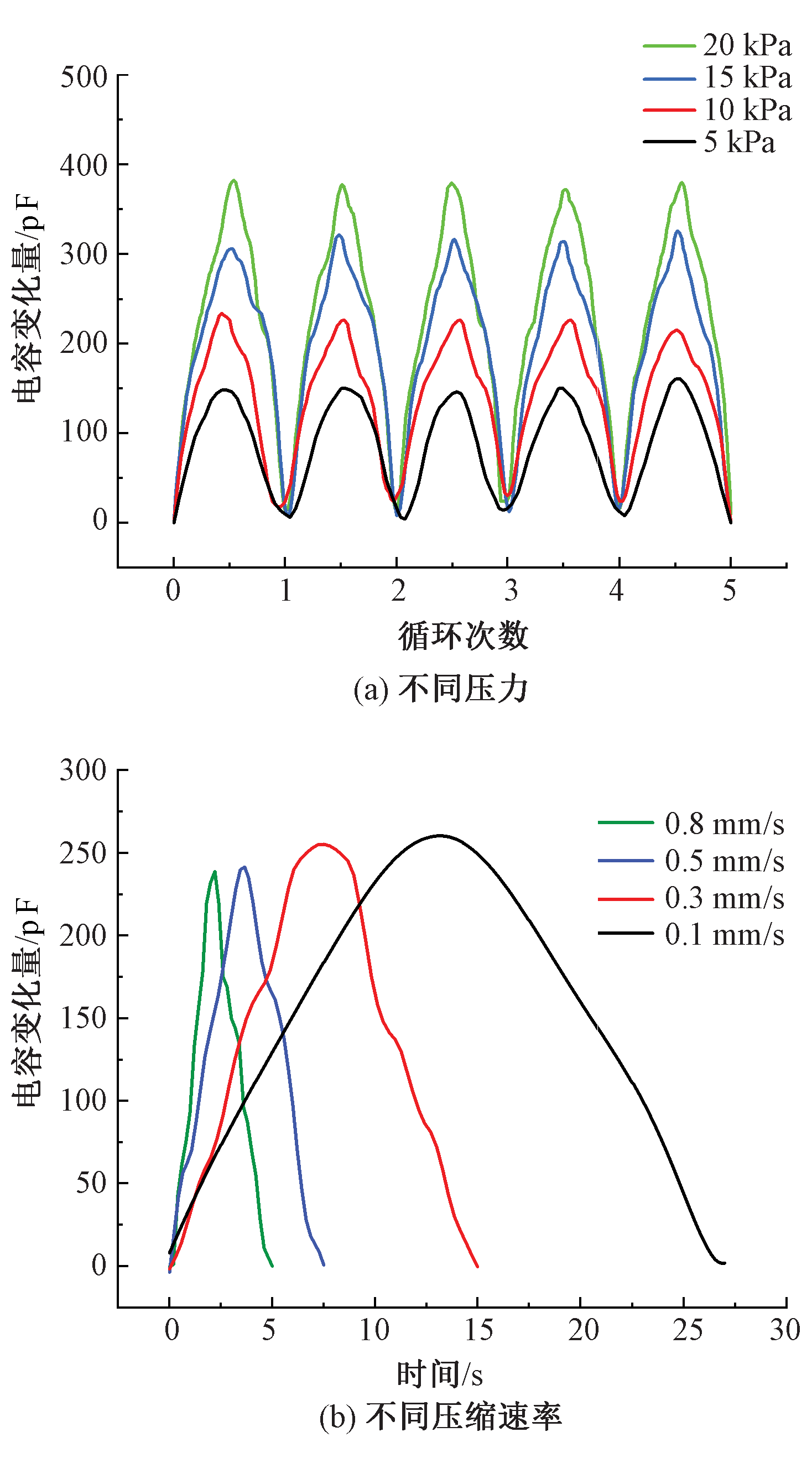

Fig.10

Capacitance variation of composite nanofiber membrane ion sensor at different pressure(a) and compression rate (b)"

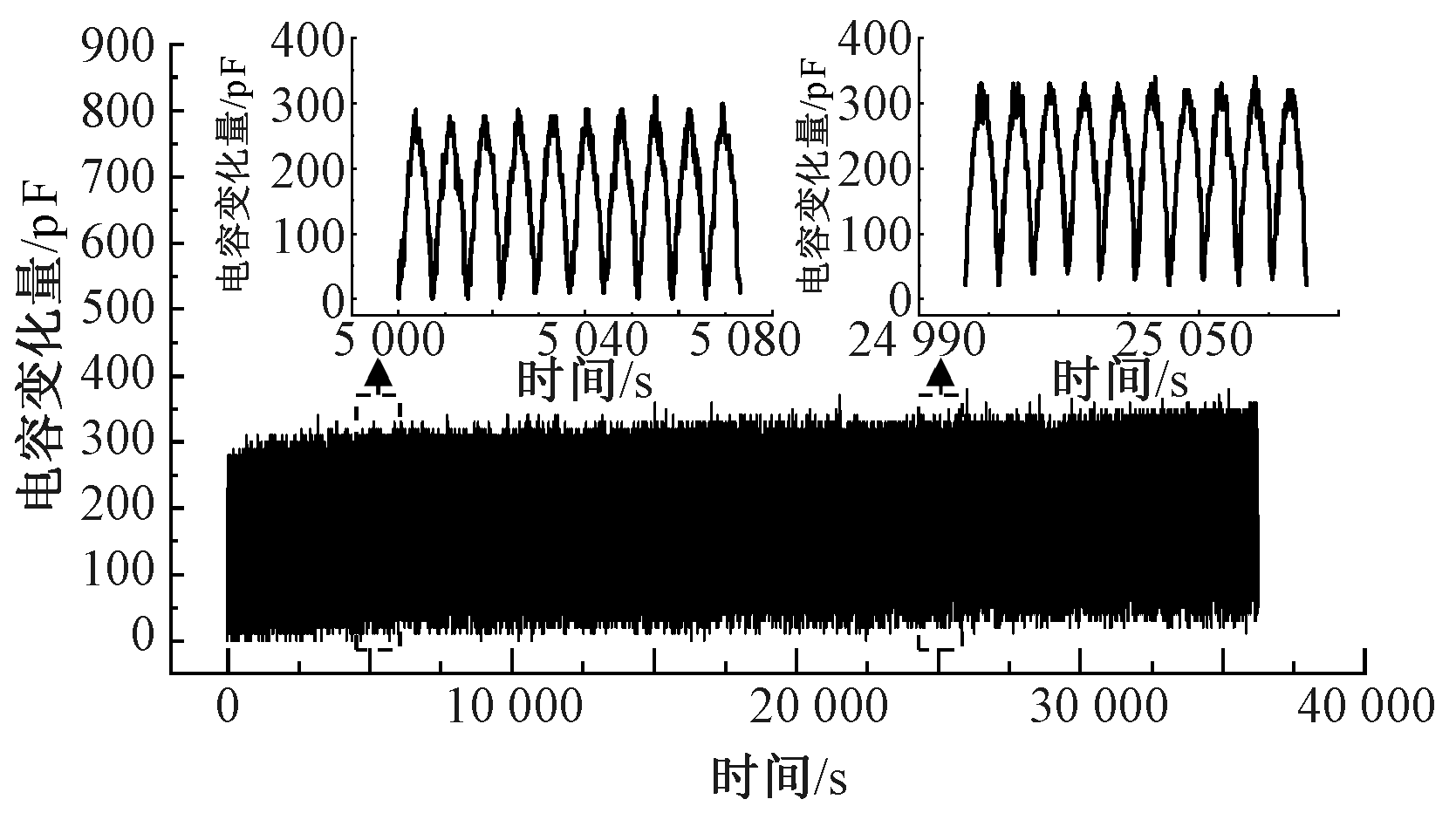

Fig.11

Capacitance variation of composite nanofiber membrane ion sensor"

Fig.12

Capacitance variation of composite nanofibre membrane ion sensors tested for different applications. (a)Finger press;(b)Finger flexion;(c)Wrist flexion;(d)Elbow flexion;(e)Knee flexion"

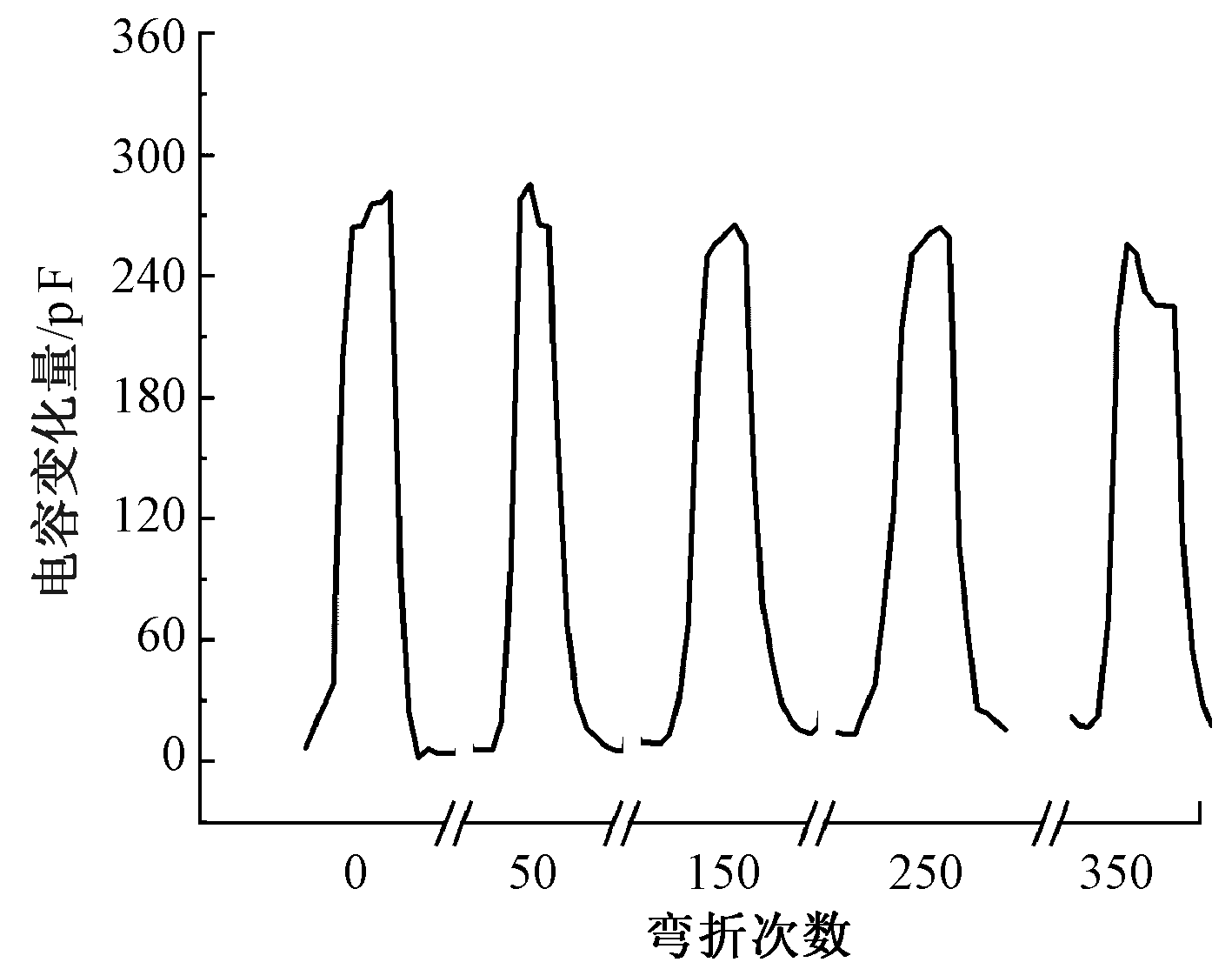

Fig.13

Capacitance variation of composite nanofiber membrane ion sensor under multiple bending cycles"

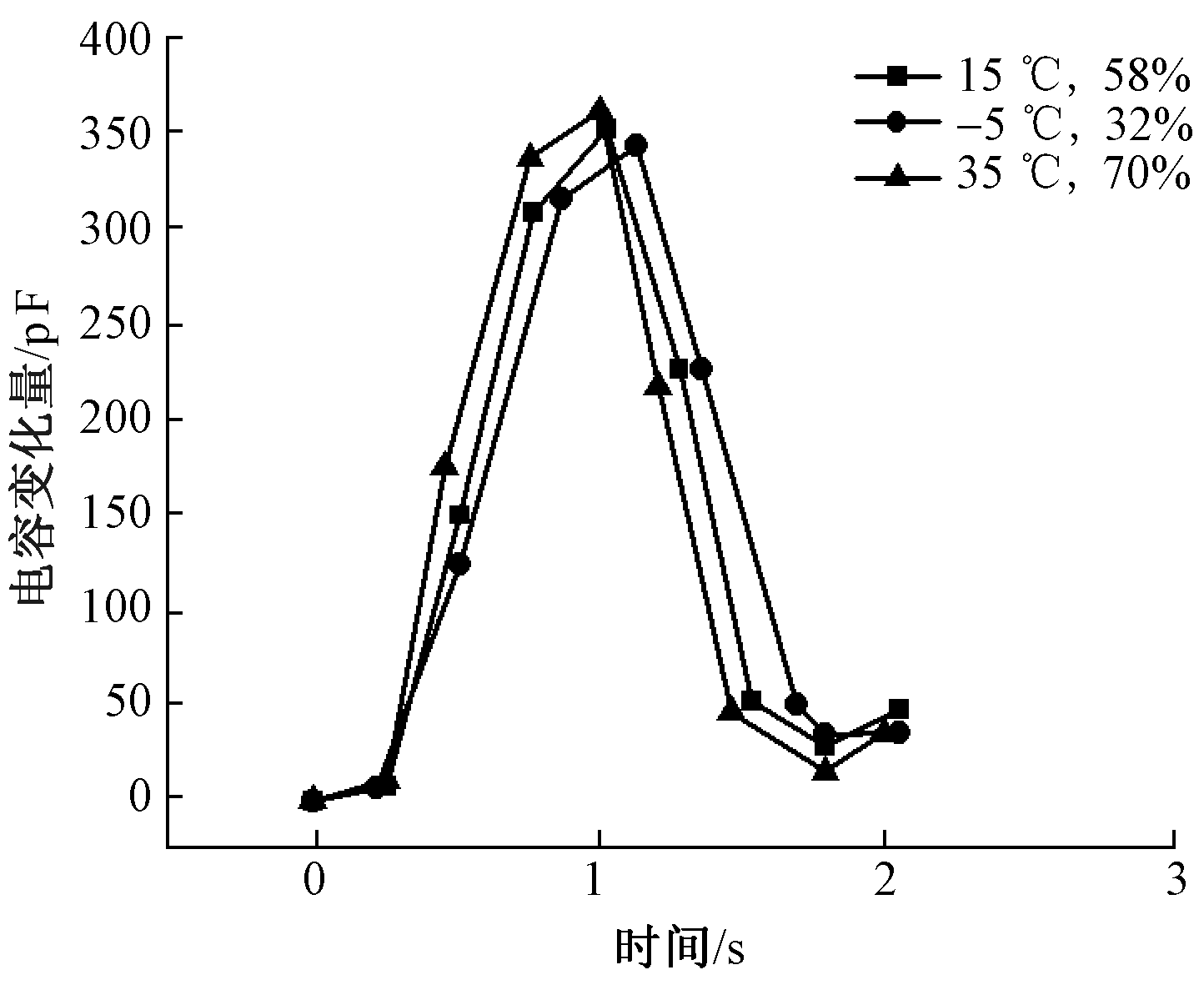

Fig.14

Capacitance variation of composite nanofiber membrane ion sensor at different temperatures and humidity"

[1] HE Yin, WU Junxian, LIN Meixia, et al. Ionic flexible force sensors and their potential applications[J]. Journal of Materials Chemistry C, 2021, 9(46): 16378-16390.
[2] XIANG Shuangfei, ZHENG Feng, CHEN Shuangshuang, et al. Self-healable, recyclable, and ultrastrong adhesive ionogel for multifunctional strain sensor[J]. ACS Applied Materials & Interfaces, 2021, 13(17): 20653-20661.
[3] NIU Chao, AN Li, ZHANG Huijuan. Mechanically robust, antifatigue, and temperature-tolerant nanocomposite ionogels enabled by hydrogen bonding as wearable sensors[J]. ACS Applied Polymer Materials, 2022, 4(6): 4189-4198.
[4] CHO Sunghwan, LEE Seunwon, YU Seunggun, et al. Micropatterned pyramidal ionic gels for sensing broad-range pressures with high sensitivity[J]. ACS Applied Materials & Interfaces, 2017, 9(11): 10128-10135.
[5] YUAN Shen, BAI Ju, LI Shengzhao, et al. A multifunctional and selective ionic flexible sensor with high environmental suitability for tactile perception[J]. Advanced Functional Materials, 2023. DOI: 10.1002/adfm.202309626.
[6] SUN Lijie, HUANG Hongfei, DING Qiyu, et al. Highly transparent, stretchable, and self-healable ionogel for multifunctional sensors, triboelectric nanogenerator, and wearable fibrous electronics[J]. Advanced Fiber Materials, 2021, 4(1): 98-107.
[7] LI Caicong, CHENG Jianxiang, HE Yunfeng, et al. Polyelectrolyte elastomer-based ionotronic sensors with multi-mode sensing capabilities via multi-material 3D printing[J]. Nature Communications, 2023. DOI: 10.1038/s41467-023-40583-5.
[8] ZHOU Qun, CHEN Tianjiao, CAO Shaojie, et al. A novel flexible piezoresistive pressure sensor based on PVDF/PVA-CNTs electrospun composite film[J]. Applied Physics a-Materials Science & Processing, 2021. DOI: 10.1007/s00339-021-04797-y.
[9] LIU Qingxian, LIU Zhiguang, LI Chenggao, et al. Highly transparent and flexible iontronic pressure sensors based on an opaque to transparent transition[J]. Advanced Science, 2020. DOI:10.1002/advs.202000348.
[10] 闫迪, 王雪芳, 谭文萍, 等. 富咪唑型多孔左旋聚乳酸纳米纤维膜制备及其双重净水性能[J]. 纺织学报, 2023.DOI:10.13475/j.fzxb.20230200101.
YAN Di, WANG Xuefang, TAN Wenping, et al. Preparation of porous poly(L-lactic acid) nanofiber membranes with rich imidazole groups and dual performances in water purification[J]. Journal of Textile Research, 2023.DOI:10.13475/j.fzxb.20230200101.
[11] UZABAKIRIHO Pierre Claver, WANG Meng, MA Chao, et al. Stretchable, breathable, and highly sensitive capacitive and self-powered electronic skin based on core-shell nanofibers[J]. Nanoscale, 2022, 14(17): 6600-6611.
[12] FU Xiang, ZHANG Jiqiang, XIAO Jianliang, et al. A high-resolution, ultrabroad-range and sensitive capacitive tactile sensor based on a CNT/PDMS composite for robotic hands[J]. Nanoscale, 2021, 13(44): 18780-18788.
doi: 10.1039/d1nr03265h pmid: 34750598
[13] 徐瑞东, 王航, 曲丽君, 等. 聚乳酸非织造基材触摸传感电子织物制备及其性能[J]. 纺织学报, 2023, 44(9):161-167.
XU Ruidong, WANG Hang, QU Lijun, et al. Preparation and properties of polyactie acid nonwoven substratetouch-sensing electronic textile[J]. Journal of Textile Research, 2023, 44(9):161-167.
[14] WAN Xiaoqian, CONG Honglian, JIANG Gaoming, et al. A review on PVDF nanofibers in textiles for flexible piezoelectric sensors[J]. ACS Applied Nano Materials, 2023, 6(3): 1522-1540.
[15] CHANG Yu, WANG Liu, LI Ruya, et al. First decade of interfacial iontronic sensing: from droplet sensors to artificial skins[J]. Advanced Materials, 2020. DOI: 10.1002/adma.202003464.
[16] 黄耀丽, 陆诚, 蒋金华, 等. 聚酰亚胺纤维增强聚二甲基硅氧烷柔性复合膜的热力学性能[J]. 纺织学报, 2022, 43(6): 22-28.
HUANG Yaoli, LU Cheng, JIANG Jinhua, et al. Thermal mechanical properties of polyimide fiber-reinforced polydimethylsiloxane flexible film[J]. Journal of Textile Research, 2022, 43(6): 22-28.
