Journal of Textile Research ›› 2024, Vol. 45 ›› Issue (08): 1-9.doi: 10.13475/j.fzxb.20240400601

• Academic Salon Column for New Insight of Textile Science and Technology: Advanced Nonwovens and Technology •     Next Articles

Surface functionalization of fibers based on amyloid-like protein aggregation

WANG Haoyue1, HU Yaning1, ZHAO Jian1,2,3, YANG Peng1,2,3()

  1. 1. Key Laboratory of Applied Surface and Colloid Chemistry, Ministry of Education, Shaanxi Normal University, Xi'an, Shaanxi 710119, China
    2. Xi'an Key Laboratory of Polymeric Soft Matter, Shaanxi Normal University, Xi'an, Shaanxi 710119, China
    3. Xi'an International Joint Research Center on Functional Fiber and Soft Smart Textile, Shaanxi Normal University, Xi'an, Shaanxi 710119, China
  • Received:2024-04-01 Revised:2024-05-11 Online:2024-08-15 Published:2024-08-21
  • Contact: YANG Peng E-mail:yangpeng@snnu.edu.cn

RichHTML

45

PDF (PC)

146

Abstract:

Objective Flexible wearable smart fabric is one of the ideal forms of the next generation of flexible wearable devices, in which the functional fiber construction plays a crucial role. In order to address the issues related to current surface functionalization strategies for polymer fibers such as complex modification processes and poor coating stability, this study developed a fiber surface functionalization strategy based on protein amyloid-like aggregation.

Method This strategy involves immersing polyester fibers in a lysozyme phase transition solution containing functional substances, which can form stable functional coatings on the fiber surface at room temperature. Silver nanoparticle coating-modified fibers and fabrics, quantum dot-modified fibers, and PEG-modified fibers and fabrics were prepared. During the preparation process, the disulfide bonds in the protein molecules are broken and the resulted unfolded molecular chains undergo amyloid-like aggregation to form protein nanocoatings containing functional units on the fiber surface. The electrical conductivity, antibacterial property, luminescence behavior, hydrophilicity and coating stability of the functional fibers and fabrics were characterized.

Results Various functional polyester fibers were fabricated based on the amyloid-like protein aggregation. The proteinaceous coating with specific functions was easily formed on the fibers surface within a short time under ambient conditions, exhibiting exceptional interfacial adhesion to withstand bending stresses and prevent functional coating detachment during the prolonged usage. The silver nanoparticle coating-modified fiber was prepared by means of amyloid-like protein aggregation induced by metal ions. The results suggested that when the lysozyme concentration was 0.02 mg/mL, the silver nanoparticle coating-modified fiber had optimal electrical conductivity with a resistance of only 1.39 Ω when length of fiber was 1 cm. It could withstand 37 tear-off cycles in a 3M tape test and showed no significant change in resistance after 20 000 bending cycles, indicating the high stability of the formed silver nanoparticle coating. Furthermore, the silver nanoparticle coating-modified polyester fabrics exhibited certain antibacterial activity. Therefore, silver nanoparticle coating-modified fibers can be used to prepare the conductive antibacterial textiles. Quantum dot-modified fibers exhibited fluorescence under UV irradiation and the fluorescence properties were closely related to the concentration of lysozyme. With the increase of lysozyme concentration, the fluorescence on the fiber surface first increased and then decreased. When the lysozyme concentration was 5 mg/mL, it had the strongest fluorescence intensity and maintained good stability with no significant decrease in fluorescence intensity after 10 000 bending tests. To improve the hydrophilicity of polyester fibers, the lysozyme-PEG conjugates were firstly synthesis. The lysozyme-PEG coating was formed on the fiber surface significantly improving its hydrophilicity, which was evaluated through the characterizations of water drop immersion and moisture permeability. It is demonstrated that water drop immersion time decreased from 24 s to 2.5 s and moisture permeability increased from 4 500 g/(m2·d) to 5 800 g/(m2·d). Furthermore, the water drops immersion time and moisture permeability of PEG modified fabrics was less affected by the cycle of bending.

Conclusion Inspired by the strong adhesion of protein amyloid structure in nature, functional nanocoatings on the surface of fibers were constructed successfully with high curvature based on the amyloid-like protein aggregation strategy. The strategy is simple, efficient, and environmentally friendly, and the coating function is highly adjustable by controlling the functional substances. Notably, the coating can adhere stably on the surface, effectively solving the coating debonding problem during long-term use. It provides a new method for fiber surface functionalization and has great application prospects in the field of flexible intelligent wearable fabrics.

Key words: protein, amyloid-like aggregation, surface modification, fiber, functional fabric

CLC Number:

  • TQ342.8

Fig.1

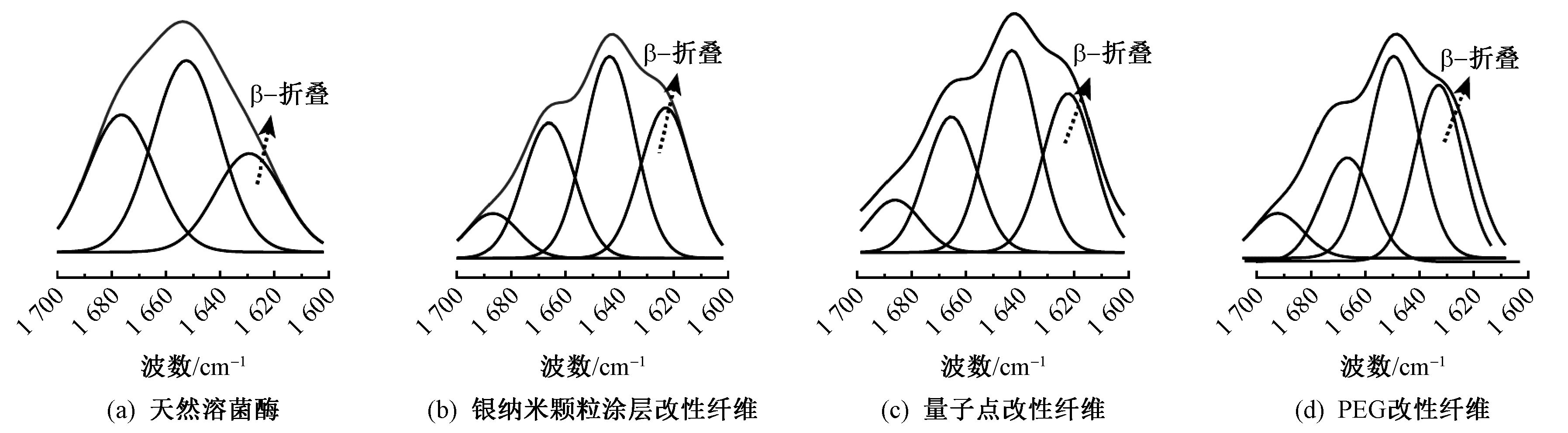

Deconvolution of FT-IR amide I band of native lysozyme (a), silver nanoparticle coating-modified fibers (b), quantum dot-modified fibers (c), and PEG-modified fibers (d)"

Fig.2

Laser confocal fluorescence photographs of ThT stained unmodified polyester fibers (a), silver nanoparticle coating-modified fibers (b), quantum dot-modified fibers (c), and PEG-modified fibers (d)"

Fig.3

Photographs, SEM images and EDS data of unmodified polyester fibers (a) and silver nanoparticle coating-modified fibers (b)"

Fig.4

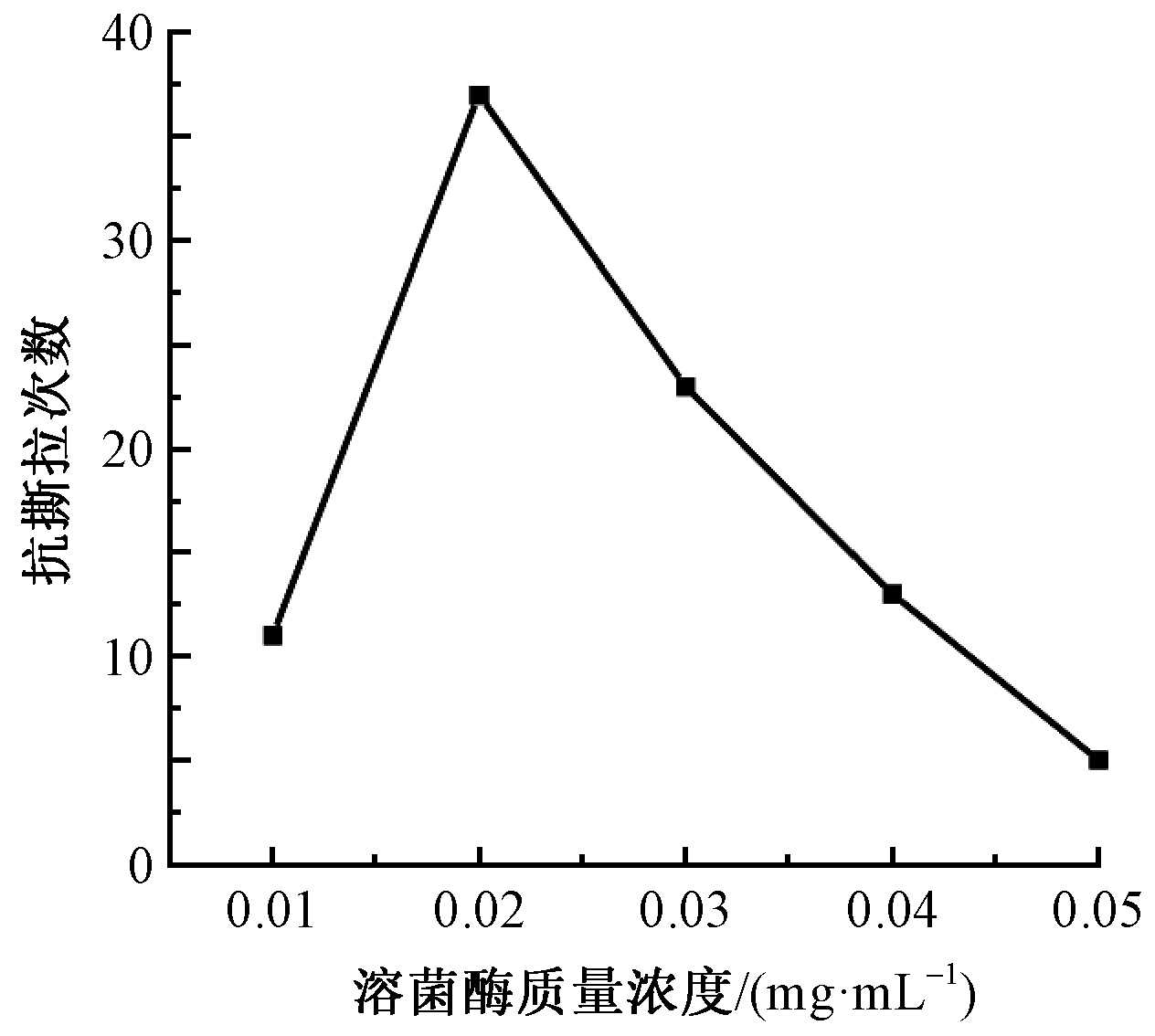

Number of tear resistance tests conducted on silver nanoparticle coating-modified fibers"

Fig.5

SEM images of silver nanoparticle coating-modified fibers prepared at lysozyme concentration of 0.02 mg/mL, 0.01 mg/mL and 0.05 mg/mL"

Fig.6

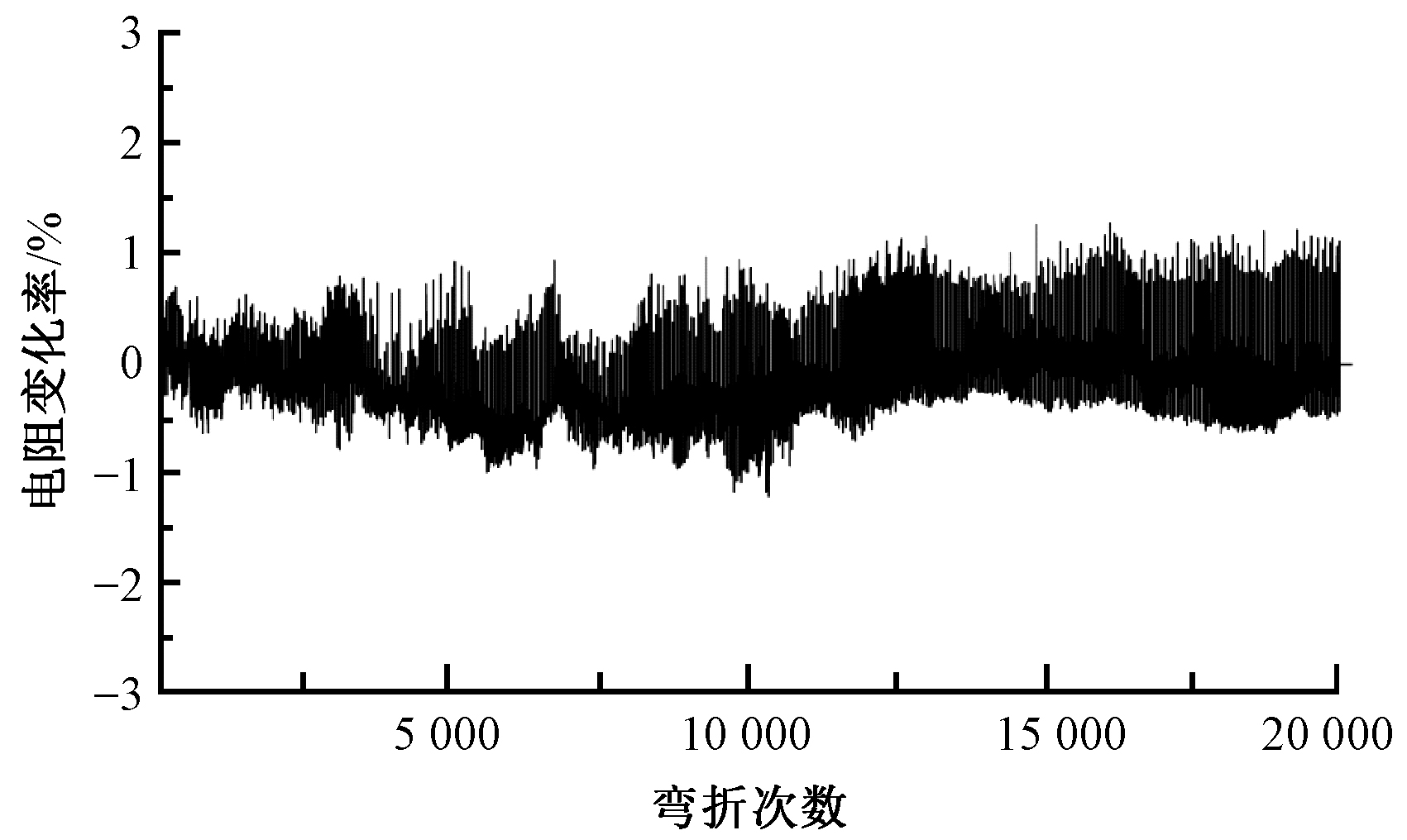

Influence of bending cycles on electrical resistance of silver nanoparticle coating-modified fiber"

Fig.7

Photographs of antibacterial effect of silver nanoparticle coating-modified fabrics on S.aureus(a) and E.coli(b)"

Fig.8

SEM image (a), laser confocal fluorescence microscope photograph(b) of quantum dot-modified fibers, and photographs of pattern woven with quantum dot modified fibers before and after exposure to UV irradiation (c)"

Fig.9

Fluorescence microscopy images of quantum dot-modified fibers prepared with various concentrations of lysozyme solutions"

Fig.10

Fluorescence microscope images of quantum dot-modified fibers under different bending cycles. (a)0 cycle; (b)5 000 cyles; (c)10 000 cycles; (d)15 000 cycles; (e)20 000 cycles"

Fig.11

Images showing contact angles at various time intervals during wetting process of unmodified fabric (a) and PEG modified fabric (b)"

Fig.12

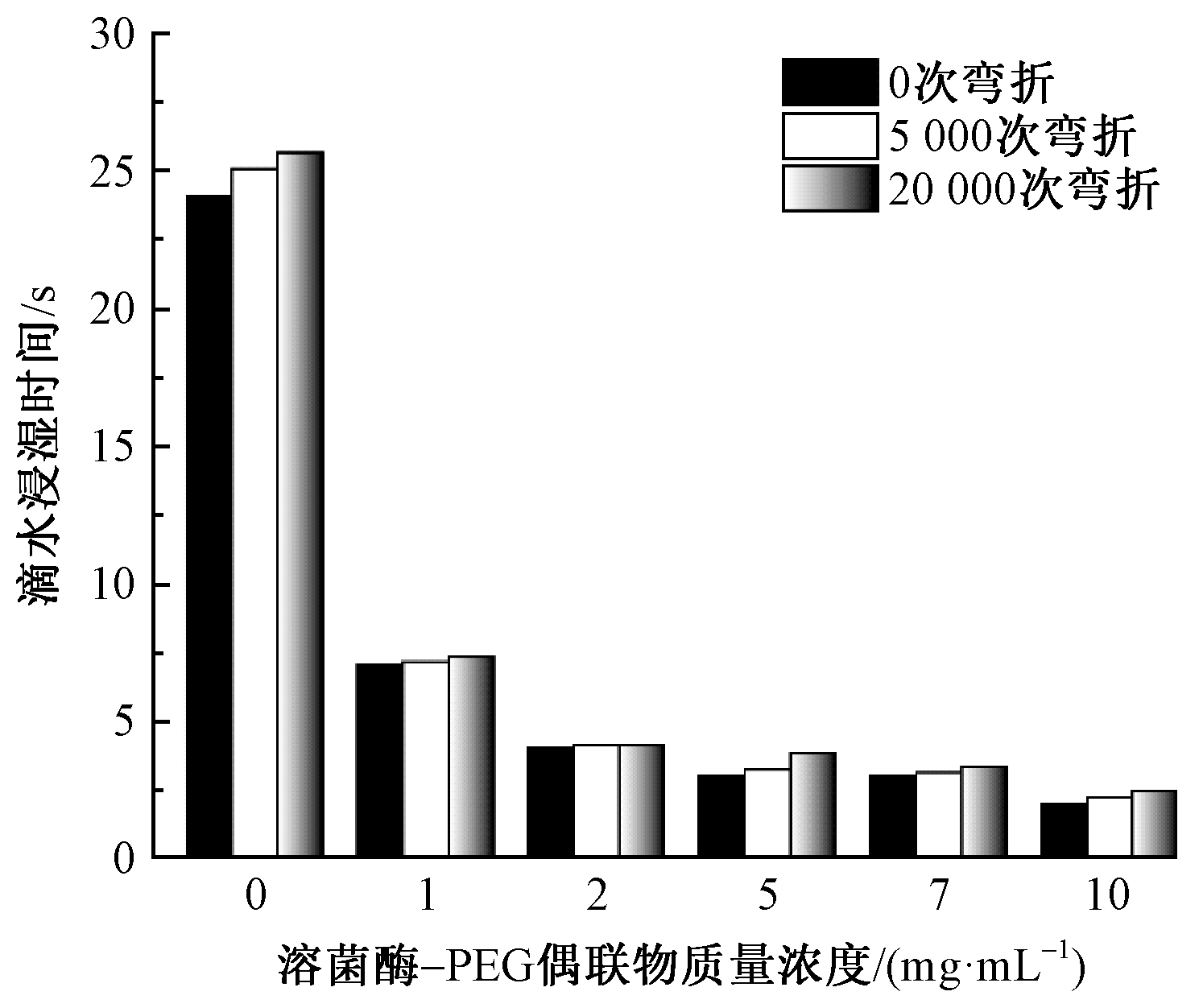

Wetting time of modified fabrics prepared with various concentrations of lysozyme-PEG solutions under different bending cycles"

Fig.13

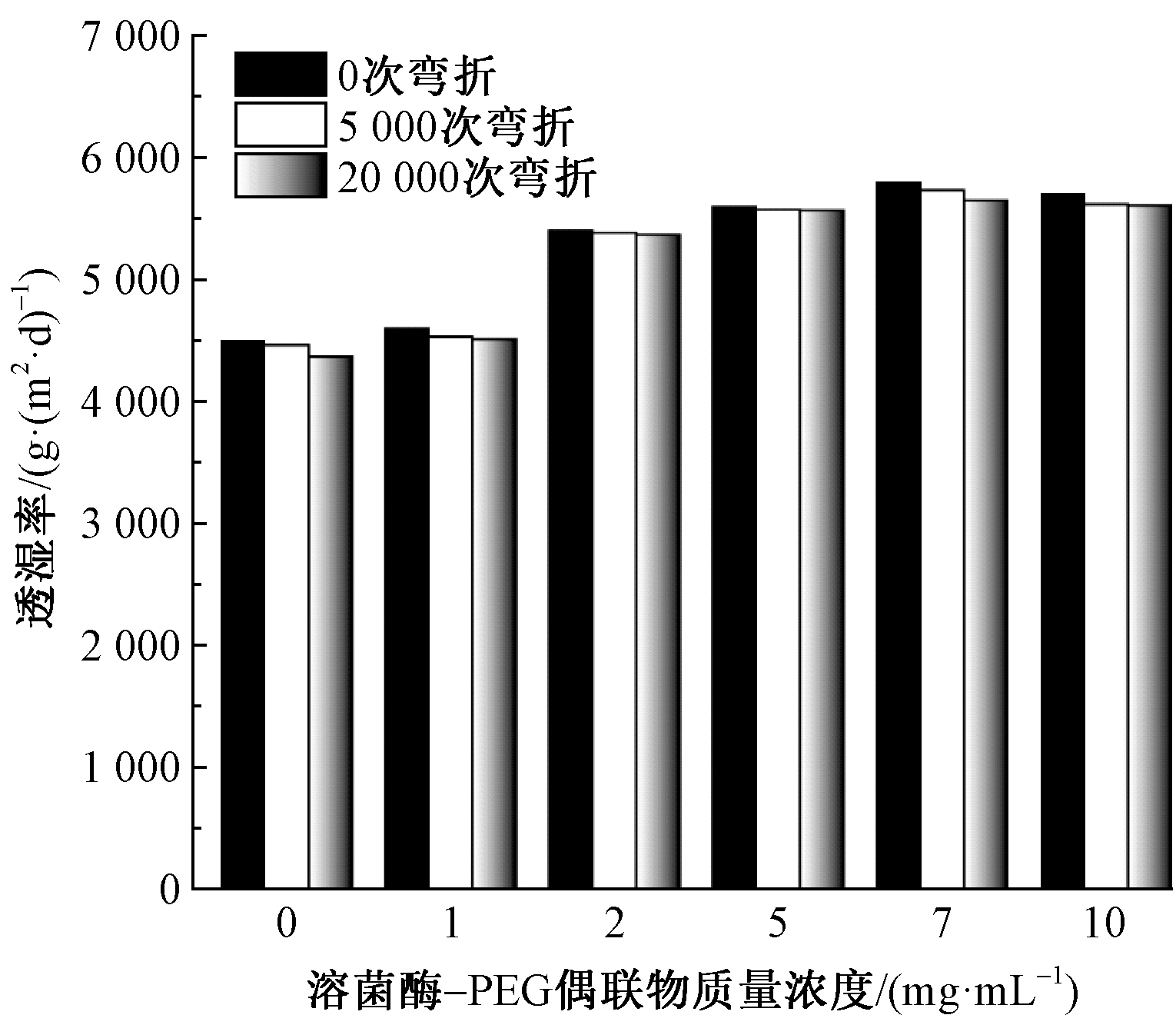

Moisture permeability of modified fabrics prepared with different concentrations of lysozyme-PEG solutions under different bending cycles"

[1] 闫鹏翔, 陈富星, 刘红, 等. 柔性力感知电子织物的制备及其人体运动监测系统构建[J]. 纺织学报, 2024, 45(2): 59-66.
YAN Pengxiang, CHEN Fuxing, LIU Hong, et al. Preparation of flexible force-sensing electronic textiles and construction of human motion monitoring system[J]. Journal of Textile Research, 2024, 45(2): 59-66.
[2] 刘欢欢, 孟虎, 王朝晖. 适老化智能可穿戴设计研究进展及发展趋势[J]. 纺织学报, 2024, 45(3): 236-243.
LIU Huanhuan, MENG Hu, WANG Zhaohui. Progress and trends in application of wearable technology for elderly population[J]. Journal of Textile Research, 2024, 45(3): 236-243.
[3] LIU S, ZHANG W, HE J, et al. Fabrication techniques and sensing mechanisms of textile-based strain sensors: from spatial 1D and 2D perspectives[J]. Advanced Fiber Materials, 2024, 6: 36-67.
[4] NIU T, WU Y, ZHAI X, et al. Investigation on multifunctional modification of cotton fabrics for salt-free dyeing, resisting crease and inhibiting bacteria[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2022, 648(9): 129131-129141.
[5] PELIN C, SÖNMEZ M, PELIN G, et al. Composites based on polymeric blends reinforced with TiO2 modified aramid fibers[J]. Polymer Composites, 2024, 45(3): 1-21.
[6] XUE F, SU C, LI T. Friction and wear behaviors of surface-modified carbon fabric/epoxy resin composites[J]. Journal of Macromolecular Science, Part B, 2019, 58(5): 551-567.
[7] LIU X, LIANG C, ZHANG X, et al. Amyloid fibril aggregation: an insight into the underwater adhesion of barnacle cement[J]. Biochemical and Biophysical Research Communications, 2017, 493(1): 654-659.
doi: S0006-291X(17)31721-7 pmid: 28865959
[8] VENDRELL-FERNANDEZ S, LOZANO-PICAZO P, CUADROS-SANCHEZ P, et al. Conversion of the OmpF porin into a device to gather amyloids on the E. coli outer membrane[J]. ACS Synthetic Biology, 2022, 11(2): 655-667.
[9] WANG D, HA Y, YANG P, et al. 2D protein supramolecular nanofilm with exceptionally large area and emergent functions[J]. Advanced Materials, 2016, 28(34): 7414-7423.
[10] GU J, MIAO S, YANG P, et al. Multiplex binding of amyloid-like protein nanofilm to different material surfaces[J]. Colloid and Interface Science Communications, 2018, 22(9): 42-48.
[11] LIU C, LI X, LI X, et al. Preparation of conductive polyester fibers using continuous two-step plating silver materials[J]. Materials, 2018, 11(10): 2033-2049.
[12] SHI X, ZUO Y, ZHAI P, et al. Large-area display textiles integrated with functional systems[J]. Nature, 2021, 591(11): 240-245.
[13] LI C, LU D, YANG P, et al. Amyloid-like rapid surface modification for antifouling and in-depth remineralization of dentine tubules to treat dental hypersensitivity[J]. Advanced Materials, 2019, 31(46): 1903973-1903984.
[14] URNUKHSAIKHAN E, BOLD B-E, GUNBILEG A, et al. Antibacterial activity and characteristics of silver nanoparticles biosynthesized from carduus crispus[J]. Scientific Reports, 2021, 11(1): 21047-21059.
doi: 10.1038/s41598-021-00520-2 pmid: 34702916
