Mechanical properties of basalt plain fabric reinforced hot bonded puncture-resistant insoles composites

SUN Fei1, LI Tingting1, LIN Jiahorng1,2,3,4, WU Hualing2, LOU Chingwen1,3,4,5()

  1. 1. School of Textile Science and Engineering, Tianjin Polytechnic University, Tianjin 300387, China
    2. Department of Chemistry and Materials, Feng Chia University, Taichung, Taiwan 40724, China
    3. Ocean College, Minjiang University, Fuzhou, Fujian 350108, China
    4. Fujian Key Laboratory of Novel Functional Fibers and Materials (Minjiang University), Fuzhou, Fujian 350108, China
    5. Department of Bioinformatics and Medical Engineering, Asia University, Taichung, Taiwan 41354, China
  • Received:2018-05-25 Revised:2018-11-23 Online:2019-03-15 Published:2019-03-15
  • Contact: LOU Chingwen E-mail:cwlou@ctust.edu.tw

RichHTML

3

PDF (PC)

93

Abstract:

In order to improve puncture-resistance and flexibility and reduce costs of insoles composites, basalt plain fabric and hot bonding were adopted to reinforce the puncture resistance stability of the insole composite. The influences of the amount of low-melting-point polyester fibers properties of tensioning, bursting and static puncturing of flat-head(A), spherical-head(B), and pointed-head(C)probes were analyzed. The result shows that, with the increasing of low-melting-point polyester fibers, the puncture resistance firstly increases then decreases gradually. When the low-melting-point fiber content is 30%, the tensile strength of the insoles material is 793.6 N under non-hot pressing (NHP) and 759.9 N under hot pressing (HP), and the bursting strength is 445.5 N (NHP) and 767.9 N (HP). The average static resistance of the insoles to different shapes is 329.0 N (NHP) and 392.4 N (HP).The effect of hot bonding reinforcement on bursting and puncture resistance is significant.

Key words: insole composite, puncture resistance, basalt plain fabric, safety shoes, mechanical property

CLC Number:

  • TS179

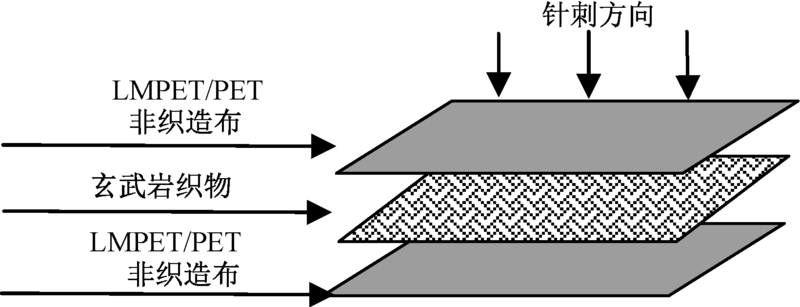

Fig.1

Structural diagram of puncture resistant insole"

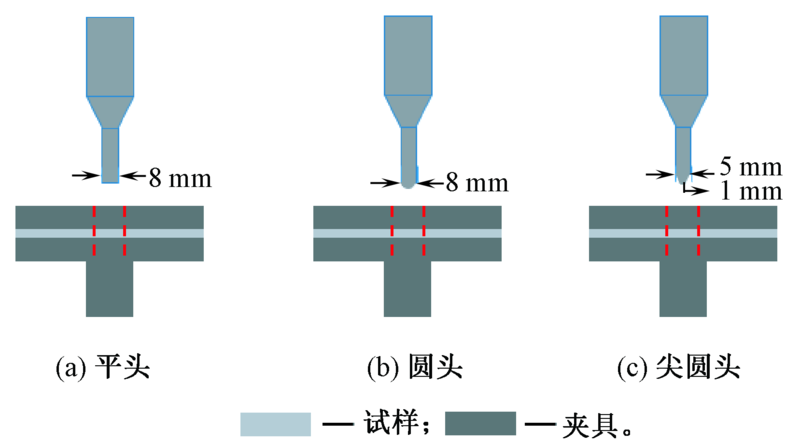

Fig.2

Images of flat-head (a), spherical-head(b) and pointed-head (c) probes of static puncture resistance test"

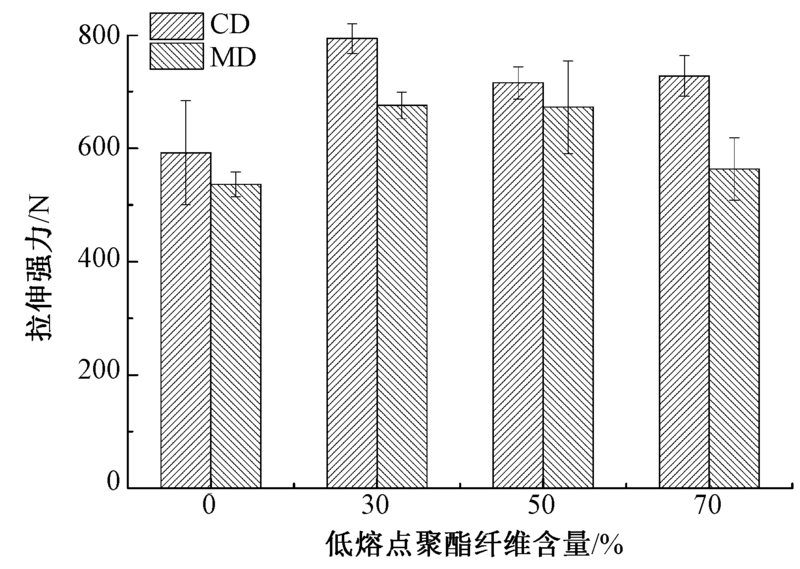

Fig.3

Tensile strength of basalt plain fabric reinforced non-hot pressed insoles composites"

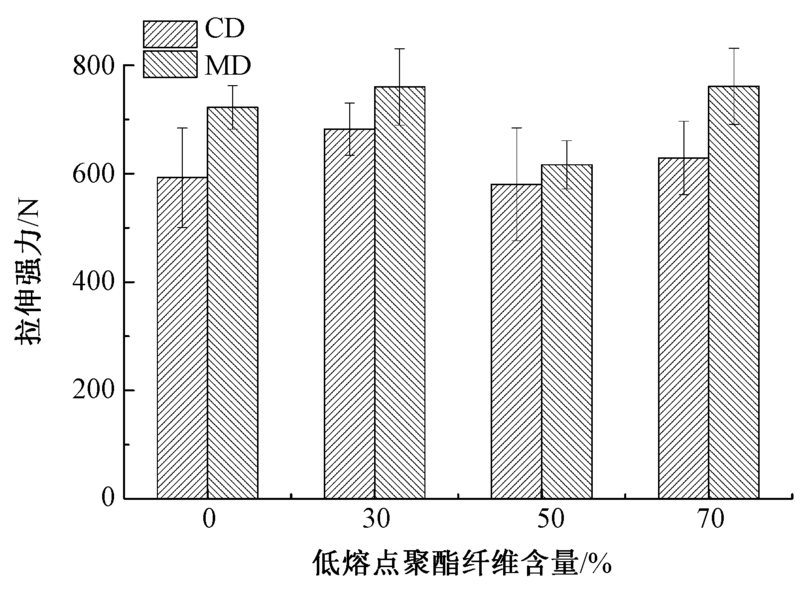

Fig.4

Tensile strength of basalt plain fabric reinforced hot pressed insoles composites"

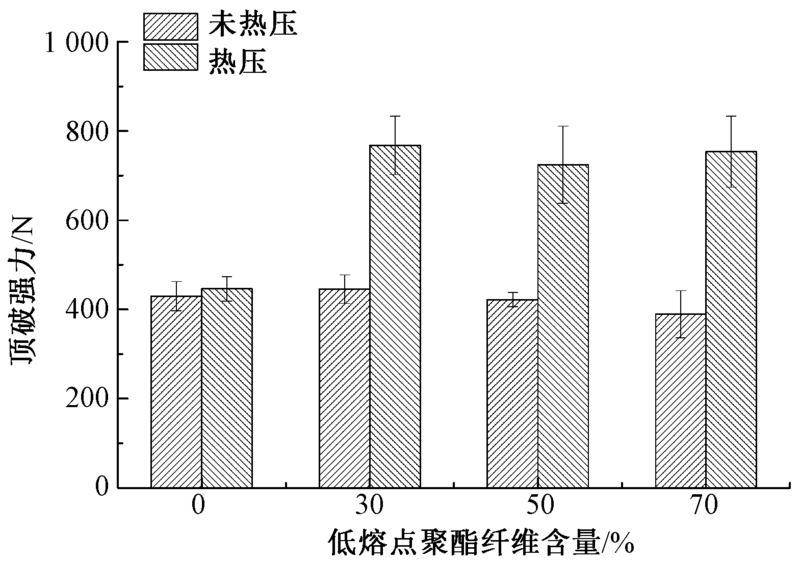

Fig.5

Bursting strength of basalt plain fabric reinforcedinsoles composites as related to amount of LMPET fibers"

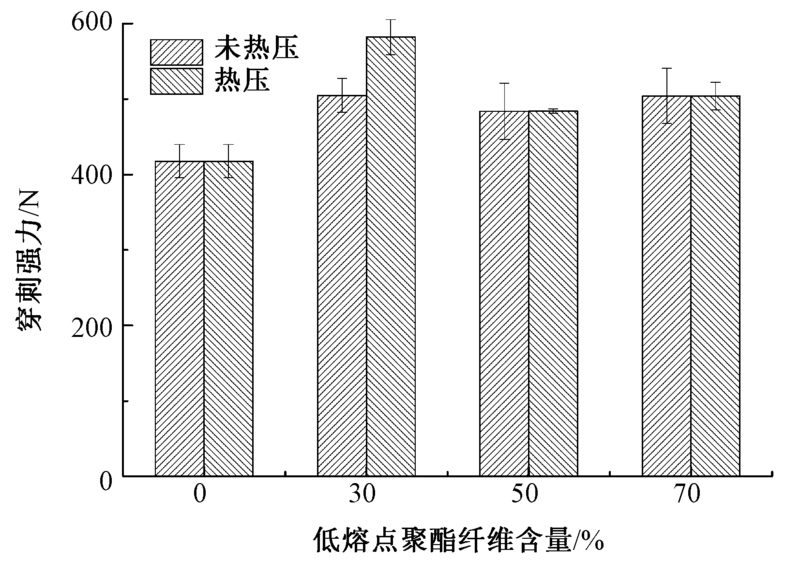

Fig.6

Static puncture resistance of basalt plain fabric reinforced insoles composites as related to flat-head probe"

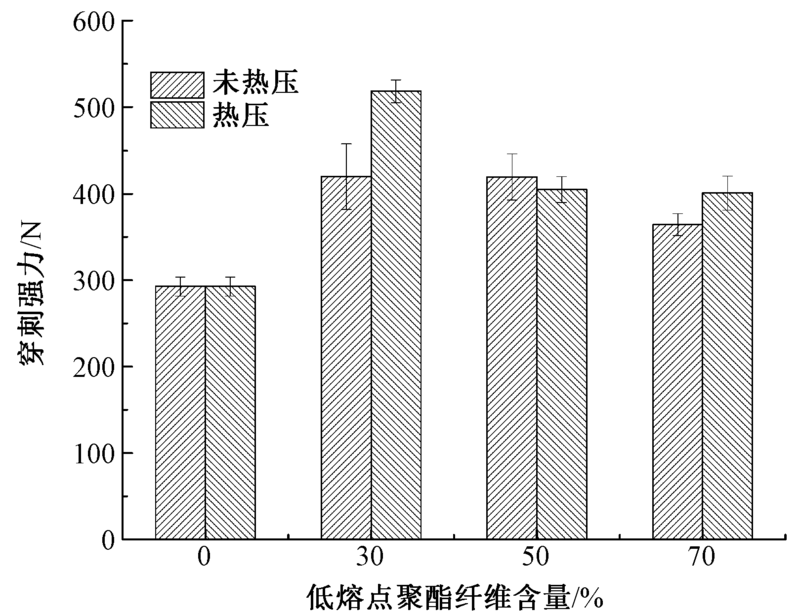

Fig.7

Static puncture resistance of basalt plain fabric reinforced insoles composite as related to spherical-head probe"

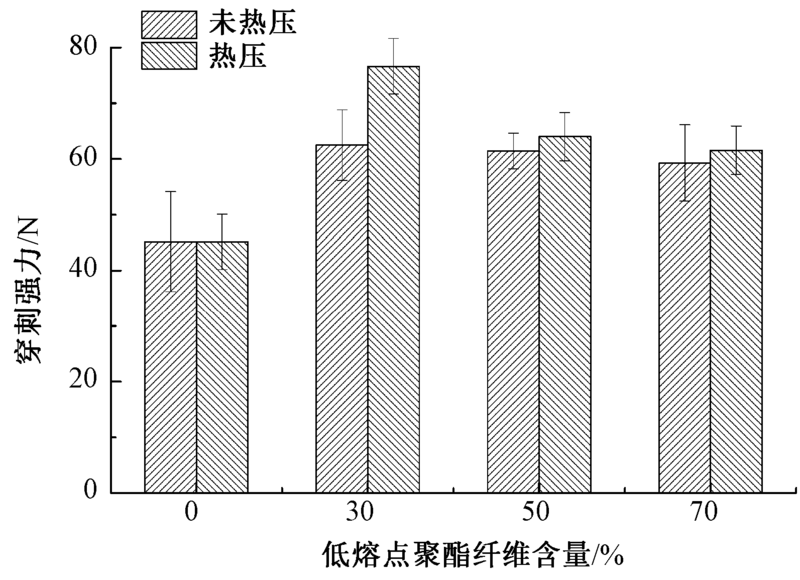

Fig.8

Static puncture resistance of basalt plain fabric reinforced insoles composite as related to pointed-head probe"

[1] 靳向煜, 姚瑾. 鞋用非织造布合成革的结构与性能[J]. 纺织学报, 1991,12(5):18-21.
JIN Xiangyu, YAO Jin. Construction and properties of nonwoven artificial leather for shoes making[J]. Journal of Textile Research, 1991,12(5):18-21.
[2] JR J B M, WETZEL E D, HOSUR M V, et al. Stab and puncture characterization of thermoplastic-impregnated aramid fabrics[J]. International Journal of Impact Engineering, 2009,36(9):1095-1105.
[3] NIU H, JIAO X, WANG R, et al. Direct manufacturing of flax fibers reinforced low melting point PET composites from nonwoven mats[J]. Fibers & Polymers, 2010,11(2):218-222.
[4] LI T T, LOU Chingwen, LIN Meichen, et al. Processing technique and performance evaluation of high-modulus organic/inorganic puncture-resisting composites[J]. Fibres & Textiles in Eastern Europe, 2014,22(6):75-80.
[5] LATKO P, KOZERA R, SALINIER A, et al. Non-woven veils manufactured from polyamides doped with carbon nanotubes[J]. Fibres & Textiles in Eastern Europe, 2013,21(6):45-49.
[6] XU J Z, YOU B, WANG B G. Curing process simulation of fiberglass-reinforced plastic (FRP) pipes[J]. Materials & Manufacturing Processes, 2009,24(6):657-666.
[7] POORZEINOLABEDIN M, GOLZAR M. Improving the woven glass/epoxy composite for automobile exterior body cover[J]. Materials & Manufacturing Processes, 2011,26(4):562-566.
[8] LIN C C, LOU C W, HSING W H, et al. Evaluation of manufacturing technology and characterization of composite fabric for stab resistant materials[J]. Advanced Materials Research, 2008(55-57):429-432.
[9] TIEN D T, KIM J S, YOU H. Stab-resistant property of the fabrics woven with the aramid/cotton core-spun yarns[J]. Fibers & Polymers, 2010,11(3):500-506.
[10] LOU C W, LIN C C, HSING W H, et al. Processing technique and property evaluation of stab-resistant composite fabrics[J]. Advanced Materials Research, 2011(239):1990-1993.
[11] YANG Y, PONTING M, THOMPSON G, et al. Puncture deformation and fracture mechanism of oriented polymers[J]. Journal of Applied Polymer Science, 2012,124(3):2524-2536.
[12] KIM H, NAM I. Stab resisting behavior of polymeric resin reinforced p-aramid fabrics[J]. Journal of Applied Polymer Science, 2011,123(5):2733-2742.
[13] RAWAL A, ANANDJIWALA R D. Relationship between process parameters and properties of multifunctional needlepunched geotextiles[J]. Journal of Industrial Textiles, 2006,35(4):271-285.
[14] WANG Rui, LI Tingting, LOU Chingwen, et al. Effect of process parameters on puncture resistance of composites by needle punching and thermal bonding techniques[J]. Advanced Manufacturing Processes, 2013,28(9):1029-1035.
[15] LI T T, ZHANG X, PENG H, et al. Thermally bonded PET-basalt sandwich composites for heat pipeline protection: preparation, stab resisting, and thermal-insulating properties[J]. Applied Sciences, 2018,8(4):510.
[16] 邓炳耀, 晏雄. 热压对芳纶非织造布机械性能的影响[J]. 纺织学报, 2004,25(2):103-105.
DENG Bingyao, YAN Xiong. The hot-press conditions on mechanical properties of aramid nonwoven fabric[J]. Journal of Textile Research, 2004,25(2):103-105.
[17] LIN J H, LIN C C, CHEN J M, et al. Study on the processing technology and mechanical properties of nonwoven fabric composited by recycled PP selvedges[J]. Advanced Materials Research, 2011,287(6):85-90.
[18] LOU C W, LIN C C, HUANG C C, et al. Manufacturing technique of stab-resistant laminated composite nonwoven fabrics[J]. Advanced Materials Research, 2011(239):3342-3345.
[19] LI T T, WANG R, LOU C W, et al. Evaluation of high-modulus, puncture-resistance composite nonwoven fabrics by response surface methodology[J]. Journal of Industrial Textiles, 2013,43(2):247-263.
[20] LOU C W, LIN C W, LIN C C, et al. The effects of thermal consolidation methods on PET nonwoven composites for thermal insulation use[J]. Advanced Materials Research, 2008,55(2):405-408.
[21] LIN C M, LOU C W, LIN J H. Manufacturing and properties of fire-retardant and thermal insulation nonwoven fabrics with FR-polyester hollow fibers[J]. Textile Research Journal, 2009,79(11):993-1000.
[22] 崔毅华. 玄武岩连续纤维的基本特性[J]. 纺织学报, 2005,26(5):120-121.
CUI Yihua. Primary properties of basalt continuous filament[J]. Journal of Textile Research, 2005,26(5):120-121.
[23] 李婷婷. 基于应力波传递的多重加固复合织物的防刺结构设计[C]//第五届海峡两岸三地纺织学术论坛论文集 香港:香港理工大学, 2014: 261-265.
LI Tingting. Puncture-resisting structure design of multiple reinforced composite fabric based on stress wave transmission[C]//The Fifth Cross-Strait Textile Academic Forum Proceedings. HongKong: The HongKong Polytechnic University, 2014: 261-265.
[24] LI T T, SUN F, LIU X, et al. Preparation and mechanical property evaluations of puncture-resistant insoles composites reinforced by high-modulus filament and thermal bonding[J]. Fibers and Polymers, 2018,19(6):1309-1317.
doi: 10.1007/s12221-018-1116-2
[25] SUN B, WANG Y, WANG P, et al. Investigations of puncture behaviors of woven fabrics from finite element analyses and experimental tests[J]. Textile Research Journal, 2011,81(10):992-1007.
doi: 10.1177/0040517510395999
[26] LI T T, WANG R, LOU C W, et al. Modeling and optimization of dynamic puncture behaviors for flexible inter-/intra- reinforced compound fabrics[J]. Fibers & Polymers, 2016,17(3):469-476.
