Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (8): 85-88.doi: 10.13475/j.fzxb.20180803505

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Rapid detection of banned dye Acid Red 26 in pure wool thread based on oblique projection

ZHANG Jingqing, SU Hui(), LIANG Xiaoyun, CHEN Weiji, YAO Zhixiang

  1. School of Biological and Chemical Engineering, Guangxi University of Science and Technology, Liuzhou, Guangxi 545006, China
  • Received:2018-08-13 Revised:2019-04-30 Online:2019-08-15 Published:2019-08-16
  • Contact: SU Hui E-mail:suhui@gxust.edu.cn

Abstract:

In order to overcome the shortcomings of conventional methods for detecting banned dyes on textiles of difficult operation, high cost, long time and great hazard, a quantitative analysis method of Acid Red 26 on wool thread was established based on the oblique projection construction algorithm using the combination of visible reflection intensity spectrum analysis and chemometrics. The results show that the linear degree of the standard curve equation is high in the range of 0.17-5.11 mg/g (coefficient of determination is 0.995 8, relative standard deliation is 1.79%). The relative error about the content of Acid Red 26 in the unknown sample is lower than 10%. The detection method is simple in operation, high in detection efficiency, and realizes rapid non-destructive detection of Acid Red 26.

Key words: oblique projection algorithm, visible light intensity spectrum, wool thread, Acid Red 26, rapid detection

CLC Number:

  • TQ610.7

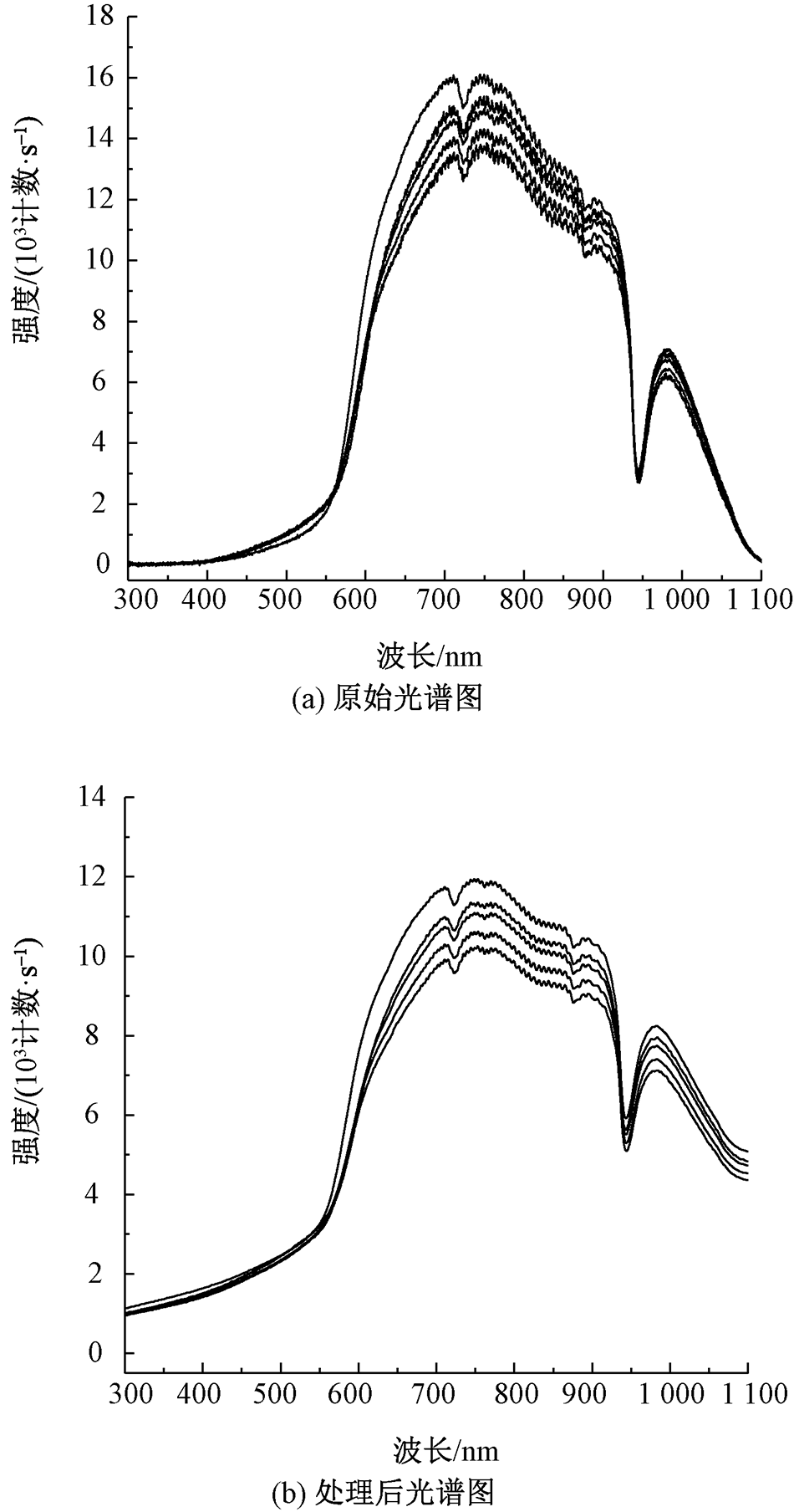

Fig.1

Spectral comparison before (a) and after (b) pretreatment"

Fig.2

Standard curve of Acid Red 26"

Tab.1

Content of Acid Red 26 in samples"


真实值/
(mg·g-1)
预测值/
(mg·g-1)
偏差/
(mg·g-1)
相对误差/
%
1 0.65 0.63 -0.02 2.48
2 0.83 0.84 0.02 1.85
3 1.05 1.00 -0.05 5.14
4 1.38 1.27 -0.11 7.65
5 1.59 1.69 0.10 6.28
6 1.79 1.66 -0.13 7.03
7 1.85 1.74 -0.11 5.71
8 2.01 1.84 -0.17 8.23
9 2.15 2.34 0.20 9.09
10 2.36 2.31 -0.05 2.27
11 2.64 2.68 0.04 1.49
12 2.88 2.77 -0.11 3.65
13 2.96 2.95 -0.02 0.58
14 3.27 3.17 -0.10 2.93
15 3.96 3.61 -0.35 8.94
16 4.30 3.96 -0.34 7.86
17 4.37 4.14 -0.23 5.23
18 4.80 4.60 -0.20 4.18
19 4.67 4.38 -0.29 6.15
[1] 魏亮, 陈小光, 黄波 , 等. 偶氮染料废水厌氧生物脱色强化[J]. 纺织学报, 2018,39(8):83-87.
WEI Liang, CHEN Xiaoguang, HUANG Bo , et al. Anaerobic biological decolorization enhancement of azo dye wastewater[J]. Journal of Textile Research, 2018,39(8):83-87.
[2] 姜红 . 薄层色谱法鉴别同种颜色涤棉纤维上的染料[J]. 印染助剂, 2002(1):52-54.
JIANG Hong . TLC method for the identification of dyes on the same color polyester fibres[J]. Textile Auxiliaries, 2002(1):52-54.
[3] 王倩, 卢鸯 . 基于超高压液相色谱串联质谱的致癌芳香胺同分异构体快速鉴别[J]. 现代纺织技术, 2015(3):62-64.
WANG Qian, LU Yang . Rapid identification of carcinogenic aromatic amine isomers based on tandem mass spectrometry with ultrahigh pressure liquid chromatography[J]. Advanced Textile Technology, 2015 ( 3):62-64.
[4] LI Xueyang, YANG Yongchao, YANG Xue . Determination of polycyclic aromatic hydrocarbons in textiles trometry and tandem mass spectrometry[J]. Chromatographia, 2010,72:85-93.
doi: 10.1365/s10337-010-1634-6
[5] YANG Fei, BIAN Zhaoyang, LI Zhonghao , et al. Determination of aromatic amines released from azo dyes in paper packaging by liquid chromatography-tandem mass spectrometry[J]. Journal of AOAC International, 2016,99(5):1370-1376.
doi: 10.5740/jaoacint.16-0068 pmid: 27318128
[6] 叶曦雯, 彭燕, 牛增元 . 超高效液相色谱-线性离子阱/静电场轨道阱高分辨质谱鉴别纺织品中禁用芳香胺及其异构体[J]. 色谱, 2014,32(9):1005-1012.
YE Xiwen, PENG Yan, NIU Zengyuan . Ultra-high performance liquid chromatography-linear ion trap/electrostatic field track well high resolution mass spectrometry for identification of prohibited aromatic amines and their isomers in textiles[J]. Chromatographic, 2014,32(9):1005-1012.
[7] HAN J, WANROOIJ J, VAN B M , et al. Characterisation of chemical components for identifying historical Chinese textile dyes by ultra high performance liquid chromatography-photodiode array-electrospray ionisation mass spectrometer[J]. Journal of Chromatography A, 2017,1479:87-96.
doi: 10.1016/j.chroma.2016.11.044 pmid: 27986289
[8] 李志刚 . 偶氮染料降解氧化产物苯胺的液相色谱/质谱联用法测定[J]. 纺织学报, 2015,36(5):69-73.
LI Zhigang . Determination of aniline by oxidation of azo dyes by liquid chromatography/mass spectrometry[J]. Journal of Textile Research, 2015,36(5):69-73.
[9] MA Qiang, BAI Hua, ZAHNG Qing , et al. Determination of carcinogenic and allergenic dyestuffs in toys by LC coupled to UV/Vis spectrometry and tandem mass spectrometry[J]. Chromatographia, 2010,72(1/2):85-93.
doi: 10.1365/s10337-010-1634-6
[10] COCHRAN K H, BARRY J A, MUDDIMAN D C , et al. Direct analysis of textile fabrics and dyes using infrared matrix-assisted laser desorption electrospray ionization mass spectrometry[J]. Analytical Chemistry, 2013,85(2):831-836.
doi: 10.1021/ac302519n pmid: 23237031
[11] AHLSTROM L H, RAAB J, MATHIASSON L , et al. Application of standard addition methodology for determination of banned azo dyes in different leather types[J]. China Leather, 2008,552(1):76-80.
[12] 杨向妮, 姚志湘, 粟晖 , 等. 斜投影-空间夹角判据用于苯扎氯铵紫外光谱定量分析[J]. 中国消毒学杂志, 2016,33(11):1037-1040,1043.
YANG Xiangni, YAO Zhixiang, SU Hui , et al. Oblique projection-space angle criterion for the quantitative analysis of the ultraviolet spectra of benzoyl chloride[J]. Chinese Journal of Disinfection, 2016,33(11):1037-1040,1043.
[13] 葛军, 姚志湘, 粟晖 , 等. 基于斜投影算法对混合染液不展开多波长薄层色谱定量分析[J]. 印染助剂, 2013,30(10):47-50.
GE Jun, YAO Zhixiang, SU Hui , et al. Quantitative analysis of multi-wavelength thin-layer chromatography based on oblique projection algorithm[J]. Textile Auxiliaries, 2013,30(10):47-50.
[14] BEHRENS R T, SCHARF L L . Signal processing applications of oblique projection operators[J]. IEEE Transactions on Signal Processing, 1994,42(6):1413-1424.
doi: 10.1109/78.286957
