Preparation and properties of antibacterial silk fabric modified with oxidized chitosan

ZHENG Hongfei, WANG Ruiqi, WANG Qing, ZHU Ying, XU Yunhui()

  1. College of Light-Textile Engineering and Art, Anhui Agricultural University, Hefei, Anhui 230036, China
  • Received:2019-09-03 Revised:2020-02-03 Online:2020-05-15 Published:2020-06-02
  • Contact: XU Yunhui E-mail:xuyunhui@ahau.edu.cn

RichHTML

7

PDF (PC)

111

Abstract:

In order to acquire durable antibacterial silk materials, the hydroxyl of C6 site in original chitosan (CS) was selectively oxidized to the carboxyl by HNO3/H3PO4-NaNO2 mediate system and obtained the water-soluble oxidized chitosan (OCS), and then the chemical bond was formed through the amide reaction between carboxyl groups in oxidized chitosan and amino groups of silk fibroin fabric (SFF) to get antimicrobial silk fibroin materials (OCSMSF). Nuclear magnetic resonance, Scanning electron microscopy, Infrared spectroscopy and X-ray diffraction were used to test the chemical structure of OCS and OCSMSF, moreover, the mechanics, hygroscopicity and antibacterial activity of OCSMSF materials were also measured. The results suggest that the carboxylic chitosan molecules are crosslinked into SFF by the amide reaction, and the degree of crystallinity for SFF materials grafted with OCS decrease. The oxidized chitosan weight gain of 9.17% for the modified silk fabric is achieved under the condition of optimized reaction parameters, the tensile strength of grafted silk fabrics reduces slightly, whereas the moisture adsorption of the modified SFF increases 42.92%. Furthermore, the antimicrobial ratio of the grafted SFF against the tested bacteria exceedes 94%, as well as still high antibacterial activity after washing; meanwhile, a good efficiency of sustained release cactus flavonoid extract using the OCSMSF is performed. The OCS grafted silk materials have potential application prospect in antibacterial materials or carrier materials of release drug.

Key words: silk fabric, oxidized chitosan, crosslink modification, antibacterial, release carrier

CLC Number:

  • TS102.3

Fig.1

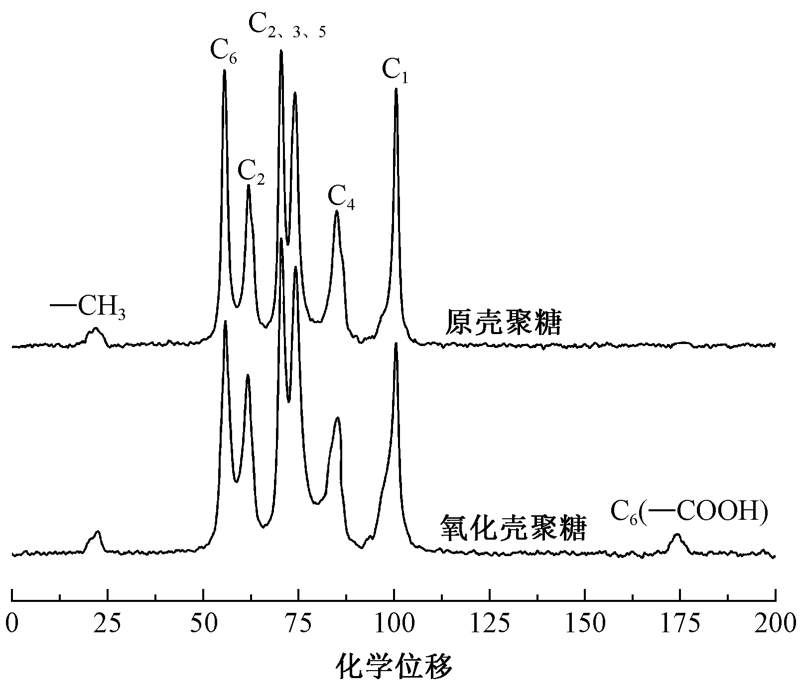

Solid-state 13C NMR spectra of original chitosan and oxidized chitosan"

Fig.2

FT-IR spectra of starting chitosan and oxidized chitosan"

Fig.3

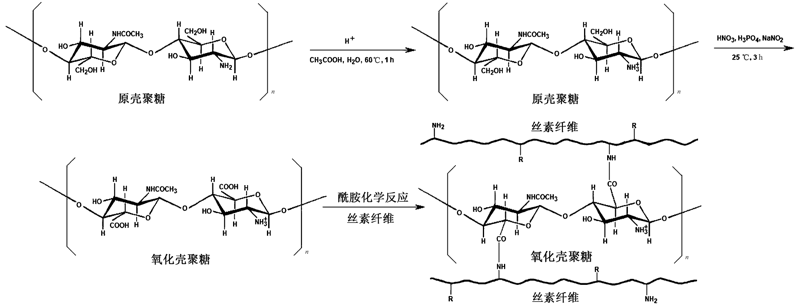

Forming mechanism of selective oxidation of CS and crosslinking reaction between OCS and SFF"

Fig.4

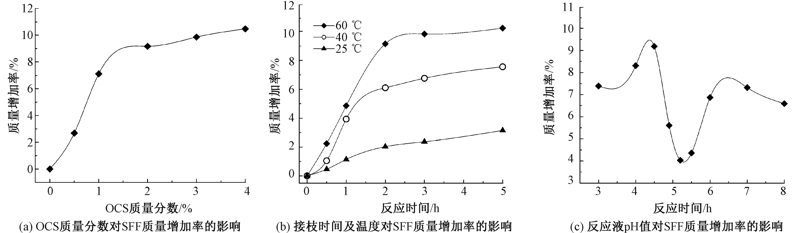

Effec of reaction parameters of OCS on weight gain of SFF. (a)Effect of OCS mass fraction on weight gain of SFF; (b) Effect of graft time and temperature on weight gain of SFF; (c) Effect of pH value of reaction solution on weight gain of SFF"

Fig.5

SEM images of virgin SFF and OCSMSF samples (×1 000). (a) Pure SFF; (b) OCSMSF (grafted SFF with weight gain of 4.34%); (c) OCSMSF (grafted SFF with weight gain of 7.09%); (d) OCSMSF (grafted SFF with weight gain of 9.17%)"

Fig.6

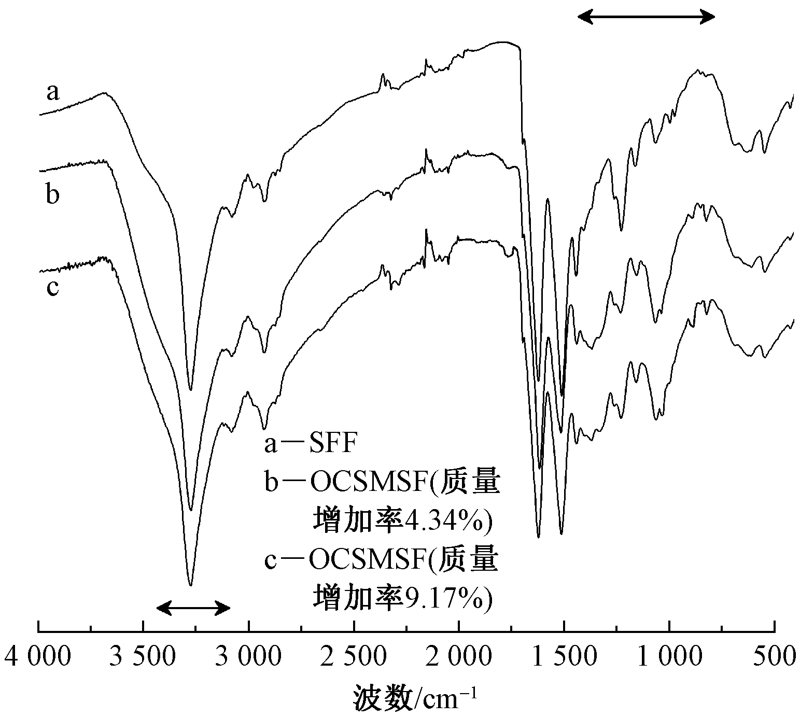

ATR-FTIR spectra of SFF and OCSMSF materials"

Fig.7

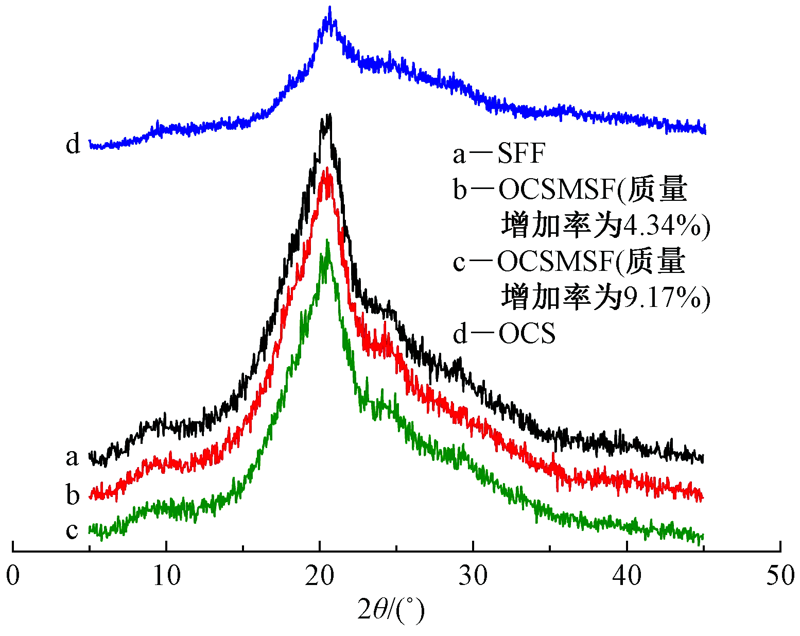

XRD spectra of SFF, OCS and OCSMSF samples"

Fig.8

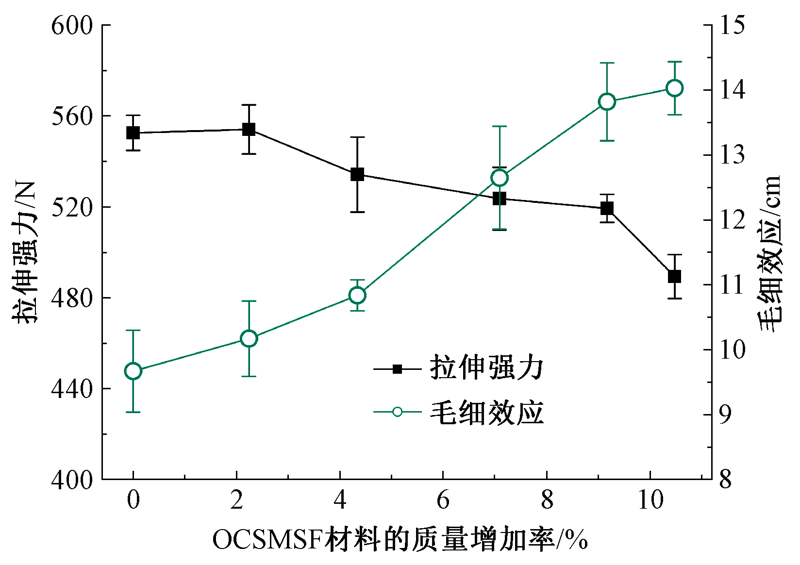

Mechanical strength and hygroscopic property of virgin SFF and OCSMSF materials"

Tab. 1

Absorbance of controlled release cactus extract from SFF and OCSMSF materials"

时间/d 吸光度
SFF OCSMSF
(质量增加率为9.17%)
4 0.485 0.708
6 0.337 0.616
8 0.124 0.627
10 0.109 0.583
剩余仙人掌提取物① 0.231 1.271

Tab.2

Antibacterial ratio of OCSMSF and SFF samples"

测试
菌种		 洗涤
次数		 抑菌率/%
SFF OCSMSF
(质量增加率
为4.34%)		 OCSMSF
(质量增加率
为9.17%)
S. aureus 0 0 92.91 99.46
20 — 89.64 97.19
30 — 88.08 93.86
E. coli 0 0 86.78 94.08
20 — 84.37 91.72
30 — 79.36 90.75
[1] VEPARI C, KAPLAN D L. Silk as a biomaterial[J]. Progress in Polymer Science, 2007,32(8):991-1007.
[2] 杨莹莹, 吕智宁, 田伟, 等. 木薯蚕丝结构与性能表征[J]. 纺织学报, 2017,38(6):1-5.
YANG Yingying, LÜ Zhining, TIAN Wei, et al. Structure and properties of cassava silk[J]. Journal of Textile Research, 2017,38(6):1-5.
doi: 10.1177/004051756803800101
[3] LI G H, LIU H, LI T D, et al. Surface modification and functionalization of silk fibroin fibers/fabric toward high performance applications[J]. Materials Science & Engineering, 2012,32(4):627-636.
[4] 刘慧, 徐英莲. 纳米ZnO整理对蚕丝织物抗紫外线性能的影响[J]. 纺织学报, 2016,37(7):104-108.
LIU Hui, XU Yinglian. Influence of nano-ZnO finishing on anti-UV properties of silk fabrics[J]. Journal of Textile Research, 2016,37(7):104-108.
[5] RINAUDO M. Chitin and chitosan: properties and applications[J]. Progress in Polymer Science, 2006,31(7):603-632.
[6] 秦益民. 壳聚糖纤维的理化性能和生物活性研究进展[J]. 纺织学报, 2019,40(5):170-176.
QIN Yimin. Physicochemical properties and bioactivities of chitosan fibers[J]. Journal of Textile Research, 2019,40(5):170-176.
[7] MONTEIRO O A C, AIROLDI C. Some studies of crosslinking chitosan-glutaraldehyde interaction in a homogeneous system[J]. International Journal of Biological Macromolecules, 1999,26(3):119-128.
[8] FERRERO F C, PERIOLATTO M C, BURELLI S R, et al. Silk grafting with chitosan and crosslinking agents[J]. Fibers and Polymers, 2010,11(2):185-192.
[9] DAVARPANAH S, MAHMOODI NIYAZ M, ARAMI M, et al. Environmentally friendly surface modification of silk fiber: chitosan grafting and dyeing[J]. Applied Surface Science, 2009(255):4171-4176.
[10] HUANG J W, QIN J Z, ZHANG P, et al. Facile preparation of a strong chitosan-silk biocomposite film[J]. Carbohydrate Polymers, 2020(229):515-523.
[11] LILLO L E, MATSUHIRO B. Chemical modifications of carboxylated chitosan[J]. Carbohydrate Polymers, 1997(34):397-401.
[12] YOO S H, LEE J S, PARK S Y, et al. Effects of selective oxidation of chitosan on physical and biological properties[J]. International Journal of Biological Macromolecules, 2005(35):27-31.
[13] TERADA N, MORIMOTO M, SAIMOTO H, et al. Regioselective synjournal and biological activity of oxidized chitosan[J]. Polymers for Advanced Technologies, 2003(14):40-51.
[14] YANG Y D, ZHOU Y G, CHOU H M, et al. Blood compatibility and mechanical properties of oxidized-chitosan films[J]. Journal of Applied Polymer Science, 2007,106(1):372-377.
[15] BORDENAVE N L, GRELIER S P, COMA V N. Advances on selective C-6 oxidation of chitosan by TEMPO[J]. Biomacromolecules, 2008,9(9):2377-2382.
pmid: 18700797
[16] 许云辉, 钟娇, 杜兆芳, 等. 一种水溶性抗菌单羧基壳聚糖及其制备方法和应用: ZL201510563693.X[P]. 2015-09-07.
XU Yunhui, ZHONG Jiao, DU Zhaofang, et al. Preparation method and application of a water-soluble antibacterial 6-carboxylic chitosan: ZL201510563 693.X [P]. 2015-09-07.
[17] LU Y H, LIN H, CHEN Y Y, et al. Structure and performance of Bombyx mori silk modified with nano-TiO2 and chitosan[J]. Fibers and Polymers, 2007,8(1):1-6.
[18] YAMAMOTO O M. Influence of particle size on the antibacterial activity of zinc oxide[J]. International Journal of Inorganic Materials, 2001,3(7):643-646.
[19] XU Y H, QIU C, ZHANG X L, et al. Crosslinking chitosan into H3PO4/HNO3-NANO2 oxidized cellulose fabrics as antibacterial-finished material[J]. Carbohydrate Polymers, 2014(112):186-194.
[20] DE NOOY A E J, BESEMER A C. Selective oxidation of primary alcohols mediated by nitroxyl radical in aqueous solution: kinetics and mechanism[J]. Tetrahedron, 1995,51(29):8023-8032.
[21] ARAI T, FREDDI G, INNOCENTI R, et al. Acylation of silk and wool with acid anhydrides and preparation of water-repellent fibers[J]. Journal of Applied Polymer Science, 2001,82(11):2832-2841.
[22] FEUGANG J M, KONARSKI P, ZOU D, et al. Nutritional and medicinal use of cactus pear (Opuntia spp.) cladodes and fruits[J]. Frontiers in Bioscience, 2006,11(2):2574-2589.
