Journal of Textile Research ›› 2020, Vol. 41 ›› Issue (11): 162-167.doi: 10.13475/j.fzxb.20190905606

• Machinery & Accessories • Previous Articles     Next Articles

Automatic generation algorithm for pattern processing codes of quilting machines

LI Liang, NI Junfang()

  1. School of Mechanical and Electrical Engineering, Soochow University, Suzhou, Jiangsu 215021, China
  • Received:2019-09-24 Revised:2020-08-07 Online:2020-11-15 Published:2020-11-26
  • Contact: NI Junfang E-mail:jfni9999@sina.com

RichHTML

4

PDF (PC)

254

Abstract:

In order to simplify the pattern design process with the quilting machines, to reduce the influence of operators' experience and to achieve the effect of the real-time quilting, this research worked on the automatic generation of pattern codes. The target quilting pattern is pre-processed and edge-extracted, and the contour tracking algorithm was used to segment the image into several ordered point-chain contours. The genetic algorithm was used with the line and arc as base processing elements and the first-order continuous continuity as constraint condition, to fit each outline contour to carry out simulation machining. Programming verification was carried out to prove the reliability of the result by MatLab. The results show that the constraint error function is able to avoid the influence of the trimming and stitch skipping caused by the discontinuity of the endpoint. The fitness of optimal processing path of each generation is gradually improved by the action of the genetic operators. The total error and the number of fitting segments are smaller. The pattern simulation processing satisfies the requirements of good real-time performance, high efficiency, high degree of reduction and the needs of quilting manufacturing requirements of complex patterns in practice.

Key words: quilting machine, pattern generation algorithm, contour tracking, genetic algorithm, curve fitting, simulation processing

CLC Number:

  • TS391

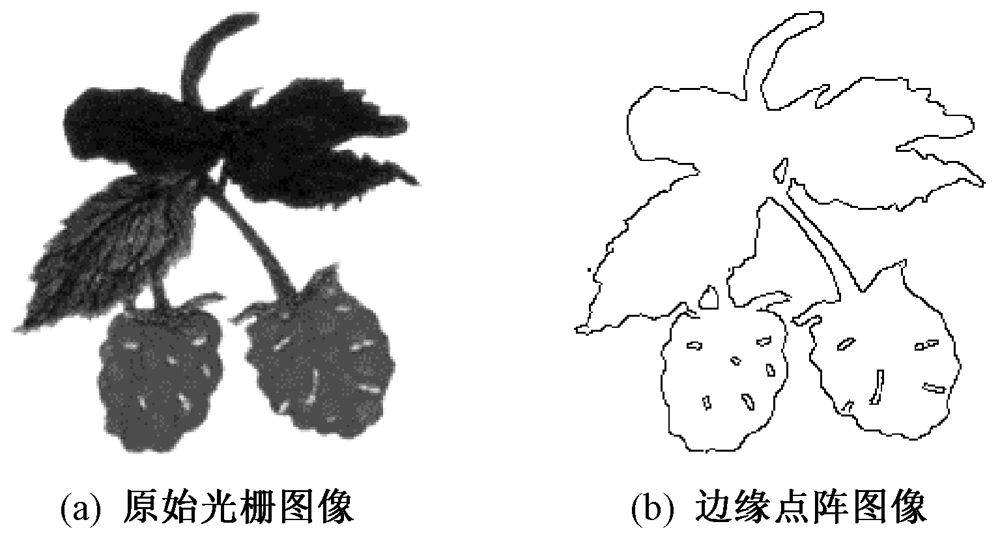

Fig.1

Image preprocessing"

Fig.2

Singular points"

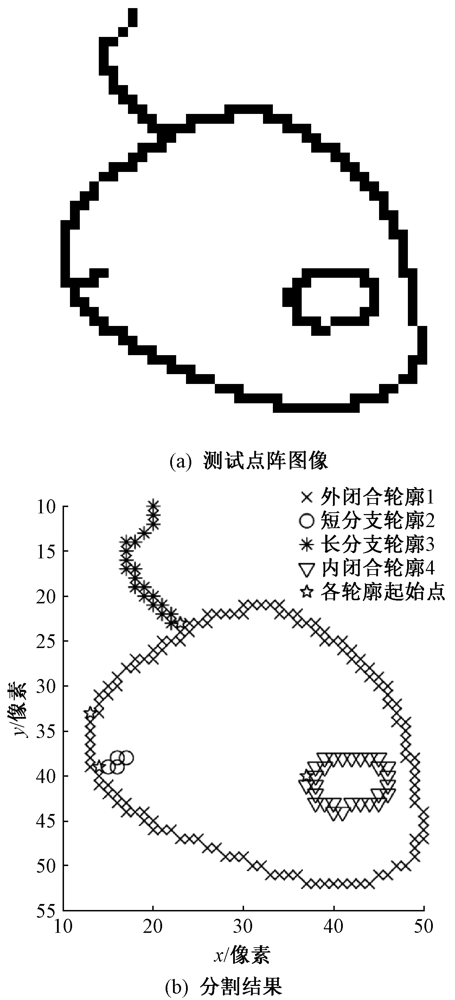

Fig.3

Example of contour tracking algorithm. (a) Test bitmap image;(b) Segmentation results"

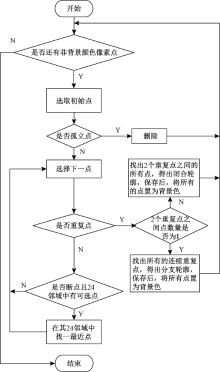

Fig.4

Flow chart of contour tracking algorithm"

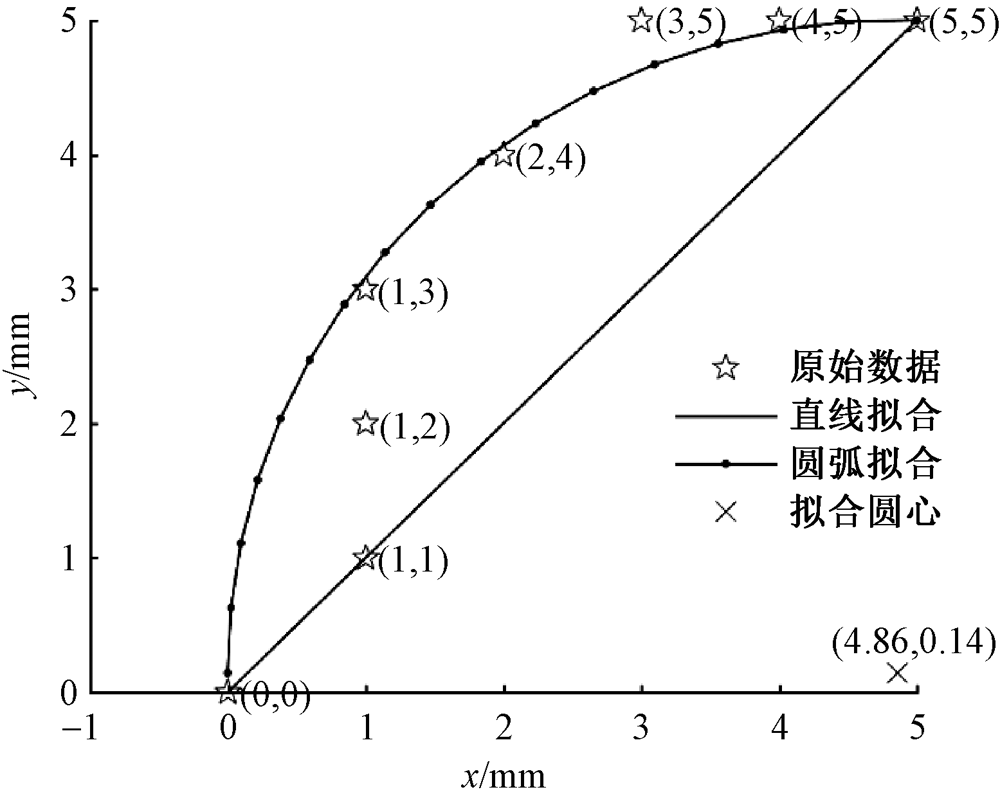

Fig.5

Base processing element fitting result"

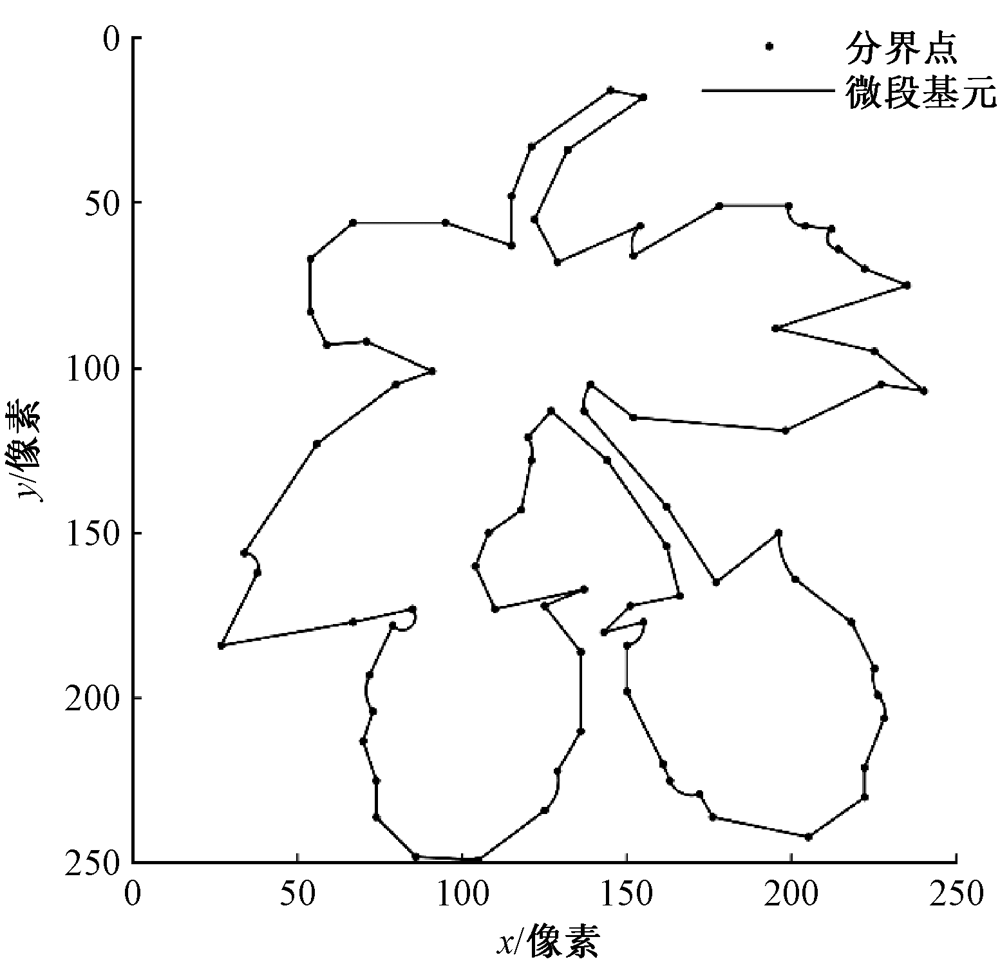

Fig.6

Optimal processing path"

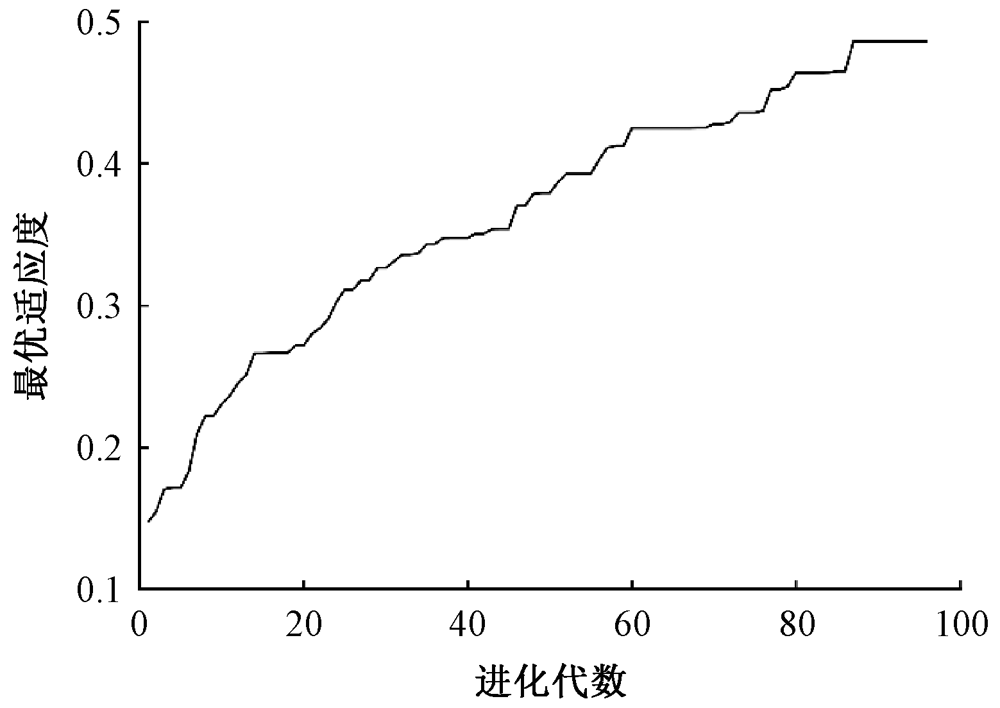

Fig.7

Optimal fitness of each generation"

Fig.8

Quilting machine simulation processing"

[1] 赵福英, 倪俊芳. 花型样条曲线加工代码生成算法[J]. 纺织学报, 2018,39(7):153-158.
ZHAO Fuying, NI Junfang. Algorithm of processing code genereation for pattern spline curves[J]. Journal of Textile Research, 2018,39(7):153-158.
[2] 邢毓华, 巩少峰. 电子花样机花样缝纫点生成算法[J]. 计算机系统应用, 2018,27(6):171-177.
XING Yuhua, GONG Shaofeng. Pattern sewing point generation algorithm for intelligent pattern sewing machine[J]. Computer Systems Applications, 2018,27(6):171-177.
[3] 张伟宁. 基于机器视觉的描绣花样矢量化技术的研究[D]. 北京:北京交通大学, 2015: 46-49.
ZHANG Weining. Research on the vector technique of embroidery pattern based on machine vision[D]. Beijing: Beijing Jiaotong University, 2015: 46-49.
[4] 史步海, 孙会会. 基于新S型速度规划的B样条曲线算法研究[J]. 机床与液压, 2016,44(15):72-79.
SHI Buhai, SUN Huihui. B-spline curve algorithm research based on news velocity planning[J]. Machine Tool & Hydraulics, 2016,44(15):72-79.
[5] DING Huanqi, LUO Shanming, CHANG Xuefeng, et al. Optimization algorithm of tool radius compensation in fast tool servo machining of microlens array[J]. Advanced Materials Reseach, 2014,1039:383-389.
[6] 孙喜庆. 小线段轨迹的圆弧拟合和NURBS曲线的离散算法研究[D]. 哈尔滨:哈尔滨工业大学, 2015: 7-12.
SUN Xiqing. The research of the continuous line segments fitting by arc and the separation of NURBS curve[D]. Harbin:Harbin Institute of Technology, 2015: 7-12.
[7] 倪俊芳, 宋昌才, 何高清. 机床数控技术[M]. 北京: 科学出版社, 2016: 34-50.
NI Junfang, SONG Changcai, HE Gaoqing. Machine tool numerical control technology [M]. Beijing: Science Press, 2016: 34-50.
[8] 胡晋山, 康建荣, 张琪, 等. 一种八邻域图像边界追踪改进算法[J]. 测绘通报, 2018(12):21-25.
HU Jinshan, TANG Jianrong, ZHANG Qi, et al. An improving image boundary tracking algorithm based on eight neighborhood[J]. Bulletin of Surveying and Mapping, 2018(12):21-25.
[9] 姚鹏鹏, 樊臻, 张森林. 改进的Potrace提花织物图像矢量化算法[J]. 传感器与微系统, 2014,33(4):125-127.
YAO Pengpeng, FAN Zhen, ZHANG Senlin. Improved potrace algorithm for vectorizaition of image of jacquard[J]. Transducer and Microsystem Technologies, 2014,33(4):125-127.
[10] ZHANG Weichuan, KONG Xiangnan, SONG Wen. Review of image corner detection algorithms[J]. Acta Electronica Sinica, 2015,43(11):2315-2321.
doi: 10.3969/j.issn.0372-2112.2015.11.026
[11] 张习文, 李佐, 蔡士杰, 等. 基于遗传算法的以线段和圆弧为基元的曲线拟合[J]. 计算机辅助设计与图形学学报, 2002(2):144-147.
ZHANG Xiwen, LI Zuo, CAI Shijie, et al. Segmenting planar curves into straight line and circular arcs segments using genetic algorithm[J]. Journal of Computer-Aided Design & Computer Graphics, 2002(2):144-147.
[12] 王竞雪, 宋伟东, 赵丽科, 等. 改进的Freeman链码在边缘跟踪及直线提取中的应用研究[J]. 信号处理, 2014,30(4):422-430.
WANG Jingxue, SONG Weidong, ZHAO Like, et al. Application of improved freeman chain code in edge tracking and straight line extraction[J]. Journal of Signal Processing, 2014,30(4):422-430.
