Progress in garment ease design and its modeling methods

ZHANG Yijie1,2, LI Tao1, LÜ Yexin1, DU Lei1,3, ZOU Fengyuan1,3()

  1. 1. School of Fashion Design & Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Shangyu College, Shaoxing University, Shaoxing, Zhejiang 312300, China
    3. Apparel Engineering Research Center of Zhejiang Province, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2020-04-20 Revised:2020-09-03 Online:2021-04-15 Published:2021-04-20
  • Contact: ZOU Fengyuan E-mail:zfy166@zstu.edu.cn

Abstract:

In order to reveal the relationship between garment ease allowance and virtual try-on even garment pattern design, the influencing factors of ease allowance, research methods and representation were reviewed and analyzed. The characteristics of ease allowance representation methods were summarized, and the latest research progress in ease representation models were scrutinized in particular. The effect of garment ease in virtual try-on and pattern design were further analyzed, respectively. It shows that the effective garment ease design should consider the factors of human body's dress form, clothing fit and comfort. The direct and indirect representation methods reflect the relationship between clothing and human body from different perspectives. The combination of ease allowance with garment virtual try-on and pattern design is effective to promote the authenticity of virtual try-on and facilitate intelligent design of clothing. The review indicates that three-dimensional spatial representation, continuous dynamic distribution and the construction of three-dimensional prediction models of ease allowance are regarded as the main research directions in garment ease in the future.

Key words: garment ease, representation model, virtual try-on, garment pattern design, 3-D garment CAD

CLC Number:

  • TS941.26

Fig.1

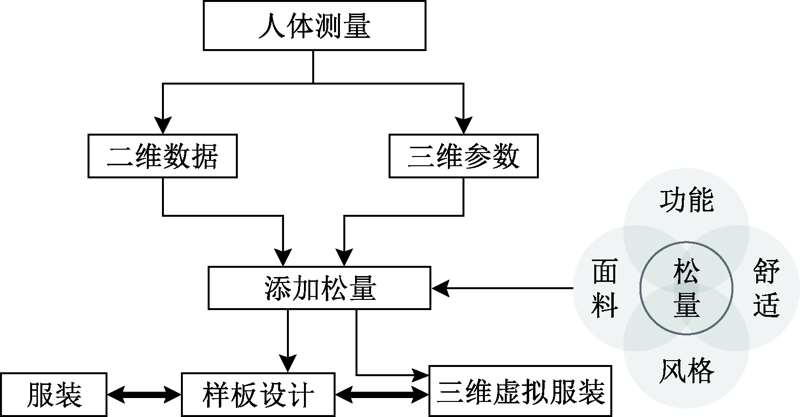

Relations of influence factors on garment ease allowance design"

Fig.2

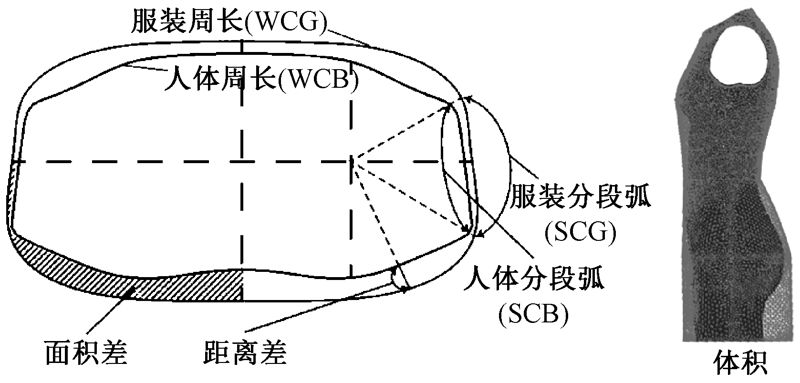

Ease allowance parameters"

Fig.3

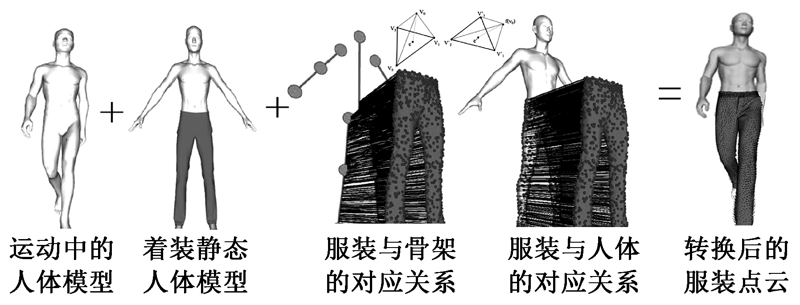

Three-dimensional garment vector field"

Fig.4

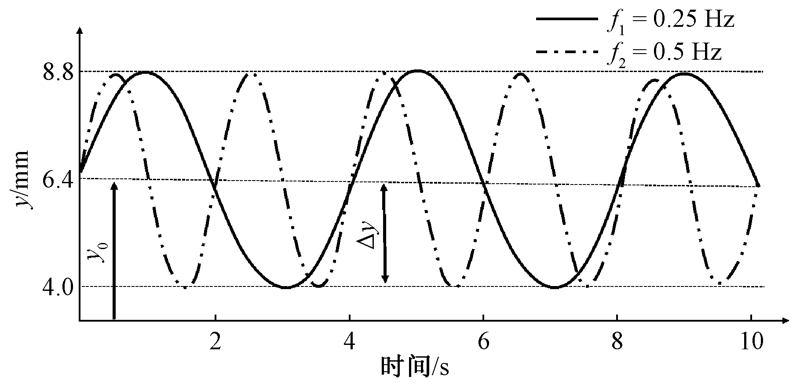

Dynamic air layer under the movement of protective clothing"

Fig.5

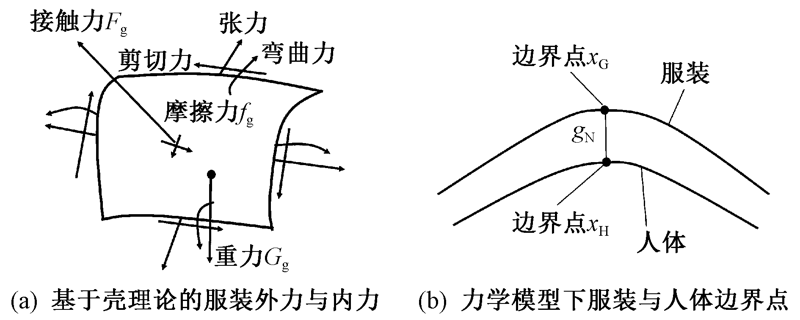

Mechanical contact model of clothing and human body by finite element method. (a) Clothing external and internal force based on shell theory; (b) Boundary points in human body and garment under mechanical model"

Fig.6

Ease allowance and three-dimensional garment design"
