Research progress of three-dimensional needle-punching technology

CHEN Xiaoming1,2,3, LI Chenyang2,3, LI Jiao1,2, XIE Junbo1,2, ZHANG Yifan1,2, CHEN Li1,2()

  1. 1. School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China
    2. Key Laboratory of Advanced Textile Composite Materials, Ministry of Education, Tiangong University, Tianjin 300387, China
    3. School of Mechanical Engineering, Tiangong University, Tianjin 300387, China
  • Received:2020-05-18 Revised:2021-02-10 Online:2021-05-15 Published:2021-05-20
  • Contact: CHEN Li E-mail:chenli@tiangong.edu.cn

RichHTML

37

PDF (PC)

316

Abstract:

The three-dimensional (3-D) needle punching technology leads to low-cost formation of three-dimensional fabrics. In order to better understand the research status of 3-D needle punching technology, the latest domestic and foreign research progress of 3-D needle punching automation equipment technology, 3-D needle punching fabric (or preform) and 3-D needle punching composite materials are reviewed. This review concentrates mainly on the needle punching automatic forming equipment technology suitable for special-shaped fabrics, including the needle punching forming equipment for rotating preforms and free-form surface preforms. The existing needle technology and the new structures of three-dimensional needled fabrics, including multiple component hybrid needled fabrics, needled/stitched coupled needle-punched fabrics, contoured needld fabrics and gradient needled fabrics are summarized, and the experimental characterization, theoretical analysis and numerical simulation research progress of three-dimensional needled composites are also analyzed. Finally, the current development level and challenges of 3-D needle punching technology are discussed, and the future development trend of 3-D needle punching technology is prospected.

Key words: three-dimensional needle punching equipment, needle punching, three-dimensional needle punched fabric, three-dimensional needle punched composite, needle punching technology

CLC Number:

  • TB33

Fig.1

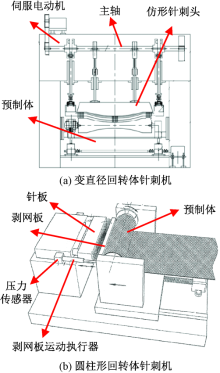

Special needle punching equipment for rotary preform. (a) Variable diameter rotary needle punching machine; (b) Cylindrical rotary body needle punching machine"

Fig.2

Flexible needle punching equipment for rotary preform"

Fig.3

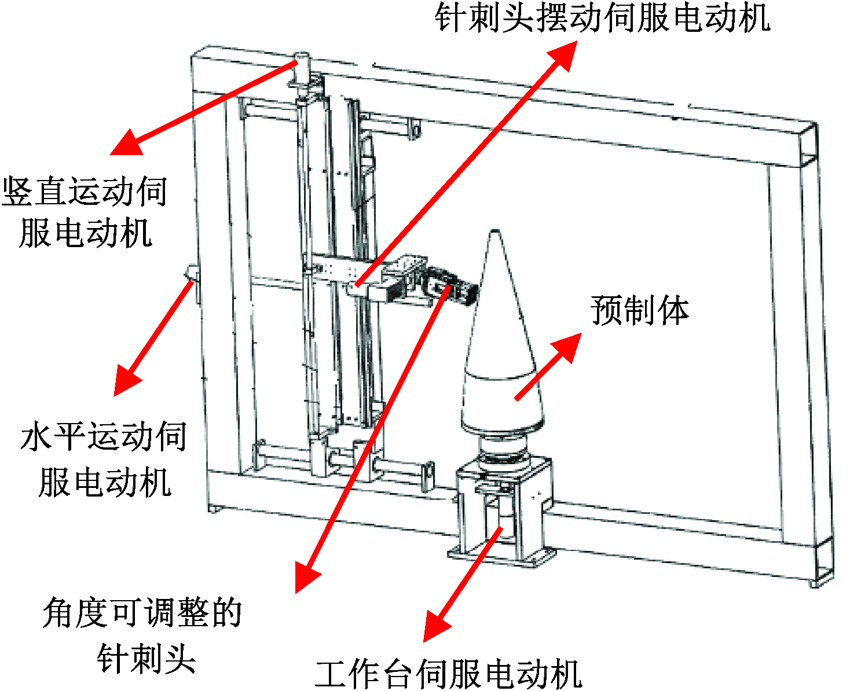

Needle punching robot for free-form surfaces preform"

Fig.4

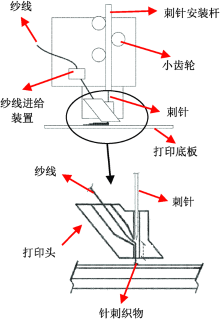

3D printer for needle-punched fabric"

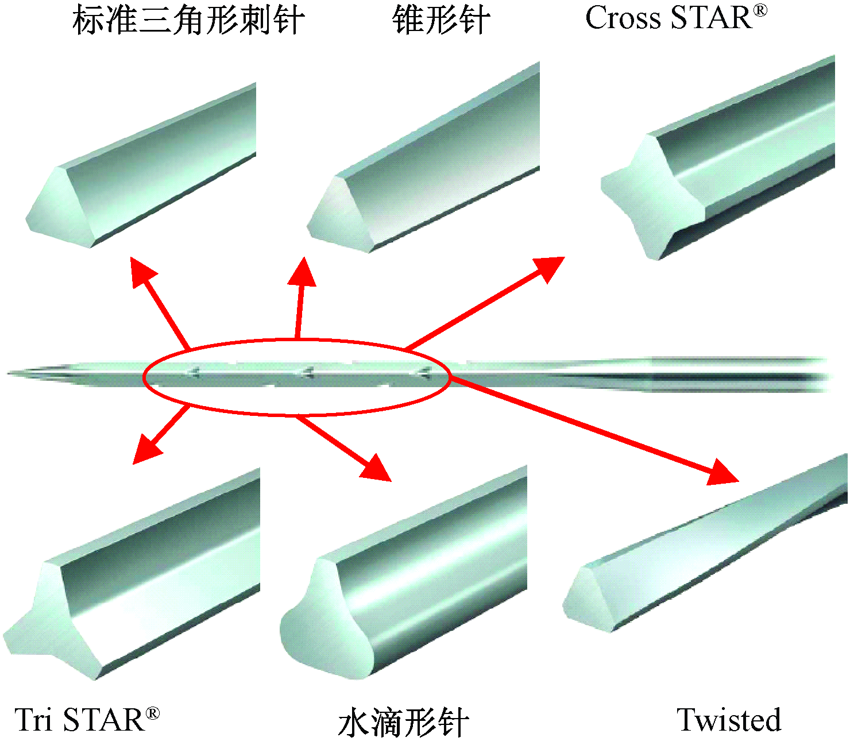

Fig.5

Cross section of Groz-Beckert needles"

Fig.6

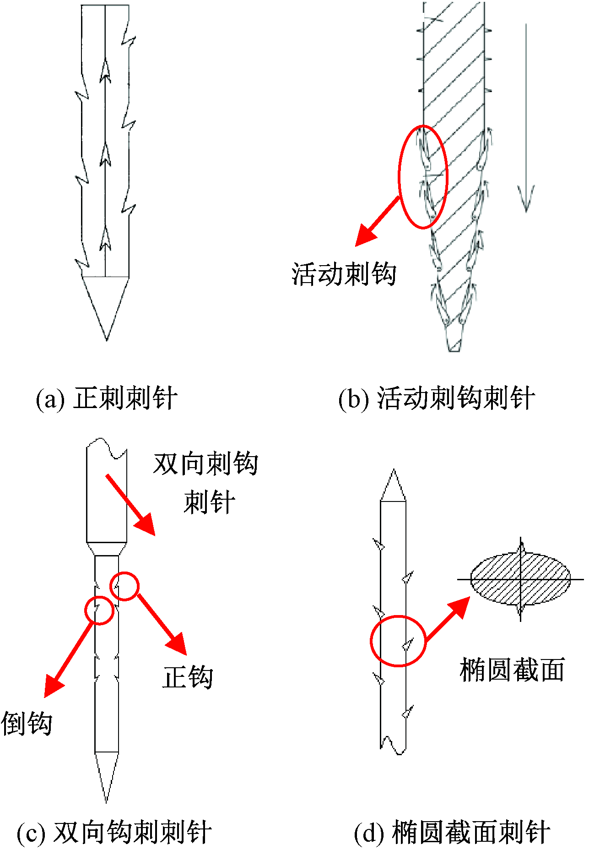

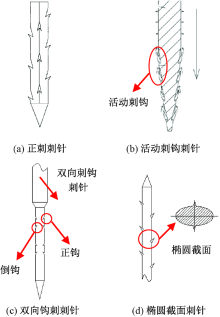

New three-dimensional needle punching needles. (a) Positive barb needle; (b) Movable barb needle; (c) Two-way barb needle; (d) Elliptical cross section needle"

Fig.7

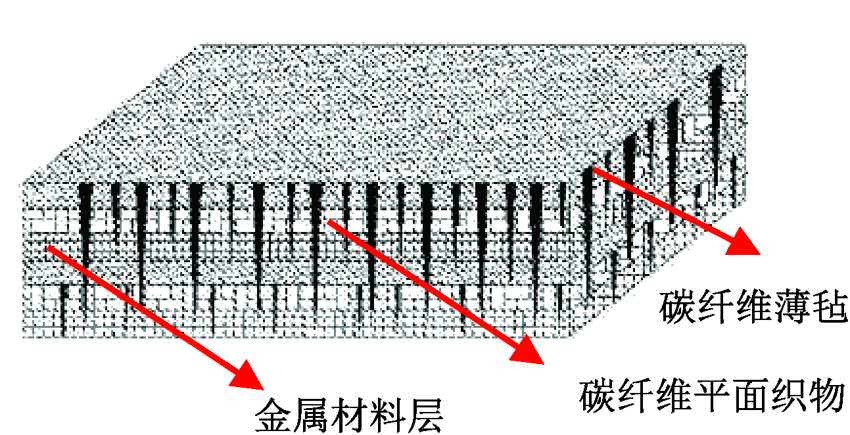

Multi-component hybrid needle punched fabric"

Fig.8

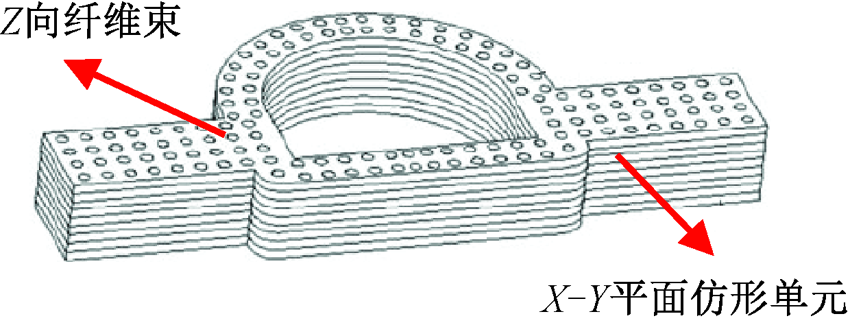

Contoured needle-punched fabric"

Fig.9

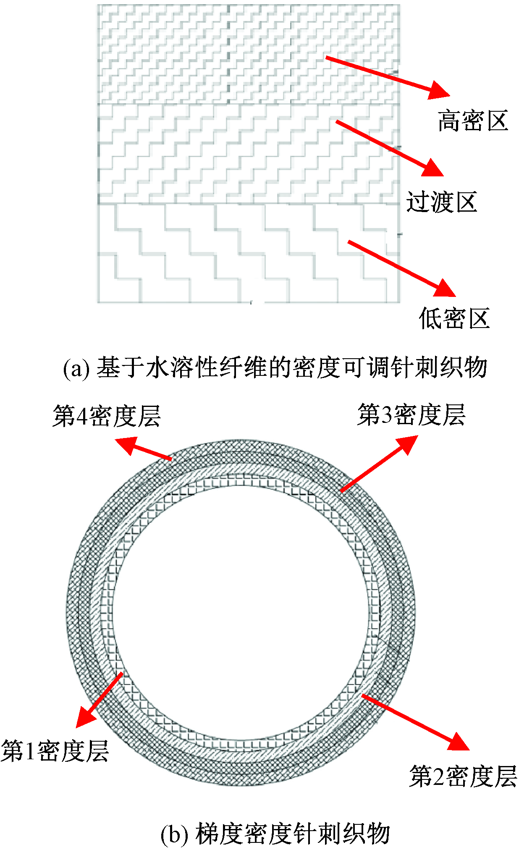

Gradient needle punched fabric. (a) Density adjustable needle punched fabric based on water-soluble fiber; (b) Gradient density needle punched fabric"
