Journal of Textile Research ›› 2021, Vol. 42 ›› Issue (10): 61-66.doi: 10.13475/j.fzxb.20200907006

• Textile Engineering • Previous Articles     Next Articles

Measurement method of yarn torque using a free rotor

HONG Yan1, SHEN Xiaolin1(), TIAN Ye2, WU Sanbao2, YANG Jin2

  1. 1. State Key Laboratory of New Textile Materials and Advanced Processing Technologies, Wuhan Textile University,Wuhan, Hubei 430200, China
    2. Guangdong Esquel Textile Co., Ltd., Foshan, Guangdong 528000, China
  • Received:2020-09-27 Revised:2021-06-21 Online:2021-10-15 Published:2021-10-29
  • Contact: SHEN Xiaolin E-mail:shen@wtu.edu.cn

Abstract:

In order to measure accurately the torque of the yarn to match the yarn steaming standard, and to reduce the probability of skewed weft in fabrics due to the residual torque of the yarn, a method was proposed to detect the torque of yarn with the use of a free rotor as the core. Firstly, the free rotor was connected to the end of the yarn before starting to rotate smoothly under the action of electromagnetic damping. The photoelectric sensor was placed to scan the rotating status and to transmit the captured photoelectric signal to the computer, for studying the relationship between the rotor's rotation angle and time to obtain the angular acceleration versus time curve by means of the second order of differentiation using Origin. Upon the availability of the initial angular acceleration of the rotor from the curve, and the torque of the test yarn can be quickly and efficiently obtained by multiplying the initial angular acceleration and the rotor's rotational inertia. The experimental results show that the method can accurately measure the torque of various yarns with small relative error, which not only has a broad application prospect in today's textile production testing, but also provides a new way of thinking in the field of yarn torque research.

Key words: yarn, torque, free rotor, photoelectric sensor, angular acceleration, rotational inertia

CLC Number:

  • TS103

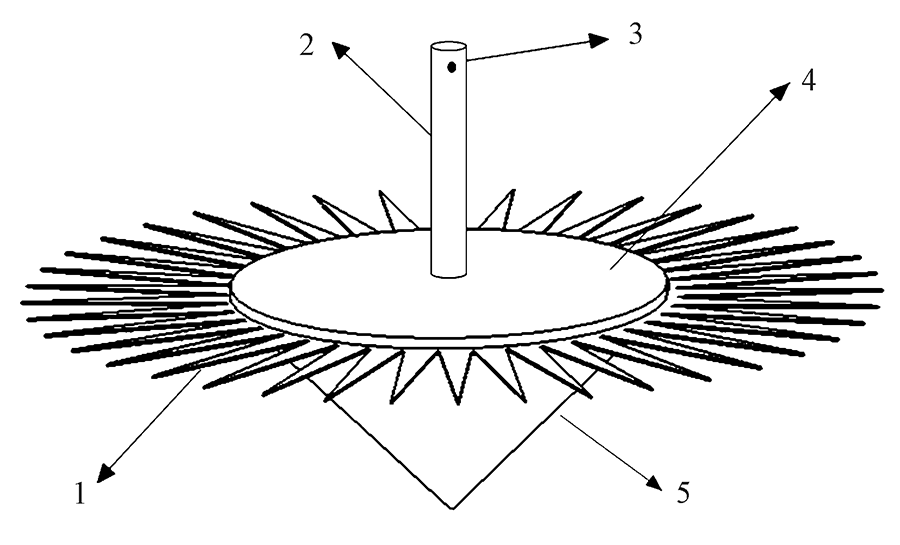

Fig.1

Detailed structure of rotor"

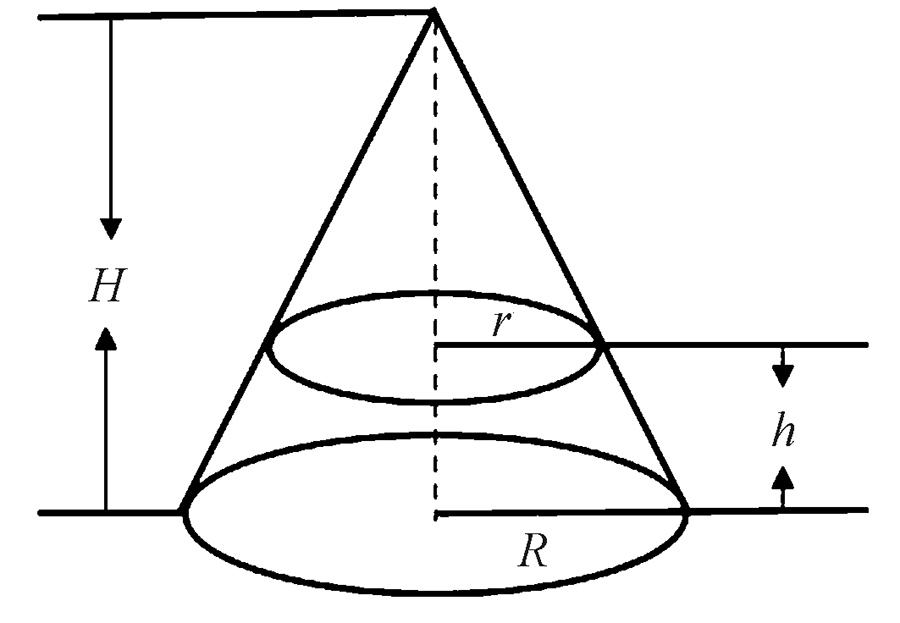

Fig.2

Cone chassis"

Tab.1

Parameters of sample yarn"

纱线类别 捻度/(捻·m-1) 线密度/tex 直径/mm
白色纱线 800 47.1 0.254
蓝色纱线 630 29.2 0.198
粉红色纱线 630 29.2 0.195
紫色纱线 630 29.2 0.201
深红色纱线 840 19.4 0.163
绿色纱线 840 19.4 0.165
棕色纱线 840 19.4 0.159

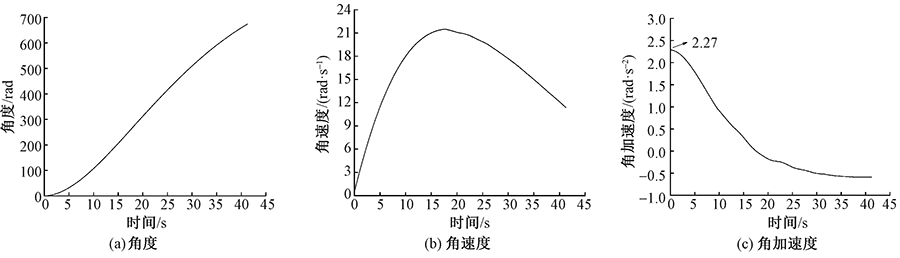

Fig.3

Relationship curve between angle(a),angular velocity(b),angular acceleration(c)and time of rotor"

Tab.2

Test data of different length yarns"

纱线长度/
cm
转子角加速度平
均值/(rad· s - 2)
变异系
数/%
纱线的扭
矩/10-6(N·m)
8 2.30 0.82 1.52
10 2.26 0.79 1.49
12 2.28 0.62 1.51
14 2.27 1.04 1.50
16 2.31 0.91 1.53
18 2.26 1.01 1.49
20 2.27 0.92 1.50
22 2.28 1.24 1.51

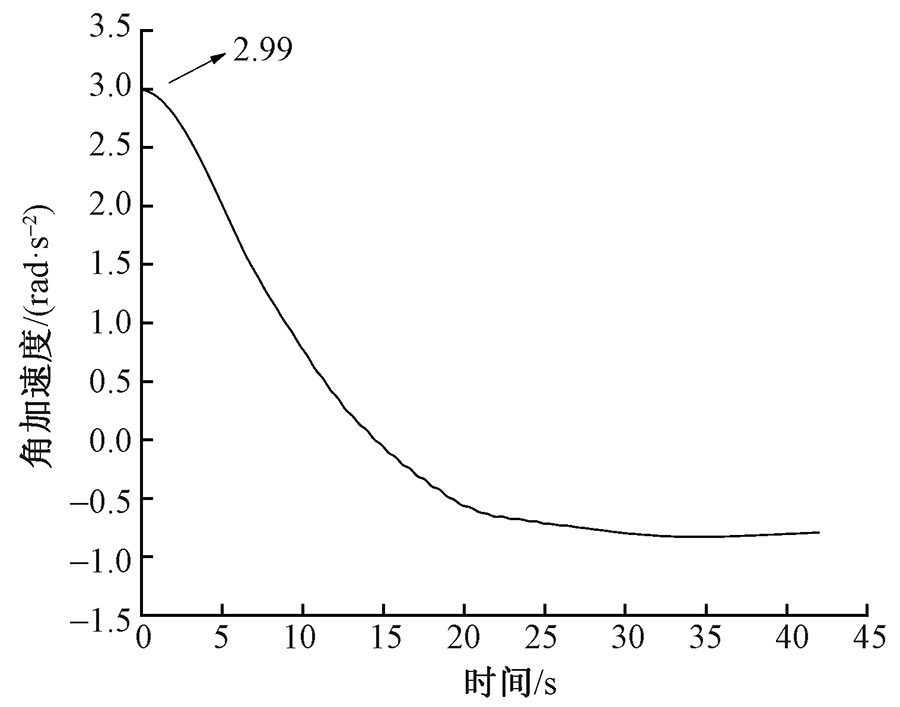

Fig.4

Relationship curve between rotor angular acceleration and time"

Tab.3

Test data of yarns with different twist"

纱线捻度/
(捻·m-2)
转子角加速度平
均值/(rad· s - 2)
变异系
数/%
纱线的扭矩/
10-7(N·m)
530 0.73 1.94 4.83
563 0.82 1.09 5.42
597 0.89 1.59 5.88
630 1.40 1.01 9.25
663 1.85 1.60 12.2
697 2.03 0.82 15.2
730 2.62 1.08 17.3
763 3.09 1.02 20.4
797 3.43 0.86 22.7

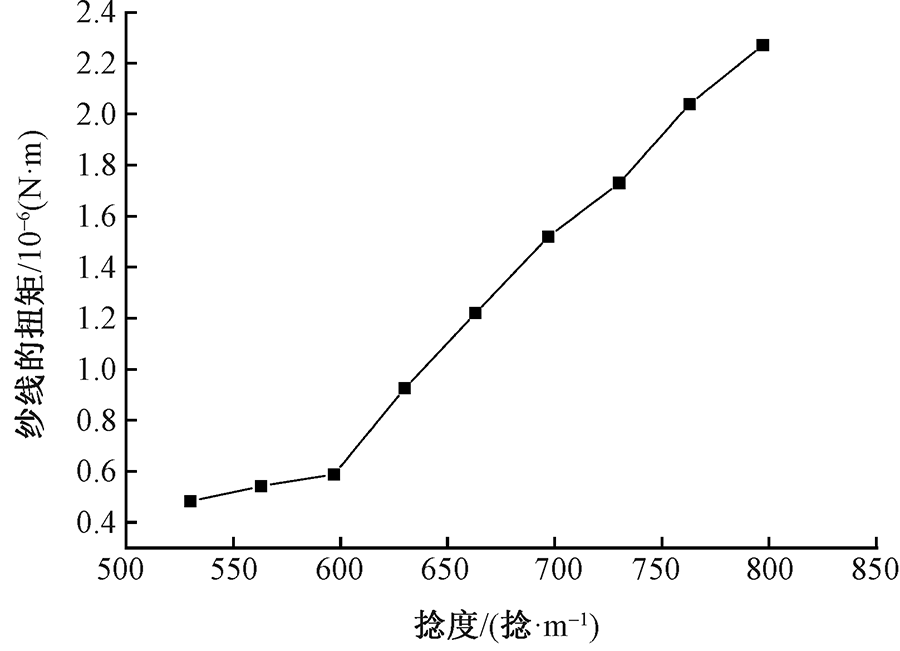

Fig.5

Relationship curve between yarn torque and twist for different twisting degrees"

Tab.4

Test data of yarns with same linear density and different colors"

纱线
类型
转子角加速度平
均值/(rad·s-2)
变异系
数/%
纱线的扭
矩/10-7(N·m)
29.2 tex粉红色纱线 1.34 1.70 8.86
29.2 tex蓝色纱线 1.40 1.35 9.25
29.2 tex紫色纱线 1.29 1.10 8.53
19.4 tex绿色纱线 1.09 0.82 7.20
19.4 tex棕色纱线 1.36 1.04 8.99
19.4 tex深红色纱线 1.20 1.39 7.93
