Information model of sweater production workshops based on OPC unified architecture and its application

JIN Guiyang1,2, CHEN Gang3(), SUN Pingfan4

  1. 1. Intelligent Equipment Research Institute, Ningbo Polytechnic, Ningbo, Zhejiang 315806, China
    2. Faculty of Mechanical Engineering & Mechanics, Ningbo University, Ningbo, Zhejiang 315210, China
    3. School of Automation, Zhejiang Institute of Mechanical & Electrical Engineering, Hangzhou, Zhejiang 310059, China
    4. Ningbo Cixing Co., Ltd., Ningbo, Zhejiang 315336, China
  • Received:2021-02-01 Revised:2021-11-24 Online:2022-03-15 Published:2022-03-29
  • Contact: CHEN Gang E-mail:bastarcg@163.com

RichHTML

4

PDF (PC)

54

Abstract:

In order to facilitate information communication between different systems of sweater production digital workshops, and an interconnected network architecture for sweater production digital workshops based on OPC unified architecture (UA) was proposed aiming at the interaction of relevant production information at different levels of the enterprise during the sweater production process. Based on the object model of ISA 95 standard and OPC UA modeling technology, a standard information model of sweater production digital workshops was constructed. The model structure, static attribute set, process attribute set and function component set were described and defined. Taking the computerized flat knitting machine as an example, a representative model, instantiation and information interaction between workshop systems were presented. Based on the proposed interconnected network architecture and the standard information model, the interconnection and interoperation among all levels of systems in sweater production digital workshops were achieved, tackling the problem of heterogeneous and fragmented information.

Key words: sweater production, digital workshop, information model, OPC unified architecture, computerized flat knitting machine

CLC Number:

  • TH166

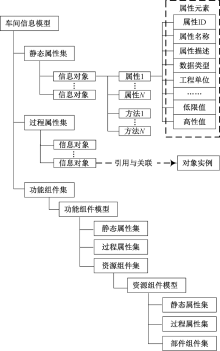

Fig.1

OPC UA information model structure"

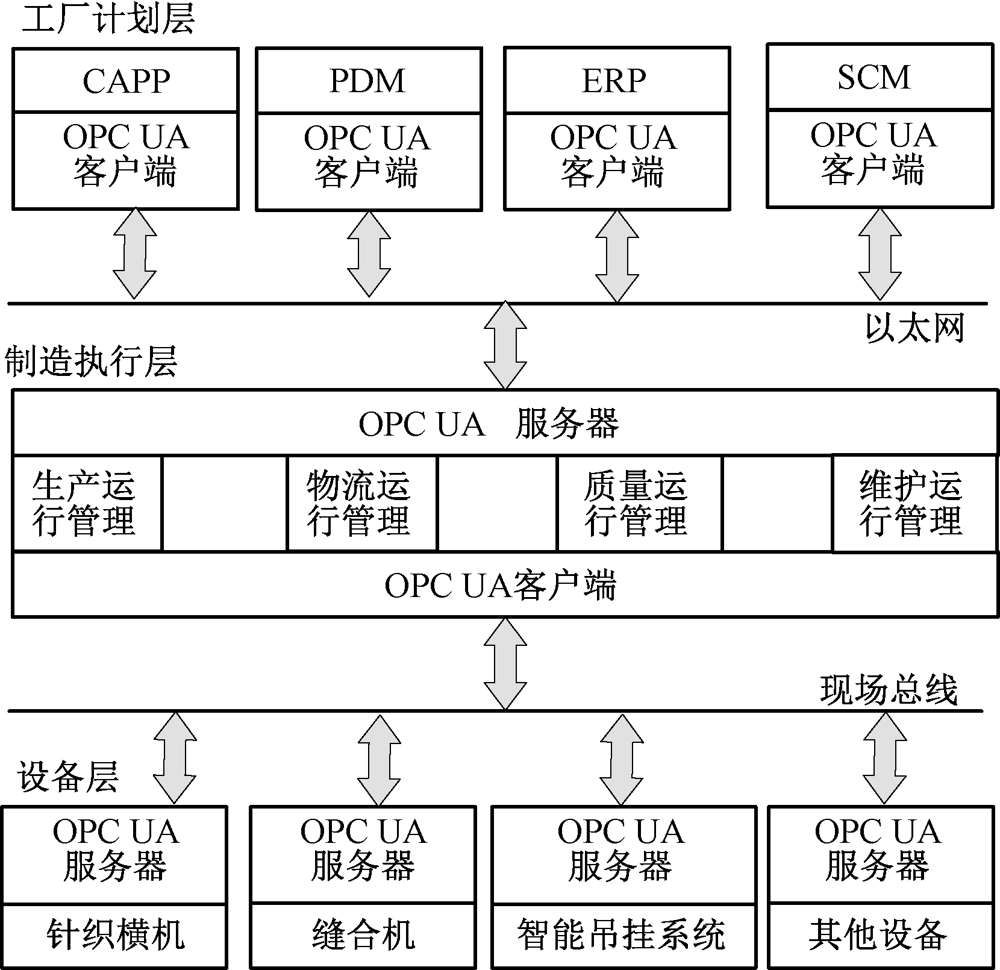

Fig.2

OPC UA based interconnected network architecture in sweater production digital workshop"

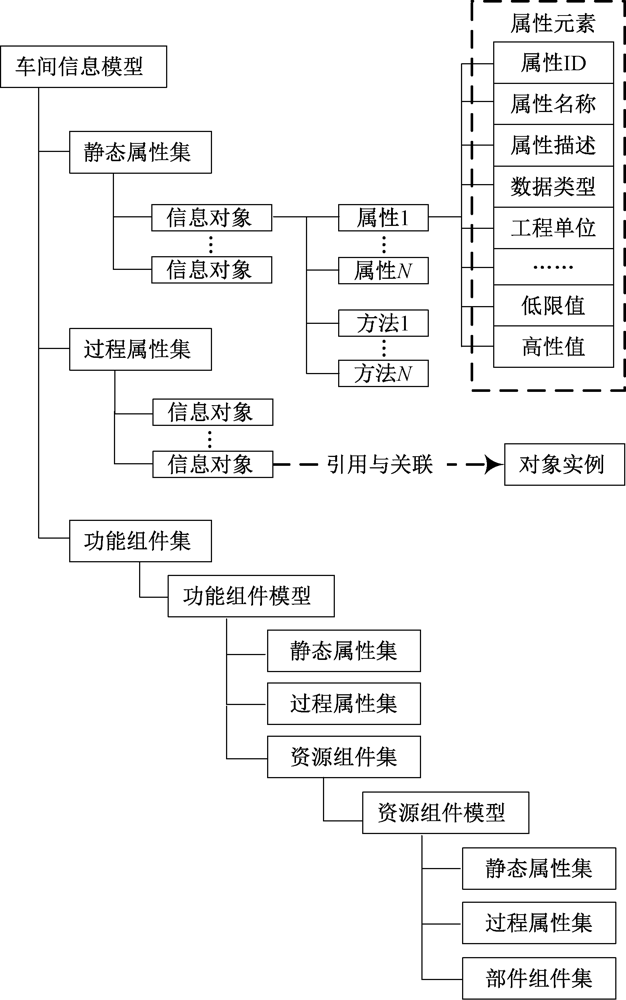

Fig.3

Information model architecture of sweater production digital workshop"

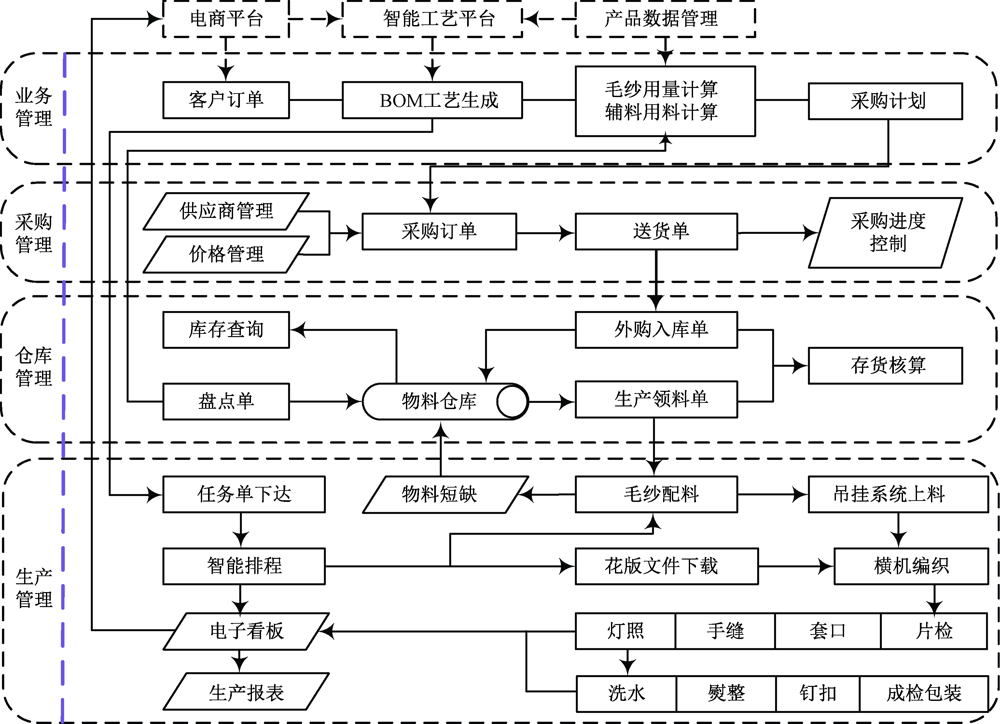

Fig.4

Sweater personalized order digital workshop production process"

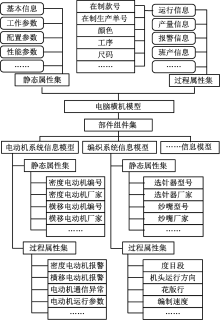

Fig.5

Standard information model of computerized flat knitting machine"

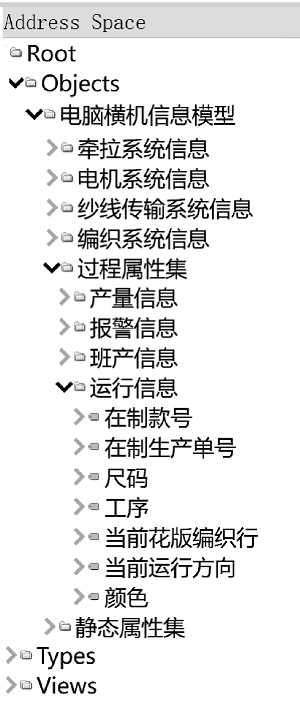

Fig.6

Node address space model of knitting machine"

Fig.7

Information interface of single computerized flat knitting machine"
