Preparation of 3D printed weft plain knitted fabric

CHENG Yanting1,2, MENG Jiaguang1,2(), XUE Tao1,2, ZHI Chao1,2

  1. 1. School of Textile Science and Engineering, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
    2. Key Laboratory of Functional Textile Material and Product, Ministry of Education, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
  • Received:2021-04-02 Revised:2022-05-04 Online:2022-09-15 Published:2022-09-26
  • Contact: MENG Jiaguang E-mail:mengjiaguang@126.com

RichHTML

16

PDF (PC)

72

Abstract:

In order to study the structure of weft plain knitted clothing fabrics produced by 3D printed, predict its printing effect and improve the digital and intelligent production of knitting fabrics, 3D printing technology was applied to the design and production of knitting fabrics. 3ds Max software was used to model the weft plain knitted fabric based on the NURBS curve modeling method and the Peirce loop model. The visualization of 3D printed weft plain knitted fabric was achieved and the printing effect was able to be predicted through simulation. Repetier-Host software was used to slice the simulated 3D printed weft plain knitted fabric model. The printing parameters were set and the model slice data was printed by fused deposition modeling technology, the 3D printed weft plain knitted fabrics were obtained. The results show that the effect of the printed fabrics is highly consistent with the simulated effects, and the intermeshing relationship between the loops is obvious. The printed fabrics are smooth and flat and the printing accuracy is high. The printed fabrics are environmental friendly fabrics.

Key words: weft plain knitted structure, three-dimensional simulation, fused deposition modeling technology, 3D printed fabric, polylactic acid material

CLC Number:

  • TS184

Fig.1

Principle of FDM technology"

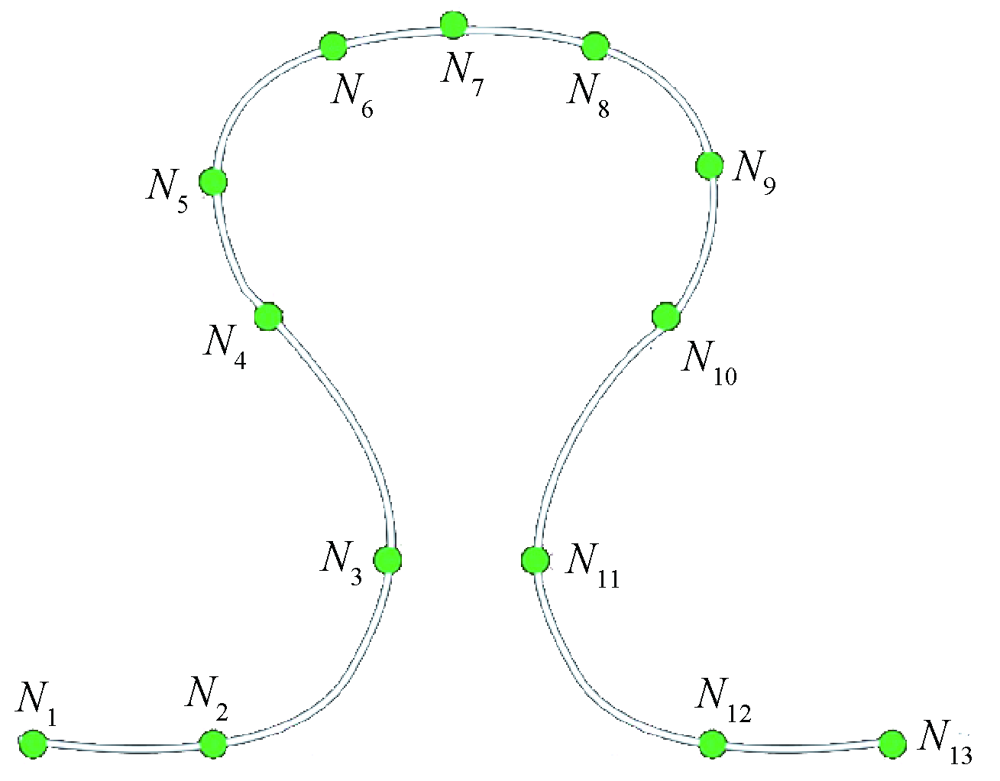

Fig.2

Single loop control point of weft plain knitted structure"

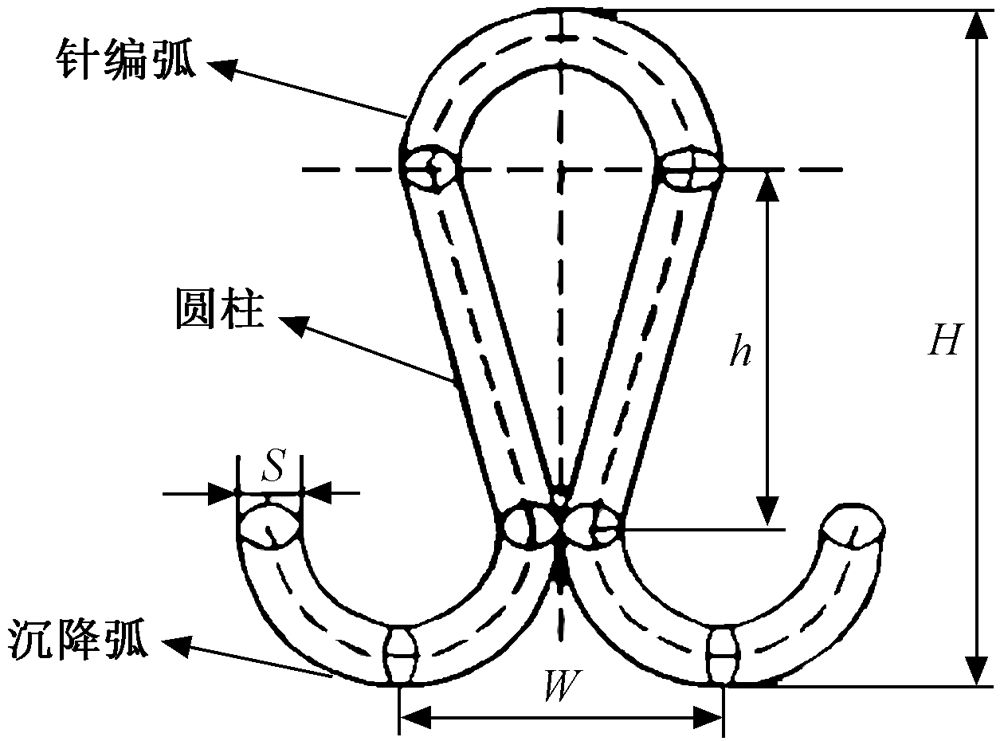

Fig.3

Peirce loop model"

Fig.4

Weft plain knitted fabric"

Tab.1

Single loop control point of weft plain knitted structure"

控制点 X/mm Y/mm Z/mm
N1 0.000 0.000 0.000
N2 1.080 0.162 0.000
N3 1.500 0.762 0.720
N4 1.080 0.162 0.720
N5 0.600 2.400 0.720
N6 1.080 3.00 0.000
N7 1.920 3.120 0.000
N8 2.760 3.000 0.000
N9 3.240 2.400 0.720
N10 2.760 1.602 0.720
N11 2.340 0.760 0.720
N12 2.760 0.162 0.000
N13 3.840 0.000 0.000

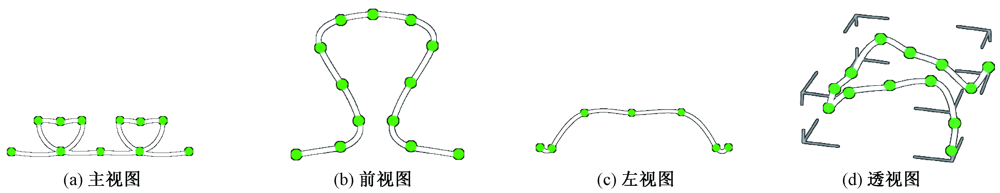

Fig.5

Single loop axis path simulation of weft plain knitted structure. (a) Main view; (b) Front view;(c) Left view;(d) Perspective view"

Fig.6

Simulation renderings of weft plain knitted structure. (a) Front rendering; (b) Negative rendering"

Fig.7

Comparison of 3D printed weft plain knitted fabric and weft plain fabric knitted by flat knitting machine. (a) Front renderings; (b) Negative renderings"
