Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (10): 126-132.doi: 10.13475/j.fzxb.20210807107

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Bionic construction of three-dimentional super hydrophobic microfiber suede leather

GAO Qiang1, FAN Haojun1(), YAN Jun1, CHEN Yuguo2, ZHENG Ping2

  1. 1. Key Laboratory of Leather Chemistry and Engineering, Ministry of Education, Sichuan University, Chengdu, Sichuan 610065, China
    2. Shandong Tianqing Technology Development Co., Ltd., Dezhou, Shandong 253000, China
  • Received:2021-08-18 Revised:2022-07-14 Online:2022-10-15 Published:2022-10-28
  • Contact: FAN Haojun E-mail:fanhaojun@scu.edu.cn

RichHTML

11

PDF (PC)

51

Abstract:

In order to tackle the poor durability of 2-D super hydrophobic microfiber suede leather, a construction method of 3-D super hydrophobic microfiber suede was proposed inspired by the hydrophobic structure of lotus leaf surface and the special 3-D network structure of microfiber nonwoven. The mixture of fluorine-containing waterborne polyurethane and nano precursor (tetraethoxysilane) was uniformly impregnated to superfine fiber nonwoven, and under weak acid conditions the nano precursor was induced to in-situ generate nano SiO2 particles inside the microfiber suede, which formed a lotus-like micro/nano rough surface with overall self-similarity. A 3-D super hydrophobic microfiber suede leather was bionically constructed, and its morphology, chemical composition, contact angle, friction durability and chemical stability were measured and characterized. The results show that the water contact angle of microfiber suede surface is up to 153.5°. After 2 100 times of abrasion, soaking for 24 h in aqueous solutions (pH=1 and 14) containing ethanol, p-xylene, tetrahydrofuran, and n-hexane, soap washing for 10 times, exposing to UV light for 24 h, and heat treatment, the water contact angle is still around 150°, demonstrating a durable 3-D super hydrophobicity.

Key words: bionic, microfiber, synthetic leather, suede leather, super hydrophobic, self-similarity

CLC Number:

  • TS565

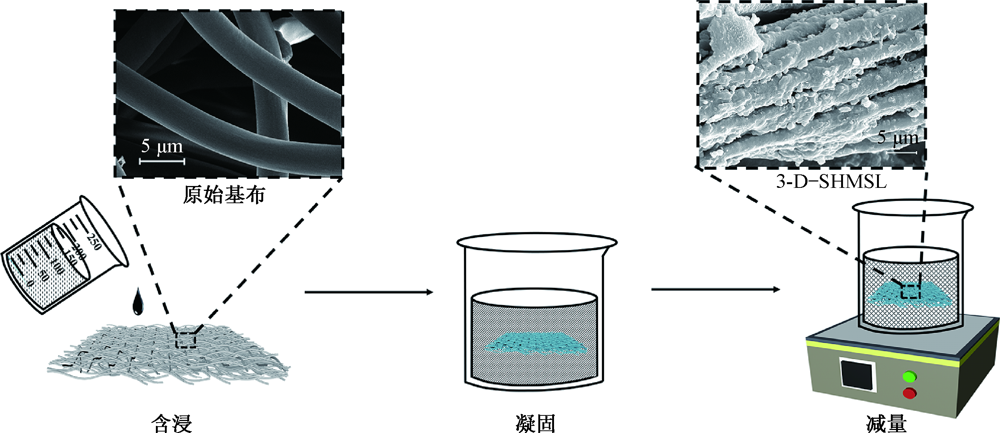

Fig.1

Preparation route of 3-D-SHMSL"

Tab.1

Water contact angles and sliding angles of various samples with different concentrations of TEOS"

TEOS质量分数/% 水接触角/(°) 滑动角/(°)
0.3 139.7 90
0.9 143.3 60
1.5 146.8 30
3.0 149.6 20
6.0 152.0 10
9.0 153.5 8
15.0 153.8 5
30.0 154.2 6

Fig.2

SEM images of different samples. (a) Blank sample; (b) 3-D-SHMSL"

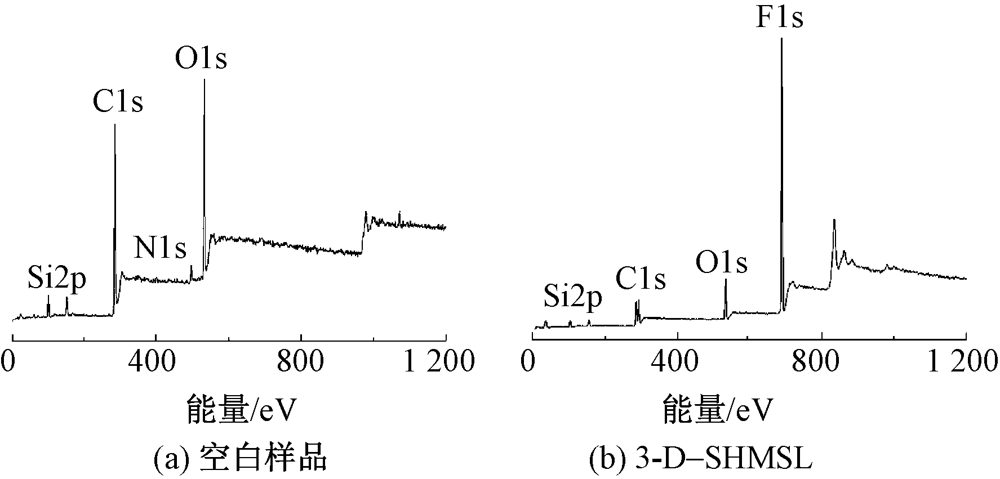

Fig.3

XPS spectra of different samples. (a)Blank sample;(b)3-D-SHMSL"

Fig.4

Water droplet on surface, interface and cross-section of 3-D-SHMSL"

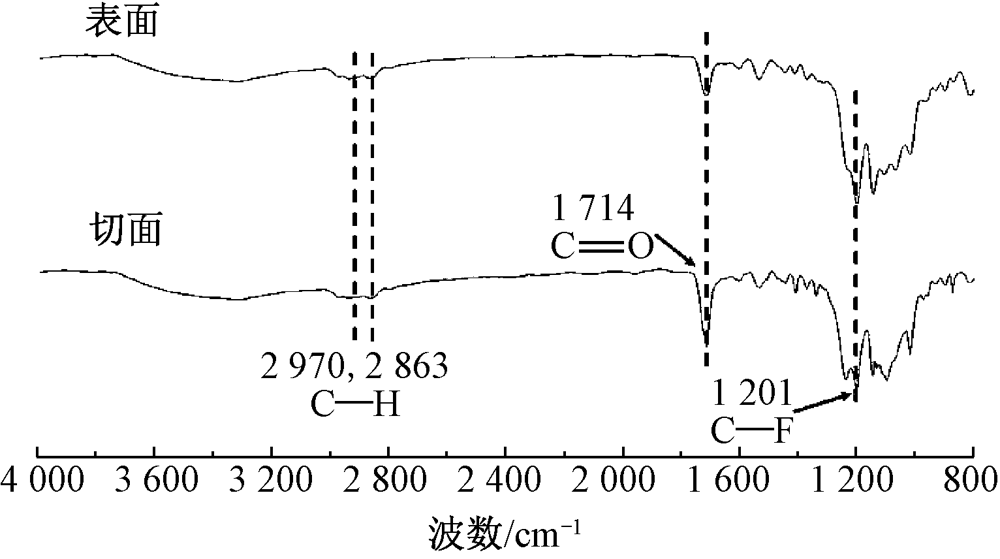

Fig.5

ATR-FTIR spectra of different regions on 3-D-SHMSL"

Fig.6

SEM images of different positions of 3-D-SHMSL. (a)Surface(×1 000);(b)Interface(×1 000);(c)Cross-section(×100)"

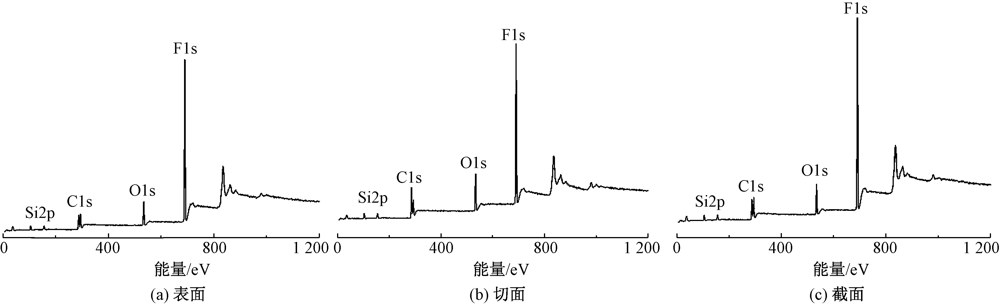

Fig.7

XPS spectra of different positions of 3-D-SHMSL. (a)Surface;(b)Interface;(c)Cross-section"

Tab.2

Relative element content of 3-D-SHMSL at different positions%"

样品 C O N Si F
表面 35.89 9.76 0.83 5.33 48.19
切面 35.68 11.32 0.63 5.68 46.69
截面 36.35 10.33 0.57 5.44 47.31

Tab.3

Relationship between water contact angles, sliding angles and abrasion cycles"

摩擦次数 水接触角/(°) 滑动角/(°)
0 152.80 8.0
200 150.97 6.0
400 152.47 7.5
600 150.35 6.5
800 151.25 7.2
1 200 153.75 7.6
1 800 150.50 7.9
2 100 152.00 7.7

Fig.8

SEM images(×1 000)(a)and XPS spectrum(b)of abraded 3-D-SHMSL"

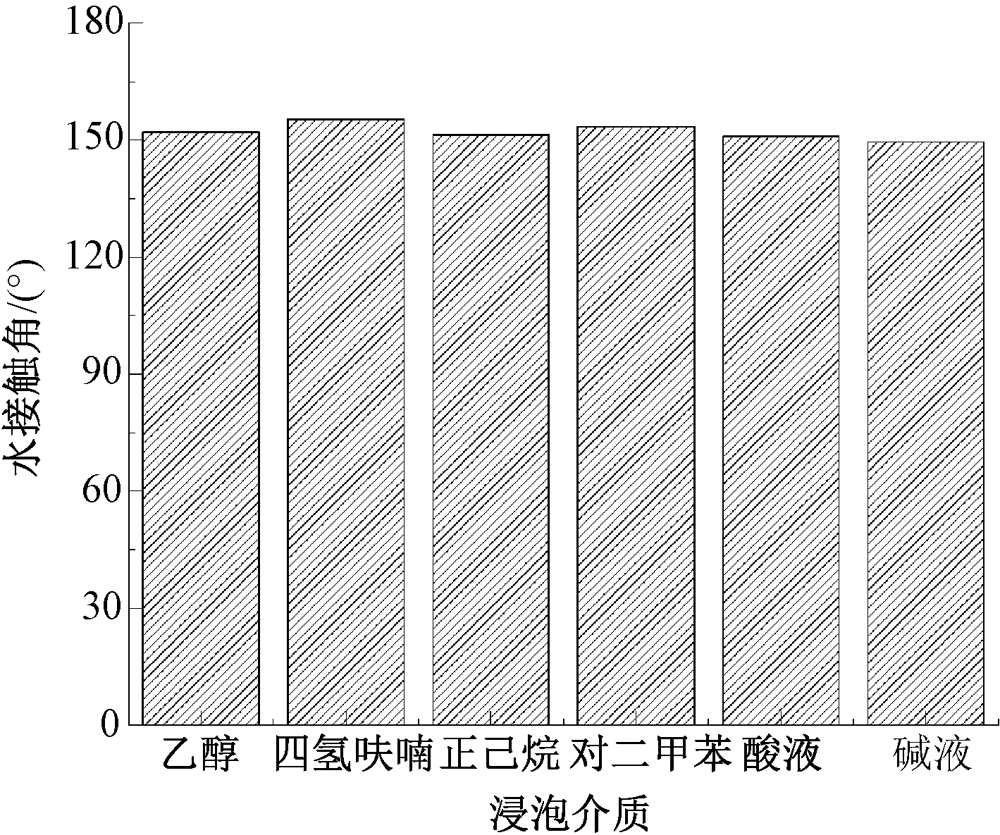

Fig.9

Water contact angles of 3-D-SHMSL after immersion into different media for 24 hours"

Tab.4

Relationship between water contact angles, sliding angles and temperature"

温度/℃ 水接触角/(°) 滑动角/(°)
20 152.00 8.0
30 155.30 7.1
40 151.27 7.0
50 153.47 7.6
60 149.97 7.7
70 150.93 10.0
80 152.05 11.0
90 149.57 11.0

Fig.10

Changes of water contact angles and sliding angles with UV-irradiation time"

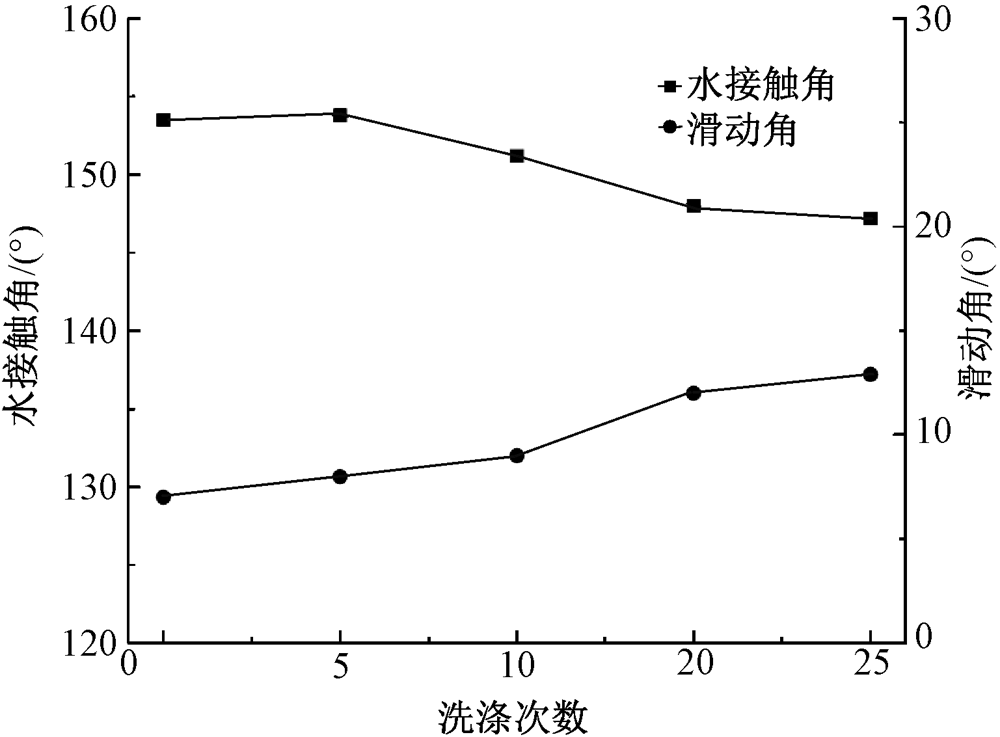

Fig.11

Changes of water contact angles and sliding angles with washing times"

[1] 范浩军, 陈意, 颜俊. 人造革/合成革材料及工艺学[M]. 北京: 中国轻工业出版社, 2017:216-218.
FAN Haojun, CHEN Yi, YAN Jun. Artificial leather/synthetic leather materials and technology[M]. Beijing: China Light Industry Press, 2017: 216-218.
[2] 曹意, 陈韶娟, 尹德河, 等. 碱溶性涤纶/锦纶6海岛纤维各组分性能解析[J]. 纺织学报, 2018, 39(9):15-21.
CAO Yi, CHEN Shaojuan, YIN Dehe, et al. Analysis on components properties of alkali-soluble polyester/polyamide 6 sea island fiber[J]. Journal of Textile Research, 2018, 39(9):15-21.
doi: 10.1177/004051756903900103
[3] 祝彬. 超细纤维合成革用水性聚氨酯的研究进展[J]. 中国皮革, 2020, 49(4):32-36.
ZHU Bin. Research progress of waterborne polyurethane for superfine fiber synthetic leather[J]. China Leather, 2020, 49(4):32-36.
[4] 朵永超, 钱晓明, 赵宝宝, 等. 超细纤维合成革基布的制备及其性能[J]. 纺织学报, 2020, 41(9):81-87.
DUO Yongchao, QIAN Xiaoming, ZHAO Baobao, et al. Preparation and properties of microfiber synthetic leather base[J]. Journal of Textile Research, 2020, 41(9):81-87.
[5] DARMANIN T, GUITTARD F. Superhydrophobic and superoleophobic properties in nature[J]. Materials Today, 2015, 18(5): 273-285.
doi: 10.1016/j.mattod.2015.01.001
[6] BARTHLOTT W, NEINHUIS C. Purity of the sacred lotus, or escape from contamination in biological surfaces[J]. Planta, 1997, 202(1): 1-8.
doi: 10.1007/s004250050096
[7] LI H, FENG X, PENG L Y, et al. Durable lubricant-infused coating on a magnesium alloy substrate with anti-biofouling and anti-corrosion properties and excellent thermally assisted healing ability[J]. Nanoscale, 2020, 12(14): 7700-7711.
doi: 10.1039/c9nr10699e pmid: 32211633
[8] CASAS C, BOU J, OLLÉ L, et al. Development of nanocomposites with self-cleaning properties for textile and leather[J]. Journal of the Society of Leather Technologists and Chemists, 2018, 102(1): 33-41.
[9] XU W, ZHAO W, HAO L, et al. Synthesis of novel cationic fluoroalkyl-terminated hyperbranched polyurethane latex and morphology, physical properties of its latex film[J]. Progress in Organic Coatings, 2018, 121: 209-217.
doi: 10.1016/j.porgcoat.2018.04.034
[10] GURERA D, BHUSHAN B. Fabrication of bioinspired superliquiphobic synthetic leather with self-cleaning and low adhesion[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2018, 545: 130-137.
doi: 10.1016/j.colsurfa.2018.02.052
[11] WEN J T, SUN Z, XIANG J, et al. Preparation and characteristics of waterborne polyurethane with various lengths of fluorinated side chains[J]. Applied Surface Science, 2019, 494: 610-618.
doi: 10.1016/j.apsusc.2019.07.170
[12] ZHOU H, CHEN Y, FAN H J, et al. The polyurethane/SiO2 nano-hybrid membrane with temperature sensitivity for water vapor permeation[J]. Journal of Membrane Science, 2008, 318(1/2): 71-78.
doi: 10.1016/j.memsci.2008.02.024
[13] MAJI K, MANNA U. Hierarchically featured and substrate independent bulk-deposition of "reactive" polymeric nanocomplexes for controlled and strategic manipulation of durable biomimicking wettability[J]. Journal of Materials Chemistry A, 2018, 6(15): 6642-6653.
doi: 10.1039/C8TA00466H
[14] LI Y, REN M, LV P, et al. A robust and flexible bulk superhydrophobic material from silicone rubber/silica gel prepared by thiol-ene photopolymerization[J]. Journal of Materials Chemistry A, 2019, 7(12): 7242-7255.
doi: 10.1039/C8TA11111A
[15] ZHU L, SHI P, XUE J, et al. Superhydrophobic stability of nanotube array surfaces under impact and static forces[J]. ACS Applied Materials and Interfaces, 2014, 6(11): 8073-8079.
doi: 10.1021/am500261c
[16] WANG H, HE M, LIU H, et al. One-step fabrication of robust superhydrophobic steel surfaces with mechanical durability, thermal stability, and anti-icing function[J]. ACS Applied Materials and Interfaces, 2019, 11(28): 25586-5594.
doi: 10.1021/acsami.9b06865
[17] XU Q F, WANG J N, SANDERSON K D. Organic-inorganic composite nanocoatings with superhydrophobicity, good transparency, and thermal stability[J]. ACS Nano, 2010, 4(4): 2201-2209.
doi: 10.1021/nn901581j pmid: 20302323
[18] PENG S, YANG X, TIAN D, et al. Chemically stable and mechanically durable superamphiphobic aluminum surface with a micro/nanoscale binary structure[J]. ACS Applied Materials and Interfaces, 2014, 6(17): 15188-15197.
doi: 10.1021/am503441x
[19] BOINOVICH L, EMELYANENKO A. A wetting experiment as a tool to study the physicochemical processes accompanying the contact of hydrophobic and superhydrophobic materials with aqueous media[J]. Advances in Colloid and Interface Science, 2012, 179-182: 133-141.
[20] YONG J, CHEN F, LI M, et al. Remarkably simple achievement of superhydrophobicity, superhydrop-hilicity, underwater superoleophobicity, underwater superoleophilicity, underwater superaerophobicity, and underwater superaerophilicity on femtosecond laser ablated PDMS surfaces[J]. Journal of Materials Chemistry A, 2017, 5(48): 25249-25257.
doi: 10.1039/C7TA07528F
