Preparation and performance of electrospun membrane for Cu(Ⅱ) detection

ZHAO Meiqi, CHEN Li(), QIAN Xian, LI Xiaona, DU Xun

  1. School of Textile Science and Engineering, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
  • Received:2022-12-26 Revised:2023-03-31 Online:2024-03-15 Published:2024-04-15
  • Contact: CHEN Li E-mail:fychenli@163.com

RichHTML

20

PDF (PC)

112

Abstract:

Objective Excessive Cu(Ⅱ) content may cause gastrointestinal disorders, liver and kidney damage, and even death. Therefore, the study of convenient Cu(Ⅱ) detection method is significant for maintaining human health. At present, the Cu(Ⅱ) detection is faced with problems of high detection cost, difficult on-site detection and pollution of detection probes. In order to solve the above problems, this study proposed a convenient Cu(Ⅱ) detection material for more intuitively detecting Cu(Ⅱ) content to avoid the inability so as to timely understand the Cu(Ⅱ) content of water that poses potential health risks.

Method In this study, the natural dye lac red (Lac) was used as the Cu(Ⅱ) detection probe, and polyacrylonitrile (PAN) and polyvinylpyrrolidone (PVP) were used as the carrier of the detection probe, and the Lac/PAN/PVP fiber membrane was prepared by electrospinning method. By means of rotational viscometer, scanning electron microscope, X-ray diffractometer and infrared spectrometer, the influences of spinning solution mass fraction and blending ratio on the structures and properties of fiber membranes were studied, and the Cu(Ⅱ) detection performance of fiber membrane was investigated.

Results When the mass fraction of PAN/PVP in spinning solution was increased from 7% to 19%, the corresponding viscosity was changed from 52.5 mPa·s to 4 316.7 mPa·s. When the mass fraction of PAN/PVP in the spinning solution was 7%, a lot of beads appeared on the surface of the fiber, and the fiber diameter was (102.3±1.8) nm. As the mass fraction of PAN/PVP in spinning solution was increased to 19%, the fiber formation tended to be uniform and smooth, and the fiber diameter increases to (546.3±7.4) nm. The fibers can be formed well at different mass ratios of PAN to PVP. The fiber diameter was decreased from (220.7±2.4) nm when the mass ratio of PAN to PVP was 5∶5 to (113.9±1.3) nm when the mass ratio of PAN and PVP was 9∶1. The water contact angle of the fiber membrane was decreased from 102.2° when the mass ratio of PAN to PVP was 10∶0 to 43.0° when the mass ratio of PAN to PVP was 5∶5. The addition of PVP improved the hydrophilicity of Lac/PAN/PVP fiber membrane. The infrared spectra showed that the absorption peak at 1 041 cm-1 was enhanced in the Lac/PAN/PVP fiber membrane, caused by the introduction of more hydroxyl groups on the lac red molecule to enhance the stretching of C—O in C—OH. It meant that lac red was successfully mixed into the fiber membrane. Two crystalline structures were found in the Lac /PAN/PVP fiber membrane. The Lac/PAN/PVP fiber membrane had no significant diffraction peaks at 2θ of 32°, 46° and 56°. It was found that the lac red was fully dissolved and evenly distributed in the fiber membrane by electrospinning. Only Cu(Ⅱ) can change the hue value of Lac/PAN/PVP fiber membrane from 338.0° to 22.3°, accompanied by a color response from red to yellow. It showed that the Lac/PAN/PVP fiber membrane has good anti-interference ability. The Lac/PAN/PVP fiber membrane hue value gradually changed from 349.9° red to 38.1° yellow. 0.03 mmol/L Cu(Ⅱ) solution was able to produce an obvious color response of Lac/PAN/PVP fiber membranes, and the color response intensity was increased with the Cu(Ⅱ) concentration from 0.03 mmol/L to 0.09 mmol/L.

Conclusion Lac/PAN/PVP fibers with a good morphology and a diameter of (149.7±0.7) nm were produced when the mass fraction of PAN/PVP was 10% and the mass ratio of PAN to PVP was 7∶3. The Lac/PAN/PVP fibers were able to specifically recognize Cu(Ⅱ) in solutions containing a variety of metal ions, producing a clear color response from red to yellow. Lac/PAN/PVP fiber membranes were capable of detecting Cu(Ⅱ) up to 0.03 mmol/L with the naked eye. The use of Lac/PAN/PVP fiber membranes for Cu(Ⅱ) detection enables the visualization of Cu(Ⅱ) detection and improves the convenience of Cu(Ⅱ) detection. Lac/PAN/PVP membranes have the advantages of good interference immunity and low detection limits, thus has potential applications in the field of Cu(Ⅱ) detection.

Key words: electrospinning, lac red, polyacrylonitrile, polyvinylpyrrolidone, copper ion detection, color response, fiber membrane

CLC Number:

  • TS159

Fig.1

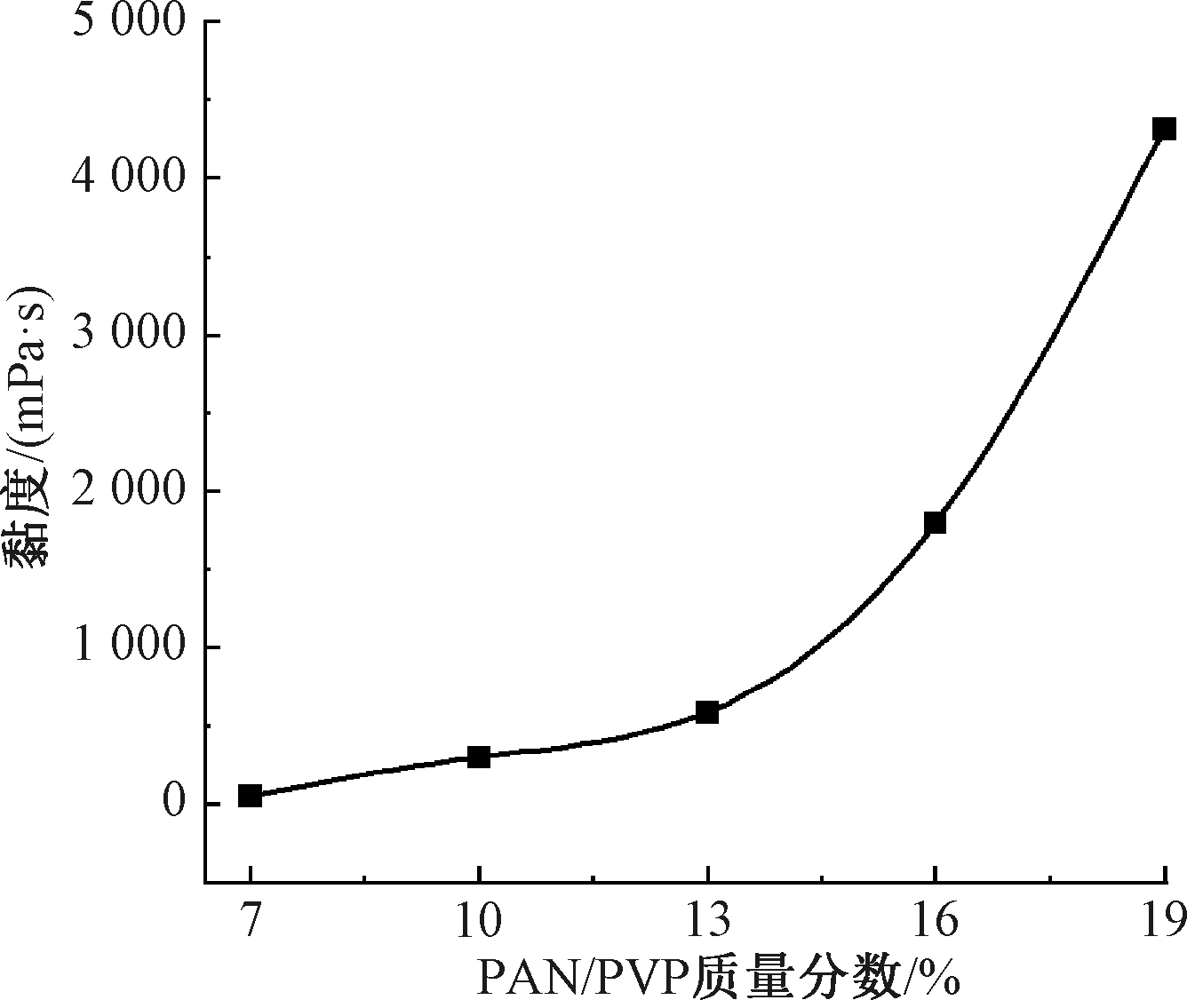

Viscosities of spinning solutions with different PAN/PVP mass fractions"

Fig.2

SEM images of Lac/PAN/PVP fiber membranes with different PAN/PVP mass fractions"

Fig.3

Diameter distribution of Lac/PAN/PVP fiber membranes with different PAN/PVP mass fractions"

Fig.4

SEM images of Lac/PAN/PVP fiber membranes with different PAN to PVP mass ratios"

Fig.5

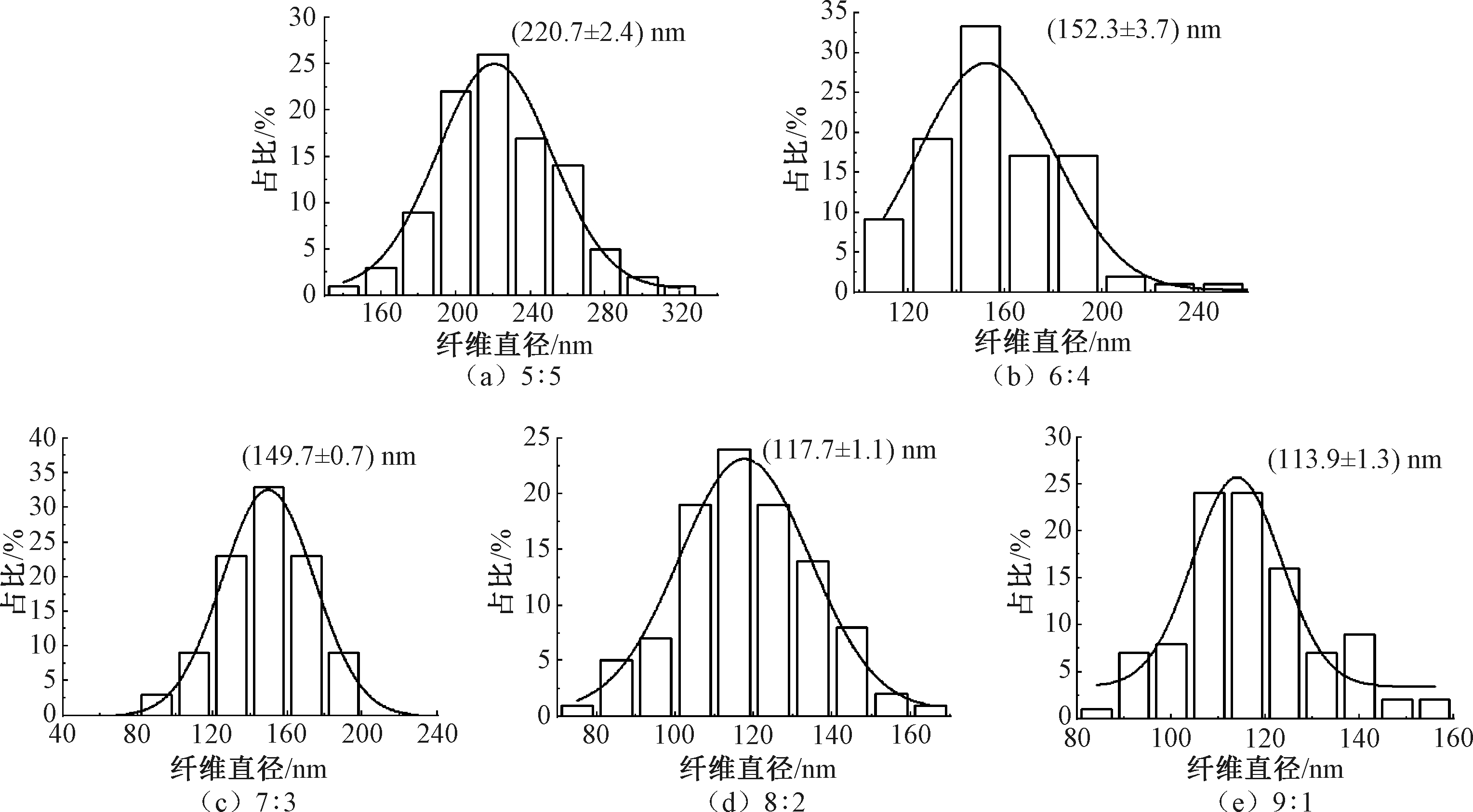

Diameter distribution of Lac/PAN/PVP fiber membranes with different PAN to PVP mass ratios"

Fig.6

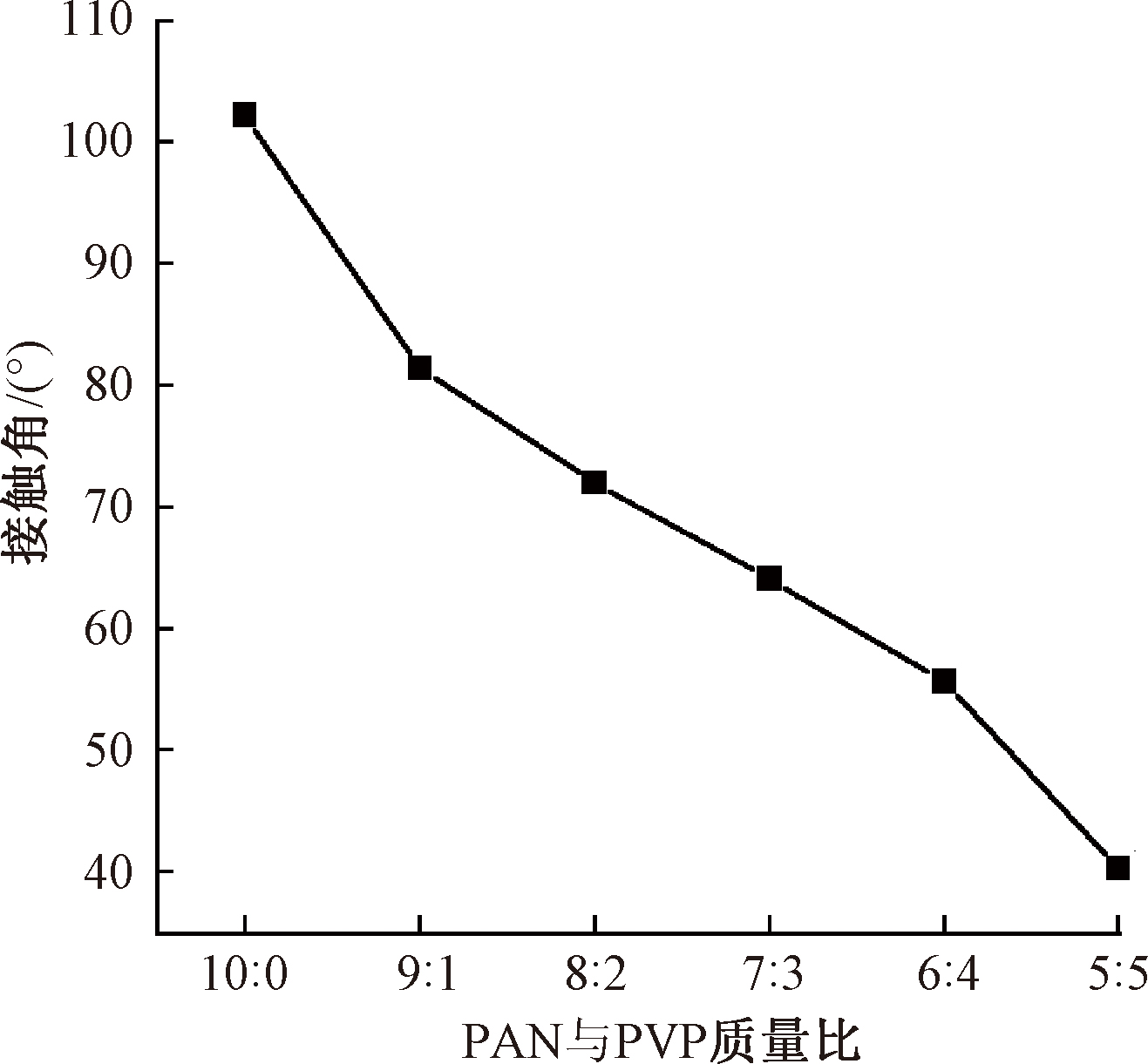

Contact angles of Lac/PAN/PVP fiber membranes with different PAN to PVP mass ratios"

Fig.7

FT-IR spectra of lac red and fiber membranes"

Fig.8

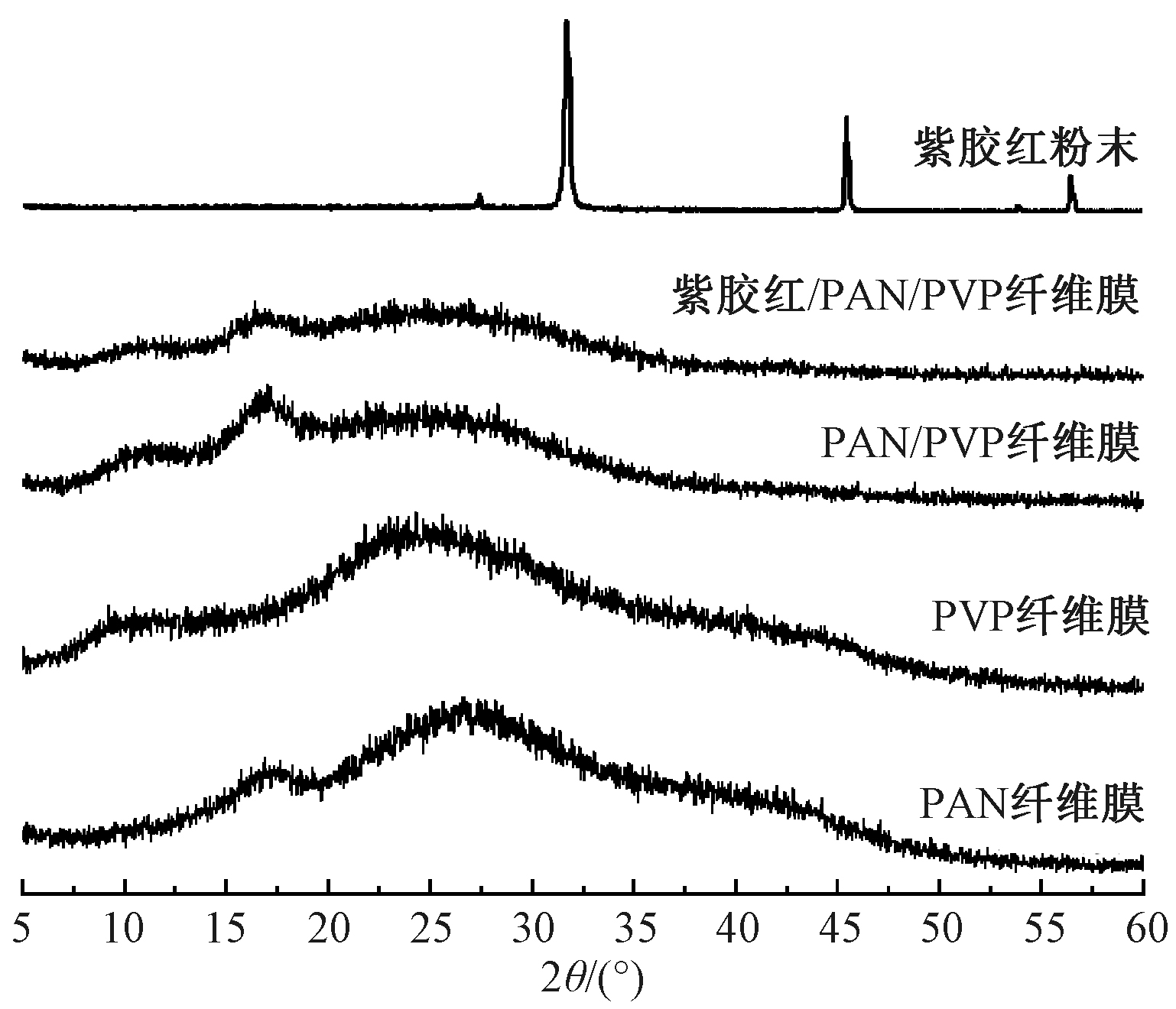

XRD patterns of lac red powder and fiber membranes with different components"

Tab.1

Hue values of Lac/PAN/PVP fiber membranes in different metal ion solutions"

金属离子溶液 色相值H/(°) 金属离子溶液 色相值H/(°)
原膜 338.0 Cu2+ 22.3
Li+ 336.7 Zn2+ 337.2
Na+ 336.4 Cd2+ 337.5
Mg2+ 336.5 Ba2+ 335.0
Al3+ 331.6 Pb2+ 336.4
K+ 339.0 Co2+ 339.6
Ca2+ 338.3 Ni2+ 340.4
Fe2+ 339.9 La3+ 336.6

Tab.2

Hue values of Lac/PAN/PVP fiber membrane in Cu2+ solution of different concentrations"

铜离子浓度/
(mmol·L-1)		 色相值
H/(°)		 铜离子浓度/
(mmol·L-1)		 色相值
H/(°)
0 349.9 0.05 32.4
0.01 0.3 0.06 32.9
0.02 0.1 0.07 36.2
0.03 16.2 0.08 36.3
0.04 23.3 0.09 38.1

Fig.9

Optical photographs of color changes of Lac/PAN/PVP fiber membrane in different solutions. (a) Color changes in different metal ion solutions; (b) Color changes in 0-0.09 mmol/L Cu2+ solution"

[1] 孙德志, 孙怡, 秦占斌, 等. 铜试剂测定溶液铜离子浓度分光光度法的改进[J]. 化学工程师, 2019, 33(3): 70-73, 40.
SUN Dezhi, SUN Yi, QIN Zhanbin, et al. Improvement of spectrophotometric method for determination of copper ions concentration in solution by copper reagent[J]. Chemical Engineer, 2019, 33(3): 70-73, 40.
[2] CHEN H, LI Z H, LIU X T, et al. Colorimetric assay of copper ions based on the inhibition of peroxidase-like activity of MoS2 nanosheets[J]. Spectrochim Acta A: Mol Biomol Spectrosc, 2017. DOI:10.1016/j.saa.2017.05.071.
[3] WU X M, WANG H, YANG S X, et al. A novel coumarin-based fluorescent probe for sensitive detection of copper(II) in wine[J]. Food Chem, 2019. DOI:10.1016/j.foodchem.2019.01.090.
[4] JI Y, GHOSH K, SHU X Z, et al. Electrospun three-dimensional hyaluronic acid nanofibrous scaffolds[J]. Biomaterials, 2006, 27(20): 3782-3792.
pmid: 16556462
[5] KI C S, GANG E H, UM I C, et al. Nanofibrous membrane of wool keratose/silk fibroin blend for heavy metal ion adsorption[J]. Journal of Membrane Science, 2007, 302(1/2): 20-26.
doi: 10.1016/j.memsci.2007.06.003
[6] 黎德. 纳米纤维基比色传感膜的制备及其对Cu(Ⅱ)检测性能研究[D]. 上海: 东华大学, 2018: 35-42.
LI De. Preparation and research of colorimetric sensor strips for copper(Ⅱ) assay based on electrospun nanofibers[D]. Shanghai: Donghua University, 2018: 35-42.
[7] ZHANG H N, YAO C C, QIN X H. A visually observable copper ion adsorption membrane by electrospinning combined with copper ion probe[J]. Fibers and Polymers, 2021, 22(7): 1844-1852.
doi: 10.1007/s12221-021-0737-z
[8] LIU Y L, SUN Y, DU J, et al. Highly sensitive and selective turn-on fluorescent and chromogenic probe for Cu2+ and ClO- based on a N-picolinyl rhodamine B-hydrazide derivative[J]. Org Biomol Chem, 2011, 9(2): 432-437.
doi: 10.1039/C0OB00411A
[9] MA L, XU Y, WANG K, et al. Synthesis and recognition properties for copper ions and cyanide anions of two coumarin hydrazide compounds[J]. Inorganic Chemistry Communications, 2015. DOI: 10.1016/j.inoche.2015.05.019.
[10] LI X J, LI Y, LIU A Y, et al. Highly selective visual sensing of copper based on fluorescence enhanced glutathione-Au nanoclusters[J]. Spectrochim Acta A: Mol Biomol Spectrosc, 2020. DOI:10.1016/j.saa.2019.117472.
[11] ZHU J X, ZHANG Y P, SHAO H L, et al. Electrospinning and rheology of regenerated Bombyx mori silk fibroin aqueous solutions: the effects of pH and concentration[J]. Polymer, 2008, 49(12): 2880-2885.
doi: 10.1016/j.polymer.2008.04.049
[12] O'REILLY R, IEONG N S, CHUA P C, et al. Crystal growth inhibition of tetrahydrofuran hydrate with poly(N-vinyl piperidone) and other poly(N-vinyl lactam) homopolymers[J]. Chemical Engineering Science, 2011, 66(24): 6555-6560.
doi: 10.1016/j.ces.2011.09.010
[13] SRIVASTAVA S, CHOWDHURY A R, MAURYA S. Antimicrobial efficacy of methylated lac dye, an anthraquinone derivative[J]. Indian J Microbiol, 2017, 57(4): 470-476.
doi: 10.1007/s12088-017-0682-0 pmid: 29151648
[14] PAGLIAI M, OSTICIOLI I, NEVIN A, et al. DFT calculations of the IR and Raman spectra of anthraquinone dyes and lakes[J]. Journal of Raman Spectroscopy, 2018, 49(4): 668-683.
doi: 10.1002/jrs.v49.4
[15] MALLAKPOUR S, KHADEM E. Novel poly(N-vinyl-2-pyrrolidone) nanocomposites containing poly(amide-imide)/aluminum oxide nanostructure hybrid as a filler[J]. High Performance Polymers, 2015, 28(1): 55-63.
doi: 10.1177/0954008315570399
[16] MAŞLAKCI N N. Development and characterization of drug-loaded PVP/PAN/Gr electrospun fibers for drug delivery systems[J]. Chemistry Select, 2021, 6(10): 2548-2560.
[17] ZHANG Y F, GUAN J M, WANG X F, et al. Balsam-pear-skin-like porous polyacrylonitrile nanofibrous membranes grafted with polyethyleneimine for postcombustion CO2 capture[J]. ACS Appl Mater Interfaces, 2017, 9(46): 41087-41098.
doi: 10.1021/acsami.7b14635
[18] HOU J Z, WANG Y H, XUE H L, et al. Biomimetic growth of hydroxyapatite on electrospun CA/PVP core-shell nanofiber membranes[J]. Polymers (Basel), 2018. DOI:10.3390/polym10091032.
[19] 沈桢, 胡毅, 尹东旭, 等. 静电纺锡/聚丙烯腈纳米纤维膜制备与表征[J]. 纺织学报, 2014, 35(9): 1-6.
SHEN Zhen, HU Yi, YIN Dongxu, et al. Preparation and characterization of electrospun Sn/polyacrylonitrile nanofiber membranes[J]. Journal of Textile Research, 2014, 35(9): 1-6.
doi: 10.1177/004051756503500101
[20] QUAN L, ZHANG H L, XU L H. The non-isothermal cyclization kinetics of amino-functionalized carbon nanotubes/polyacrylonitrile composites by in situ polymerization[J]. Journal of Thermal Analysis and Calorimetry, 2014, 119(2): 1081-1089.
doi: 10.1007/s10973-014-4241-1
[21] 郭中富. 纤维素基电纺纤维复合膜的制备及其促植物伤口愈合研究[D]. 南京: 南京林业大学, 2017: 28-29.
GUO Zhongfu. Preparation of cellulose-based electrospun fiber composite membrane and its application to promote plant wound healing[D]. Nanjing: Nanjing Forestry University, 2017:28-29.
[22] YANG S L, YIN B, XU L, et al. A natural quercetin-based fluorescent sensor for highly sensitive and selective detection of copper ions[J]. Analytical Methods, 2015, 7(11): 4546-4551.
doi: 10.1039/C5AY00375J
