Mode I interlaminar mechanical behavior of needled/stitched multi-scale interlocking composites

CHEN Xiaoming1,2,3, WU Kaijie1,2, ZHENG Hongwei2,3, ZHANG Jingyi4, SU Xingzhao2,3, XIN Shiji2,3, GUO Dongsheng1,2, CHEN Li1,2()

  1. 1. School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China
    2. Key Laboratory of Advanced Textile Composite Materials of Ministry of Education, Tiangong University, Tianjin 300387, China
    3. School of Mechanical Engineering, Tiangong University, Tianjin 300387, China
    4. Aerospace Research Institute of Materials & Processing Technology, Beijing 100080, China
  • Received:2023-07-10 Revised:2024-01-23 Online:2024-08-15 Published:2024-08-21
  • Contact: CHEN Li E-mail:chenli@tiangong.edu.cn

RichHTML

5

PDF (PC)

18

Abstract:

Objective Non-felt needled/stitched multi-scale interlocking composites is a new type of fabric structure which enhances interlamainar strength, and it is excepted to meet the working requirements in complex environments such as hypersonic vehicles. However, the effect of stitching process on the mechanical properties of modeⅠinterlaminar property of non-felt needled composites is still unclear. In order to explore the influence of different stitching processes on the interlaminar properties of multi-scale interlocking composites and predict the modeⅠfracture behavior, multi-scale interlocking fabrics and composites are prepared, and a finite element model of modeⅠfracture behavior of multi-scale interlocking composite is established.

Method In this research, quartz yarn and quartz fabrics are used as raw materials for the preparation of the multi-scale interlocking fabrics and composite. According to ASTM D5528 experimental standard, modeⅠfracture behavior was tested with the prepared samples. Micro-CT and scaming electron microswpe(SEM) were used to observe and analyze the fabric structure and fracture morphology of the samples. A finite element model of mode I fracture behavior of multi-scale interlocked composites is established by using the 3 cohesive model.

Results The results showed that the introduction of stitching yarns significantly improved the interlaminar property of needled composites. The maximum interlaminar fracture load of the needled composite reached 81.56 N. The interlaminar fracture load values of multi-scale interlocking composites with different stitching matrices and fiber volume contents were 97.31 N, 107.84 N, and 119.57 N, respectively. Compared with the needled composite, the interlaminar fracture strength was improved by 19.31%-46.61%. The critical energy release rate of needled composite was 1.80 J/m2, and the critical energy release rates of multi-scale interlocking composites with different preparation processes were 1.96 J/m2, 2.24 J/m2 and 2.80 J/m2, respectivey. Compared with the needled composite, this was improved by 8.9%-55.55%. With the same stitching matrix, when the implantation amount of a single stitching yarn was increased from 100 to 200 tex, the maximum interlaminar failure load was increased by 12.91% and the critical energy release rate was increased by 17.8%. The implantation amount of the single stitiching yarn remained unchanged. With the increase of the stitching matrix, the total implantation volume was increased from 800 tex to 1 600 tex, the maximum interlaminar failure load was increased by 22.9% and the critical energy release rate was increased by 47.3%. Micro-CT observation of multi-scale interlocking fabrics revealed that the introduction of stitched and needle punched fiber bundles squeezed the fibers in the substrate, and that stitching yarns through the thickness direction of the fabric worked to achieve effective interlaminar connection. The needled fiber bundle showed T-shape and the interlaminar connection was weaker than that of stitching yarn. The fracture morphology of multi-scale interlocking composite was analyzed. The failure behavior included matrix cracking, fiber pulling out and fiber fracture. The finite element model was used to simulate the mode I fracture behavior of multi-scale interlocking composite, and the simulation results were consistent with the sample results, with a maximum error of only 3.10%.

Conclusion The study showed that compared to the needled composite, the interlaminar fracture performance of multi-scale interlocking composite is significantly improved. The maximum interlayer fracture load was increased by 19.31%-46.61%, and the critical energy release rate was increased by 8.9%-55.55%. The implantation amount of single yarn and the stitching matrix are the main factors affecting the interlaminar performance of multi-scale interlocking composite. The larger the implantation amount of a single bundle of yarn and the larger the stitching matrix, the better the interlaminar performance. The failure modes of multi-scale interlocking composite include matrix cracking, fiber pull-out, and fiber fracture. The error between the finite element simulation results of multi-scale interlocking composite and the actual results is only 3.10%, indicating that the finite element model can accurately predict the mode I interlaminar fracture behavior of multi-scale interlocking composite.

Key words: needling, fabric, composite, stitching, interlaminar strength

CLC Number:

  • TB332

Tab.1

Quartz fabric parameters"

材料 结构 面密度/
(g·cm-2)		 厚度/
mm		 拉伸强度/
(N·(25 mm)-1)
石英基布 缎纹 460 0.45 2 719
石英半切布 斜纹 285 0.30 —

Tab.2

Experimental parameters"

样品
编号		 制备方式 缝合纤维
束的线
密度		 缝合间
距/mm		 缝合矩
阵行
列数		 体积分
数/%
1# 针刺 — — — 45.4
2# 针刺/缝合 100 tex×8 3 3×8 46.9
3# 针刺/缝合 200 tex×4 6 3×4 46.9
4# 针刺/缝合 400 tex×4 6 3×4 48.4

Fig.1

Manufacture process of multi-scale interlocking fabrics"

Fig.2

Observation process and microstructure of multi-scale interlocking fabrics. (a) Observation process; (b) X-Y cross-section of scanning images; (c) X-Z cross-section of scanning image"

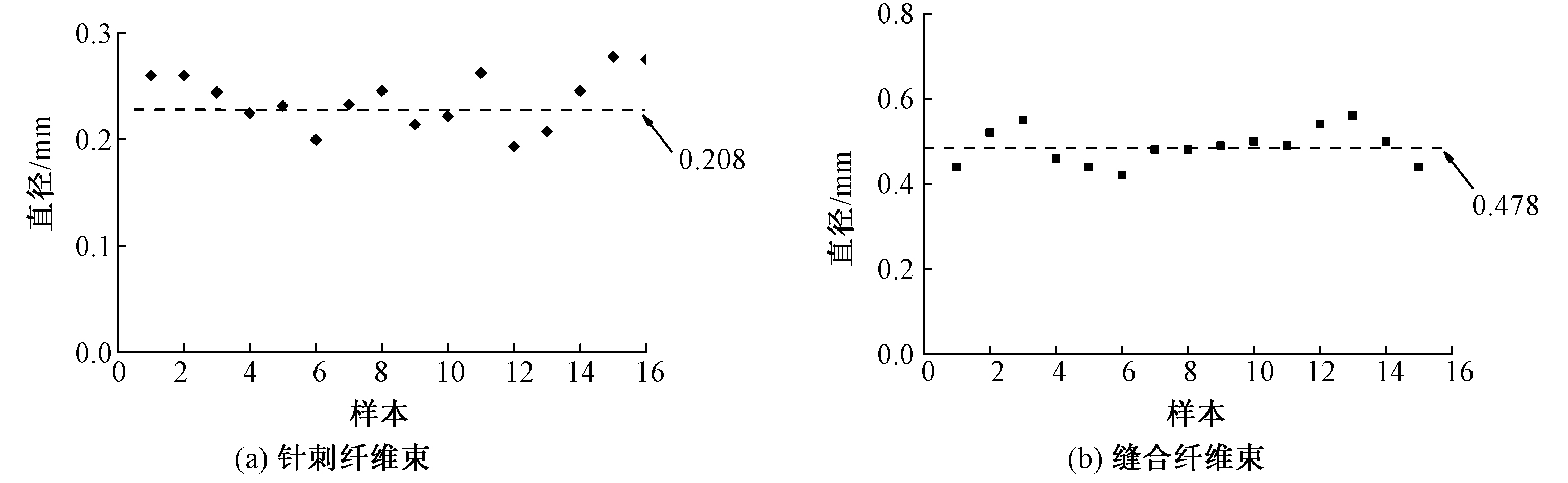

Fig.3

Diameter of fiber bundles. (a)Needled fiber bundle; (b) Stitched fiber bundle"

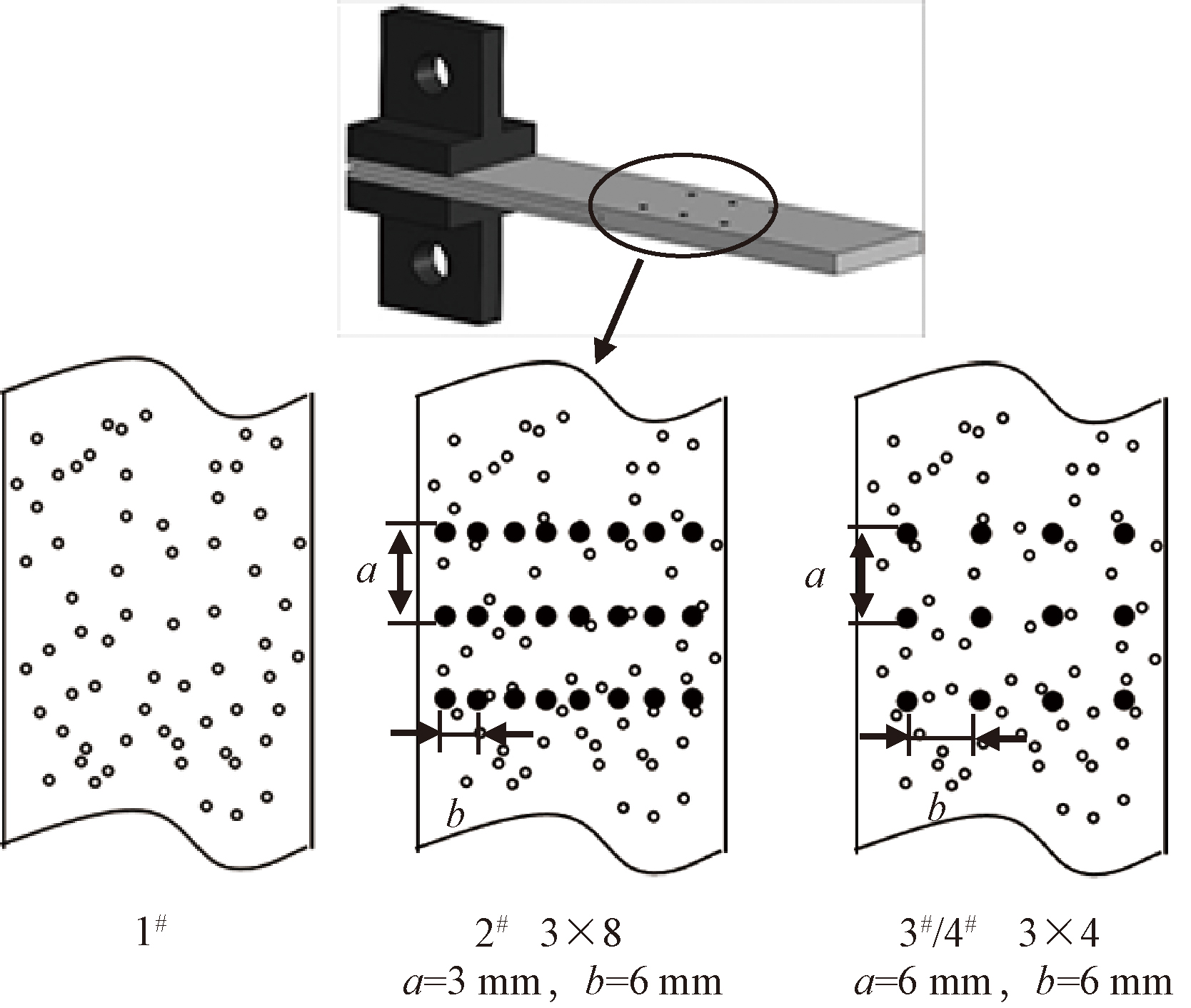

Fig.4

Mode I interlaminar fracture specimen"

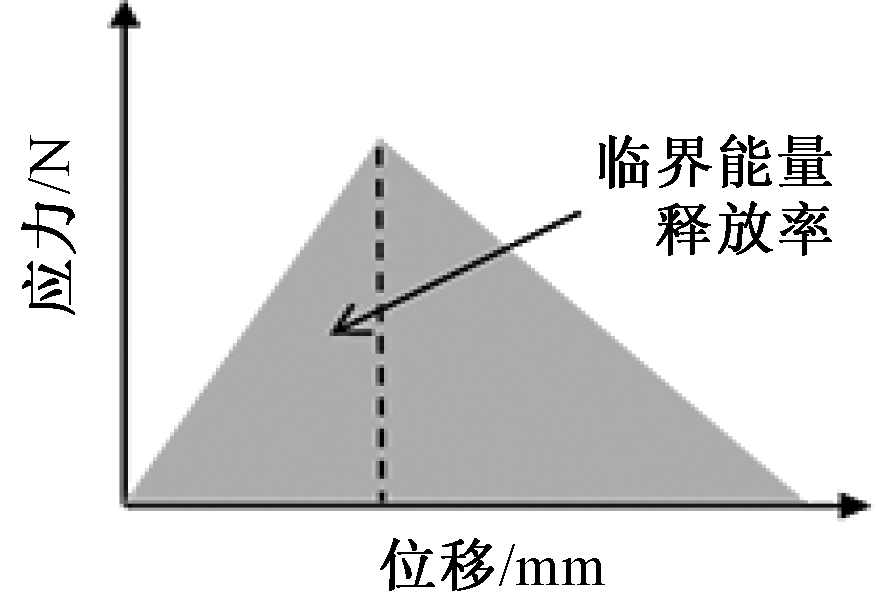

Fig.5

Traction separation law"

Fig.6

SEM images of typical fracture morphology. (a)Multi-scale interlocking composite; (b)Needled composite"

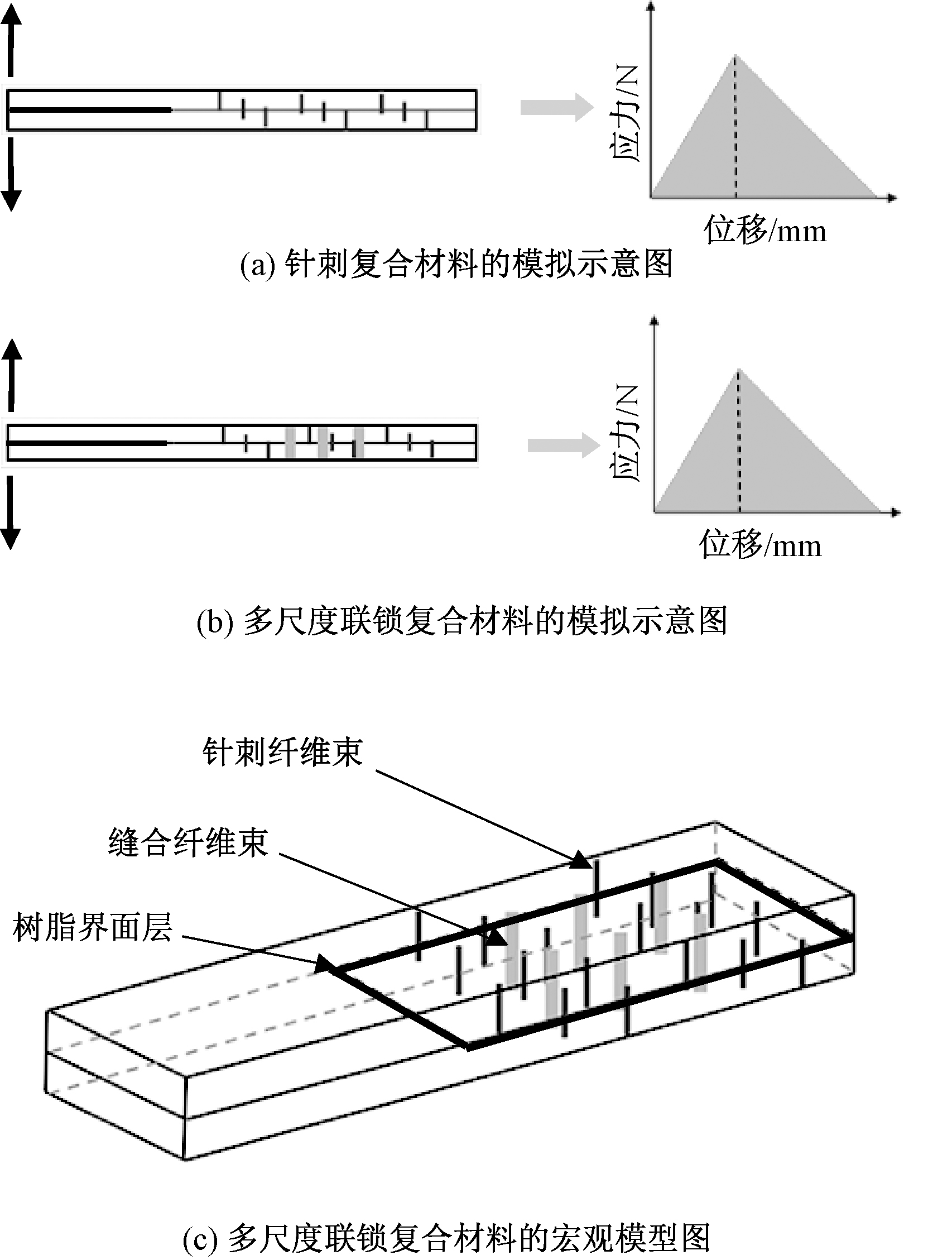

Fig.7

Mode I double cantilever beam simulation scheme. (a)Simulation diagram of needled composite;(b)Simulation diagram of multiscale interlocking composite; (c)Macro-scale interlocking composite model"

Tab.3

Mechanical properties of material"

材料 E11/
GPa		 E22/
GPa		 E33/
GPa		 G12/
GPa		 G13/
GPa		 G23/
GPa		 v12 v13 v23
树脂 3.45 3.45 3.45 1.28 1.28 1.28 0.35 0.35 0.35
针刺纤维 3.75 3.75 13.49 0.90 1.73 1.73 0.17 0.20 0.20
缝合纤维 4.90 4.90 46.41 2.43 2.39 2.39 0.21 0.21 0.21

Fig.8

Finite element model and meshing. (a)Needled composite; (b)Multi-scale interlocking composite"

Fig.9

Displacement load curves of needle punched composite and marco-scale interlocking composite with different stitching parameters"

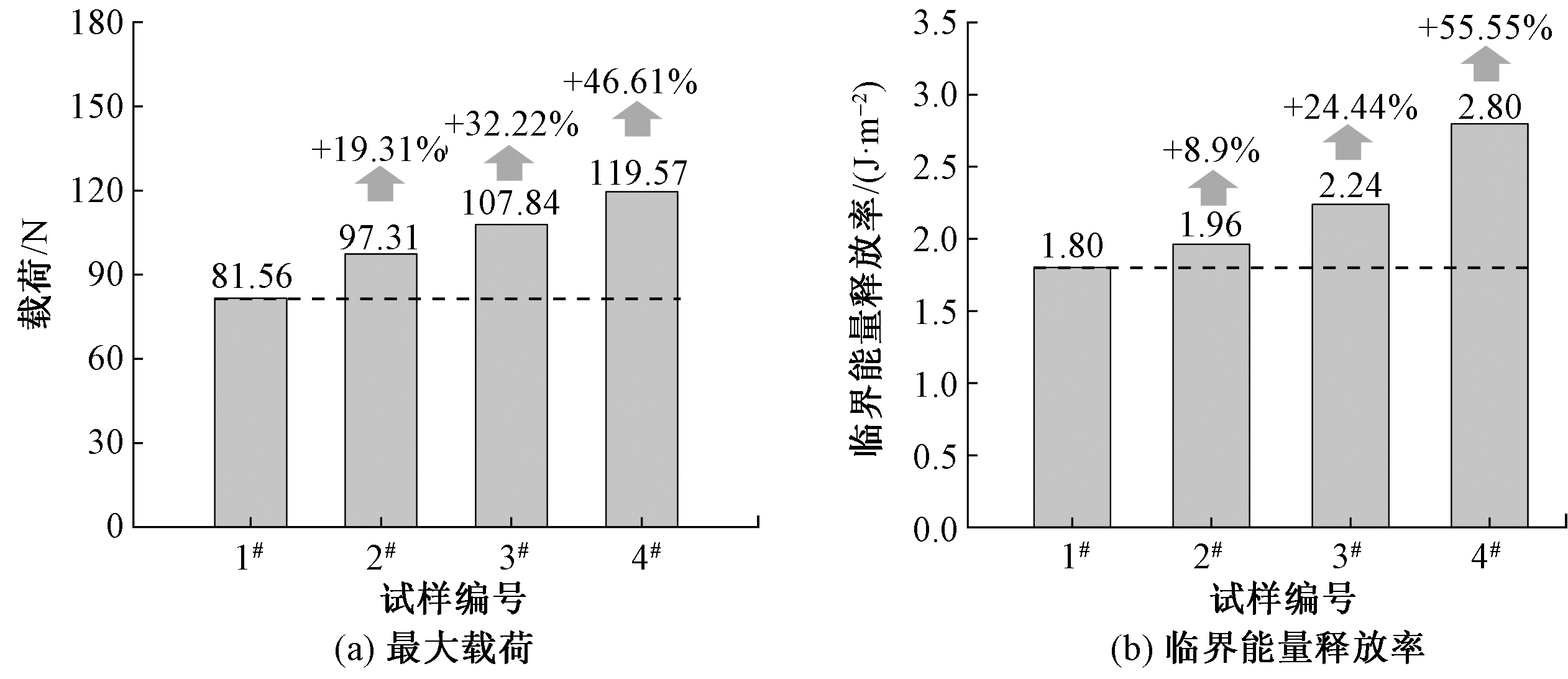

Fig.10

Comparison of maximum load(a) and critical energy release rate(b) of needle punched composite and macro-scale intelocking composite with different stitching parameters"

Fig.11

Comparison between simulated and experimental curves"

Tab.4

Comparison of maximum failure load between simulated and experimental data"

样品
编号		 最大载荷/N 误差/%
实验值 模拟值
1# 81.56 84.10 3.10
2# 94.43 93.75 0.70
3# 106.32 108.22 1.80
4# 119.57 118.50 0.70
[1] 陈小明, 李晨阳, 李皎, 等. 三维针刺技术研究进展[J]. 纺织学报, 2021, 42(5): 185-192.
CHEN Xiaoming, LI Chenyang, LI Jiao, et al. Research progress of three-dimensional needle-punching technology[J]. Journal of Textile Research, 2021, 42 (5): 185-192.
[2] CHEN X, CHEN L, ZHANG C, et al. Three-dimensional needle-punching for composites:a review[J]. Composites Part A, 2016, 13(2): 12-30.
[3] LACOSTE M Lacoste M, LACOMBE A, JOYEZ P, et al. Carbon/carbon extendible nozzles[J]. Acta Astronautica, 2002, 50(6): 357-367.
[4] 王恒, 张培伟, 徐培飞, 等. 三维针刺SiO2f/SiO2复合材料高温拉-拉疲劳特性[J]. 复合材料学报, 2024, 41(2): 1-10.
WANG Heng, ZHANG Peiwei, XU Peifei, et al. Tensile fatigue of three-dimensional needling SiO2f/SiO2 composites at high temperatures[J]. Acta Materiae Compositae Sinica, 2024, 41(2): 1-10.
[5] 刘宇峰, 俸翔, 王金明, 等. 高性能针刺碳/碳复合材料的制备与性能[J]. 无机材料学报, 2020, 35(10): 1105-1111.
doi: 10.15541/jim20190607
LIU Yufeng, FENG Xiang, WANG Jinming, et al. Preparation and properties of high-performance needled C/C composites[J]. Journal of Inorganic Materials, 2020, 35(10): 1105-1111.
doi: 10.15541/jim20190607
[6] 戚云超, 方国东, 周振功, 等. 不同针刺工艺的针刺复合材料面内拉伸强度分析[J]. 材料研究学报, 2023, 37(1): 21-28.
doi: 10.11901/1005.3093.2022.171
QI Yunchao, FANG Guodong, ZHOU Zhengong, et al. In-plane tensile strength for needle-punched composites prepared by different needling processes[J]. Chinese Journal of Materials Research, 2023, 37(1): 21-28.
doi: 10.11901/1005.3093.2022.171
[7] YIN D, DENG Y, MA Y, et al. Effect of SiC content on the mechanical behaviour of a three-dimensional needled C/SiC composite[J]. Ceramics International, 2021, 47(17): 25067-25073.
[8] 陈小明, 任志鹏, 郑宏伟, 等. 基于预/主刺协同的针刺织物力学性能提升方法[J]. 纺织学报, 2023, 44(4): 100-107.
CHEN Xiaoming, REN Zhipeng, ZHENG Hongwei, et al. A method for improving mechanical properties of needled fabrics based on synergy of pre-needling and main needling[J]. Journal of Textile Research, 2023, 44(4): 100-107.
[9] YAO T, CHEN X, LI J, et al. Significantly improve the interlayer and in-plane properties of needled fabrics by novel none-felt needling technology[J]. Composite Structures, 2021, 274(1): 80-84.
[10] 张小龙, 郭若含, 李钊. 针刺+缝合预制体C/C复合材料的制备及性能研究[J]. 炭素, 2022(3): 10-14.
ZHANG Xiaolong, GUO Ruohan, LI Zhao. Study on preparation and performance of new thickwalled preforms[J]. Carbon, 2022(3): 10-14.
[11] YAO T, CHEN X, LI J, et al. Experimental and numerical study of interlaminar shear property and failure mechanism of none-felt needled composites[J]. Composite Structures, 2022, 290: 12-18.
[12] CHEN X, ZHENG H, WEI Y, et al. Effect of tufting on the interlaminar bonding behavior of needled composite[J]. Polymer Composites, 2023, 44(1): 229-240.
[13] MI Y, CRISFIELD M A, DAVIES G A O. Progressive delamination composite using interface elements[J]. Journal of Composite Materials, 1998, 32: 1246-1272.
[14] TAPULLIMA J, KIM C H, CHOI J H. Analysis and experiment on DCB specimen using I- fiber stitching process[J]. Composite Structures, 2019, 220: 521-528.
[15] WANG B, WANG Z, LIANG J, et al. Research on tensile properties and size effect of 3D four-directional braided composites[J]. Advanced Materials Research, 2011, 32(s1): 53-59.
