Melt-blown process of low-density polyethylene and its nonwovens properties

LIU Wenlong1, LI Haoyi1, HE Dongyang1, LI Changjin2, ZHANG Yang1, MA Xiuqing1(), LI Manyi3, YANG Weimin1

  1. 1. Beijing University of Chemical Technology, Beijing 100029, China
    2. Sinopec Beijing Research Institute of Chemical Industry, Beijing 100013, China
    3. Shandong Cornell Materials Technology Co., Ltd., Binzhou, Shandong 256600, China
  • Received:2023-07-06 Revised:2024-01-11 Online:2024-10-15 Published:2024-10-15
  • Contact: MA Xiuqing E-mail:maxq@mail.buct.edu.cn

RichHTML

16

PDF (PC)

57

Abstract:

Objective Polyethylene (PE) nonwovens have excellent characteristics such as softness, corrosion resistance and hydrophobicity, and have broad application prospects in medical packaging, clothing, filtration and other fields. However, the traditional preparation process of high-performance polyethylene nonwovens is cumbersome, and the production process involves a large number of toxic solvents, and the production efficiency is low. Exploring the efficient preparation process of ultrafine polyethylene nonwovens has become an urgent research problem to be solved. Melt-blown technology is a common and efficient preparation method for microfiber, and the preparation of polyethylene microfiber by melt-blown method is rarely reported.

Method The preparation of low-density polyethylene(LDPE) melt-blown nonwovens was achieved by using a self-assembled melt-blown testing machine. The effects of different processes on the diameter of LDPE fibers were studied by controlling a single variable and adjusting the melt-blown process parameters in the experiment, including hot air temperature, hot air flow, mold temperature, melt flow and receiving distance. In addition, the filtration efficiency and tensile properties of LDPE melt-blown nonwovens were also studied.

Results The effects of melt-blown process parameters on the diameter of LDPE fibers were studied, including different hot air temperature, hot air flow rate, die temperature, receiving distance and melt flow rate. The results showed that increasing the hot air temperature, hot air flow rate and die temperature would reduce the average diameter of the fiber, and the average diameter of the fiber would increase after increasing the receiving distanc and melt flow rate. The minimum average diameter of the prepared fibers reached 5.3 μm, offering reference value for further preparation of polyethylene microfibers. The filtration performance of LDPE melt-blown nonwovens with different areal densities was explored, and the effect of areal density on LDPE filtration efficiency and filtration resistance was established, with the increase of areal density, the filtration efficiency and filtration resistance of melt-blown nonwovens showed a gradual upward trend. The filtration resistance was increased from 5.1 Pa to 20.9 Pa, and the filtration efficiency increased from 52.89% to 59.32%. After hot pressing treatment, the filtration efficiency of the 120 g/m2 nonwoven fabric reached more than 75% at a flow rate of 32 L/min, and the average filtration resistance is 80 Pa. The mechanical properties of LDPE melt-blown nonwovens with areal densities of 25 g/m2, 50 g/m2 and 120 g/m2 were investigated. The nonwovens with higher areal density were found to withstand greater tensile strength, and when the areal density is 25 g/m2, the LDPE melt-blown nonwovens demonstrated the highest elongation at break, up to 75%. When the areal density was 120 g/m2, the maximum pulling force and tensile strength of melt-blown nonwovens were the highest, reaching 6.12 N and 2.16 MPa, respectively.

Conclusion The melt-blown process can realize the efficient preparation of LDPE nonwovens, and the average diameter of the fiber decreases with the increase in hot air temperature, hot air flow rate and die temperature, and increases with the increase of receiving distance and melt flow, and the filtration efficiency, filtration resistance and tensile strength of melt-blown membrane increase with the increase of surface density of nonwoven. Process parameters would affect the microstructure and pore morphology of the fiber membrane, resulting in changes in mechanical properties and filtration properties. Furthermore, the microstructure of the melt-blown nonwoven can be changed by post-treatment processes such as hot pressing, and products with better performance can be obtained. So as to enhance the market potential and application value of polyethylene melt-blown nonwovens in the field of medical protection.

Key words: low-density polyethylene, melt-blown technology, microfiber, nonwoven, medical protective material, filtering performance

CLC Number:

  • TS174.8

Fig.1

Schematic diagram of preparation device of LDPE melt-blown nonwovens"

Fig.2

SEM images of melt-blown nonwovens at different hot air temperatures"

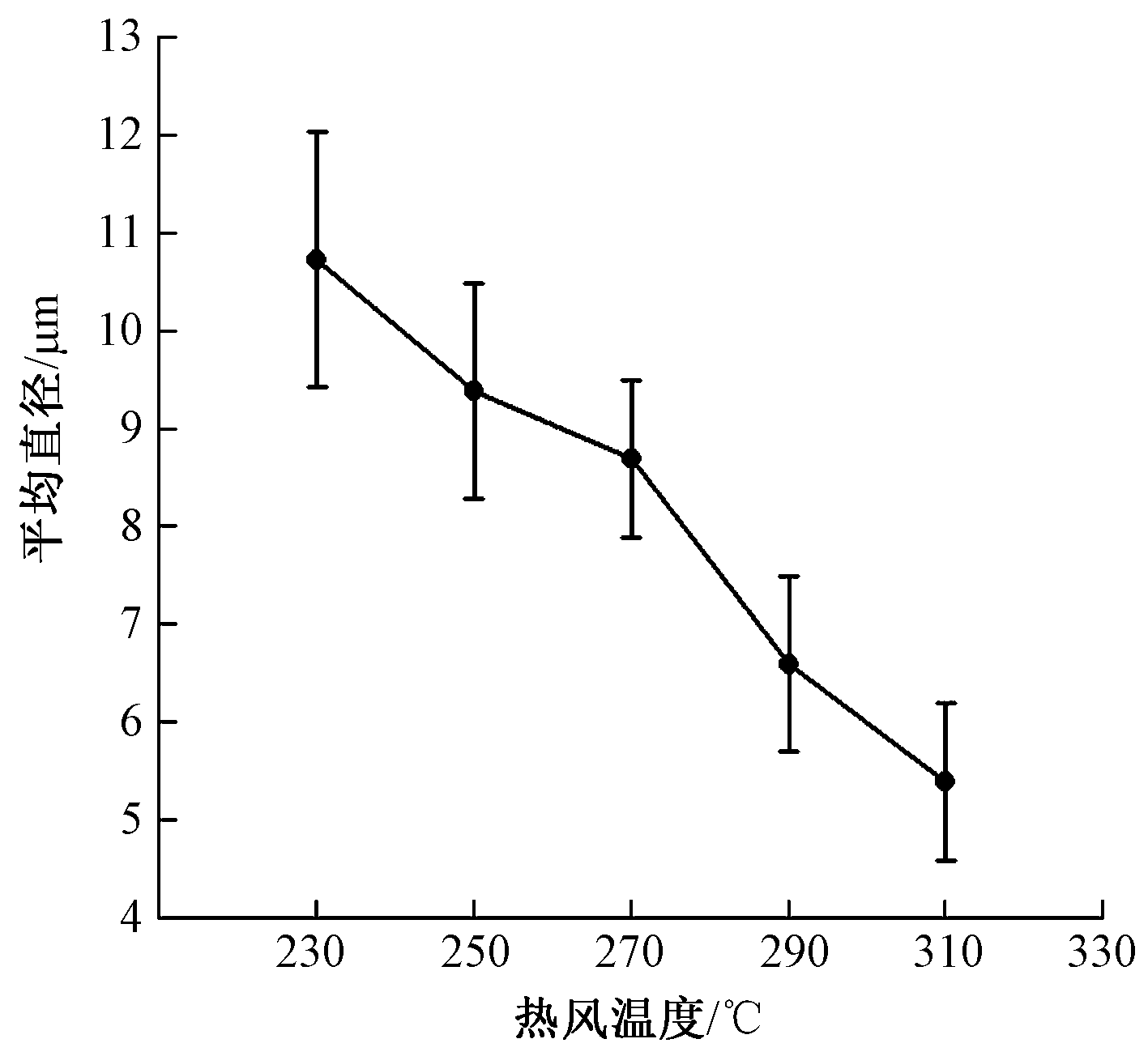

Fig.3

Average fiber diameter at different hot air temperatures"

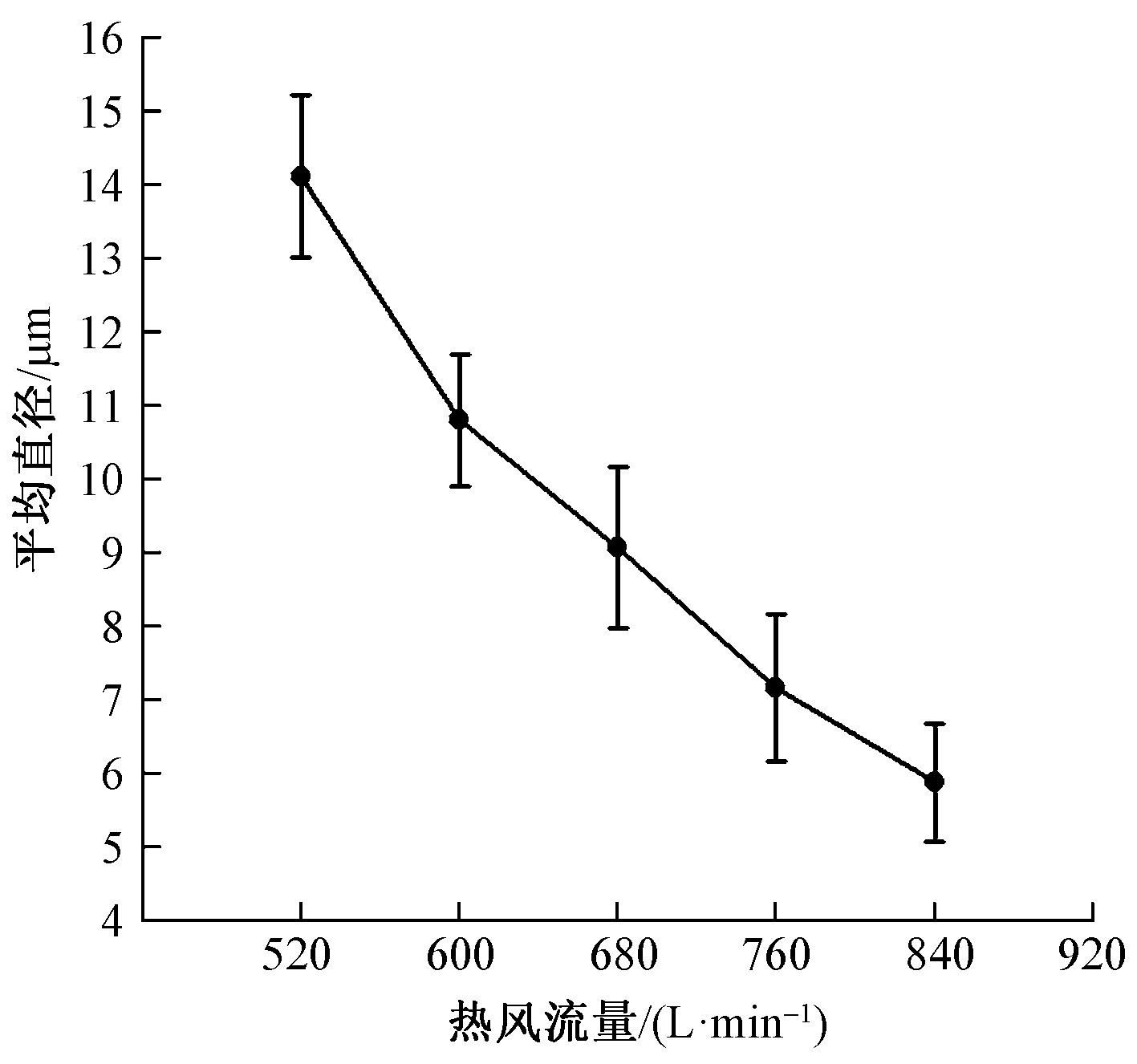

Fig.4

Average fiber diameter at different hot air flows"

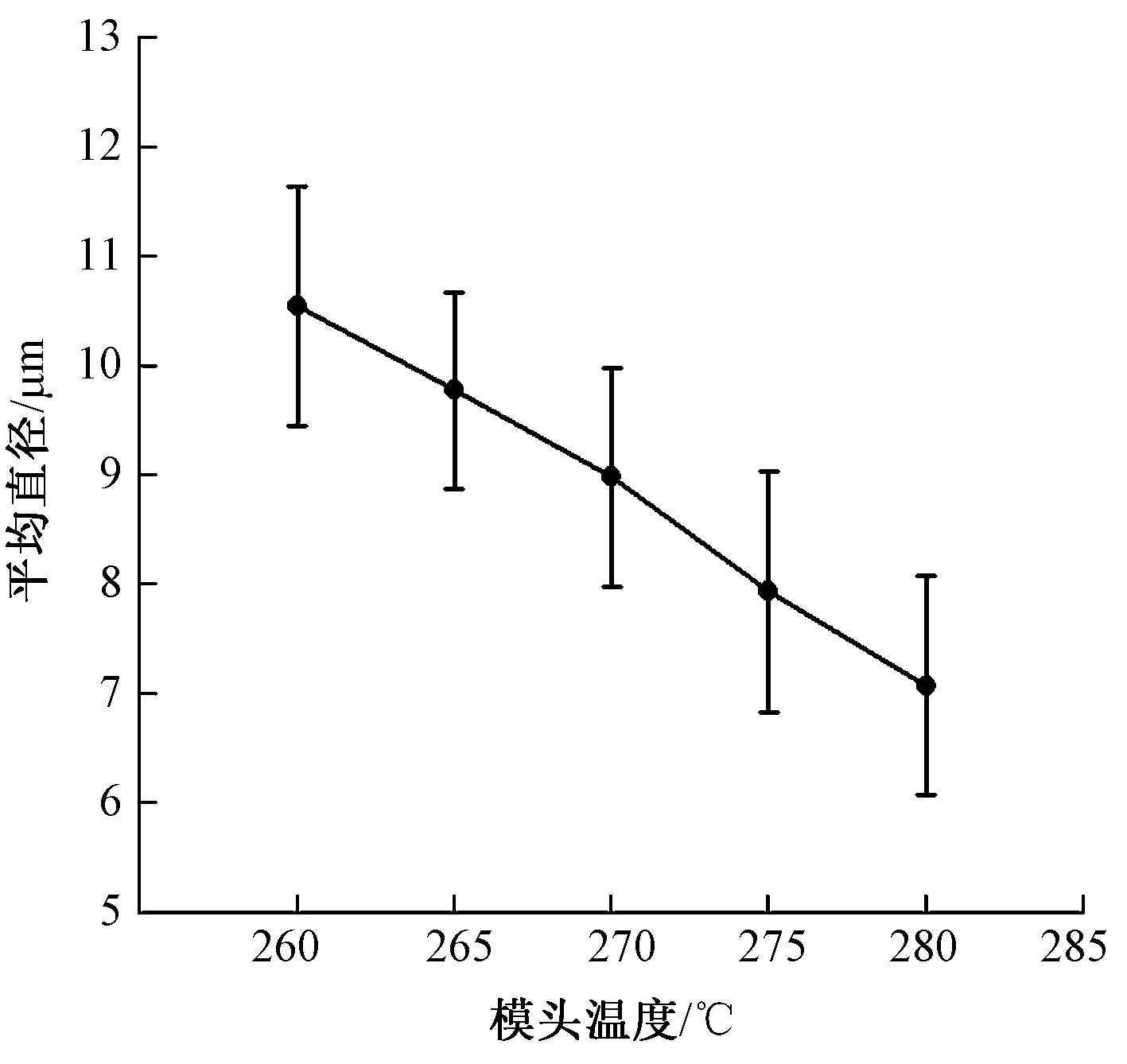

Fig.5

Average fiber diameter at different die temperatures"

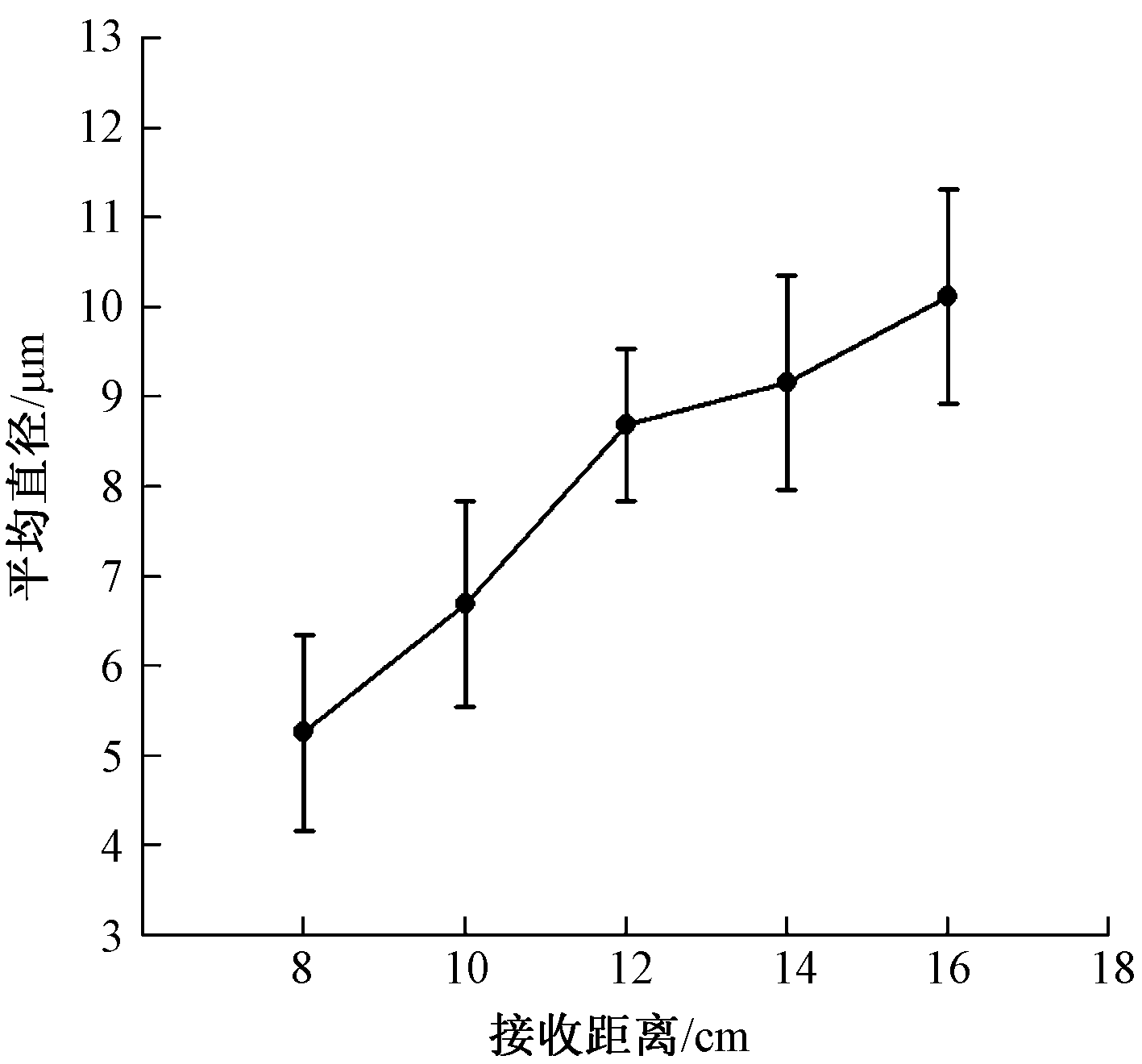

Fig.6

Average fiber diameter at different receiving distances"

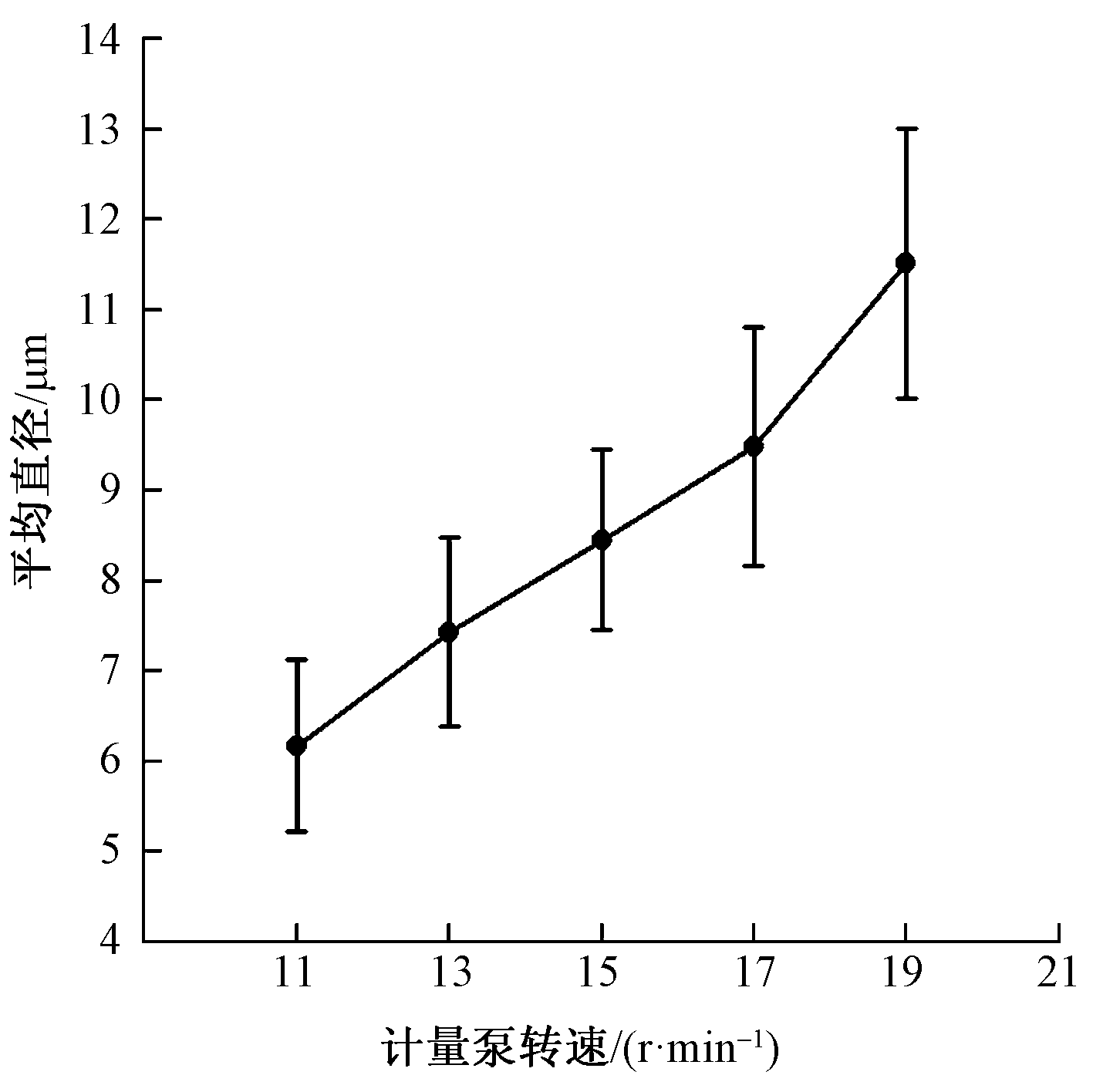

Fig.7

Average fiber diameter at different metering pump speeds"

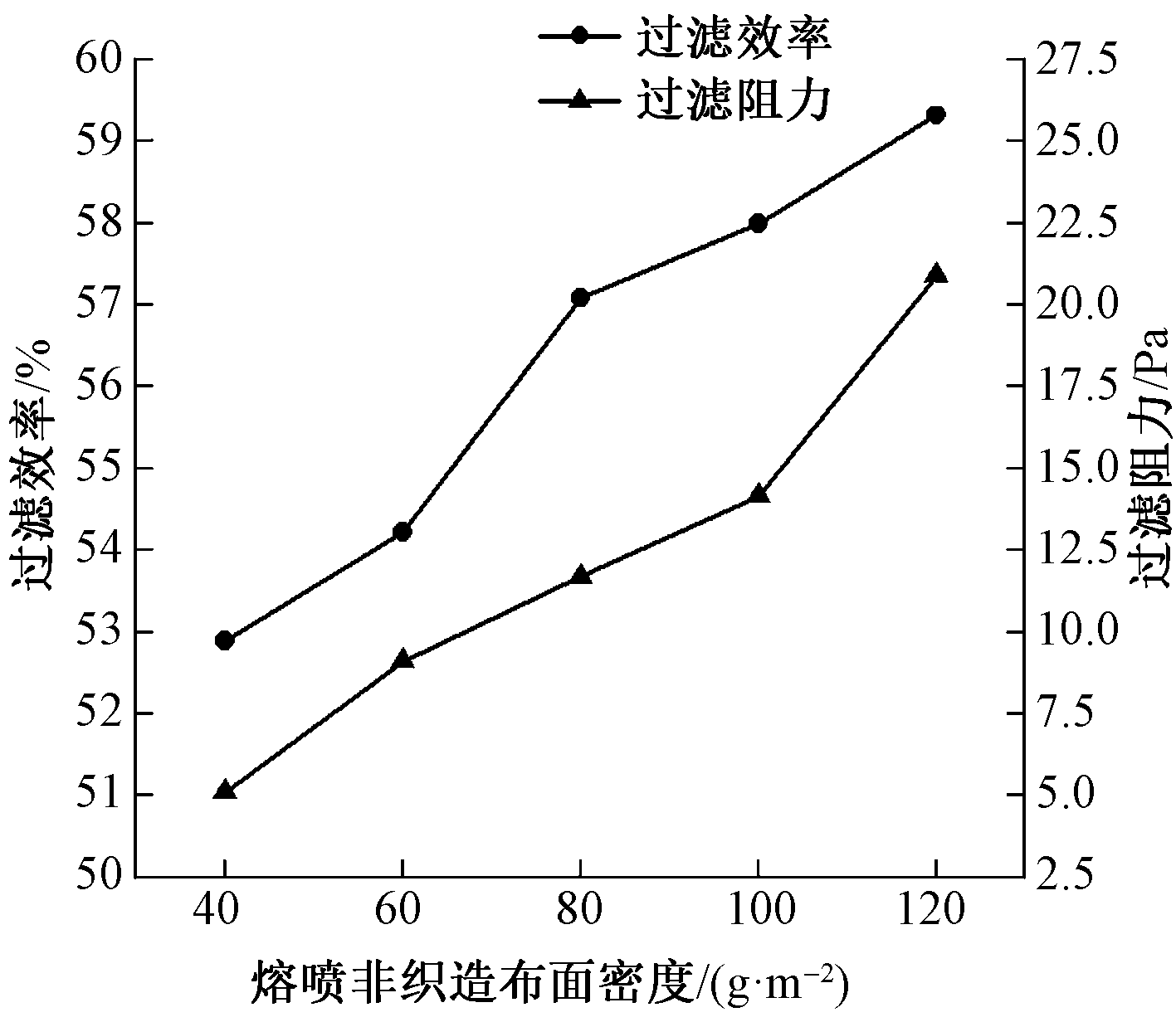

Fig.8

Filtration efficiency and filtration resistance of melt-blown nonwovens with different areal densities"

Tab.1

Mechanical properties of melt-blown nonwovens"

非织造布样品 最大拉伸
强力/N		 抗拉强
度/MPa		 断裂伸长
率/%
25 g/m2 PP 2.89 3.63 61
25 g/m2LDPE 1.20 1.35 75
50 g/m2LDPE 2.43 1.80 73
120 g/m2LDPE 6.12 2.16 39
[1] HIREMATH N, BHAT G. Melt blown polymeric nanofibers for medical applications: an overview[J]. Nanoscience and Technology, 2015, 2(1): 1-9.
[2] 胡声威, 钱鑫, 王素玉, 等. 熔喷聚丙烯原料性能及加工工艺研究[J]. 塑料工业, 2021, 49(7): 148-150.
HU Shengwei, QIAN Xin, WANG Suyu, et al. Study on properties and processing technology of melt-blow polypropylene raw material[J]. China Plastics Industry, 2021, 49(7): 148-150.
[3] HUFENUS R, YAN Y, DAUNER M, et al. Melt-spun fibers for textile applications[J]. Materials, 2020, 13(19): 4298-4329.
[4] HAN Mingchao, HE Hongwei, KONG Weikang, et al. High-performance electret and antibacterial polypropylene meltblown nonwoven materials doped with boehmite and ZnO nanoparticles for air filtration[J]. Fibers and Polymers, 2022, 23(7): 1947-1955.
[5] YU B, HAN J, SUN H, et al. The preparation and property of poly(lactic acid)/tourmaline blends and melt-blown nonwoven[J]. Polymer Composites, 2015, 36(2): 264-271.
[6] 张宇静, 陈连节, 张思东, 等. 高熔融指数聚乳酸母粒的制备及其熔喷材料的可纺性[J]. 纺织学报, 2023, 44(2): 55-62.
ZHANG Yujing, CHEN Lianjie, ZHANG Sidong, et al. Preparation of high melt index polylactic acid masterbatch and spinnability of its meltblown materials[J]. Journal of Textile Research, 2023, 44(2): 55-62.
[7] YU Y, SHIM E. Process-structure-property relationship of meltblown poly(styrene-ethylene/butylene-styrene) nonwovens[J]. Applied Polymer Science, 2021, 138(16): 50230-50241.
[8] 刘亚, 程可为, 赵义侠, 等. 热塑性聚氨酯熔喷非织造材料制备与性能[J]. 纺织学报, 2022, 43(11): 88-93.
doi: 10.13475/j.fzxb.20210802806
LIU Ya, CHENG Kewei, ZHAO Yixia, et al. Preparation and properties of thermoplastic polyurethane meltblowns[J]. Journal of Textile Research, 2022, 43(11): 88-93.
doi: 10.13475/j.fzxb.20210802806
[9] 高林娜, 吁苏云, 钟桂云, 等. 熔喷法乙烯-三氟氯乙烯共聚物膜的制备与性能研究[J]. 塑料工业, 2022, 50(3): 73-78.
GAO Linna, YU Suyun, ZHONG Guiyun, et al. Preparation and performance of melt-blown ethylene chlorotrifluoroethylene copolymer membrane[J]. China Plastics Industry, 2022, 50(3): 73-78.
[10] 杨潇东, 于斌, 孙辉, 等. 聚乙烯三氟氯乙烯熔喷非织造材料的制备及其过滤性能[J]. 纺织学报, 2023, 44(2): 19-26.
YANG Xiaodong, YU Bin, SUN Hui, et al. Preparation and filtration properties of polyethylene trifluoroethylene melt-blown nonwovens[J]. Journal of Textile Research, 2023, 44(2): 19-26.
[11] 王磊, 杨璧玲. 非织造布医用防护服及其发展趋势[J]. 纺织科技进展, 2021, 12: 1-4.
WANG Lei, YANG Biling. Non-vowen medical protective clothing and its development trend[J]. Progress in Textile Science & Technology, 2021, 12: 1-4.
[12] 夏云霞, 李磊, 罗章生, 等. 基于闪蒸法制备再生聚乙烯无纺布及其性能研究[J]. 中国塑料, 2022, 36(5): 14-18.
doi: 10.19491/j.issn.1001-9278.2022.05.003
XIA Yunxia, LI Lei, LUO Zhangsheng, et al. Preparation and properties of recycled polyethylene non-woven fabrics based on flash evaporation[J]. China Plastics, 2022, 36(5): 14-18.
doi: 10.19491/j.issn.1001-9278.2022.05.003
[13] GIVENS S R, GARDNER K H, RABOLT J F, et al. High-temperature electrospinning of polyethylene microfibers from Solution[J]. Macromolecules, 2007, 40(3): 608-610.
[14] LUISO S, HENRY J J, POURDEYHIMI B, et al. Fabrication and characterization of meltblown poly(viny-lidene difluoride) membranes[J]. ACS Applied Polymer Materials, 2020, 2(7): 2849-2857.
[15] JAFARI M, SHIM E, JOIJODE A. Fabrication of poly(lactic acid) filter media via the meltblowing process and their filtration performances: a comparative study with polypropylene meltblown[J]. Separation and Purification Technology, 2021. DOI: 10.1016/j.seppur.2020.118185.
[16] HODA N, MERT F, KARA F, et al. Effect of process parameters on fiber diameter and fiber distribution of melt-blown polypropylene microfibers produced by biax line[J]. Fibers and Polymers, 2021, 22(1): 285-293.
[17] XIAO Y, SAKIB N, YUE Z, et al. Study on the relationship between structure parameters and filtration performance of polypropylene meltblown nonwovens[J]. Autex Research Journal, 2020, 20(4): 366-371.
[18] BIER A M, REDEL M, SCHUBERT D W. Model to predict polymer fibre diameter during melt spinning[J]. Advances in Polymer Technology, 2023. DOI: 10.1155/2023/7983819.
[19] 于斌, 张旭阳, 孔瑾瑾, 等. DCD对PLA熔喷纤网结构和性能的影响[J]. 稀有金属材料与工程, 2016, 45(S1): 345-349.
YU Bin, ZHANG Xuyang, KONG Jinjin, et al. Influence of die-to-collector distance on structure and property of the PLA meltblowing web[J]. Rare Metal Materials and Engineering, 2016, 45(S1): 345-349.
[20] YESIL Y, BHAT G S. Structure and mechanical properties of polyethylene melt blown nonwovens[J]. International Journal of Clothing Science and Technology, 2016, 28(6): 780-793.
[21] 金关秀, 祝成炎. 孔隙形状对熔喷非织造布过滤品质的影响[J]. 上海纺织科技, 2018, 46(11): 15-18.
JIN Guanxiu, ZHU Chengyan. Effect of pore shape on the filter quality of melt-blown nonwoven[J]. Shanghai Textile Science & Technology, 2018, 46(11): 15-18.
[22] 张淑苹, 赵义侠, 钱子茂, 等. 熔喷非织造过滤材料驻极技术研究进展[J]. 毛纺科技, 2022, 50(5): 117-125.
ZHANG Shuping, ZHAO Yixia, QIAN Zimao, et al. Research progress on the electret technology of meltblown nonwoven filter materials[J]. Wool Textile Journal, 2022, 50(5): 117-125.
[23] WAN Caixia, CAO Tian, CHEN Xin, et al. Fabrication of polyethylene nanofibrous membranes by biaxial stretching[J]. Materials Today Communication, 2018, 17: 24-30.
